Description

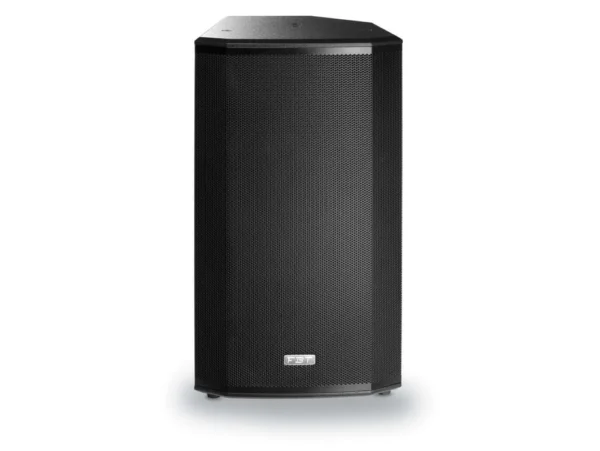

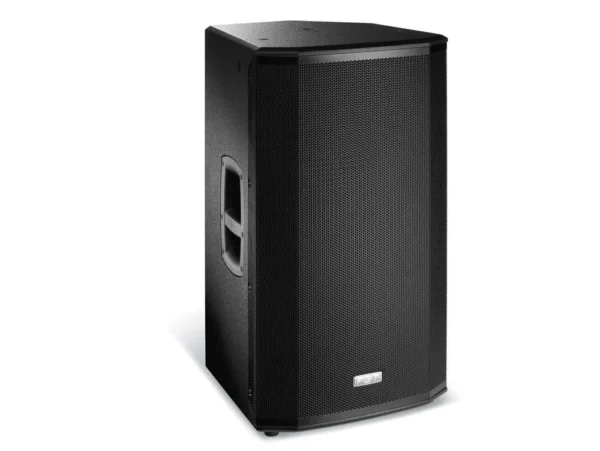

FBT Ventis 115A Processed Active Speaker
Ventis 115A Active Speaker
15″ + 1″ 700w + 200w Active Speaker with DSP and Delay
Ventis 115A is part of the Ventis range which are ideal for portable performance or fixed installation. This
Active speaker
includes an 15″ woofer and a 1″ exit 1.7″VC compression driver .The built in DSP LCD screened Amp module is 700W + 200W Delivering 133dB SPL. Features a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available
PRODUCT DESCRIPTION
PROCESSED ACTIVE SPEAKER 700W + 200W RMS – 133DB SPL
For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.
VENTIS Presets
The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.
ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximise speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasise full-bodied, low-mid frequencies.
KEY FEATURES
2-way, bi-amplified, bass reflex design
Biamped: 700W RMS LF and 200W RMS HF Amplifiers -> Power Amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59″) birch plywood scratch resistant enclosure and internal bracing
High efficiency switch mode power supply

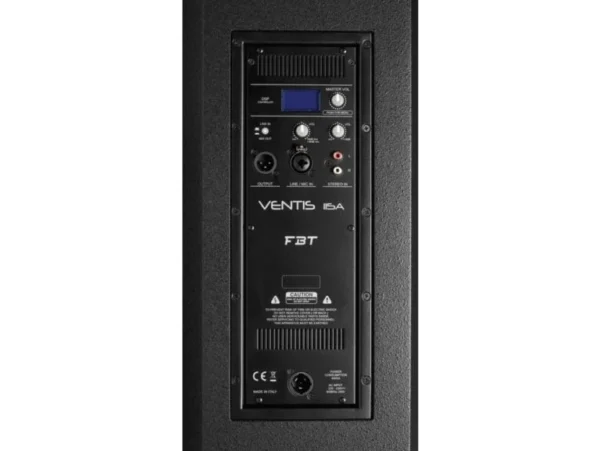

Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
38Ωmm (15″) LF woofer with 64Ωm (2.5″) voice coil, custom made for FBT
25mm (1″) exit throat B&C HF compression driver with 4Ωmm (1.7″) voice coil
Frequency response from 4ΩHz to 20KHz
8Ω°H x 50°V Constant Directivity rotatable Horn
6 x M10 suspension points, wall bracket mount thread, 35 mm (1 3/8Ω) top-hat speaker stand socket, two aluminium handles
4Ω° monitor taper
Adjustable delay between 0 – 10m
Weight : 25Kg
Dimensions : 4Ω7 x 765 x 4Ω0mm
Explore our more relatable products like
FBT Ventis 112A Processed Active Speaker
.
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
4ΩHz – 20kHz -6dB
Low frequency woofer:
15
High frequency driver:
1
Input impedance:
22kOhm
Input connector:
XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD):
4Ω7 x 765 x 4Ω0mm
Net Weight:
25kg
Transport Dimension (WxHxD):
600 x 8Ω5 x 520mm
Transport Weight:
29kg
AC Power requirements:
64ΩVA
Power cord:
5m
Built in amplifier:
900w (700w LF + 200w HF)
Built in amplifier peak:
18Ω0w (14Ω0w LF + 4Ω0w HF)
Maximum SPL continuous/peak:
127/133dB
Dispersion (HxV):
8Ω? x 50? rotatable
