Description

FBT X-LITE 110A Powered Speaker with Built-in Bluetooth
X-LITE 110A
10″ Powered Speaker with Built-in Bluetooth
The
FBT XLITE 110A
with
integrated 3-channels mixer
features lightweight, yet rugged gas injected moulded polypropylene cabinet construction. Available in black finish, the FBT XLITE 110A provides excellent sound and an elegant design for portable sound and fixed installation.
PRODUCT DESCRIPTION
The
FBT XLITE 110A
series speakers with integrated 3-channels mixer feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish, the FBT XLITE 110A series speakers provide fixed installations with an elegant design that blends into any decor.
The asymmetrical shape of the FBT XLITE 110A cabinet also allows use as a powered floor stage monitor.
The FBT XLITE 110A is two way design incorporating a 10 low frequency woofer and 1 HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 58Ωz – 20kHz the FBT XLITE 110A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB.

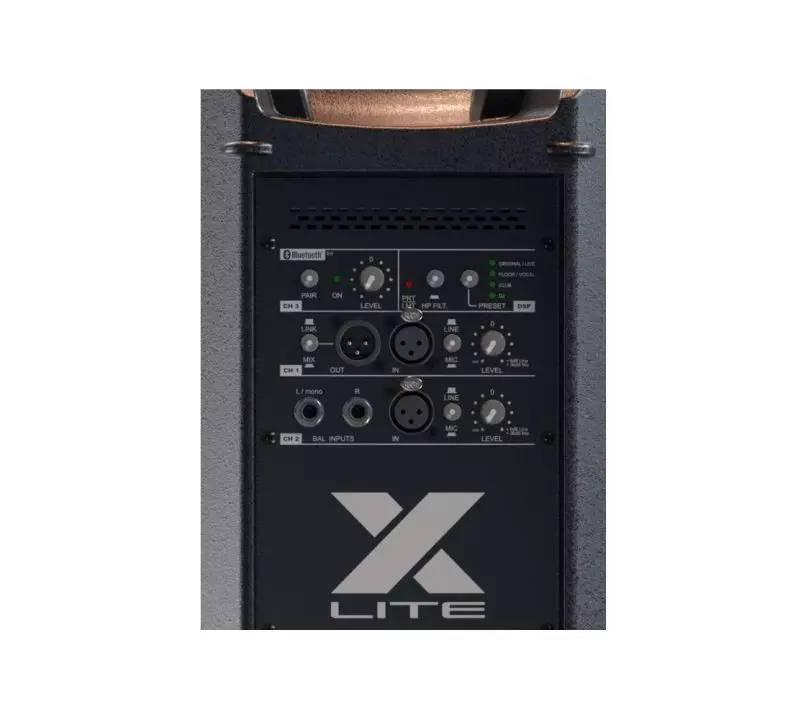

The bi-amplified FBT XLITE 110A active speaker feature a 1200W low frequency amp and a 300W high frequency amp. The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two XLR inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led. 4Ωx M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 110A speaker to be surface mounted on walls or ceilings.
A standard 35mm speaker stand socket allows the FBT XLITE 110A to be mounted on speaker stand
KEY FEATURES
2 way bi-amplified bass reflex system
Polypropylene moulded enclosure
Custom 10″ woofer (LF) / 2.5″ voice coil
1″ throat / 1.4Ω voice coil HF compression driver
1200w / 300w Built-In amplifier (LF / HF)
Bluetooth 5.0
3-Channel mixer
4ΩDSP Presets
30 degrees & 4Ω degrees monitor tapers
Universal switch mode power supply 100-24Ω VAC
M10 rigging points
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
58Ωz – 20KHz
Low frequency woofer:
10″ – 2.5″ VC
High frequency driver:
1″ – 1.4Ω VC
Maximum SPL cont/peak:
123/127 dB
Dispersion:
90 x 60
Input impedance:
22
Input connector:
XLR IN/OUT
Net Dimension (WxHxD):
300 x 536 x 301.5
Net Weight:
13 KG
Transport Dimension (WxHxD):
370 x 615 x 38Ω
Transport Weight:
14Ω8ΩKG
Built in amplifier peak:
LF 1200w HF 300w
