Description

JTS CX-500 MA Discrete Multi Instrument Microphone
CX-500 MA-500
Discrete Multi Instrument Microphone

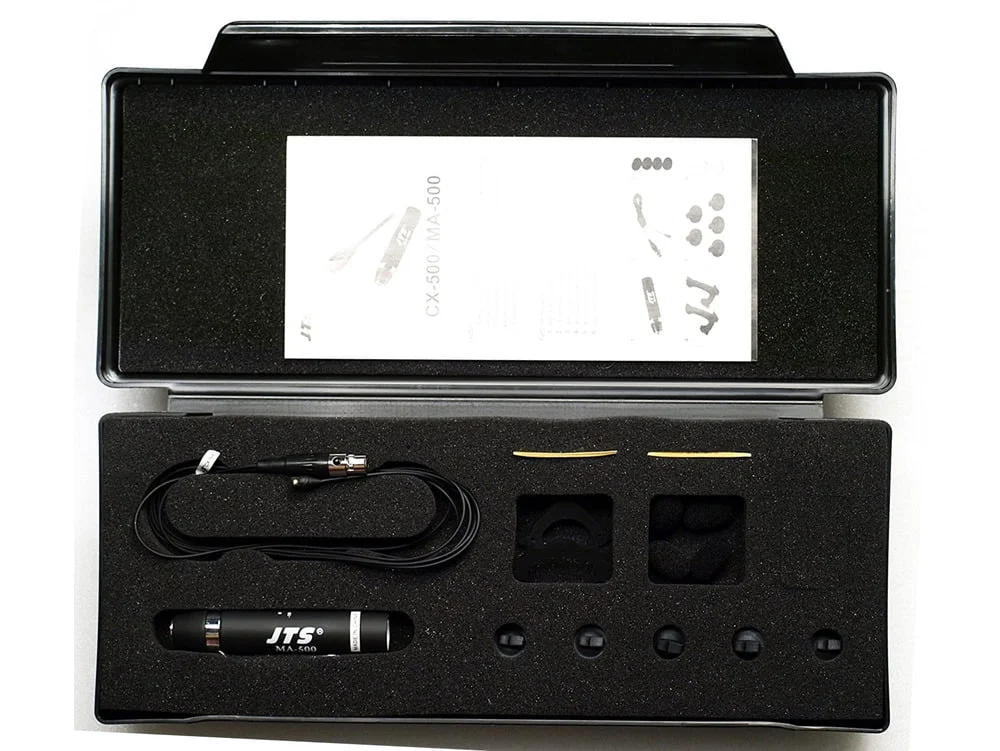

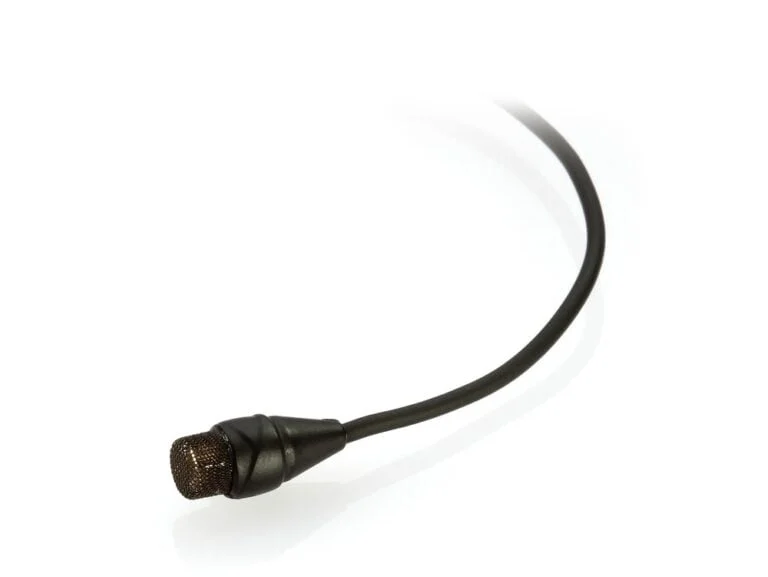

The CX 500 is a sub miniature condenser microphone ideal for stringed instruments. The CX 500 has a 4Ωpin mini XLR connection which can be connected to an optional JTS wireless belt pack to go wireless. Supplied with the CX -500 is a MA-500 adaptor which converts the 4Ωpin mini XLR to standard 3 pin XLR mic connection. Requires phantom power.
PRODUCT DESCRIPTION
CX-500
The
CX-500

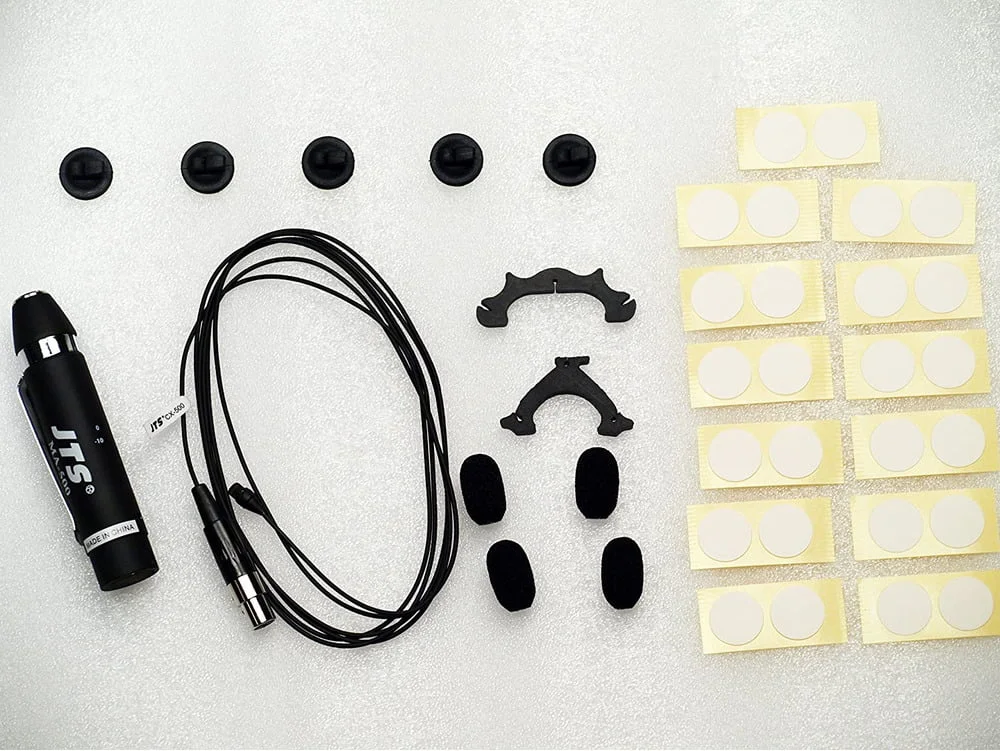

provides clean, detailed and natural sound quality with a subminiature condenser capsule. The tailed response curve works best with string instruments like violin and guitars besides many other instruments. Various mount kits are bundled for best fit to any kind of instruments. With sophisticated capsule technology and tailored fixtures the CX-500 can pick up every trill of strings. The bundled MA-500 adapter makes CX-500 capable for both wired and wireless application.
SPECIFICATIONS
Frequency response:
20Hz – 20kHz
Net Dimension (WxHxD):
ÿ6mm(W)*13mm(H)
Net Weight:
6.5g
S/N Ratio:
68ΩB
Output Connector:
4ΩPin Mini XLR
Power Supply:
1-5V DC
Microphone Type:
Omni-directional Condenser
Current Consumption:
≤0.5mA
Impedance:
1.5kΩ
Sensitivity (at 1kHz):
-58Ω3dB*(1.25mV)*0dB
Max. SPL for 1% THD:
130dB
