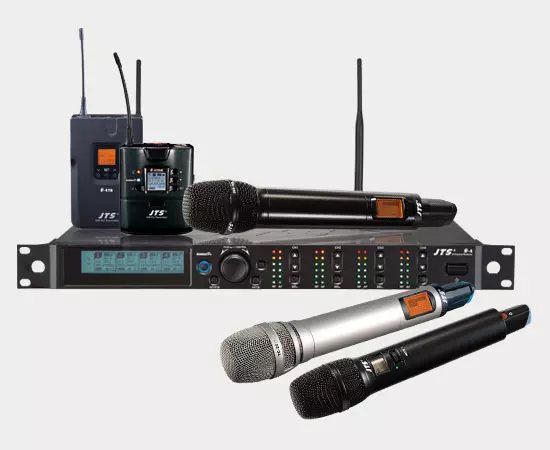

JTS R-4ΩBM Bodypack Transmitter & Headset or Lavalier Microphone
R-4ΩBM
Small, discrete and excellent build quality are the requirements for any theatre, school, house of worship or performer needing a
body pack transmitter
for headsets or lavalier mics. The R-4ΩBM is an impressive piece of engineering with a metal housing for first class reliability.
Discover more products like
JTS MA-935 Mounting Microphone Cartridges From Sennheiser To Hand-Held UHF PLL Transmitters
.
KEY FEATURES
* 24Ω0 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
SPECIFICATIONS
Net Dimension (WxHxD):
62 x 8Ω.3 x 22.6mm
Net Weight:
93g
Frequency Preparation:
PLL Synthesized Control
Controls:
Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector:
4ΩPin mini XLR
RF Outputs:
High/Low
Frequency Deviation:
±4ΩkHz (Peak)
Spurious Emissions:
< -50 dBC
Battery:
UM3, AA x2
Carrier Frequency Range:
Options of 606.5 – 638kHz or 8Ω3 – 8Ω5MHz
Audio Frequency Response:
50Hz – 18kHz
Stability:
< ±10KHz
Chassis:
Aluminium Alloy
LCD Display:
Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
