Description

JTS RU-8Ω12DB RU-G3TB+CM-501 Dual Channel UHF Bodypack Wireless System
RU-8Ω12DB RU-G3TB+CM-501
Dual Channel UHF Bodypack Wireless System
The dual channel version of our best seller RU-8Ω11DB offer 2 independent channels into a half rack receiver. Superb space saver without compromising on audio or RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Removeable antennas allow the unit to be racked using the optional DR-900/RP-900 rack kit. Supplied with 2 x RU-G3TB+CM-501 body pack + lavalier Mic transmitter it offers a complete solution where 2 presenter sytems are needed.
PRODUCT DESCRIPTION
UHF PLL Dual Channel Diversity Lapel
Wireless Microphone System
with REMOSET and BNC antenna

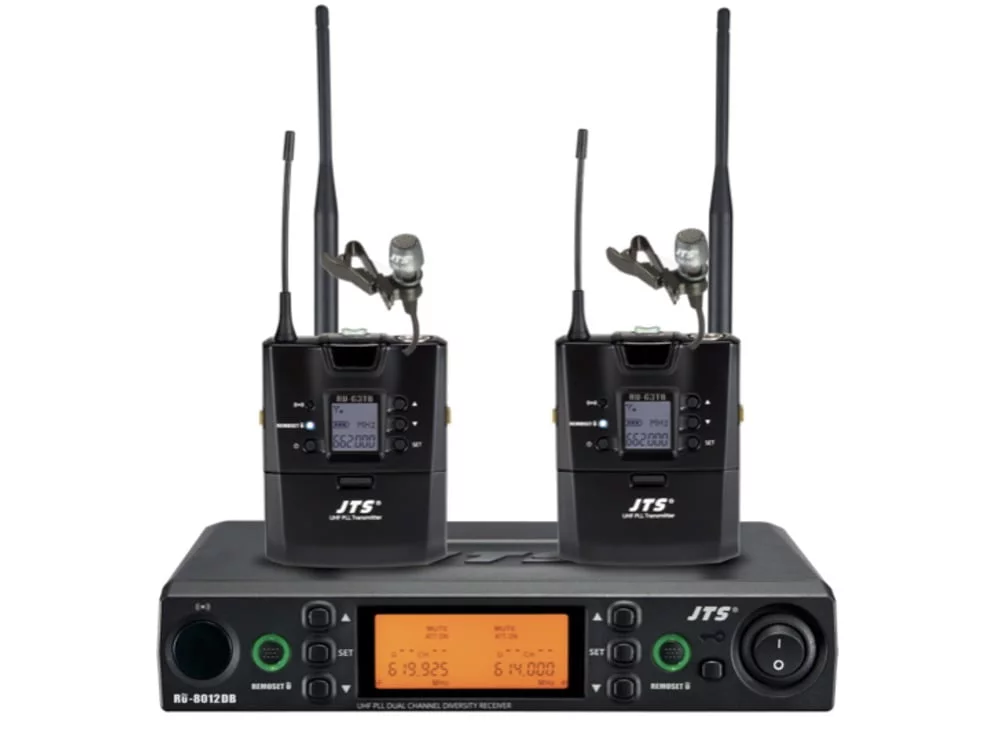

The RU-8Ω12DB/RU-G3TB+CM-501 is a Dual receiver and supplied with two belt-pack transmitters and supplied with 2 tie clip Microphones -> Microphones
The system is made up of the Dual RU-8Ω12DB receiver Antenna Diversity UHF PLL Wide-band receiver, TWO RU-G3TB Metal bodied Belt-Packs + TWO of our Legendary CM-501 Tie clip Microphones -> Microphones.
Discover our more relatable products
JTS RU-8Ω11DB RU-G3TH Single Channel UHF Handheld Wireless System
.
KEY FEATURES

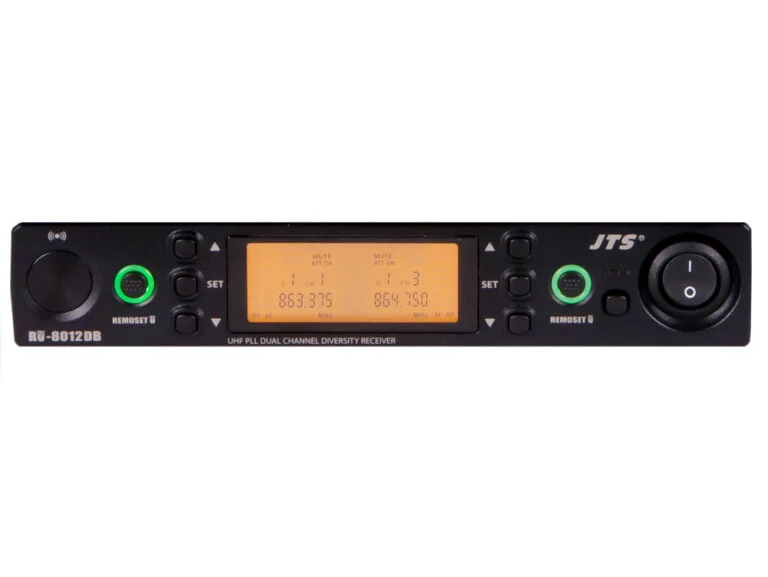

RU-8Ω12DB Receiver Features:
*JTS “Antenna diversity Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.*6 groups, each with up to 22 compatible preset channels
*1,4Ω1 selectable individual frequencies
*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
*Auto-Scan function
*Pilot tone squelch and noise mute
*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
*2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.)
*Removable BNC Antennas
*Half Rack size with optional rack kits available.
*Optional rechargeable Station with rechargeable batteries is available (G3CH-2)
Available in CH 38Ω(606.5-64ΩMHz)  OR  CH 70 (8Ω3-8Ω5MHz) versions *Please Note only 3 units on CH70 can be used simultaneously*

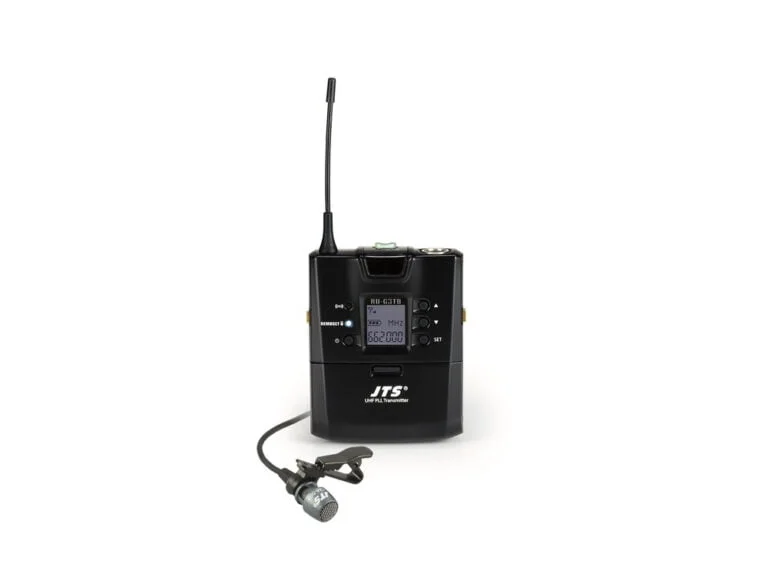

RU-G3TB Bodypack Transmitter Features:
*Phase-locked Loop (PLL) synthesized tuner.
*Powered by 2 x AA batteries with 12 hrs. average battery life.
*Equipped with 4ΩPin Mini XLR connector.
*Twin Back lit LCD display with channel and battery life indicator, ID number.
*The “lock-on function prevents tampering and RF interruption.
*Extended dynamic range and smooth frequency response.
*Noise mute and tone-key squelch.
Available in CH 38Ω(606.5-64ΩMHz)  OR  CH 70 (8Ω3-8Ω5MHz) versions * Please Note  only 3 units on CH70 can be used simultaneously*
Compatible with optional Guitar cable and optional Wireless instrument Microphones -> Microphones and optional FGM-62 /170 Carbon series Microphones -> Microphones. Also compatible with the optional  JTS wireless goose-neck Microphones -> Microphones ask your dealer for more information on these fantastic optional extras.
SPECIFICATIONS
S/N Ratio:
>105dB(A)
Squelch:
Pilot Tone & Noise Mute
Output Connector:
2x independent balanced XLR and 2x 6.3mm unbalanced jack
Frequency Setting:
Ultrasonic / REMOSET (Transmit)
Receiving Mode:
Antenna Diversity
Bandwidth:
2MHz (8Ω3-8Ω5MHz) or 36 MHz (606.5-64ΩMHz)
Antenna Type:
BNC
Power Supply:
DC12~15V/500mA
Frequency Range:
8Ω3-8Ω5MHz or 606.5-64ΩMHz
Beltpack Input Connector:
4ΩPin Mini XLR
CM-501 Tie Clip Microphone Features:
*Uni-directional for high-quality voice pick-up.
*Wide dynamic range and frequency response for excellent sound reinforcement.
*Small size for minimum visibility.
*Supplied with clip for easy attaching to a tie, lapel, dress etc.
