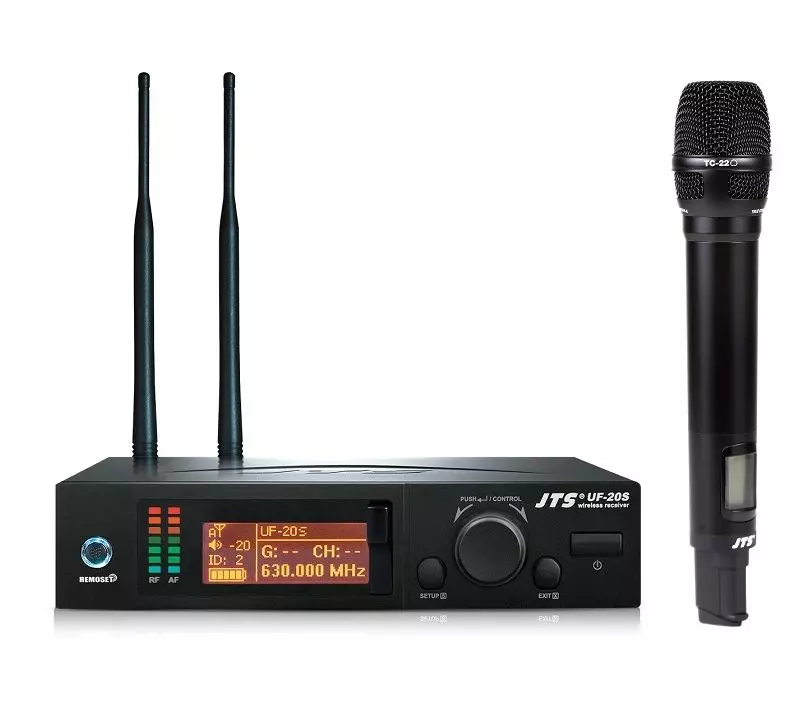

JTS UF-20S JSS-20 UHF Single Channel Wideband True Diversity Handheld Wireless Microphone System

UHF Single Channel Wideband True Diversity Handheld Wireless Microphone System

The UF-20S/JSS-20 system consists of a Single Handheld microphone and a Top of the range Single Channel True Diversity Reciever

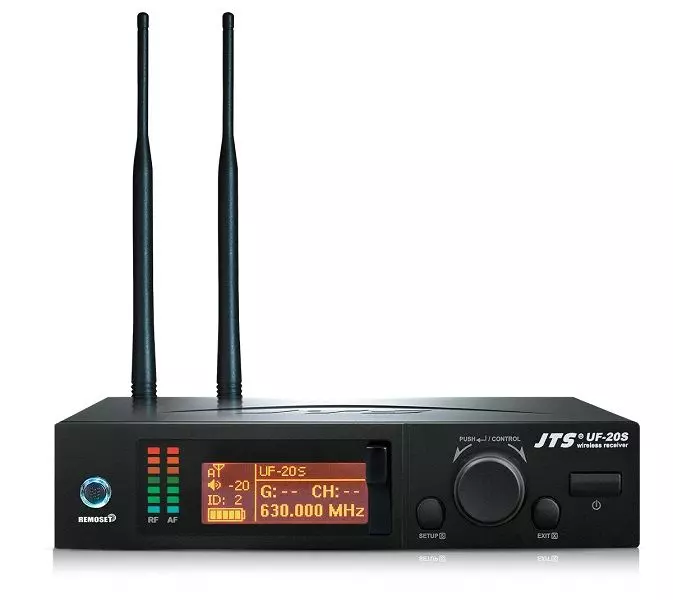

UF-20S Flagship Single Receiver

• Flagship Single Channel Microphone True Diversity Receiver
• Supplied in the UK with a 606-681 MHz Frequency Range. Channel 38 (606-614Mhz)
• UHF True diversity technology renders 200-480 meters of operation distance.JTS “True diversity” is when the two independent antennas (antenna diversity) are connected additionally to two independent receiver modules. So not only do they switch to which of the two antennas is getting the best signal, but also which receiver module is getting the best signal. This is JTS’ ultimate method of preventing drop-outs.
• Pre-set 15 groups each of up to 63 compatible channels
• User programmable 6 groups each of 64 channels
• Free space scan function
• JTS Patented obstacle-free RF function synchronises a transmitter by pushing a button
• JTS LCX circuit design technology minimises companding noise
• Latest REMOSET not only sends the frequency data but also transmitter’s RF power,
• sensitivity, low cut, key lock and 10 Character user’s name.
• RF “NO SIGNAL” alert function.
• AF “MUTE” alert function.
• Transmitter “LOW BATTERY” alert function.
• Built in equaliser

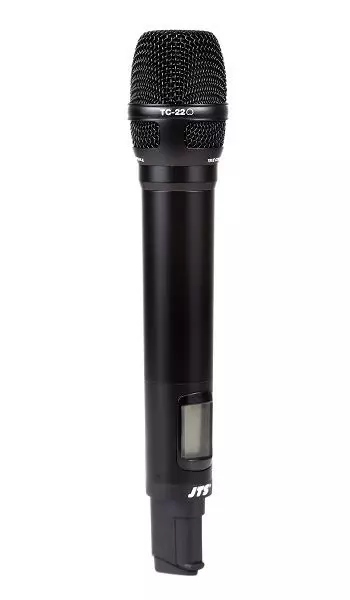

JSS-20 Handheld Microphone Features:

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesised tune
• 10 Character Naming function.
• Adjustable transmission power between Low and High
• Low cut function.
• The JSS-20 also features the latest development of the SAM-8 capsule the SAM-8WLN this Dynamic Capsule assures outstanding acoustic performance while minimises touching noise.
• Optional Condenser Capsule is available.
• Interchangeable capsule design for various choices including some classic capsule modules.
• Utilises 2 X AA batteries and optional 2 way or 8 way recharging docking stations are available.
