Description
Kuzar K-10 7m 500kg Ground Support Tower System

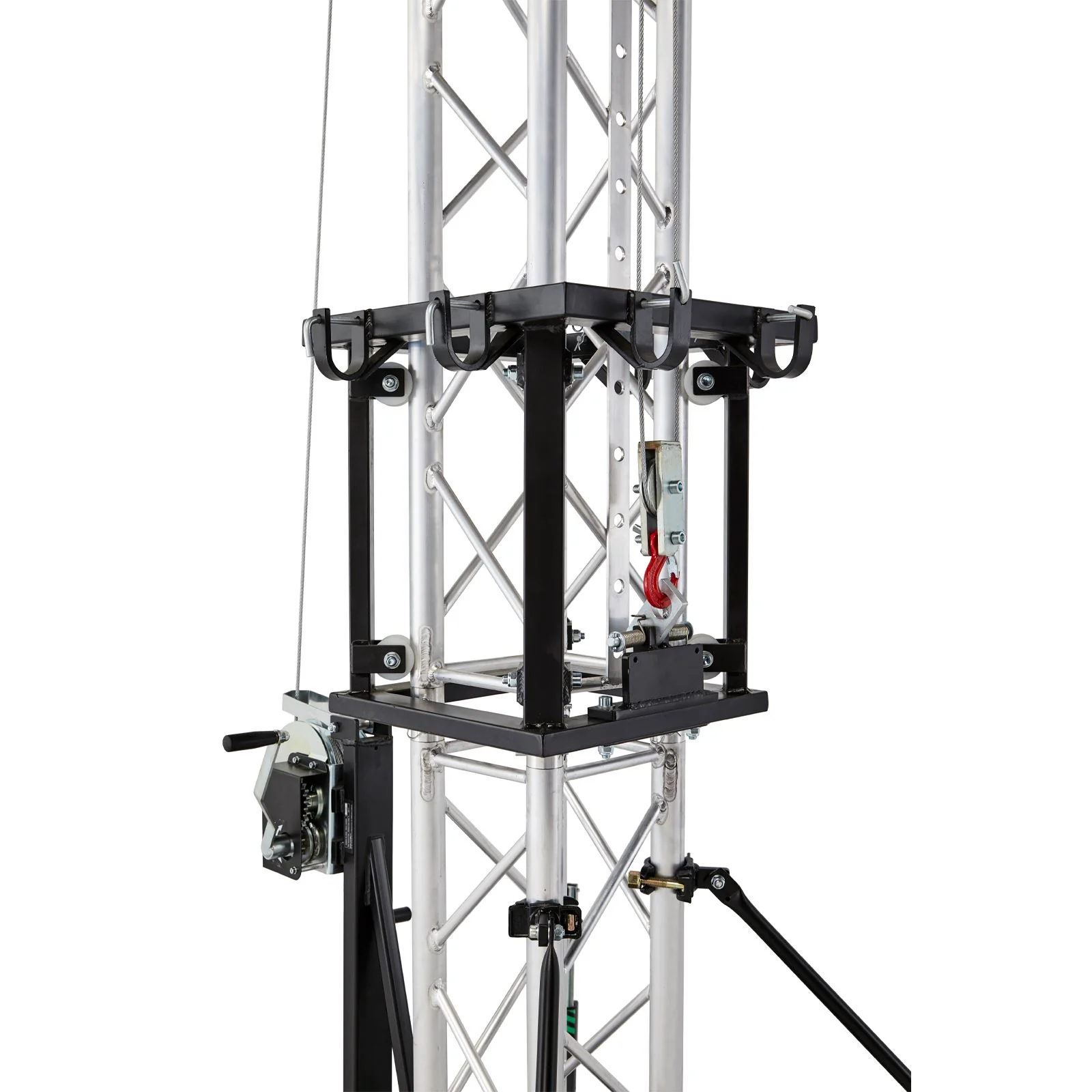

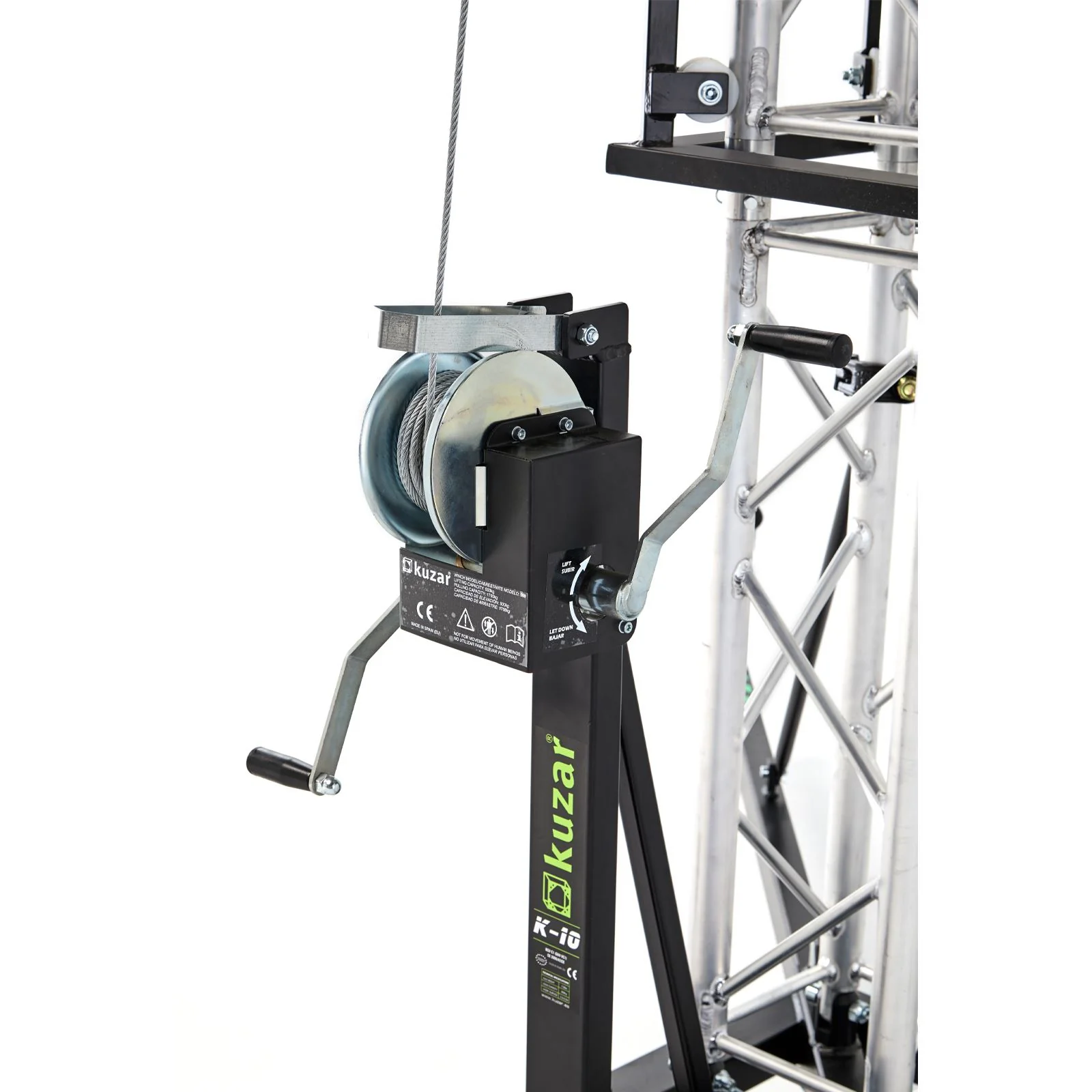

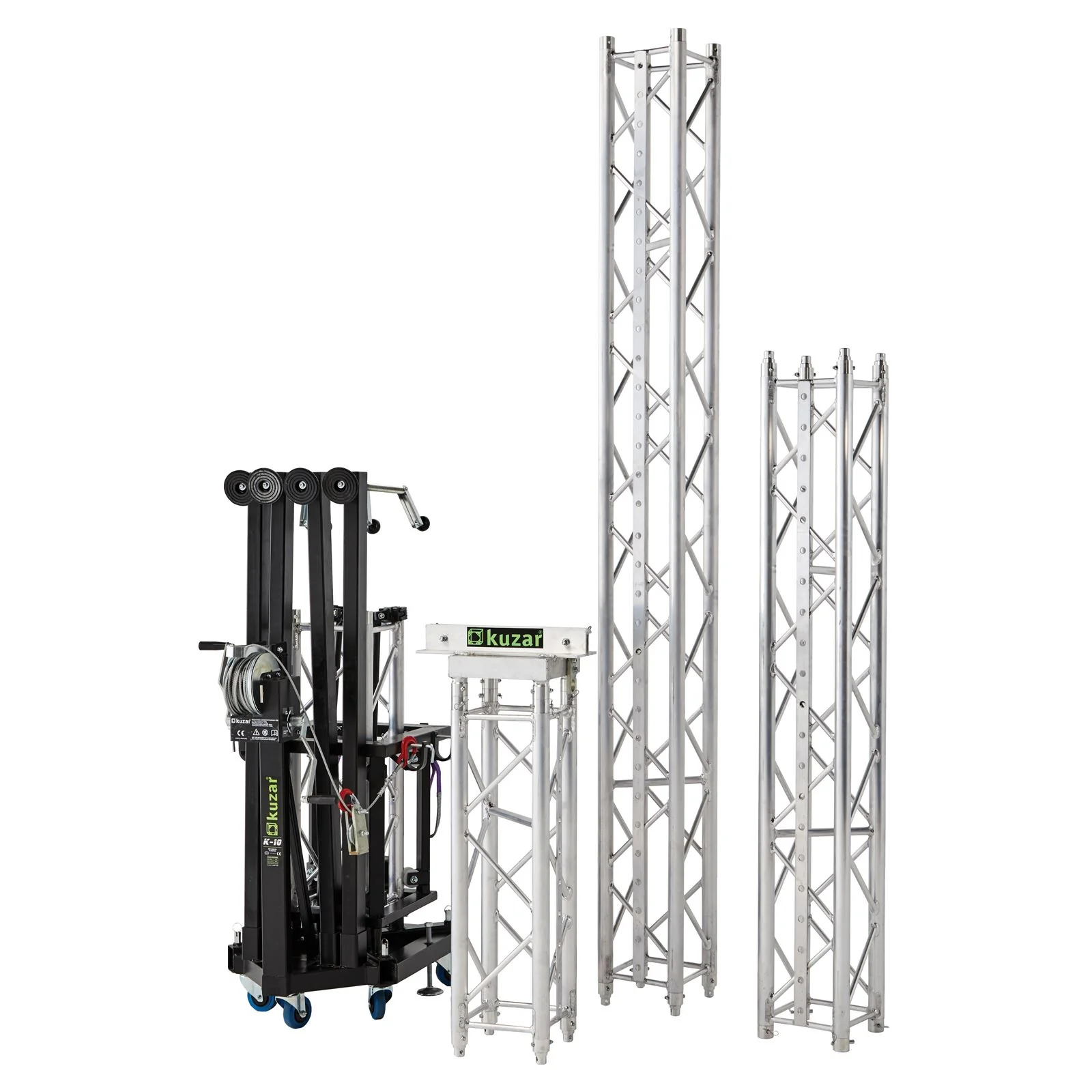

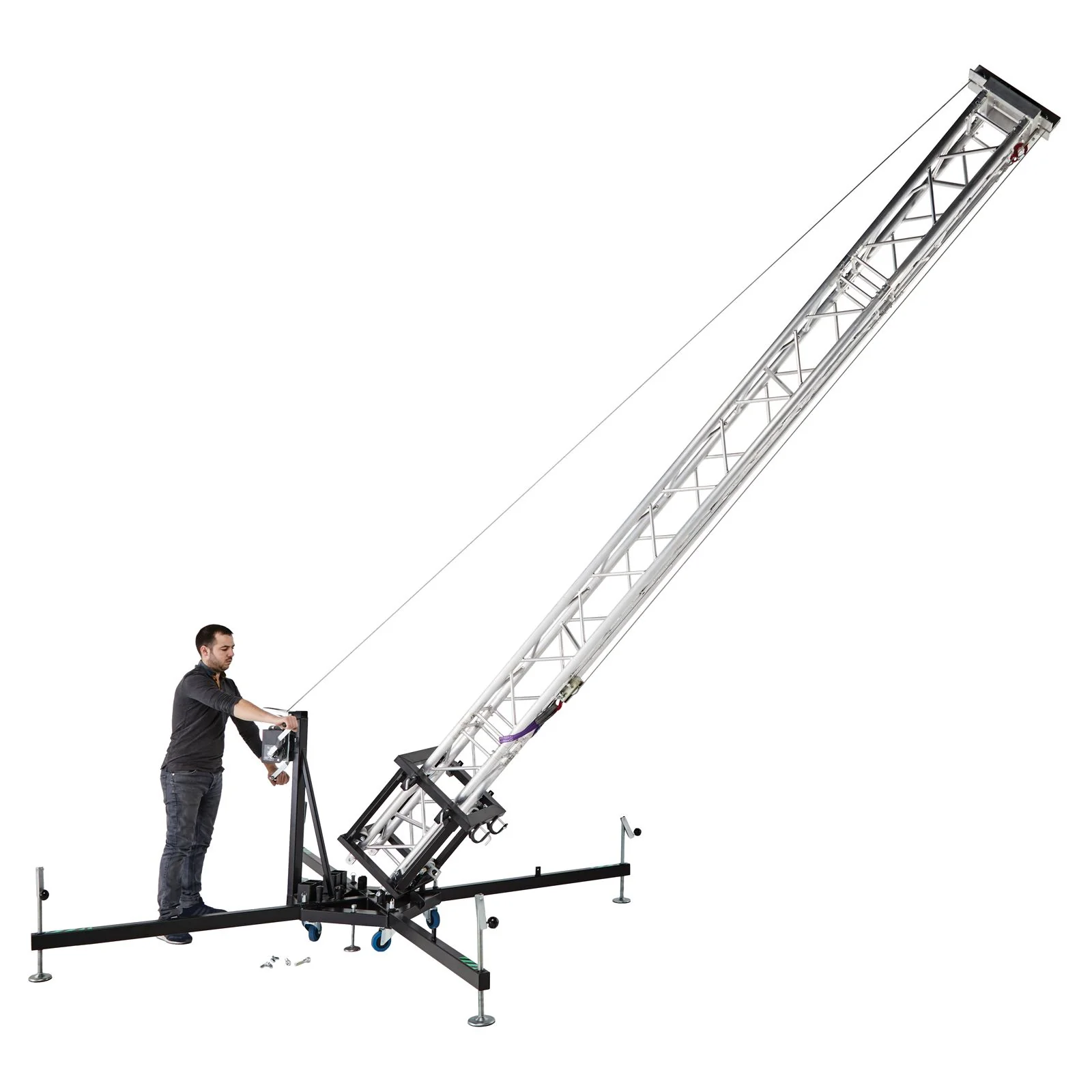

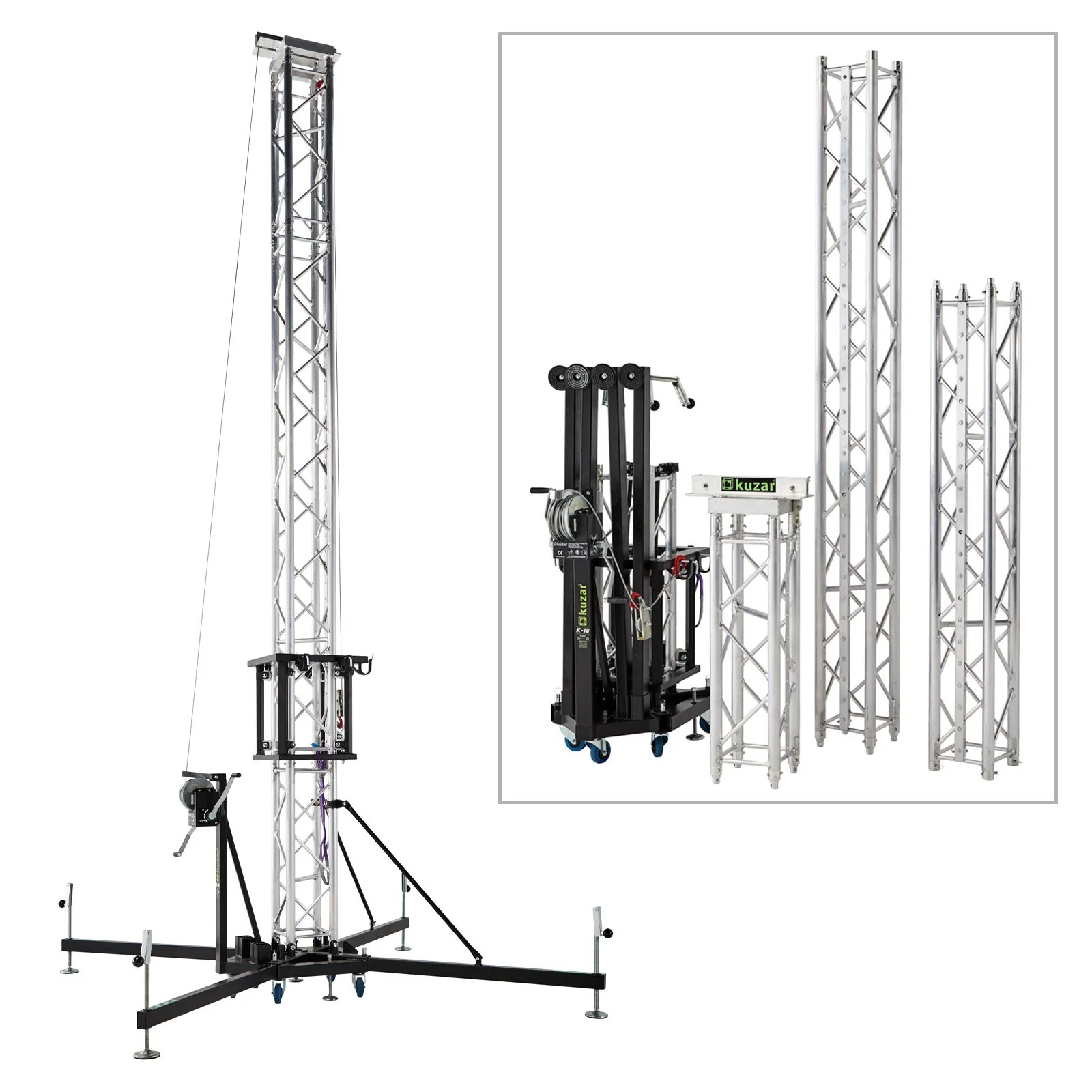

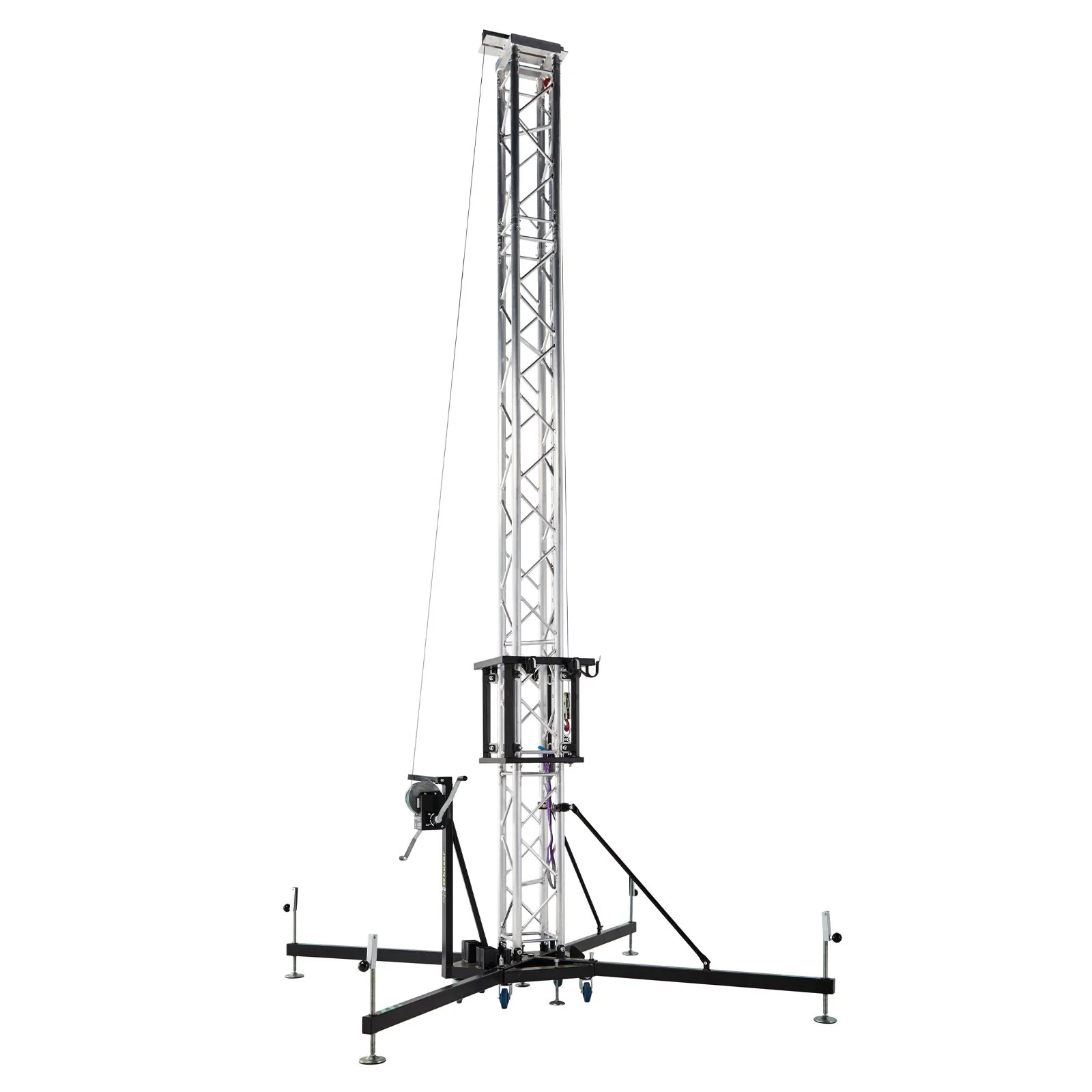

The K-10 from Kuzar is an easy-to-use ground support tower requiring only one person to set it up. The tower is erected using the integral winch hoisting the tower over the base’s pivot joints into the vertical position whilst the rigid steel base gives stability. The rest of the tower is built with 30 × a 30cm Kuzar truss composed of 50mmØ thick tubes with integral brake runner. The composition of trusses to form the tower is 1m + 3m + 2m + 1m giving the user an overall height of 7m. Once the tower is erected the load is lifted with the manual hoist and non-slip and adjustable supports are used on the base. Adaptors are available separately to integrate with Global Truss F34PL or Global Truss F34 Standard truss sections.
- Maximum height: 7m
- Maximum load: 500kg
- Folded height: 1.68m
- Maximum footprint (W x D): 2.29 x 2.29m
- Truss specification: 2.5mm wall thickness aluminium
- Truss diameter: 300mmØ
- Tube diameter: 50mmØ
Note: This product does not have a wind speed rating and is only suitable for indoor applications
