Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black

Product Overview

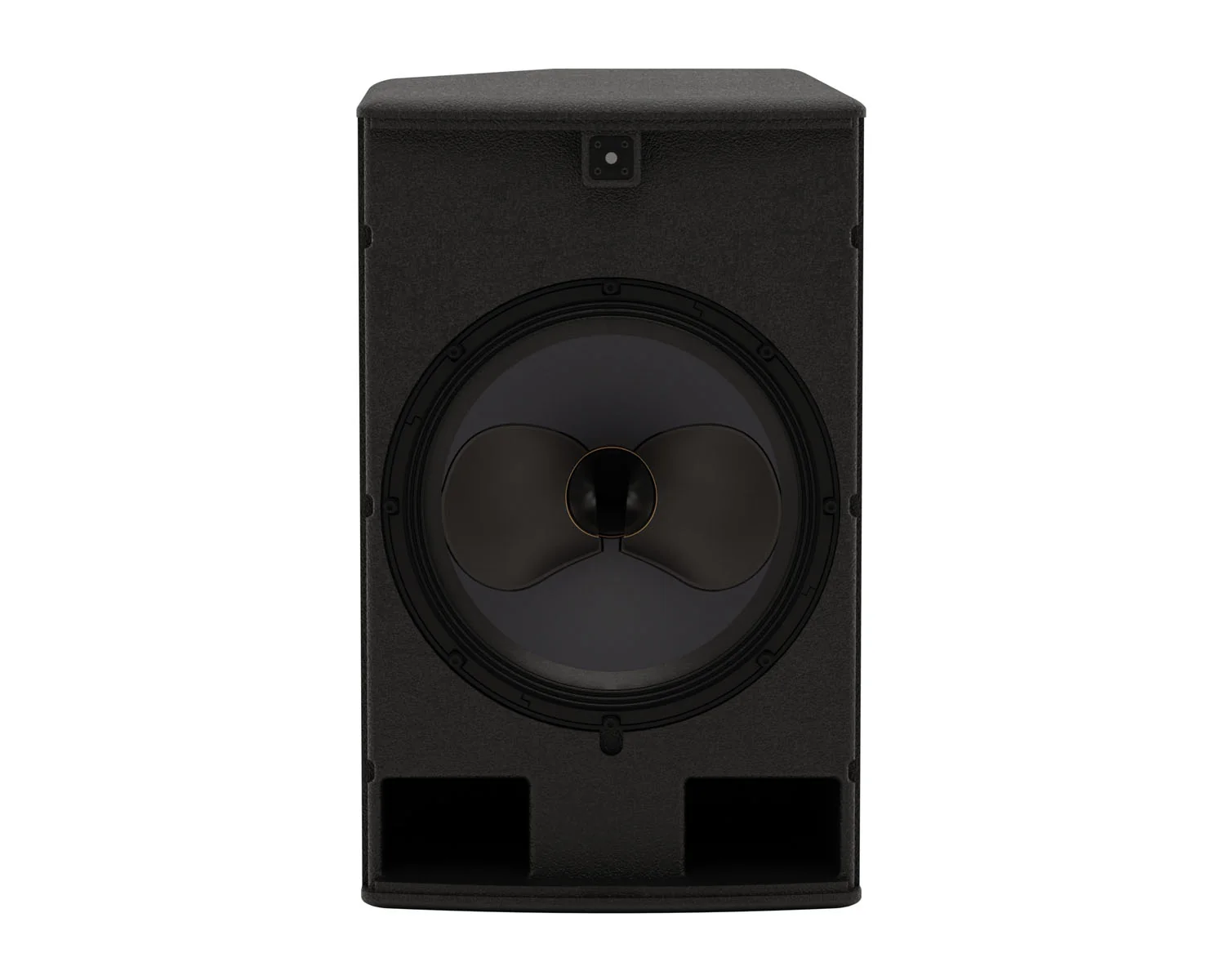

The Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black is a self-powered two-way system designed for professional live applications and installations that demand the ultimate in sonic performance from a single enclosure. Its powerful Coaxial Differential Dispersion driver comprises a 15″ (380mm)/3″ (75mm) voice coil LF driver and a 1.4″ (35mm) exit HF compression driver with a 3″ (75mm) pure titanium diaphragm.

With a maximum SPL of 132dB peak at 1 metre, the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black is the ideal solution for medium-scale touring, theatre and portable live sound applications, as well as premium installations and stage monitor use.

With wide coverage close-up, the Coaxial Differential Dispersion technology employed in the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns, and its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs.

Available in black, the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black is the definitive choice for audio professionals who demand exceptional performance, flexibility, and reliability in a compact, self-powered package.

Product Description

High-Output, Self-Powered Two-Way System

The Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black represents the perfect fusion of innovative coaxial technology, advanced DSP processing, and Dante digital audio networking. Designed for professional applications that demand the very best in audio reproduction, this system delivers on every level.

Coaxial Differential Dispersion Technology

At the heart of the system’s superior performance is the Coaxial Differential Dispersion driver, which delivers more consistent audience coverage than a conventional system with a fixed X° x Y° coverage pattern. The innovative CDD technology achieves ‘point source’ summation of the LF and HF sections, eliminating off-axis variations in frequency response associated with non-coaxial designs.

Coverage:

• 110°-80° horizontal (user-rotatable)

• 60° vertical (user-rotatable)

The user-rotatable CDD driver allows for flexible deployment in either horizontal or vertical orientation, with rotation easily accomplished by removing the screw-free, protective grille.

Onboard Class D Amplification and DSP

A self-powered system, the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black incorporates a two-channel Class D amplifier, DSP, and Dante digital audio networking — simplifying set-up, enhancing control, and eliminating amplifier racks.

Amplifier Specifications:

• Peak output power: 2500W total (2000W LF + 500W HF)

• Type: 2-channel switch-mode, Class D

• Average efficiency: 89%

• Cooling: External convection cooled with internal fan

• Maximum ambient temperature: 40°C (104°F) for full output

The switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz, with Power Factor Correction (PFC) for efficient, reliable operation.

Advanced DSP Processing

DSP functions — including parametric EQ, delay, muting, gain, and preset selection — can be controlled over Ethernet from a PC or Windows tablet via intuitive VU-NET proprietary software.

Internal Processing:

• Multi-channel DSP, programmable via TCP/IP using VU-NET software

• PEQ/shelving filters

• Up to 48dB/Oct HPF

• Low latency HF FIR filters

• Up to 200ms input delay

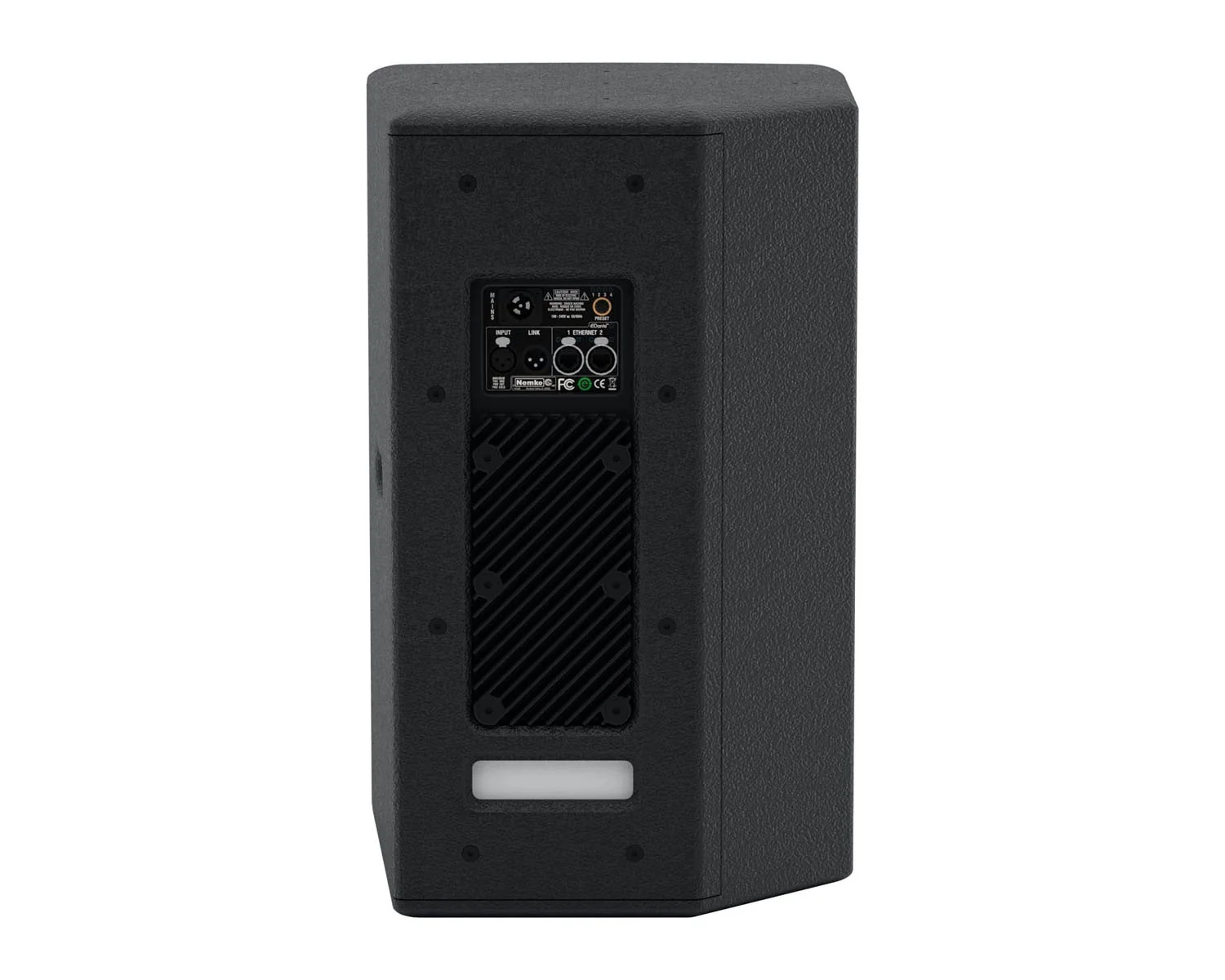

• Preset selection via rear panel switch

• Active LR8 crossover at 1.5kHz with low latency HF FIR equalisation

• Balance presets for pole mount / pole mount with sub / stage monitor

For simple set-ups, ‘plug-and-play’ presets — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control.

Dante Digital Audio Networking

As an alternative to its analogue inputs, the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.

Network Connections:

• 2x Neutrik Ethercon RJ45

• Protocol: TCP/IP and UDP/IP

Premium Construction

The Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black is built with a tour-grade, multi-angle plywood enclosure finished in a hard-wearing polyurea coating. The system includes:

• Extensively braced multi-laminate plywood enclosure

• Textured black PU coating finish

• HEX perforated mild steel grille with protective zinc plating and black powder coat finish, backed with black grille cloth

• Top hat for pole mounting

• 15x M8 mounting points for attachment to a yoke or universal bracket with a wide range of up and down tilt angles

• Single pocket handle for easy transport

• Optional weather protection cowl

• IP24 rating factory option available

Key Advantages

• High-output, Coaxial Differential Dispersion powered two-way system

• 2500W peak power (2000W LF + 500W HF) with Class D amplification

• 132dB peak SPL / 126dB continuous for demanding applications

• 15″ (380mm) LF driver with 3″ voice coil

• 1.4″ (35mm) exit HF compression driver with 3″ titanium diaphragm

• Coaxial Differential Dispersion technology for consistent coverage

• User-rotatable CDD driver for horizontal or vertical orientation

• Frequency response from 55Hz to 20kHz (±3dB)

• Dante digital audio networking for digital audio distribution

• VU-NET software for advanced DSP control

• ‘Plug-and-play’ presets for simple set-ups

• Global mains operation with Power Factor Correction

• Tour-grade, multi-angle plywood enclosure

• IP24 rating option with rain cowl

• Comprehensive mounting accessories available

• Available in black

Key Features

• High-power, self-powered two-way system

• Coaxial Differential Dispersion technology

• Onboard Class D amplification and DSP

• Dante Digital Audio networking

• Global mains operation with Power Factor Correction

• User-rotatable CDD driver

• Vertical and horizontal mounting options

• Tour-grade, multi-angle plywood enclosure

• IP24 rating option with rain cowl

• Comprehensive mounting accessories

• 2500W peak power (2000W LF + 500W HF)

• 132dB peak SPL / 126dB continuous

• 15″ LF driver with 3″ voice coil

• 1.4″ HF compression driver with 3″ titanium diaphragm

• 110°-80° horizontal × 60° vertical coverage

• Active LR8 crossover at 1.5kHz

• Multi-channel DSP with PEQ/shelving filters

• Up to 48dB/Oct HPF

• Low latency HF FIR filters

• Up to 200ms input delay

• Preset selection via rear panel switch

• 2x Neutrik Ethercon RJ45 network connectors

• Female XLR input, male XLR link output

• Neutrik Powercon True1 mains connector

• 15x M8 mounting points

• Top hat for pole mounting

• Single pocket handle

• Available in black

Specifications

Applications

The Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black is perfect for:

• Live sound reinforcement

• Theatre sound

• Corporate AV events

• Fixed installations in concert halls, ballrooms, and Houses of Worship

• Stage monitor and sidefill

• Bars and clubs

• Medium-scale touring

• Portable live sound

• Premium installations

Why Choose the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black?

The Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black represents the ultimate in high-output, self-powered two-way system technology. With its 2500W of peak power, 132dB peak SPL, and 55Hz – 20kHz frequency response, this system delivers exceptional sound quality for any professional application.

The Coaxial Differential Dispersion driver delivers more consistent audience coverage than a conventional system, while the user-rotatable CDD driver allows for flexible deployment in either horizontal or vertical orientation. The Dante digital audio networking and VU-NET software provide advanced control and integration options, while the ‘plug-and-play’ presets make simple set-ups quick and easy.

The tour-grade, multi-angle plywood enclosure with polyurea coating ensures durability and reliability night after night, while the IP24 rating option with rain cowl makes the system suitable for outdoor applications. With 15x M8 mounting points, top hat for pole mounting, and a range of optional brackets, the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black offers unparalleled flexibility for any installation.

Whether you’re touring with a major artist, providing sound for a theatre production, or installing a permanent system in a concert hall, the Martin Audio CDDLIVE15 15″ 2-Way Active Speaker with 1.4″ HF Unit Black delivers the performance, flexibility, and reliability you need.
