Description

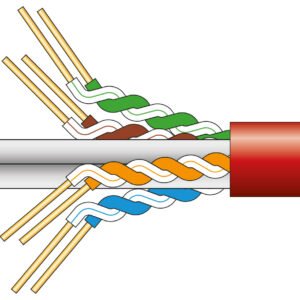

Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.
Conductor Solid OFC
Strands 8 x 1/0.560mmØ ±2%
Cable : diameter 7.3±0.5mm
Screen Aluminium/Mylar foil
Insulation PE 1.330±0.05mmØ
Sheath LDPE 0.55±0.05mm thickness
Capacitance <330pf/100m DC resistance @ 20°C <9.38 Ohms/100m Impedance (100 to 250MHz) 100±15 Ohms Impedance (250 to 500MHz) 100±22 Ohms Return loss >26.62dB
Attenuation <2.03dB NEXT >87.2dB
PSNEXT >85.15dB
ELFEXT >88.77dB
PSELFEXT >86.74dB
Phase delay <450.79ns Colour Black Length 305m Weight 17.4kg
