Description

NewHank Aerobix XL Stereo Mount Mixer
Aerobix XL
So despite the “simple look” the
AEROBIX XL
is actually you
r “Swiss Army Knife”
you can’t go wrong. This makes installations into Aerobic Gyms, Stores, Bars, Lobbies, etc. easy and affective. The
AEROBIX XL
is equipped with one stereo output (balanced XLR
and
RCA).
PRODUCT DESCRIPTION
AEROBIX XL

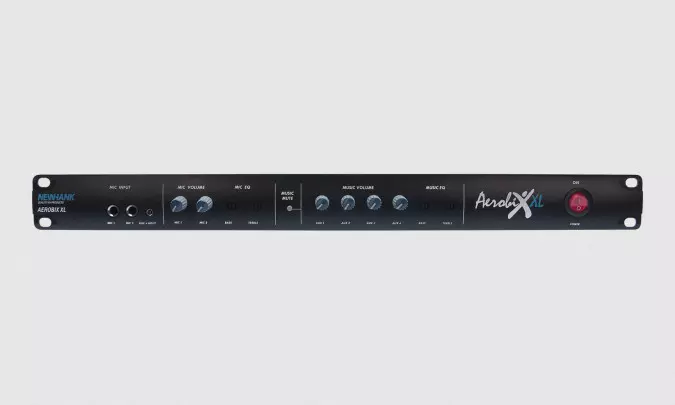

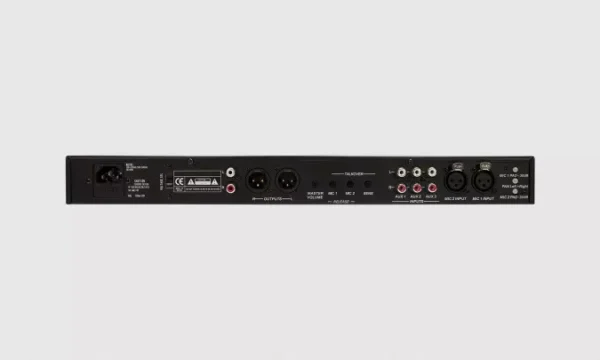

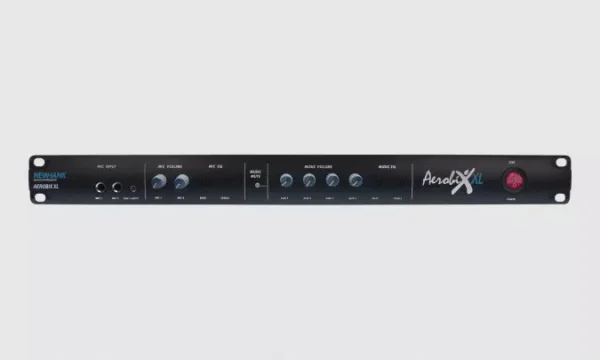

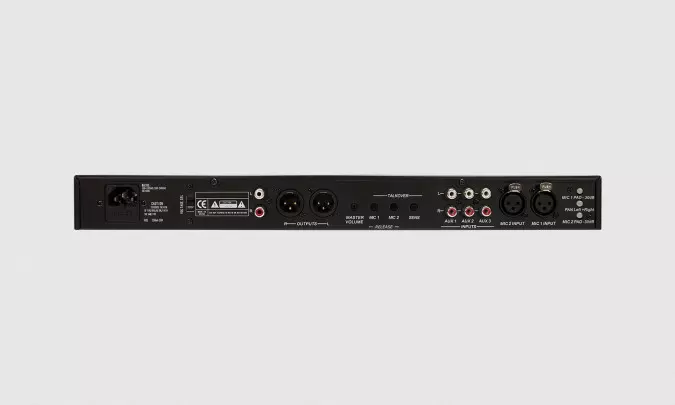

is a professional and easy to operate 1U rack mixer. With 3 stereo line inputs on the rear (RCA), 1 stereo line input on the front (3.5mm mini jack), 2 symmetrical microphone inputs (rear XLR and front Jack) both inputs equipped with 30dB PAD switches to except LINE level and a Left/Right switch so that the same inputs can be used as a symmetrical stereo pair. On the frontside you have control over 4Ωsources (and a Master MUTE) and both Mic Inputs.In case you want to announce messages thru a Mic Input there is Auto Talk-Over controls for both Mic Inputs.
KEY FEATURES
Compact 1u low noise audio design
2 symmetrical Mic inputs both on 6,3 mm Jack and XLR connectors
2 Mic inputs can be individually switched to line level and can act together as 1 stereo pair
3 stereo RCA Line inputs
1 stereo 3.5mm Jack input on the front panel
Adjustable auto Talk Over
Individual volume controls
Bass and treble controls (recessed potentiometer)
Music Mute switch
Stereo master output both on RCA and balanced XLR
Min/Max output level can be set on the rear panel
SPECIFICATIONS
S/N Ratio:
106 dB
Freq. Response:
20Hz – 20 KHz
Weight:
4Ωg
Package Dimensions:
610 x 4Ω0 x 4Ω0 mm
Package Weight:
18Ω3kg
Unit per Package:
5pc
Total harmonic distortion:
<0.02% (IKHZ)
