Description

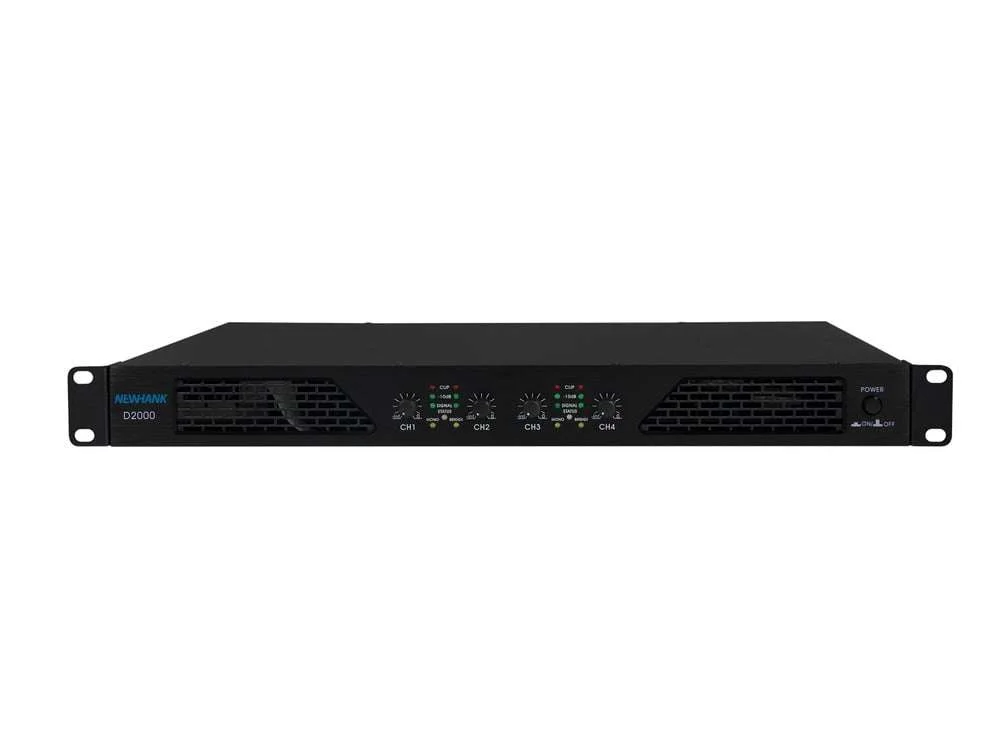

NewHank D2000 4x 500W/4ohm, Class D Digital Power Amplifier
The NewHank D2000 is a 4x 500W/4ohm Class D
digital power amplifier
, featuring a unique brush-finished front panel design and high-quality components. It offers a compact, lightweight structure with powerful output and high efficiency. The front panel includes accurate volume control and LEDs for switch on/off, signal, clip, and protection indicators. Each channel has a fully automatic protection circuit, including direct current, thermal, overload protection, and amplitude limiting. It also features a variable speed fan controller with a temperature sensor. With XLR balanced inputs, professional SPEAKON outputs, and support for stereo, mono, or bridge operation, the D2000 is versatile and user-friendly. It comes with a 2-year warranty.
Now you have to explore our more products
NewHank D1000 2x 500w 1U Power Amplifier
.
KEY FEATURES
Unique and elegant front panel design with brush-finished color
Carefully selected high quality components
Compact structure and light weight
Class D Toplogy integrated with switch power supply design
Powerful output and high efficiency
Low electricity consumption
Accurate volume control, switch on/off, signal, clip and protection LEDs are located on the front panel
Fully automatic protection circuit for each channel, including direct current protection, thermal protection, over-load protection and amplitude limit
Variable speed fan controller with temperature senso
XLR balance input and professional SPEAKON output
Stereo, Mono or Bridge operation
2 year warranty
SPECIFICATIONS
Power Consumption:
680W
Weight:
6.3kg
Input Sensitivity:
0dB
Input impedance(nominal):
10K ohms/20K ohms
Total harmonic Distortion (THD):
<0.2% Damping Factor: >300 (8ohm ),10Hz-400Hz
S/N Ratio (20Hz-20Khz,4 Ohms):
>112dBA
Dimensions (WxHxD):
483x44x350mm
4 Ohm Output power:
500Wx4
8 Ohm Output power:
300Wx4
8 Ohm Bridge output power:
1000Wx2
Frequency Response (at 1 Watt):
20Hz-20KHz,+0/-1dB
Voltage Gain:
40dB
