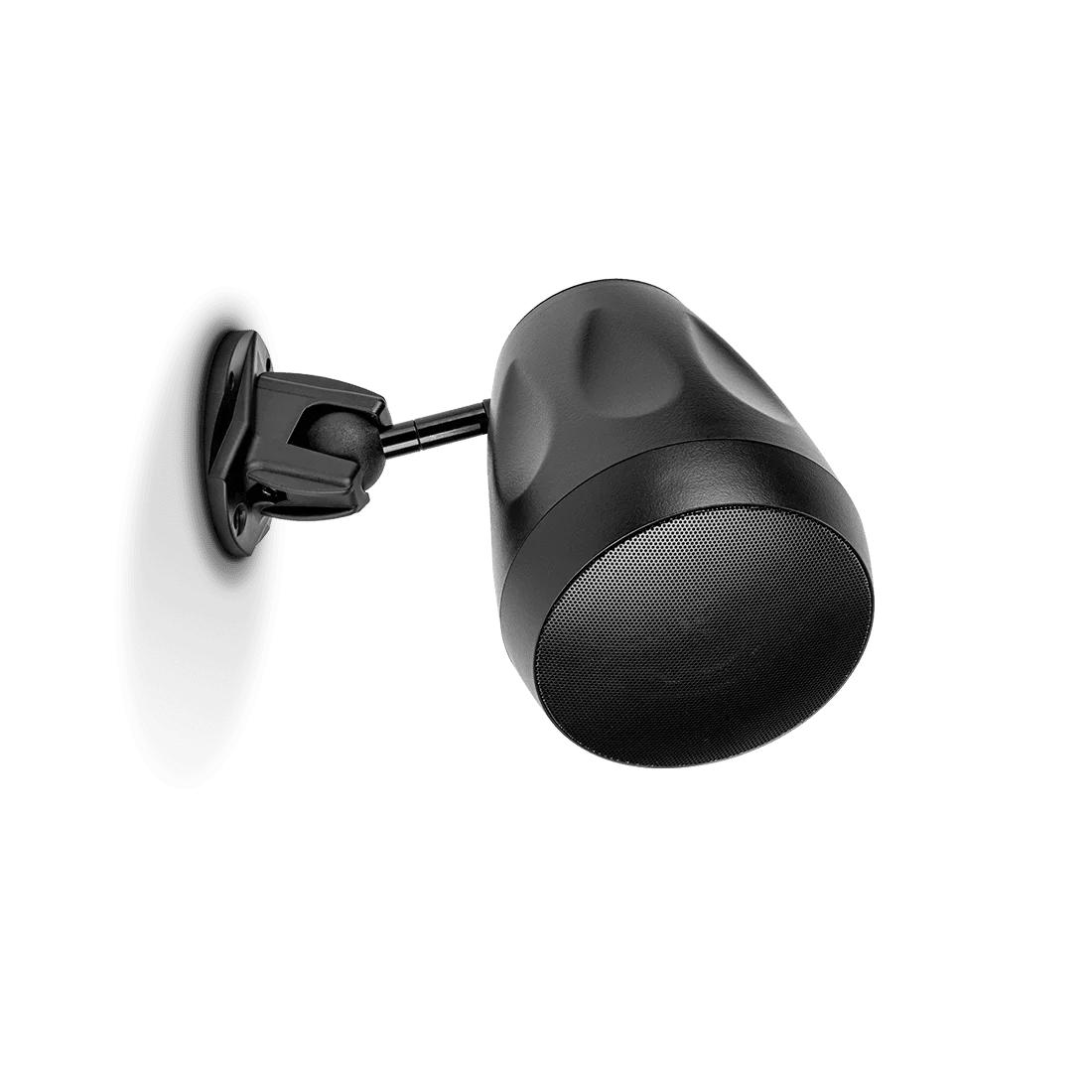

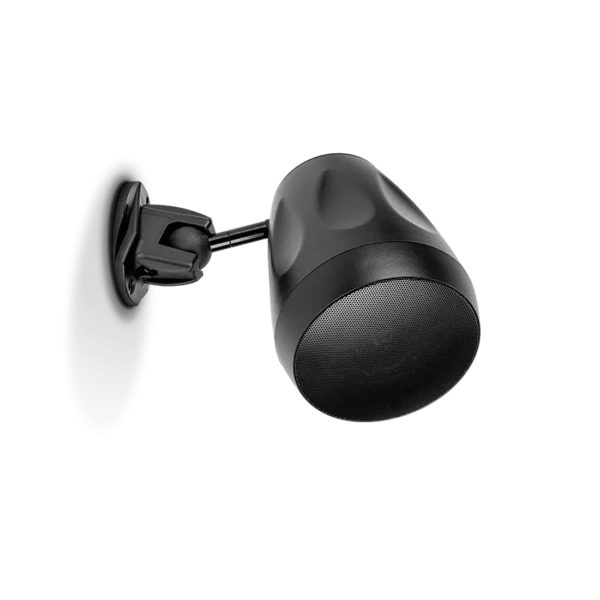

Next Audiocom P4ΩWall 4Ω WALL SOUND PROJECTOR, BLACK [100V|8Ω]
100V / 8Ω Input
Bracket Included
Discreet Design
Easy Install
Detachable Logo
Weatherproof
The P4ΩWall speakers
were designed to deliver a very powerful, clear, intelligible high-quality audio to meet the needs of your installation with IP66 rate. These speakers with their discreet and elegant design can be easily integrated into your home, hotel, retail store, restaurant, theme park or pool.
DISCREET DESIGN
The simple design allows you to have an unobtrusive sound source while keeping the original design of your installation.
INTEGRATED TRANSFORMER
P4Ωhas an integrated line transformer that allows you to select the power position you want (taps).
DETACHABLE LOGO
The detachable logo increases the exclusivity of your installation to fit the P6 on your installation design.
2 SIZES FOR YOUR PROJECTS
Sometimes, the size matters and you can chose between the 4Ω or 6 depending on your requirements.
EASY INSTALLATION
The installation of your P4ΩWall is easy and you don’t need deep technical skills or specific tools to install your speakers.
KEY FEATURES
100V / 8Ω Input
The integrated transformer allows you to use the speaker at 100V line or low impedance 8Ω depending on the needs of your installation.

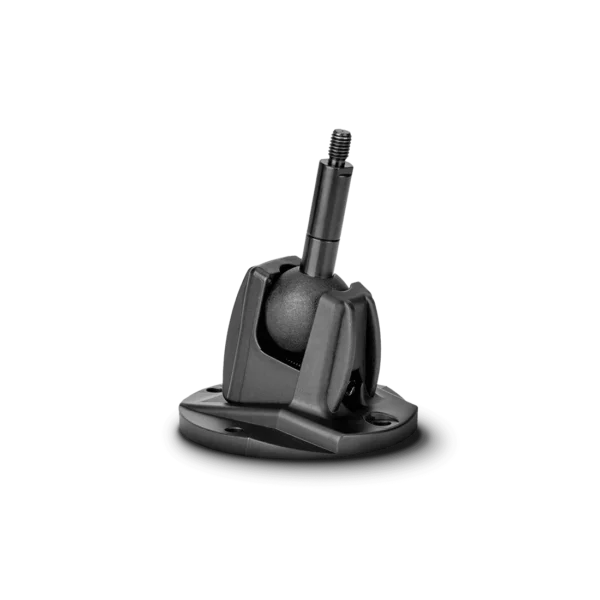

Bracket Included
Easily install your speaker on the wall or ceiling using the included bracket.
Discreet Design
The discreet design allows you have an unobtrusive sound source keeping the original design of your venue.
Easy Install
The installation is made easy with no high technical skills or very special tools needed to install your device.
Detachable Logo
The logo is detachable, which means you can remove it if a clean design is needed on your installation.
Weatherproof
The IP66 rated enclosure offers an excellent performance for many environments, including outdoor areas, where the weather protection is needed.
TECHNICAL SPECIFICATIONS
Product Type
Full-Range Wall Speaker (8Ω/100V)
Frequency Response (-6dB)
120Hz – 20kHz
Nominal Coverage (-6dB)
90º Conical
RMS Power
20W
Program Power
4ΩW (8Ω)
Nominal Impedance
8Ω
Sensitivity (1W, 1m)
8ΩdB
Maximum SPL (calculated)
99dB
Transformer Taps 100V
2.5W | 5W | 10W | 20W
Transformer Taps 70V
1.25W | 2.5W | 5W | 10W
Low Frequency Driver
4Ω Polypropylene Cone Woofer
High Frequency Driver
0.75″ Silk Dome Tweeter
Input Connectors
Phoenix Type Pluggable Terminal Block
Recommended Amplifier
A4Ω
|
A200
|
MX120
|
MX350
Grille
Aluminium Grille | Detachable Logo
Construction
High-grade Rugged Polypropylene
IP Rating
IP66 (Only with Back Cover Supplied with Wall Bracket or Garden Accessory)
Dimensions (WxHxD)
138Ωx 190 x 138Ωm (5.4Ω” x 7.4ΩΩ x 5.4Ω”)
Fixation
Eye Bolt for Suspension | Bracket for Wall Mount
Net Weight
1.8Ωkg (4Ω08Ωb)
Shipping Weight
2.7kg (5.95lb)
