Description

Next Audiocom P6 Wall 6.5″ WALL SOUND PROJECTOR, BLACK [100V|8Ω]
100V / 8Ω Input
Bracket Included
Discreet Design
Easy Install
Detachable Logo
Weatherproof
The P6 pendant speakers were designed to deliver a very powerful, clear, intelligible high-quality audio to meet the needs of your indoor and outdoor open-ceiling commercial applications. These
speakers
with their discreet and elegant design can be easily integrated into your retail store, restaurant, bar, warehouse, factory or any open floor layout with high or vaulted ceilings.
EASY INSTALLATION
The installation of your P6 is easy and you don’t need deep technical skills or specific tools to install your pendant speakers.
DETACHABLE LOGO
The detachable logo increases the exclusivity of your installation to fit the P6 on your installation design.
DISCREET DESIGN
The simple design allows you to have an unobtrusive sound source while keeping the original design of your space.

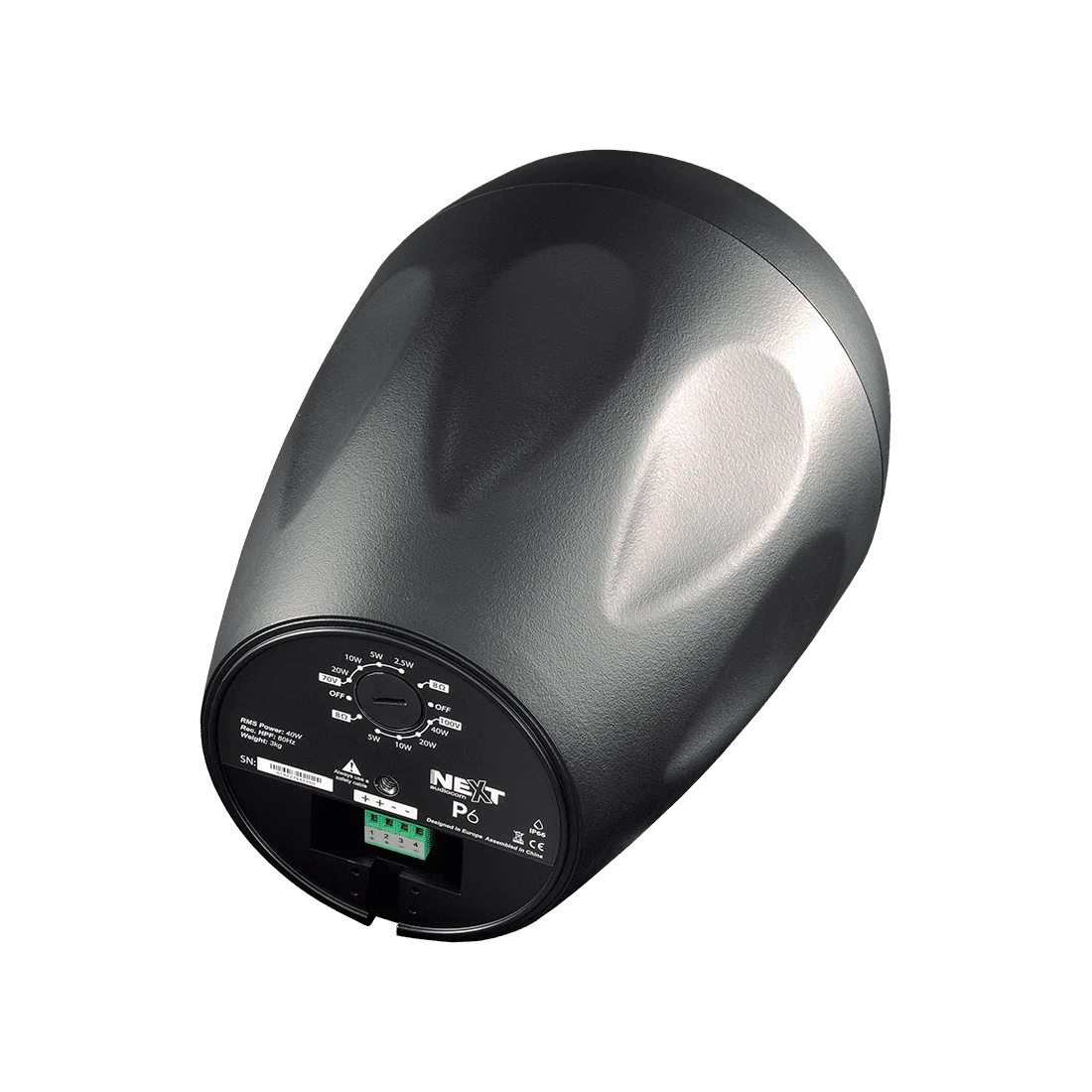

INTEGRATED TRANSFORMER
P6 has an integrated line transformer that allows you to select the power position you want (taps).
WIRING DIAGRAM
KEY FEATURES
100V / 8Ω Input
The integrated transformer allows you to use the speaker at 100V line or low impedance 8Ω depending on the needs of your installation.

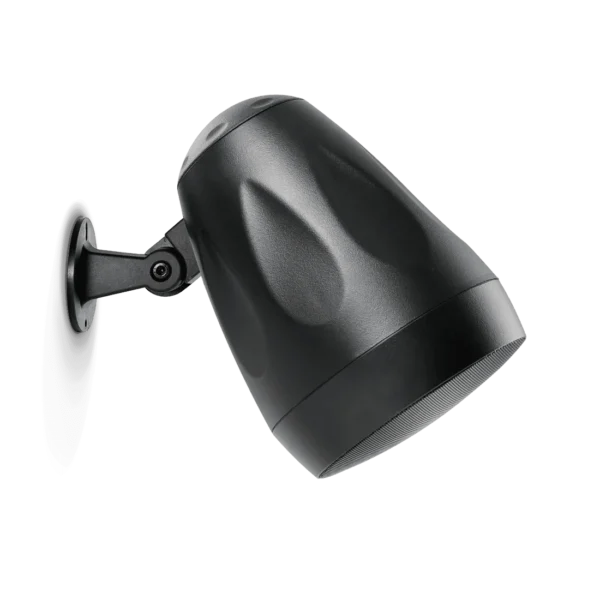

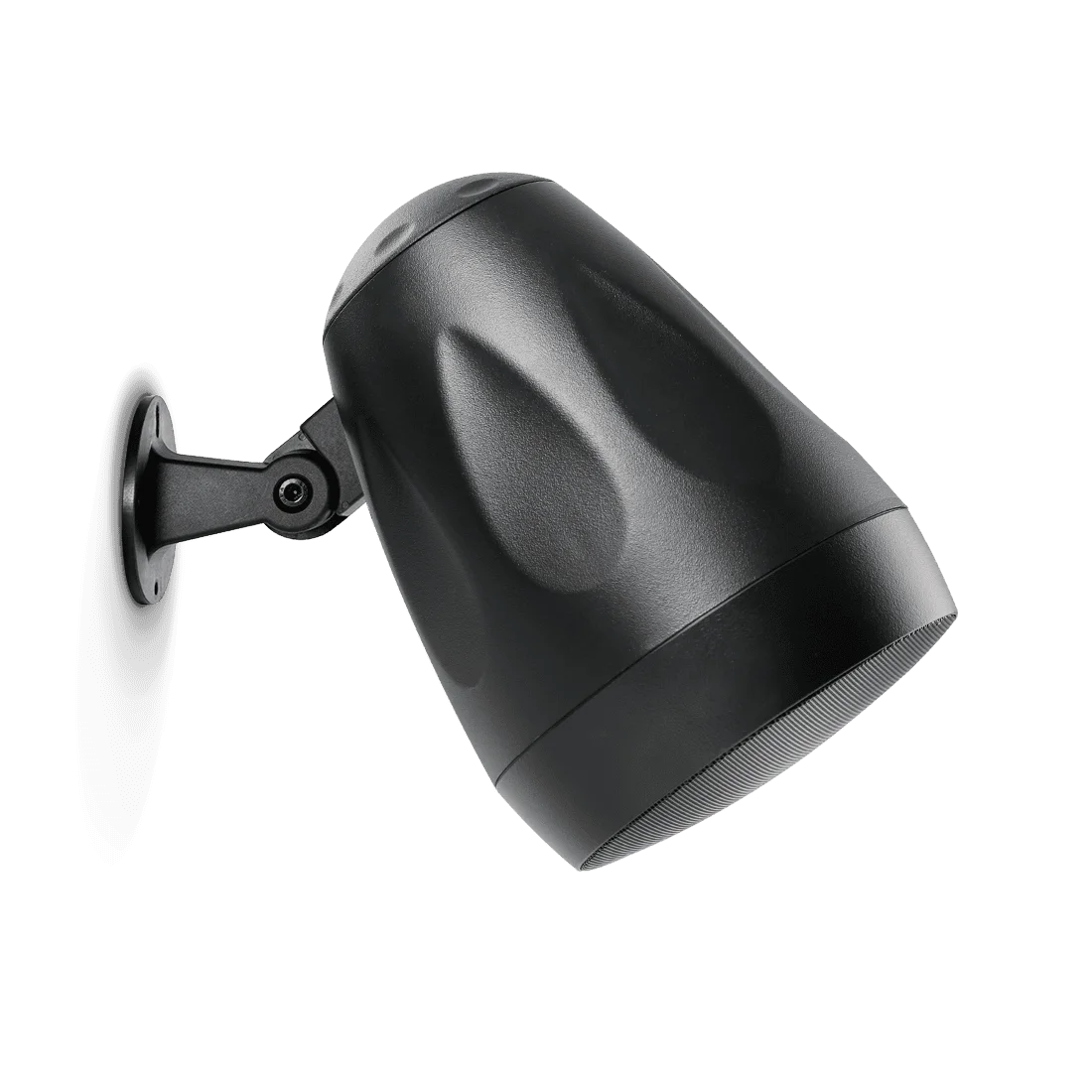

Bracket Included
Easily install your speaker on the wall or ceiling using the included bracket.
Discreet Design
The discreet design allows you have an unobtrusive sound source keeping the original design of your venue.
Easy Install
The installation is made easy with no high technical skills or very special tools needed to install your device.

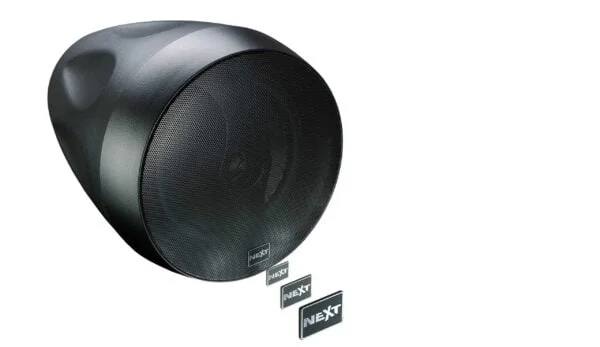

Detachable Logo
The logo is detachable, which means you can remove it if a clean design is needed on your installation.
Weatherproof
The IP66 rated enclosure offers an excellent performance for many environments, including outdoor areas, where the weather protection is needed.
TECHNICAL SPECIFICATIONS
Product Type
Full-Range Wall Speaker (8Ω/100V)
Frequency Response (-6dB)
90Hz – 20kHz
Nominal Coverage (-6dB)
90º Conical
RMS Power
4ΩW
Program Power
8ΩW (8Ω)
Nominal Impedance
8Ω
Sensitivity (1W, 1m)
8ΩdB
Maximum SPL (calculated)
104ΩB
Transformer Taps 100V
5W | 10W | 20W | 4ΩW
Transformer Taps 70V
2.5W | 5W | 10W | 20W
Low Frequency Driver
6.5″ Polypropylene Cone Woofer
High Frequency Driver
1″ Silk Dome Tweeter
Input Connectors
Phoenix Type Pluggable Terminal Block
Recommended Amplifier
MX120
|
MX350
Grille
Aluminum Grille | Detachable Logo
Construction
High-grade Rugged Polypropylene
IP Rating
IP66 (Only with Back Cover Supplied with Wall Bracket or Garden Accessory)
Dimensions (WxHxD)
208Ωx 28Ω x 208Ωm (8Ω19″ x 11″ x 8Ω19″)
Fixation
Eye Bolt for Suspension | Bracket for Wall Mount
Net Weight
3.3kg (7.28Ωb)
Shipping Weight
4Ω3kg (9.4ΩΩb)
Accessories
Garden Accessory for P6 (not included)
