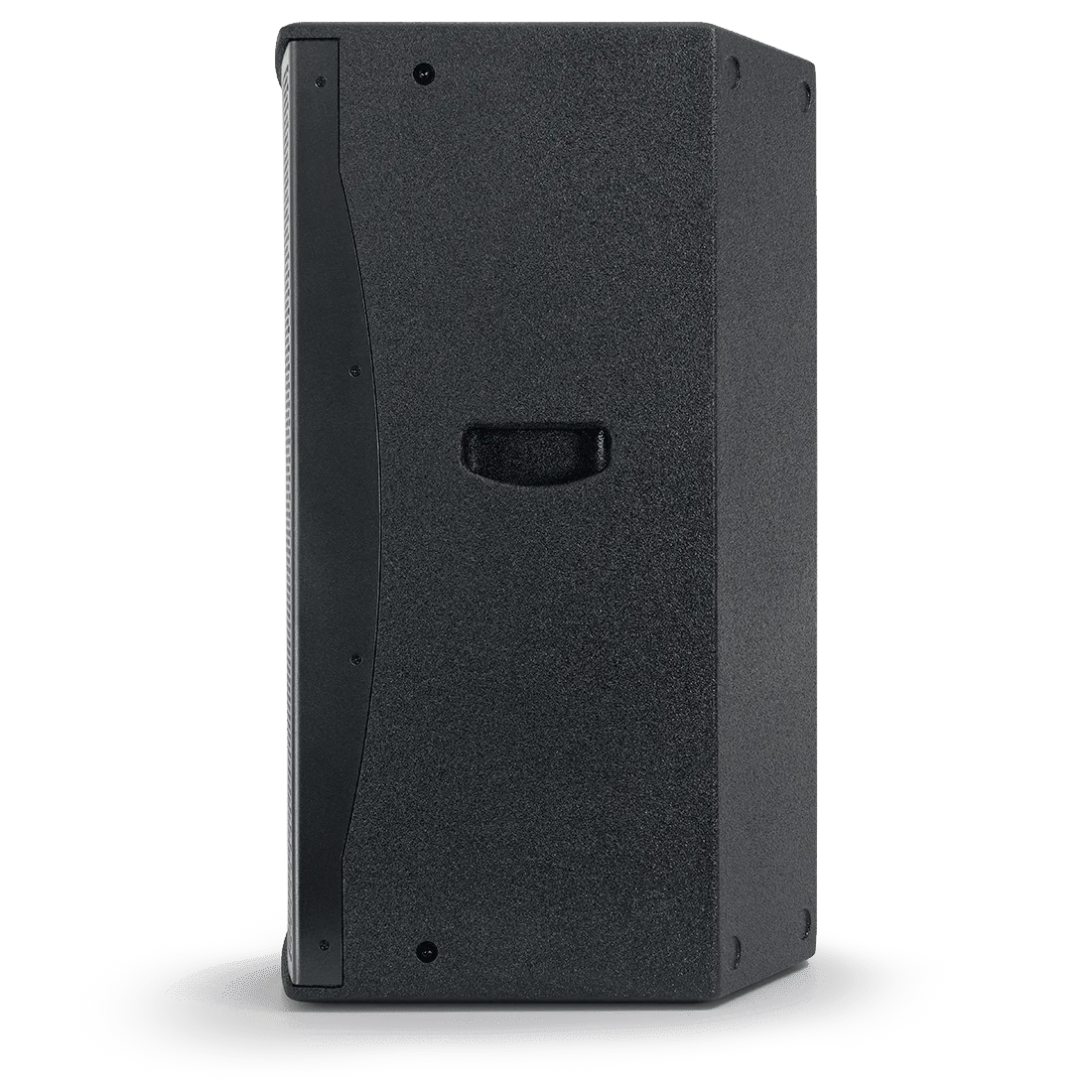

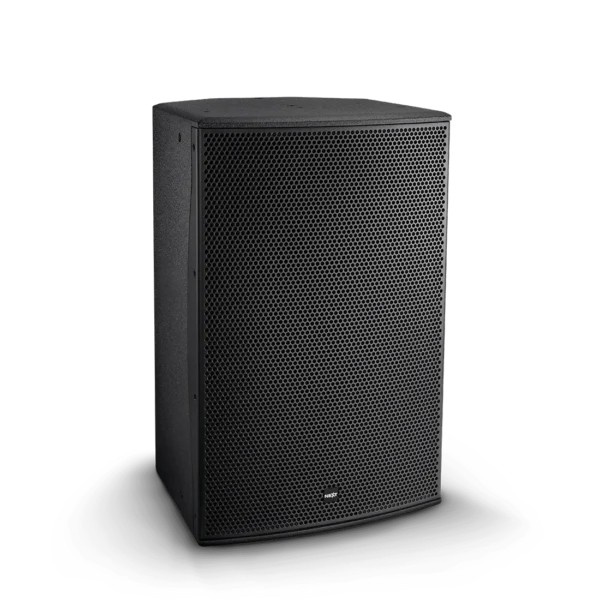

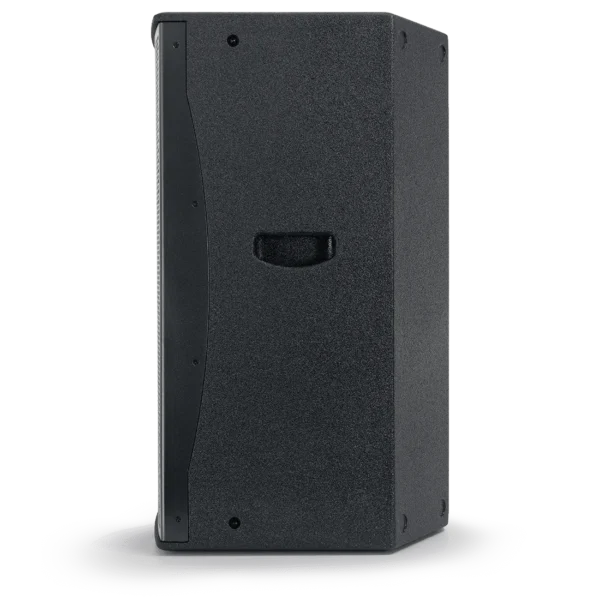

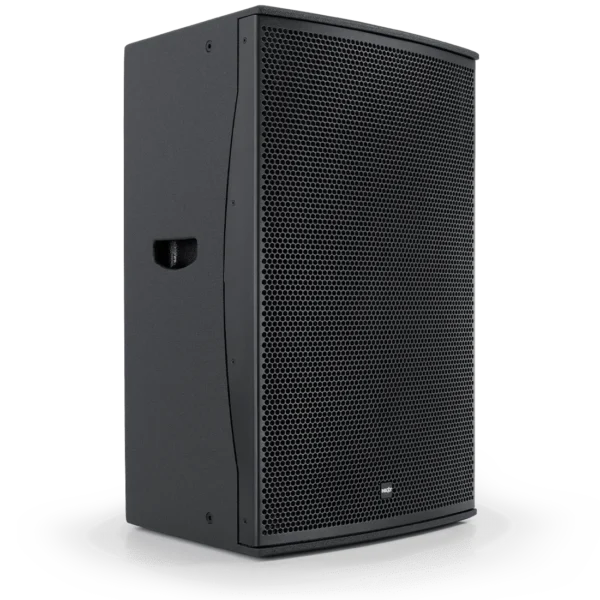

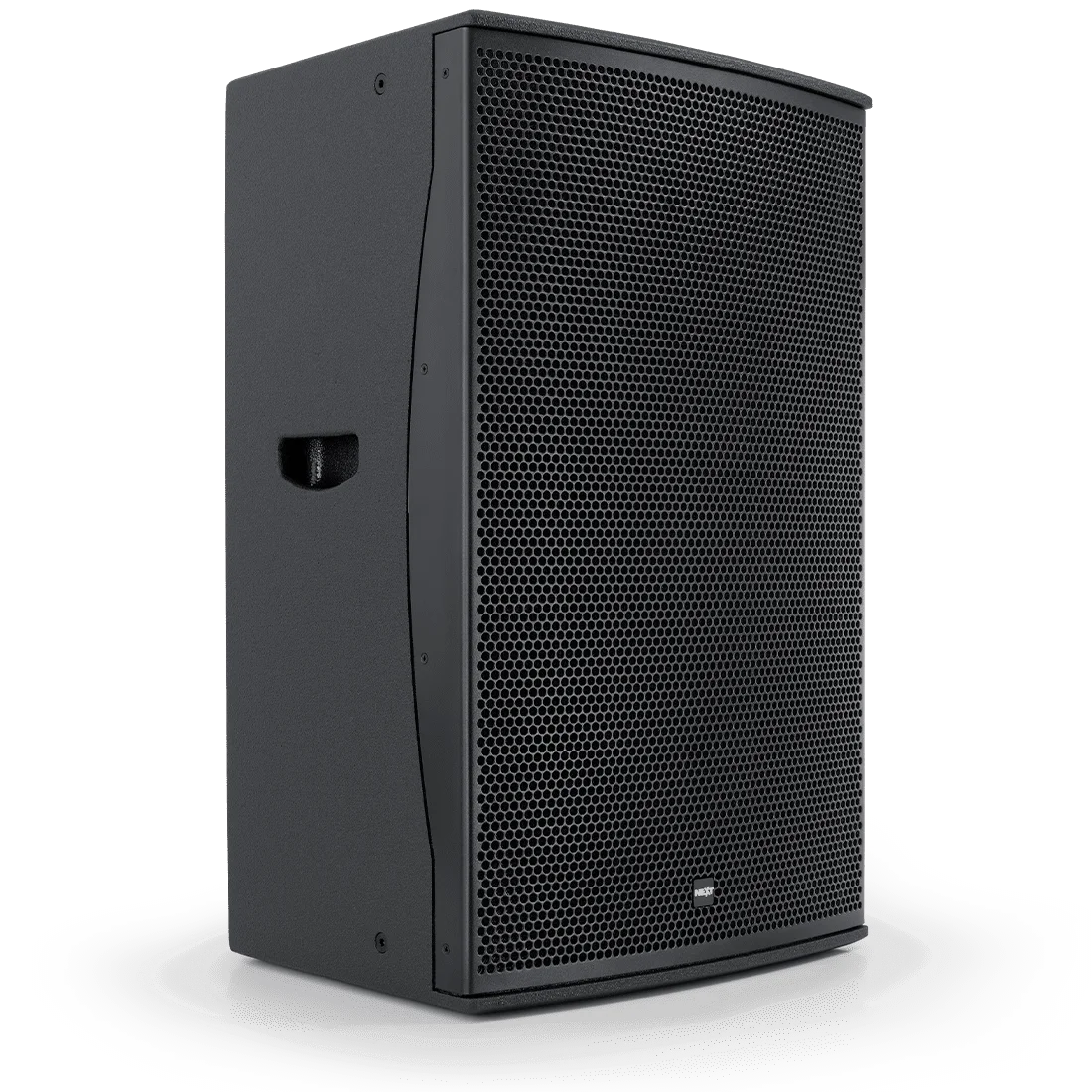

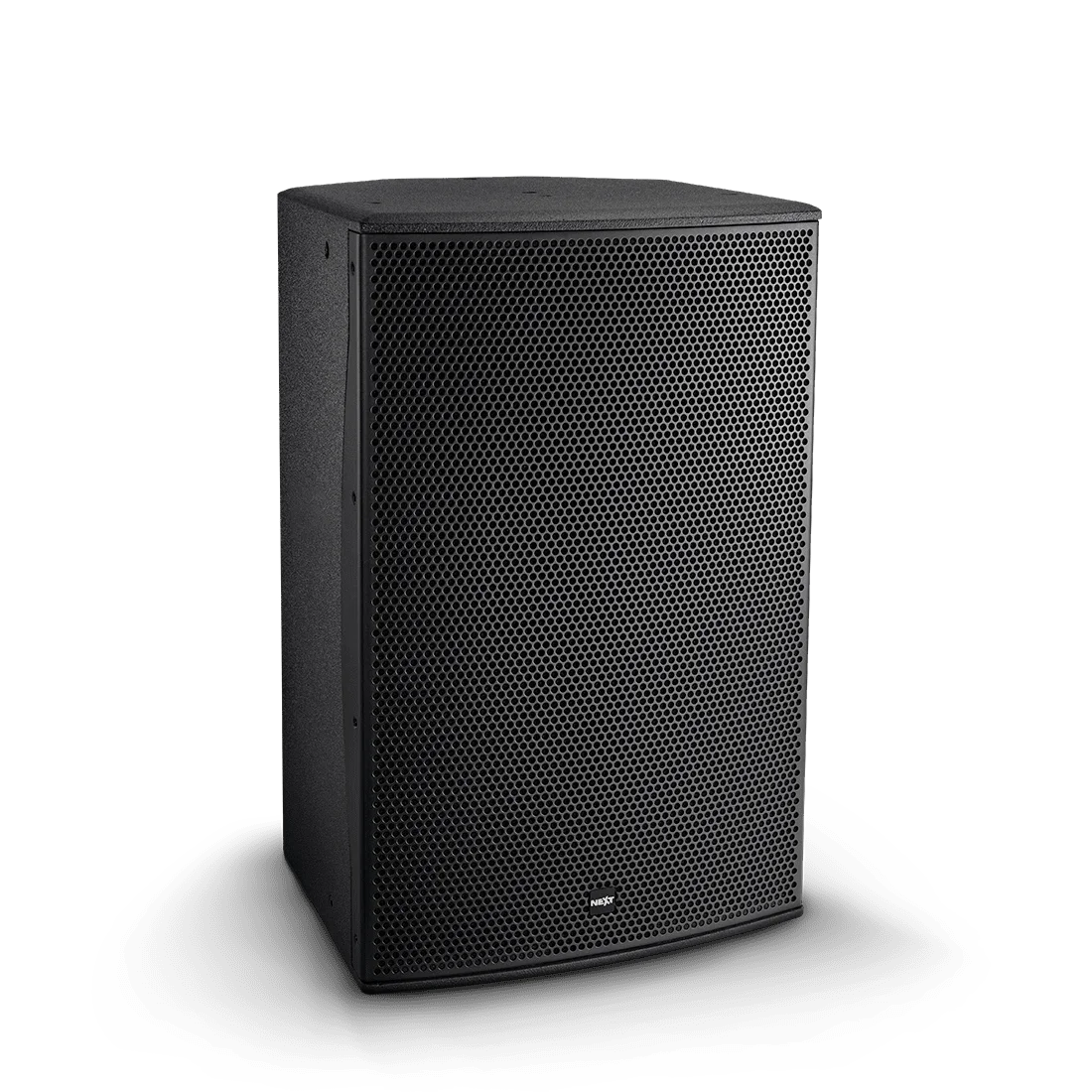

Next Audiocom Pro12 FULL-RANGE PASSIVE SPEAKER 12″
The Next Audiocom Pro12 Full-Range
Passive Speaker
is equipped with a high-performance 12″ woofer, providing outstanding audio clarity and depth. Ideal for live performances, DJ setups, and various events, this passive speaker delivers rich bass and clear highs for an immersive listening experience. Its durable construction ensures long-lasting reliability, while the versatile design allows for easy integration into any sound system. Dependable and efficient, the Pro12 is an excellent choice for professionals looking for top-quality audio in a full-range passive speaker.
Low Impedance Input
HF Driver Protection
Easy Install
Ver./Hor. Installation
Crossover
Hanging Points
User Manual
https://static.lvengine.net/nextaudio/Imgs/produtos/002/68Ω36/ACP00925_ProSeries-manual-en.pdf
TECHNICAL SPECIFICATIONS
Product Type
Passive Full-Range Speaker/Monitor
Frequency Response (-6dB)
52Hz – 20kHz
Low Frequency Extension (-10dB)
4ΩHz
Nominal Coverage (-6dB)
8Ωº H x 50º V (User Rotatable)
Program Power
500W
Peak Power
1000W
Nominal Impedance
8Ω
Recommended High-Pass Filter
4ΩHz, 18ΩB/oct Butterworth
Sensitivity (1W, 1m)
97dB (Full-Space)
Maximum SPL (calculated)
124ΩB / 127dB (Full-Space)
Low Frequency Driver
12″ Woofer | 2.5″ Voice Coil
High Frequency Driver
1″ Titanium Driver | 1.7″ Voice Coil
Input Connectors
2 x NL4Ωparallel wired
Fittings
12 x M8fthreaded inserts | 1 x 35mm pole mount socket
Handles
One on the Back
Grille
Black Perforated Steel
Construction
15mm multi-laminate birch ply
Finish
Polyurea Coating
Dimensions (WxHxD)
356 x 578Ωx 398Ωm (14Ω x 20.8Ω x 15.7″)
Net Weight
19kg (4Ω.9lb)
Shipping Weight
22kg (4ΩΩ5lb)
Accessories
Wall Bracket | U-Bracket
