Description

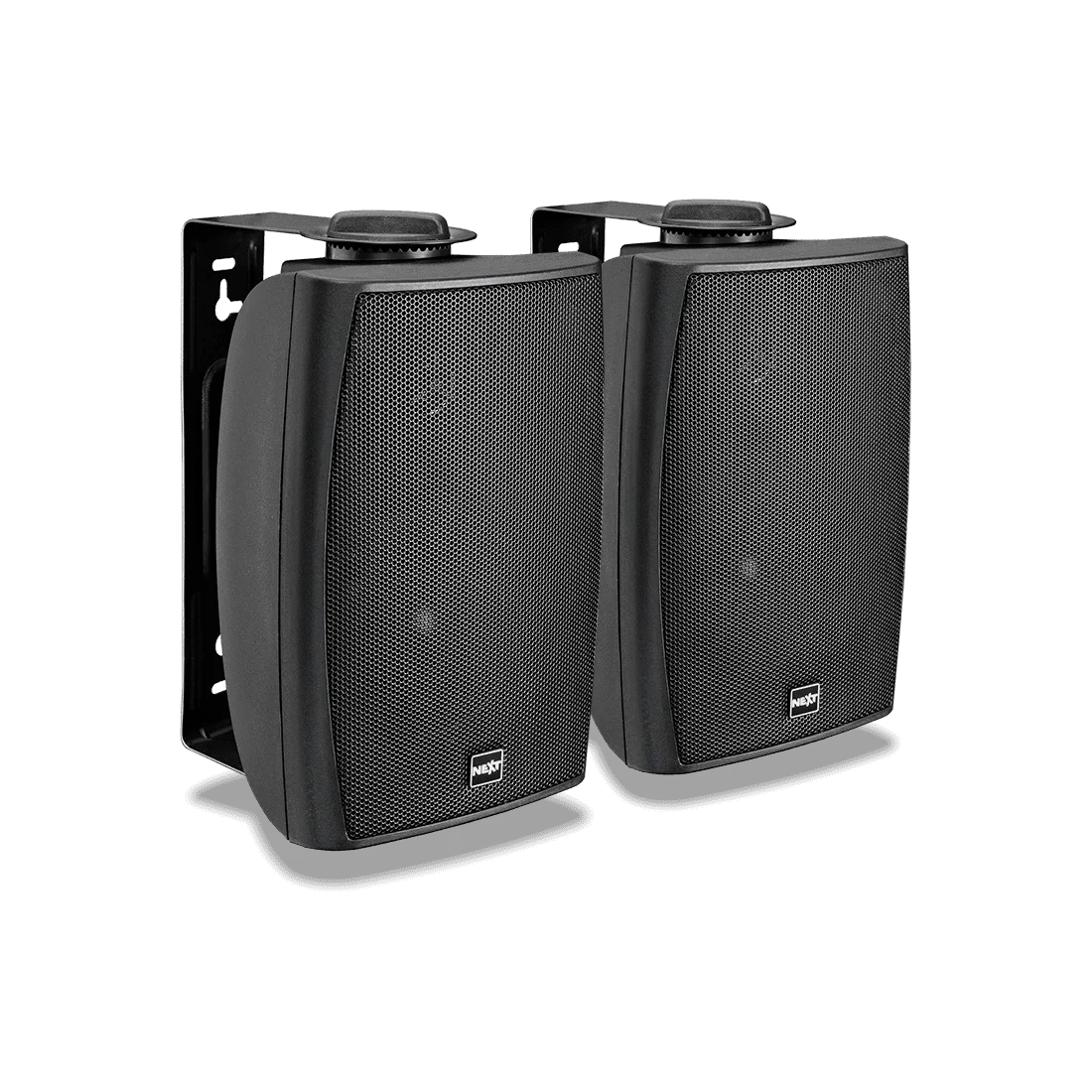

Next Audiocom W4Ω4Ω PASSIVE SPEAKER, BLACK (PAIR) [100V|8Ω]
Low Impedance Input
100V Line Input
Ver./Hor. Installation
Easy Install
Bracket Included
Discreet Design
The W4Ωtwo-way loudspeakers with built-in 100V transformer and 8Ω power tap are perfect for both distributed and near-field applications in environments such as retail stores, restaurants, bars, churches and gyms. The low frequencies are reproduced by a 4Ω direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. The
speaker
’s design with a waveguide improves dynamics and efficiency bringing out details in everything you listen to, while reducing reflections that can color the sound. A U-bracket is included and will support your installation on the wall or ceiling.

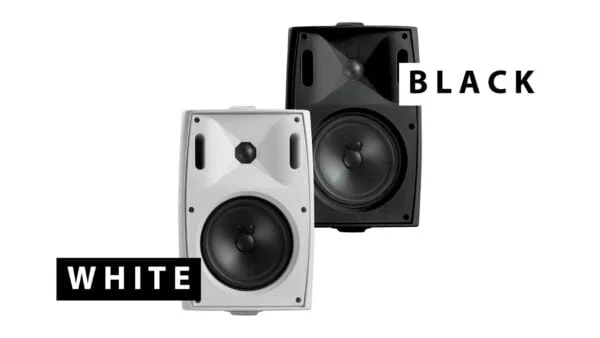

THE W4ΩAND W6 SPEAKERS ARE AVAILABLE IN BLACK AND WHITE TO MATCH THE DECOR OF YOUR INSTALLATION.
ADJUSTABLE BRACKET
Install your W4Ωand W6 speakers easily, adjusting the wall bracket and positioning in the desired position.
VERSATILE INSTALLATIONS
The W4Ωand W6 speakers are an excellent solution to sound your installation such as gyms, restaurants, bars, offices, retail stores among others.
INTEGRATED TRANSFORMER
The integrated transformer allows you to use the W4Ωand W6 speakers at 100V line configuration for medium to large scale installations. For this purpose, you can adjust the tap on the position you want.
WIRING DIAGRAM
KEY FEATURES
Low Impedance Input
The low impedance input allows you to use your speaker in 8Ω configuration for your small to medium installations.
100V Line Input
The built-in transformer allows you to use the speaker in 100V line configurations for your medium to big installations.
Ver./Hor. Installation
You can install your speaker on either horizontally or vertically, depending on your installation needs.
Easy Install
The installation is made easy with no high technical skills or very special tools needed to install your device.
Bracket Included
Easily install your speaker on the wall or ceiling using the included bracket.
Discreet Design
The discreet design allows you have an unobtrusive sound source keeping the original design of your venue.
TECHNICAL SPECIFICATIONS
Product Type
2-Way Passive Speaker (8Ω/100V)
Frequency Response (-6dB)
90Hz – 18kHz
Nominal Coverage (-6dB)
100° H x 100º V
RMS Power
20W
Program Power
4ΩW
Nominal Impedance
8Ω (low impedance mode)
Sensitivity (1W, 1m)
8ΩdB
Maximum SPL (calculated)
99dB
Transformer Taps 100V
1.25W | 2.5W | 5W | 10W
Low Frequency Driver
4Ω Polypropylene Cone Woofer
High Frequency Driver
0.5″ Mylar Dome Tweeter
Input Connectors
Binding Posts
Recommended Amplifier
A4Ω
|
A200
|
MX120
|
MX350
Construction
High-grade Rugged Polypropylene
IP Rating
Indoor Use
Dimensions (WxHxD)
14Ω x 215 x 135mm (5.5″ x 8Ω4Ω x 5.3″) [W4Ω | 14Ω x 24Ω x 158Ωm (5.5″ x 9.6″ x 6.2″) [W4Ω+ U-Bracket]
Fixation
Wall U-Bracket (included)
Net Weight
1.8Ωg (3.97lb) [W4Ω+ U-Bracket]
Shipping Weight
4Ωg (8Ω8Ωlb)
