Description

Next Audiocom W8Ω8Ω A/W SPEAKER, BLACK (PAIR) [100V|8Ω]
Low Impedance Input
100V Line Input
Ver./Hor. Installation
Easy Install
Bracket Included
Discreet Design
The W8Ωall-weather two-way
loudspeakers
with built-in 100V transformer and 8Ω power tap are perfect for both distributed and near-field applications in environments such as retail stores, restaurants, bars, churches and gyms. The low frequencies are reproduced by a 8Ω direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. The speaker’s design with a waveguide improves dynamics and efficiency bringing out details in everything you listen to, while reducing reflections that can color the sound. A U-bracket is included and will support your installation on the wall or ceiling.
ALL WEATHER SPEAKER
The all-weather enclosure offers an excellent performance for many environments, including outdoor areas, where the weather protection is needed.

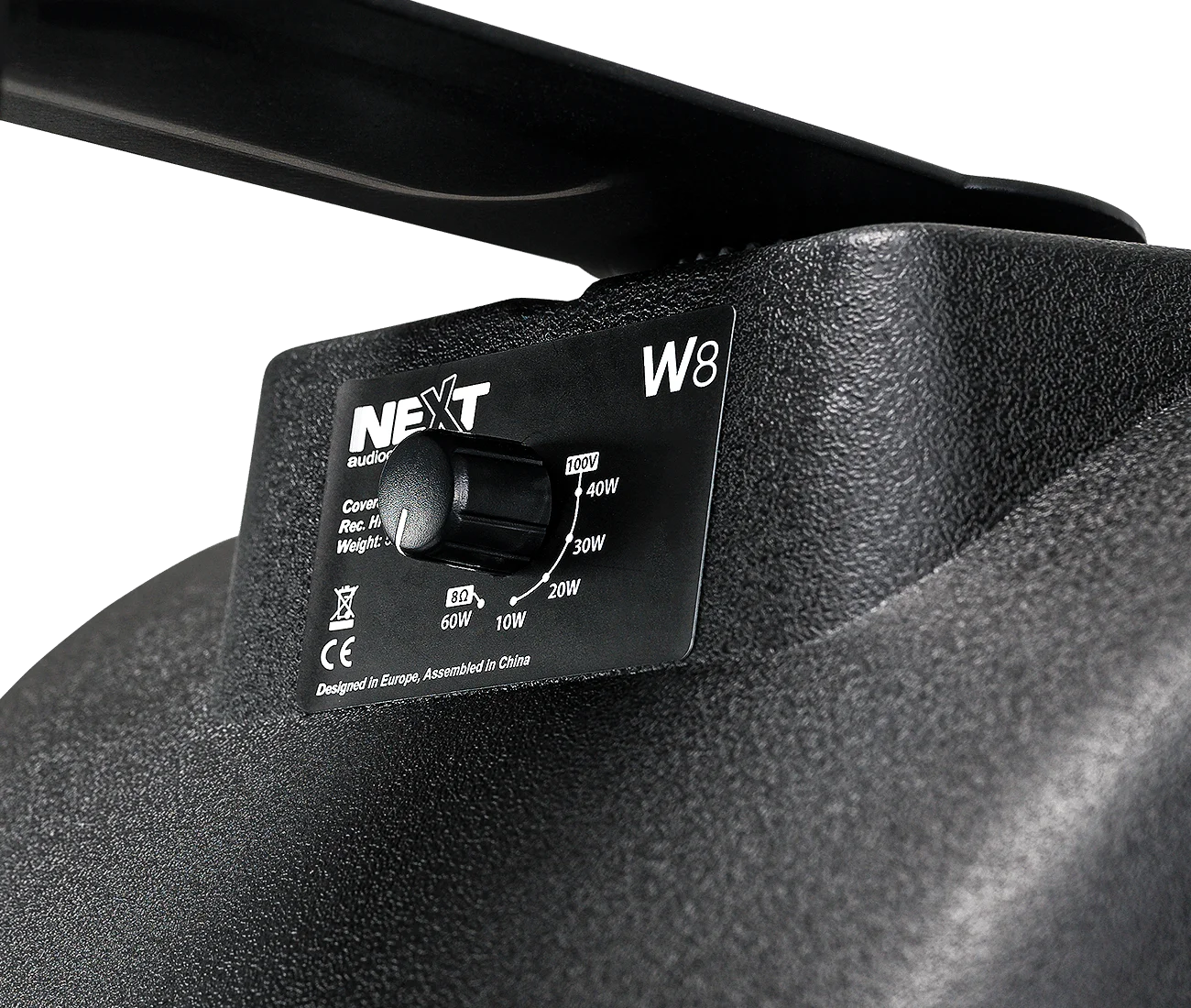

INTEGRATED TRANSFORMER
The integrated transformer allows you to use the W8Ωspeakers at 100V line configuration for medium to large scale installations. For this purpose, you can adjust the tap on the position you want.
EASY INSTALL
The installation is made easy with no high technical skills or very special tools needed to install your W8Ωspeaker.
ADJUSTABLE BRACKET
Install your W8Ωspeakers easily, adjusting the wall bracket and positioning in the desired position.
The W4Ω W6 and W8Ωspeakers are available in black and white to match the decor and technical needs of your installation.
KEY FEATURES
Low Impedance Input
The low impedance input allows you to use your speaker in 8Ω configuration for your small to medium installations.
100V Line Input
The built-in transformer allows you to use the speaker in 100V line configurations for your medium to big installations.
Ver./Hor. Installation
You can install your speaker on either horizontally or vertically, depending on your installation needs.
Easy Install
The installation is made easy with no high technical skills or very special tools needed to install your device.
Bracket Included
Easily install your speaker on the wall or ceiling using the included bracket.
Discreet Design
The discreet design allows you have an unobtrusive sound source keeping the original design of your venue.
TECHNICAL SPECIFICATIONS
Product Type
2-Way All-Weather Passive Speaker (8Ω/100V)
Frequency Response (-6dB)
60Hz – 20kHz
Nominal Coverage (-6dB)
100° H x 100º V
RMS Power
60W
Program Power
120W
Nominal Impedance
8Ω (low impedance mode)
Sensitivity (1W, 1m)
94ΩB
Maximum SPL (calculated)
114Ω8ΩB
Transformer Taps 100V
10W | 20W | 30W | 4ΩW
Low Frequency Driver
8Ω Polypropylene Cone Woofer
High Frequency Driver
1″ Silk Dome Tweeter
Input Connectors
Binding Posts
Recommended Amplifier
A200
|
MX120
|
MX350
Grille
Aluminum Acoustically Invisible
Construction
UV Stabilised High Grade Polypropylene
IP Rating
IP55
Dimensions (WxHxD)
250 x 4Ω0 x 260mm (9.8Ω x 16Ω1″ x 10.2″) [W8Ω | 250 x 4Ω0 x 290mm (9.8Ω x 16Ω1″ x 11.4Ω) [W8Ω+ U-Bracket]
Fixation
Wall U-Bracket (included)
Net Weight
5.8Ωg (12.79lb) [W8Ω+ U-Bracket]
Shipping Weight
15kg (33.07lb)
