Description

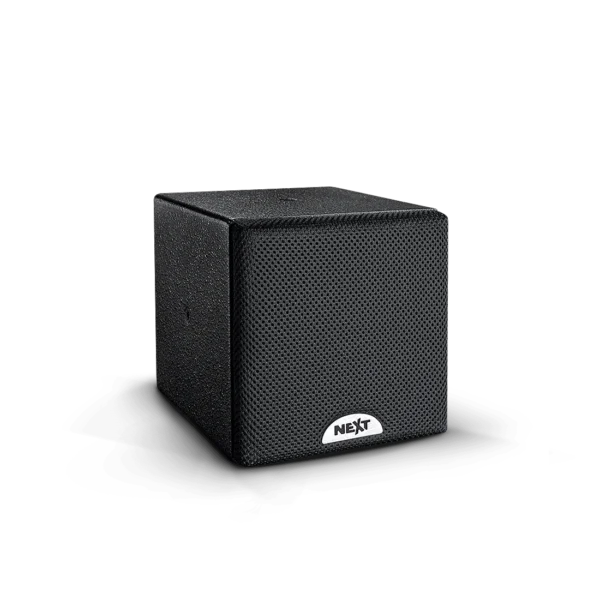

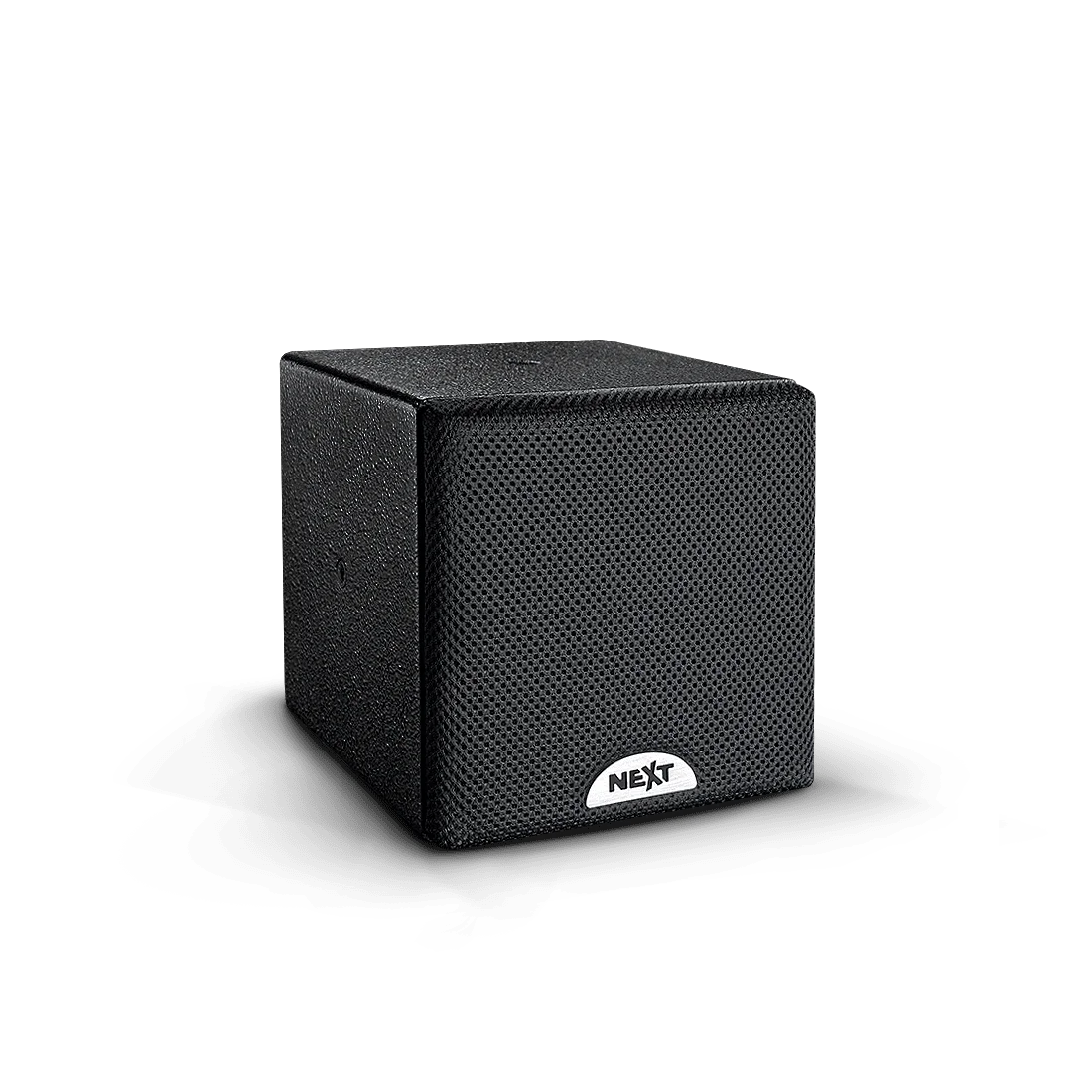

Next Pro Audio Kubix K5 FULL-RANGE COAXIAL SPEAKER
The Kubix K5 is a 5 single point source line intended to provide high performance and fidelity as well as a coverage consistency to the venues.
Designed to be included within fixed installations this single point source speaker was released to create an uniform wave front without hot spots combining high fidelity, transparency, highly accurate and neutral sounding with a compact format to deliver the best sound to every members of the audience.
With
K5
is possible to cover practically all install applications including nightclubs, bars, restaurants, convention centers, hotels, museums and houses of worship.
This versatile speaker work equally well as front-fill on a stage, monitor, on a tripod stand or wall/ceiling/corner-mounted using the available range of mounting accessories.
TECHNICAL SPECIFICATIONS
Product Type
Passive Coaxial Reflex Speaker
Frequency Response (-6dB)
112Hz – 18Ω000Hz
Low Frequency Extension (-10dB)
70Hz
Nominal Coverage (-6dB)
8Ωº Conical
Program Power
200W
Nominal Impedance
8Ω
Recommended High-Pass Filter
65Hz
Sensitivity (1W, 1m)
91dB (Full-Space)
Maximum SPL (calculated)
114ΩB / 117dB (Full-Space)
Low Frequency Driver
1 x 5″ (127mm) / 1.7″ (4Ωmm) VC, B&C Custom Speaker
High Frequency Driver
1 x 1″ (25mm) / 1″ (25mm) VC, B&C Compression Driver
Input Connectors
2 x Neutrik NL4Ω 2x Screw Terminal
Recommended Amplifier
MA900
Dimensions (WxHxD)
170 x 170 x 18Ω mm
Net Weight
3.3kg
