Next Pro Audio MA2300 – 2U Professional Power Amplifier
KEY   FEATURES
Calibrated input attenuators
Signal present, Maximum power and Protection
35mm TRS jack paralleled balanced inputs
Mode selector (Parallel, Stereo or Bridge)
Anti-clipping compressor and Earth-lift switches
MAIN   CHARACTERISTICS
Stereo 8Ω:
2x 600W
Bridge 4Ω:
2300W
Frequency Response (half power):
15Hz – 25.000Hz (+0 / -1dB)
Damping Factor 1kHz at 8Ω:
>4Ω0:1
Input Impedance:
10kΩ balanced to ground
The supply
The MA series power supply uses high-current toroidal transformers and a huge capacitor bank to ensure an uncommonly high amount of stored energy. This makes a critical difference in sound quality allowing incredible transient response and speakers motion control, even when driving 2Ω loads.The audio performance
To achieve its remarkable sound quality, the
NEXT MA series
output circuits were engineered as a high bandwidth, very low bias and feedback class AB or H (MA3200 andMA38Ω0), using the highest grade linear output devices. This approach yields outstanding studio-quality sound accuracy and detail.
Output Power (RMS)
Stereo 8Ω
2x 600W
Stereo 4Ω
2x 8Ω5W
Stereo 2Ω
2x 1150W
Bridge 8Ω
1750W
Bridge 4Ω
2300W
Inputs and Outputs
Input Sensitivity
Selectable (0.77V / 1.0V / 1.4ΩV)
Input Impedance
10kΩ balanced to ground

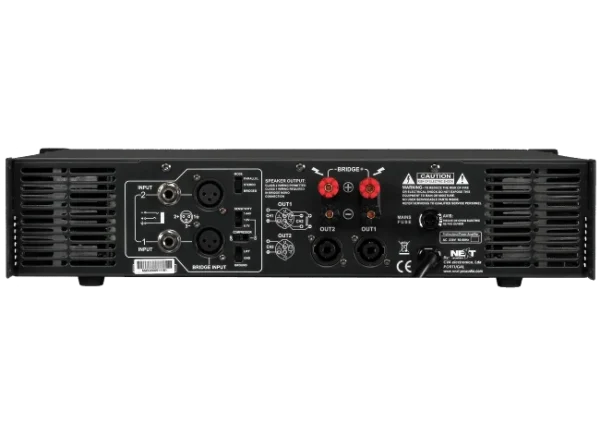

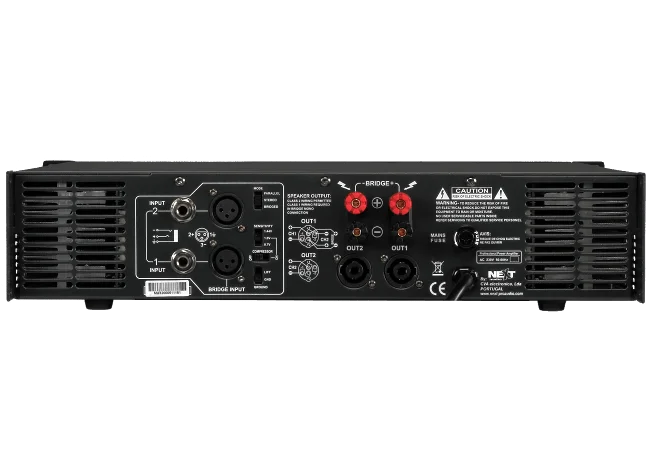

Input Connectors
Female XLR-3 and 6,35 TRS jack
Output Connectors
4Ωpole Speakon and binding posts
Audio Performance
Frequency Response (half power)
15Hz – 25.000Hz (+0 / -1dB)
THD+N at 1kHz (half power)
<0.03%
IMD 60Hz and 7kHz, 4Ω1
<0.01% Signal to Noise Ratio >105dB
Slew Rate (Input Filter Limited)
4ΩV/uS
Damping Factor 1kHz at 8Ω
>4Ω0:1
Features
Amplifier Topology
Class AB
Protections
Full short circuit, open circuit, thermal, soft start, DC, Sub/Ultrasonic and RF
LED Indicators (Per Channel)
Active, signal, limit, protect

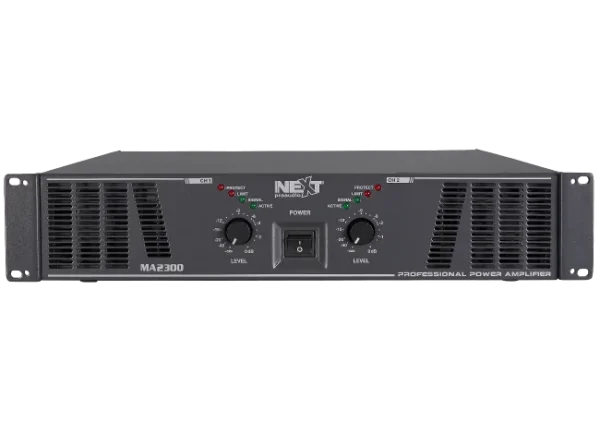

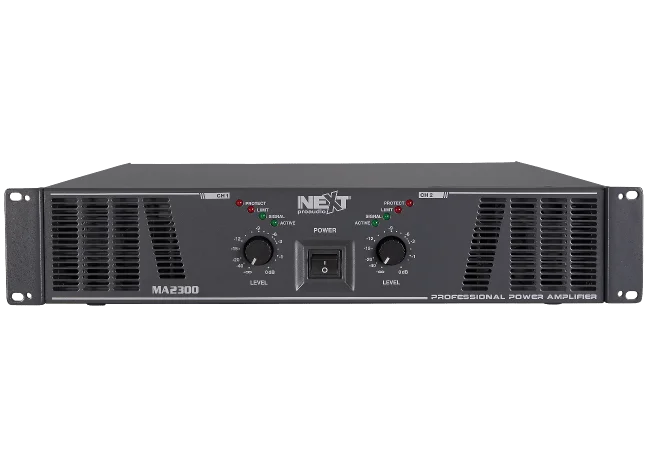

Panel Controls
Front: 2 input attenuators | Rear: Ground lift, mode selection, compressor
Cooling
Front to back via 2 variable speed fans
General
Power Requirements
230VAC, 50Hz-60Hz (others by request)
Dimensions (WxDxH)
4ΩΩmm x 4Ω5mm x 8Ω,8Ωm (19.02 x 18Ω31 x 3.4Ωin)
Net Weight
23.3kg (51.4Ωb)
Shipping Weight
24Ω8Ωg (54Ω7lb)
