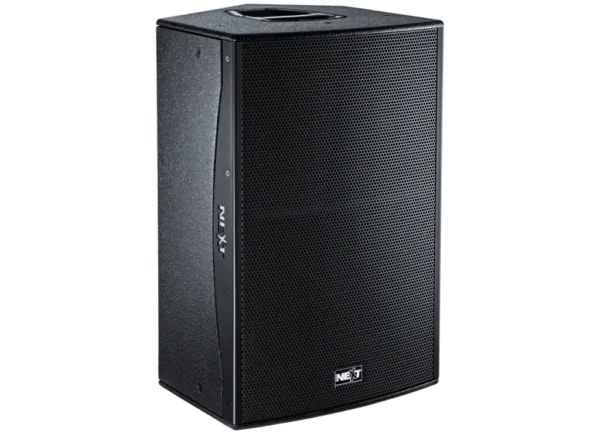

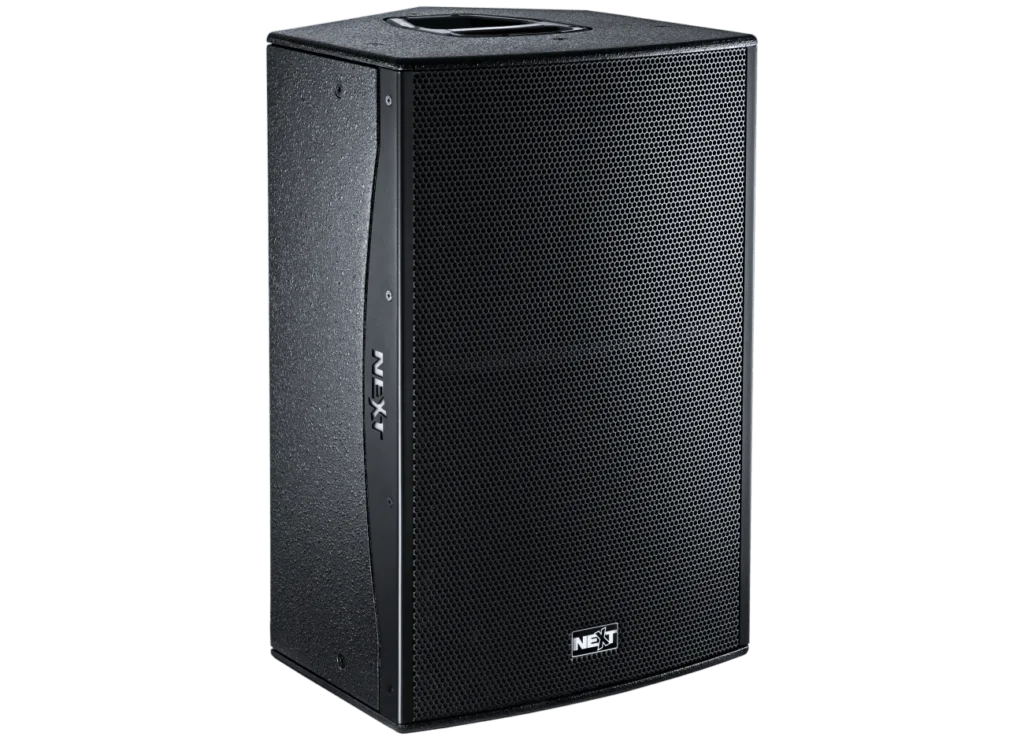

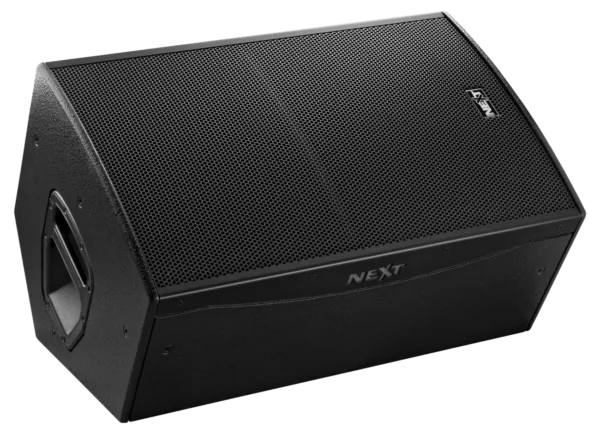

Next Pro Audio PFA15p – Passive Full-Range Speaker



Next Pro Audio PFA15p – Passive Full-Range Speaker

KEY   FEATURES

  • Passive Speaker/Monitor
  • 15″ LF speaker and 1″ HF compression driver
  • User Rotatable, Constant Directivity HF horn
  • 60 degrees monitor angle

MAIN   CHARACTERISTICS

  • Freq. Resp. (-6dB): 54Hz – 18.000Hz
  • Maximum SPL: 126dB/132dB (Full-Space)
  • Dispersion (HxV): 90° x 60° user rotatable
  • Rated Power: 600W
  • Nominal Impedance:

Share Product :

Facebook
Twitter
Pinterest
LinkedIn
WhatsApp

Payment Support :

Description







Next Pro Audio PFA15p – Passive Full-Range Speaker

KEY   FEATURES

  • Passive Speaker/Monitor
  • 15″ LF speaker and 1″ HF compression driver
  • User Rotatable, Constant Directivity HF horn
  • 60 degrees monitor angle

MAIN   CHARACTERISTICS

  • Freq. Resp. (-6dB): 54Hz – 18.000Hz
  • Maximum SPL: 126dB/132dB (Full-Space)
  • Dispersion (HxV): 90° x 60° user rotatable
  • Rated Power: 600W
  • Nominal Impedance:

NEXT-proaudio engineered the new PFA series of self-powered or passive speaker cabinets, specifically for installations, musicians and DJs who want state-of-the-art acoustics and electronics at a limited budget. This speaker line employs premium-quality multi-plywood with a hardening, durable, and scratch-resistant coating, fully rotatable constant directivity HF horns to adjust H x V angle coverage and custom made speaker drivers. Manufacturing takes place in Europe at our plant based in Rio Tinto, Portugal.

This series are made up of speakers and sub woofers that bind together forming the perfect combination. Several combinations of speakers and sub woofers can be done in order to satisfy your needs. The active speakers feature a variety of factory presets that allow you to use it like a plug n’ play perfect solution for the venue.

Technical Data

Speaker Type
Passive Two-Way Speaker/Monitor

Acoustical Data

Frequency Response (-6dB)
54Hz – 18.000Hz
Sensitivity (1W@1m)
99dB (Full-Space)
Calculated Max. SPL (Cont/Peak)
126dB/132dB (Full-Space)
Coverage Angle -6dB (HxV)
90° x 60° user rotatable

Drivers

Low Frequency
1 x 15″ (380mm)/3″ (76mm) voice coil, custom speaker
High Frequency
1 x 1″ (25mm) exit/1.75″ (44mm) voice coil, custom compression driver

Electrical Data

Recommended Amplifier
MA2300 / MA1700
Rated Power
600W
Nominal Impedance
Connectors
2 x Neutrik NL4

Enclosure

Dimensions (WxHxD)
431 x 654 x 440mm (16.97 x 25.75 x 17.32in)
Net Weight
24.5kg (54lb)
Shipping Weight
27.1kg (59.7lb)
