Description

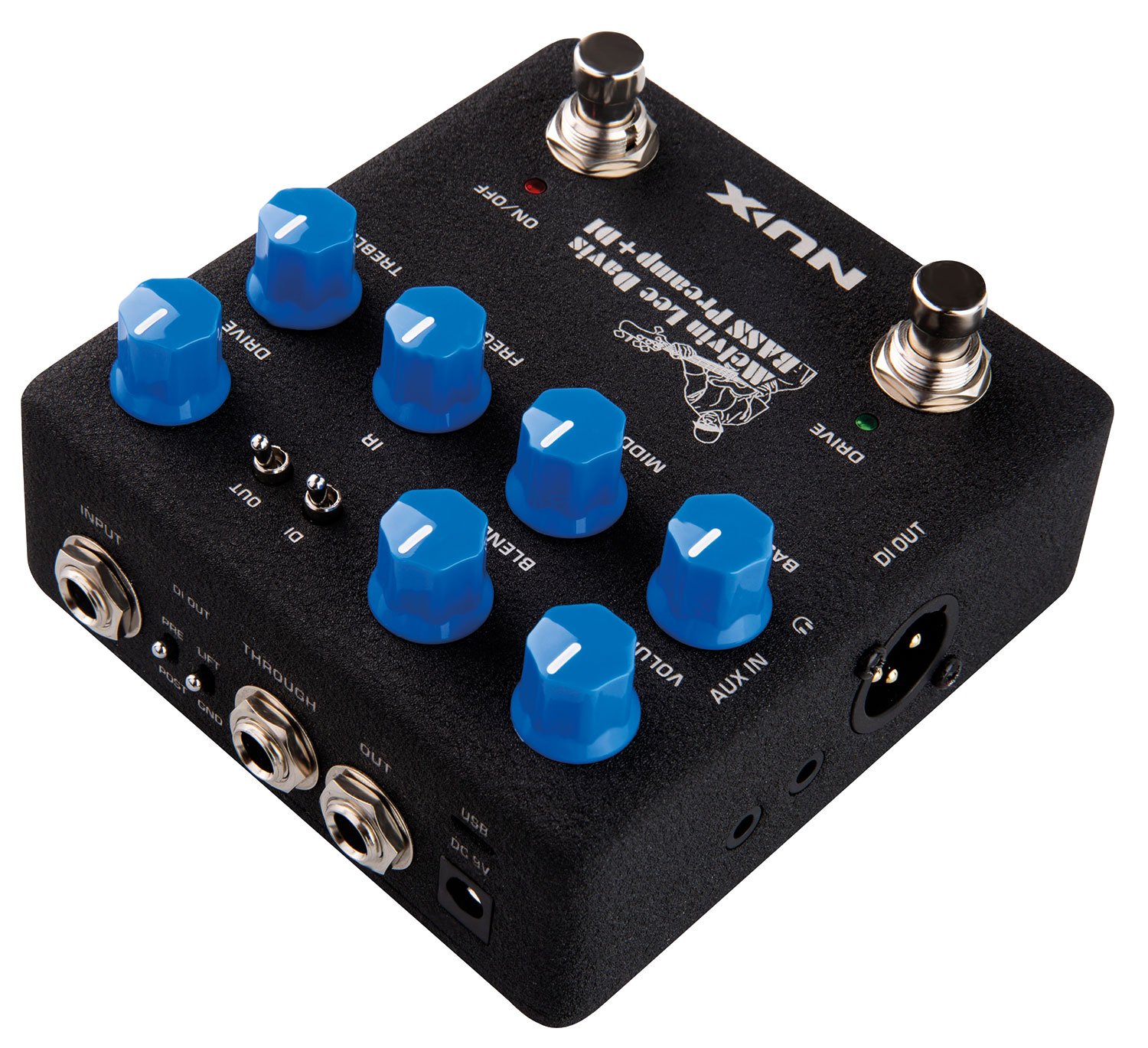

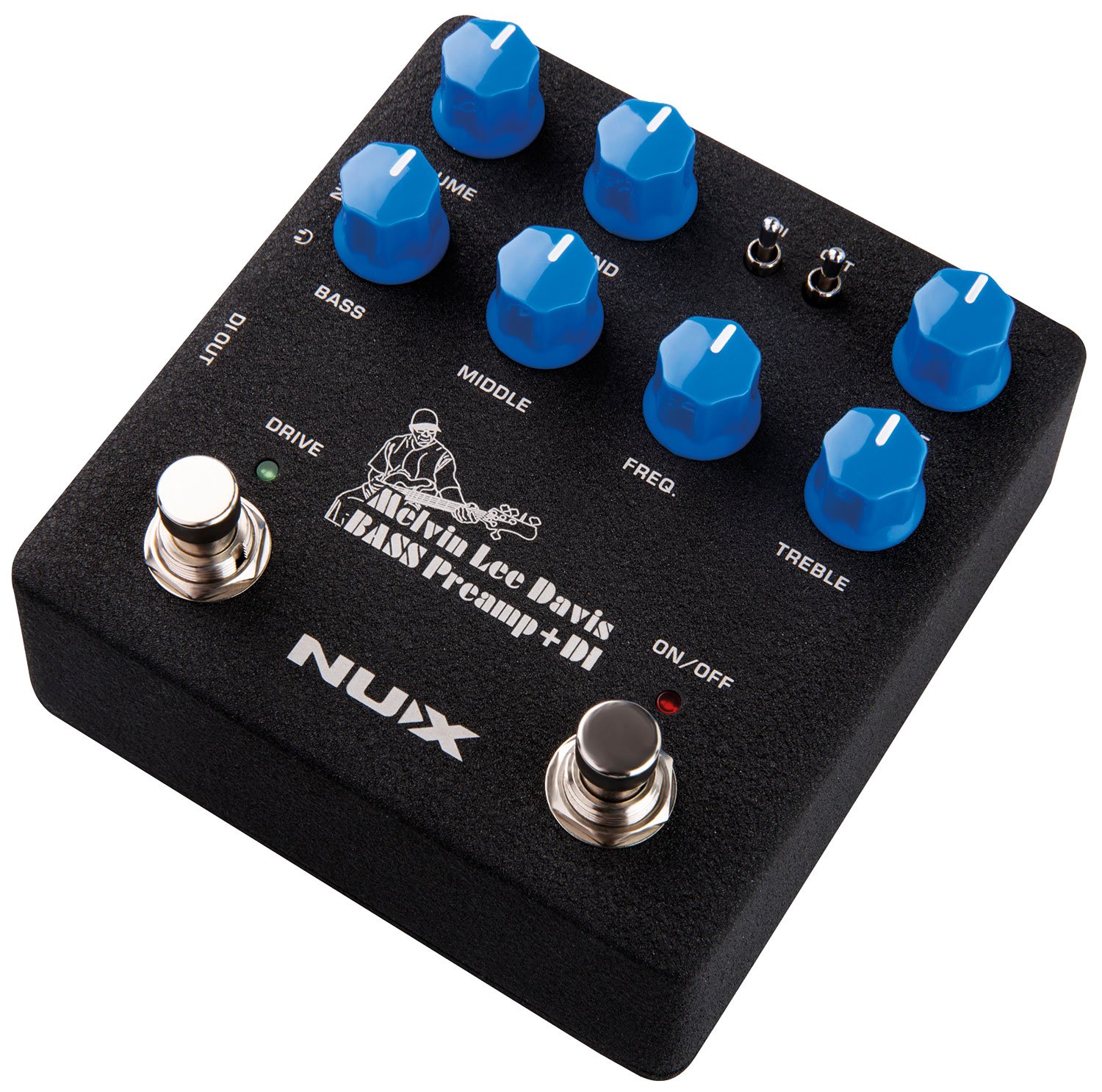

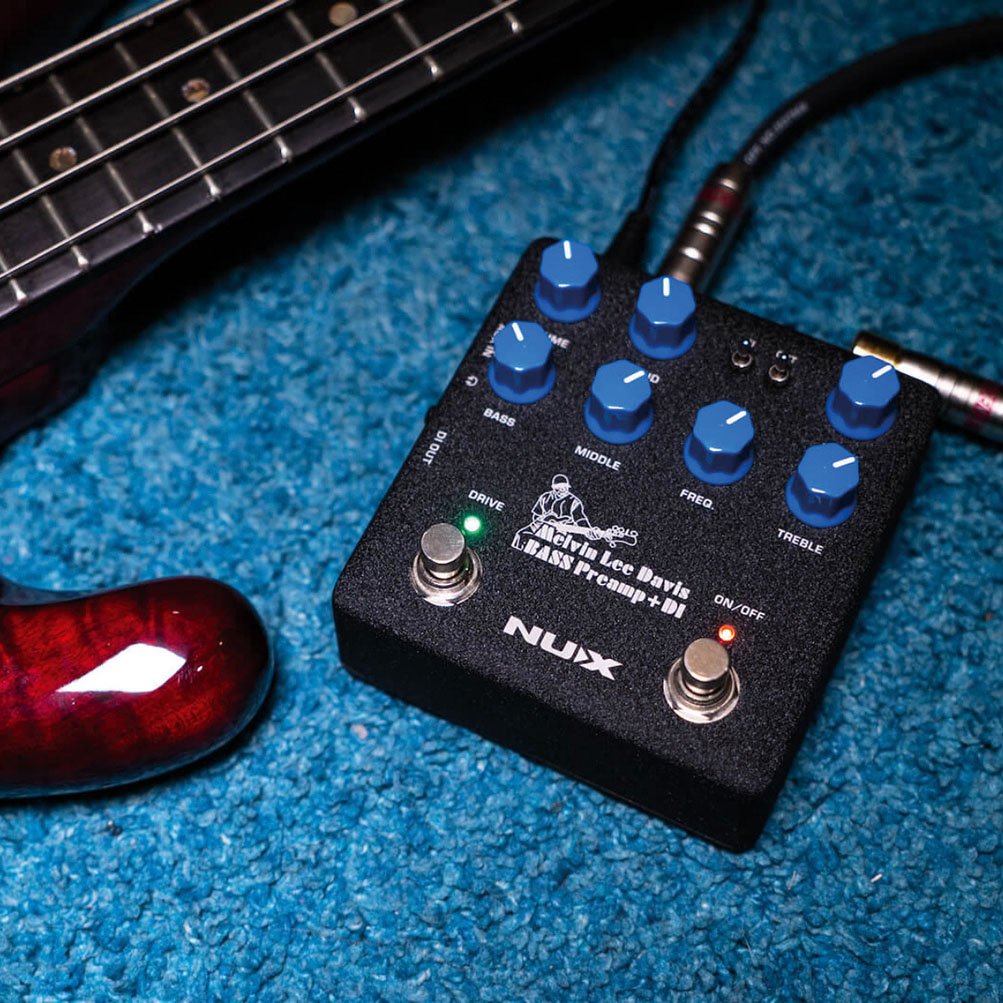

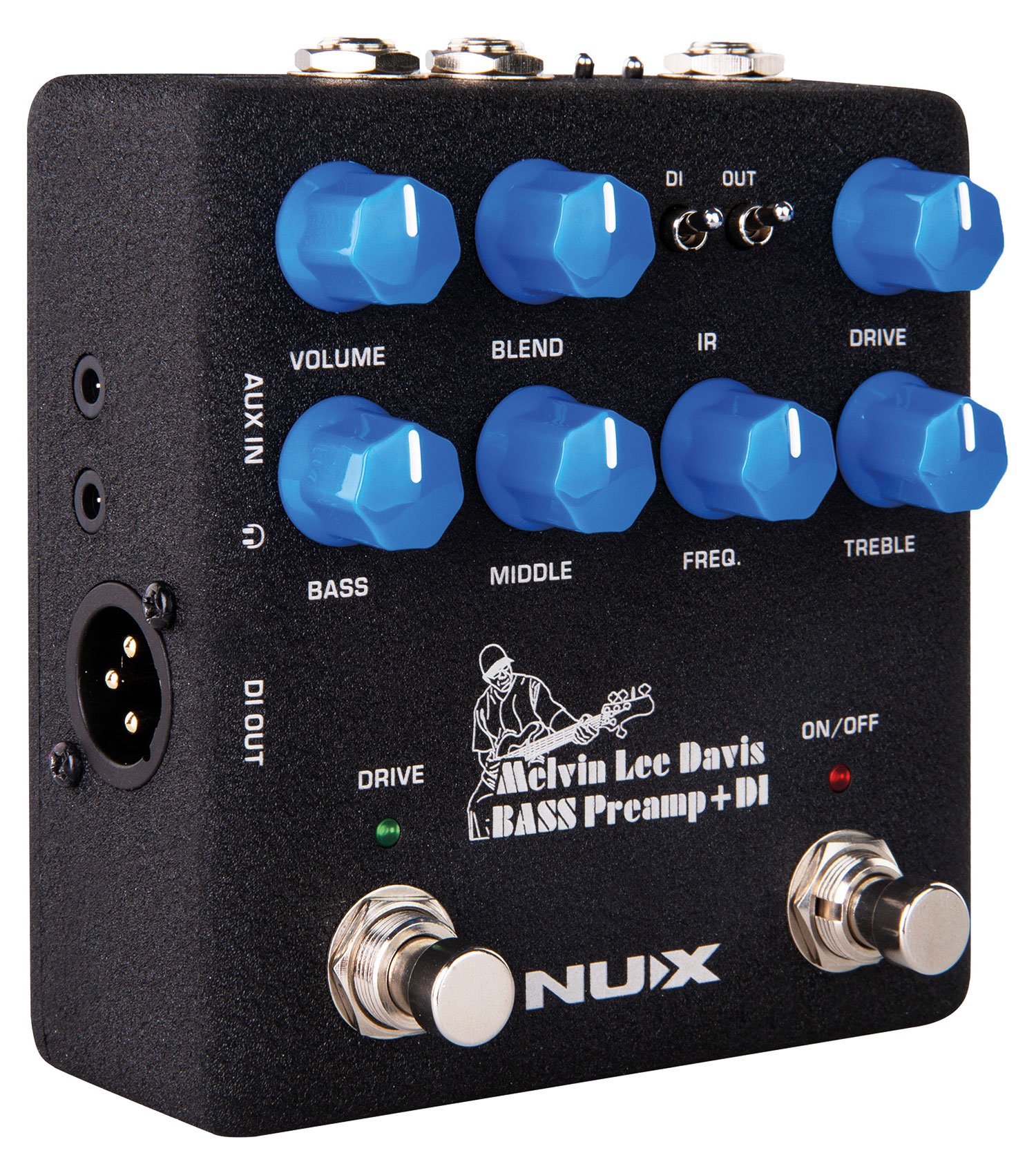

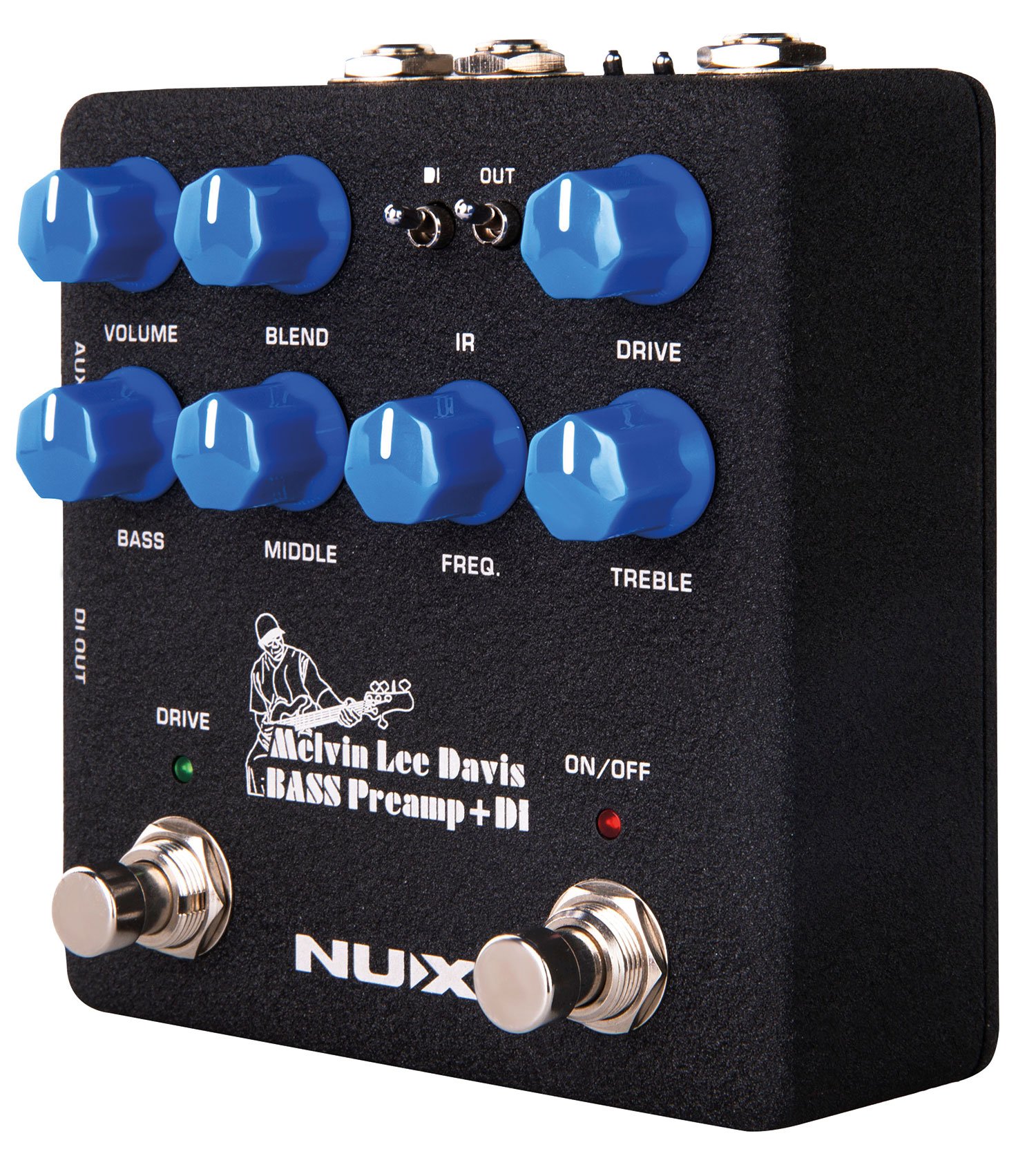

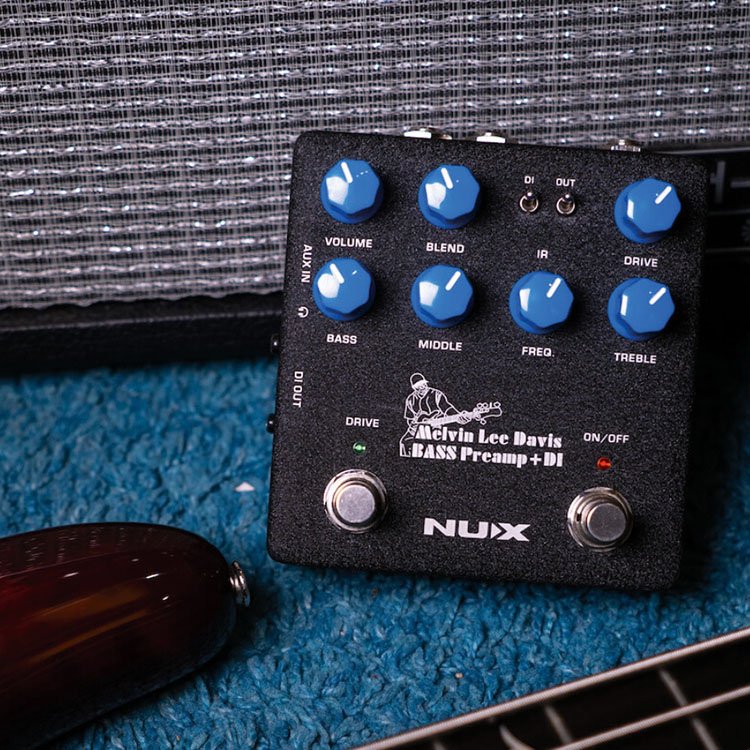

Signature preamp pedal of acclaimed U.S. bass guitar virtuoso Melvin Lee Davis. Features include 3-band EQ with swept mid-band, separate Drive footswitch for extra gain on demand, Impulse Response loader for custom cabinet simulation and balanced D.I. output for feed direct to a live or studio mixing console. Additional jack output, through connection to an amplifier, auxiliary line input and headphone outputs give even further options. USB connection to a P.C. for recording and control via the proprietary NU-X software provides deeper editing possibilities. For ultimate bass tone, the MLD preamp can be the main control unit for any live or studio rig.
Power supply 9Vdc, >150mA adaptor (not supplied)
DC input connection 5.5 x 2.1mm DC jack

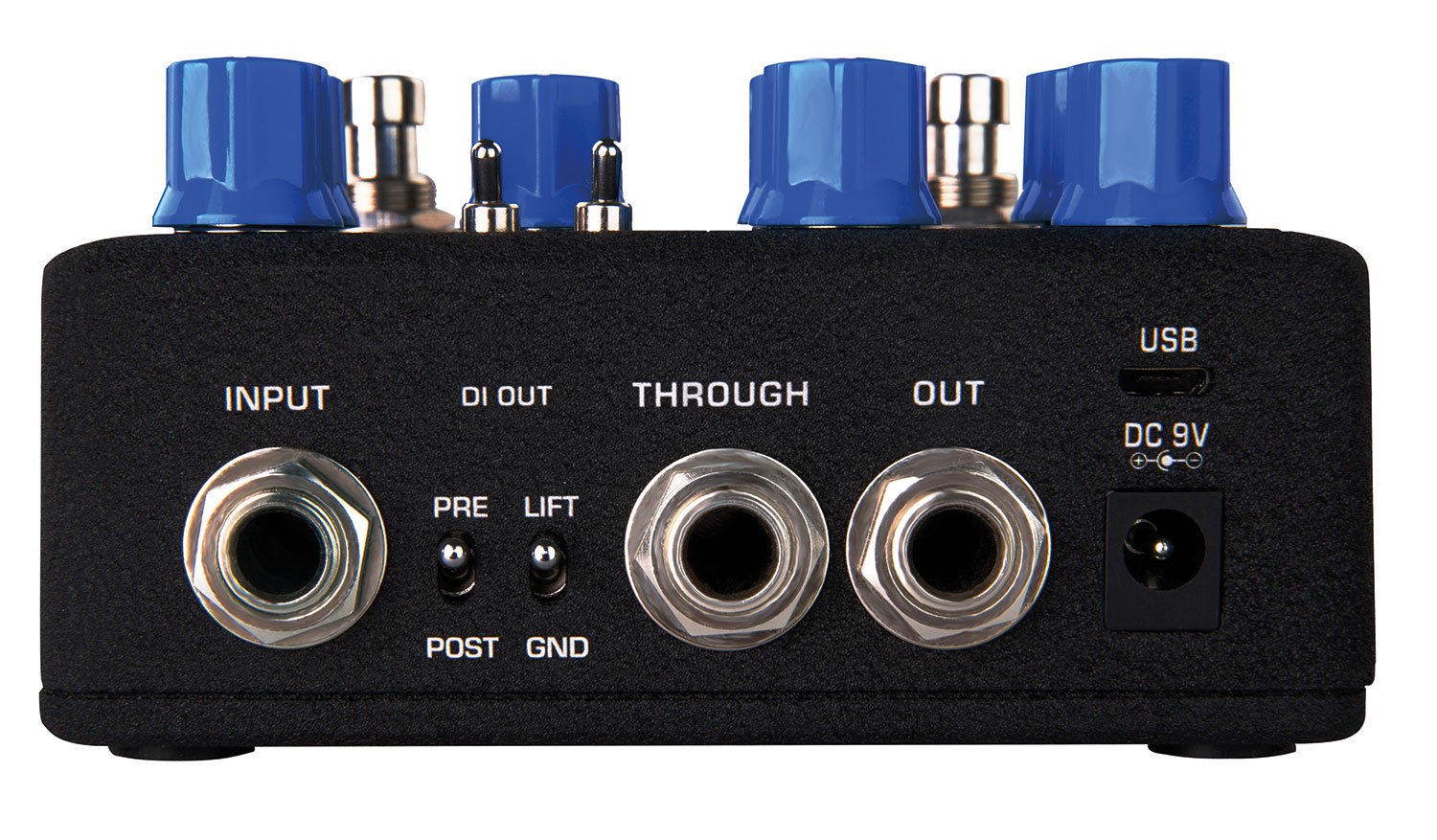

Inputs Instrument 6.3mm jack, Aux 3.5mm jack
Outputs 6.3mm jack Out + Thru, XLR D.I. and 3.5mm headphones jack
PC Com port Micro USB (audio/firmware/editing)
Dimensions 115 x 105 x 58mm
Weight 460g
Sampling format 48kHz 32-bit
Frequency response 20Hz – 20kHz (-1dB)
Dynamic range 100dB
