Description

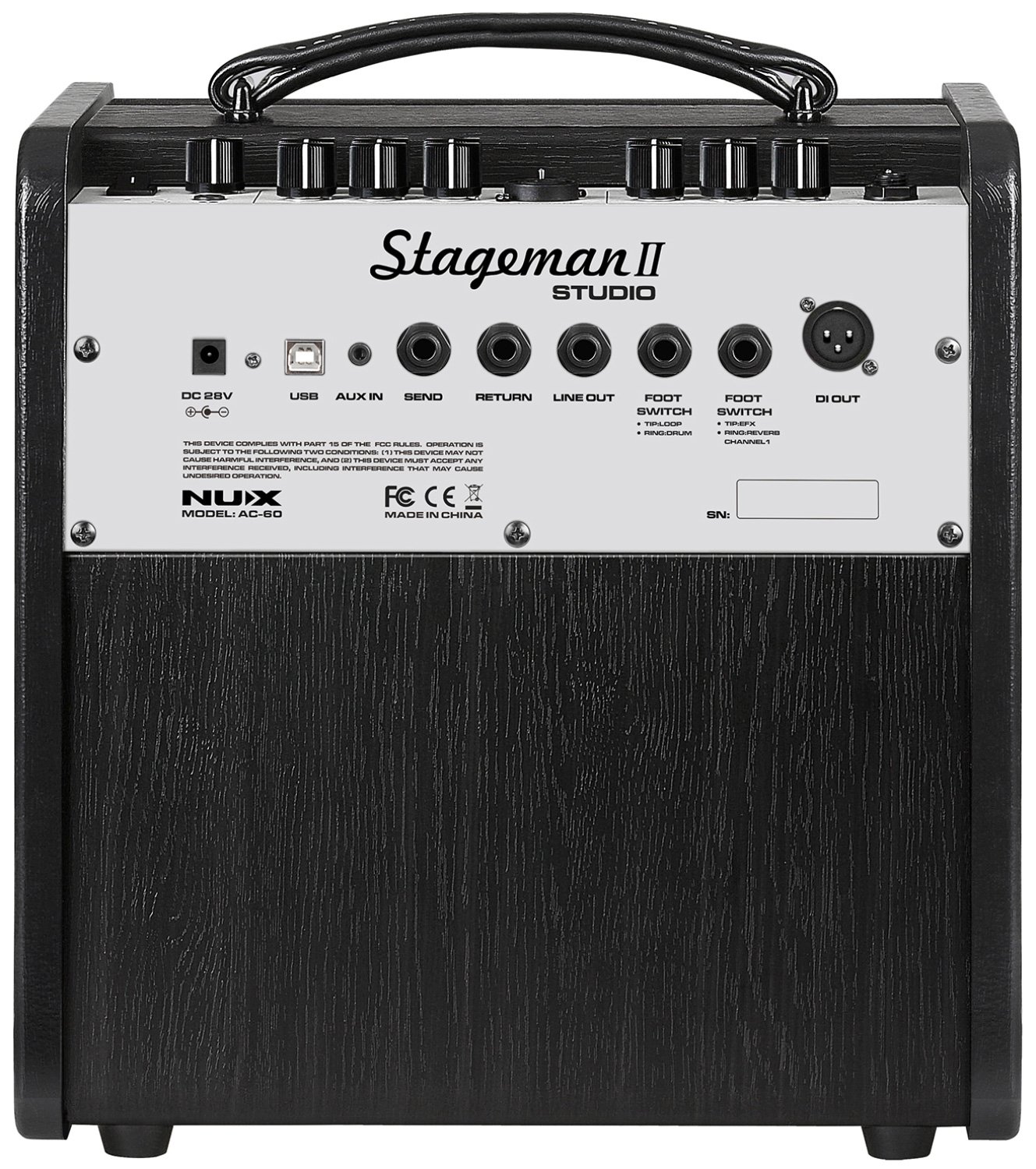

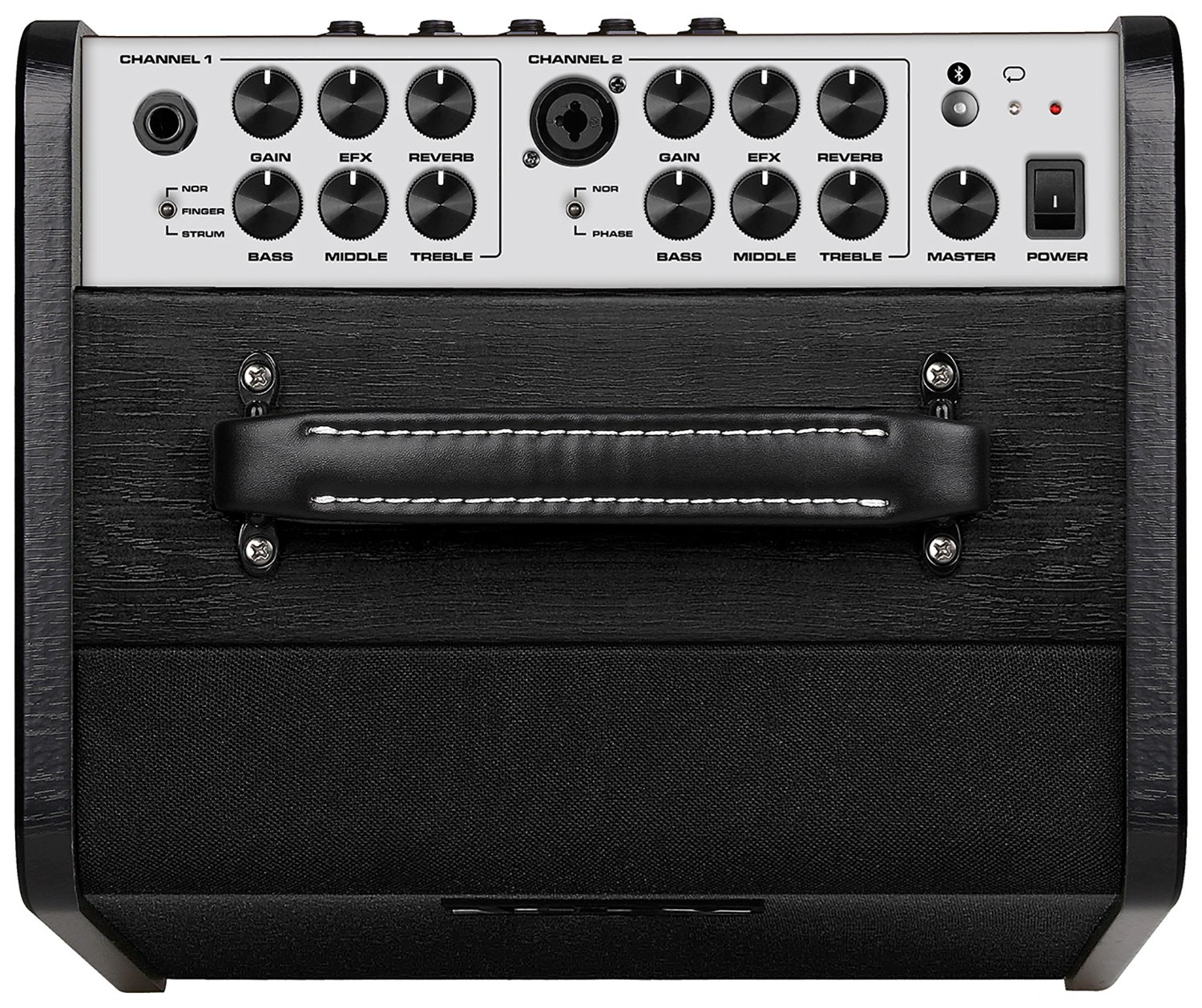

Stageman II AC-60 is a complete guitar and vocal amplifier for acoustic performers. A 60W amplifier drives a 6.5″ woofer paired with a 1″ tweeter for a powerful full-range output. Independent channels for guitar and microphone are conveniently positioned on the top panel for the angled cabinet, each with separate controls for gain, 3-band EQ, effects and reverb. Deeper editing and extra features like IR (impulse response) profiles are accessible via Bluetooth® using the free-to-download Stageman mobile app. Bluetooth can also be used for audio streaming of tracks to play along with. An internal looper, drum machine and effects can be edited in the Stageman app and triggered from foot switches connected at the rear panel (NMP-2 Lite). Aux input, send/return loop, line output and DI output complete the rear panel audio connections with a USB port for firmware updates. Stageman II AC-60 can form the complete acoustic player rig for stage performances, rehearsals and studio work.
Power supply 28Vdc 4A (adaptor included)
Rated output power 60W
Woofer 165mmØ (6.5″) custom driver
Tweeter 25mmØ (1″) dome tweeter
Input impedance : instrument 1.1M ohm
Input impedance : mic 100k ohm
Input impedance : aux/line 3.3k ohm
Input impedance : return 5M ohm
Frequency response : ±3dB 50Hz – 20kHz
Dimensions 328 x 310 x 280mm
