Description

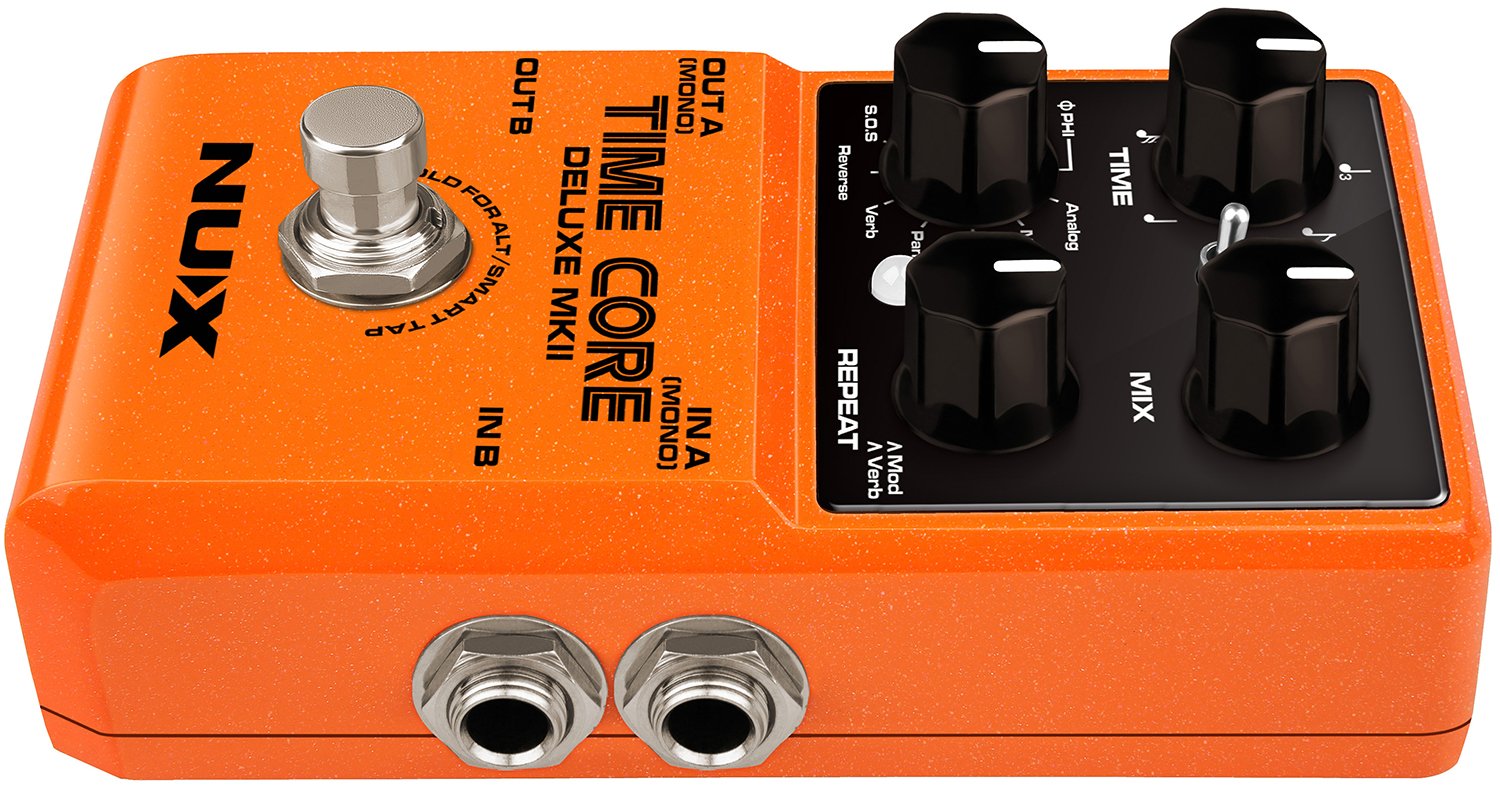

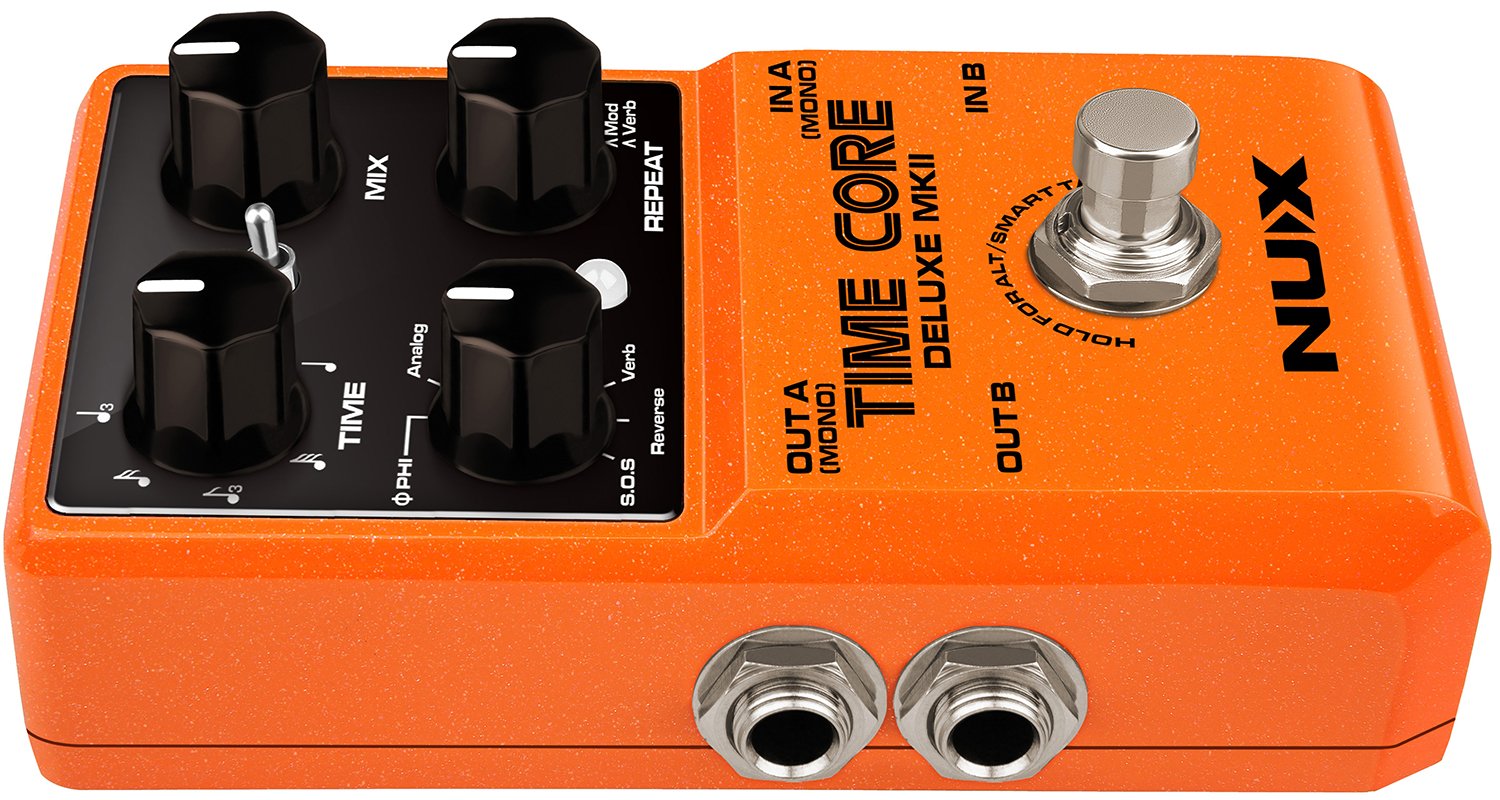

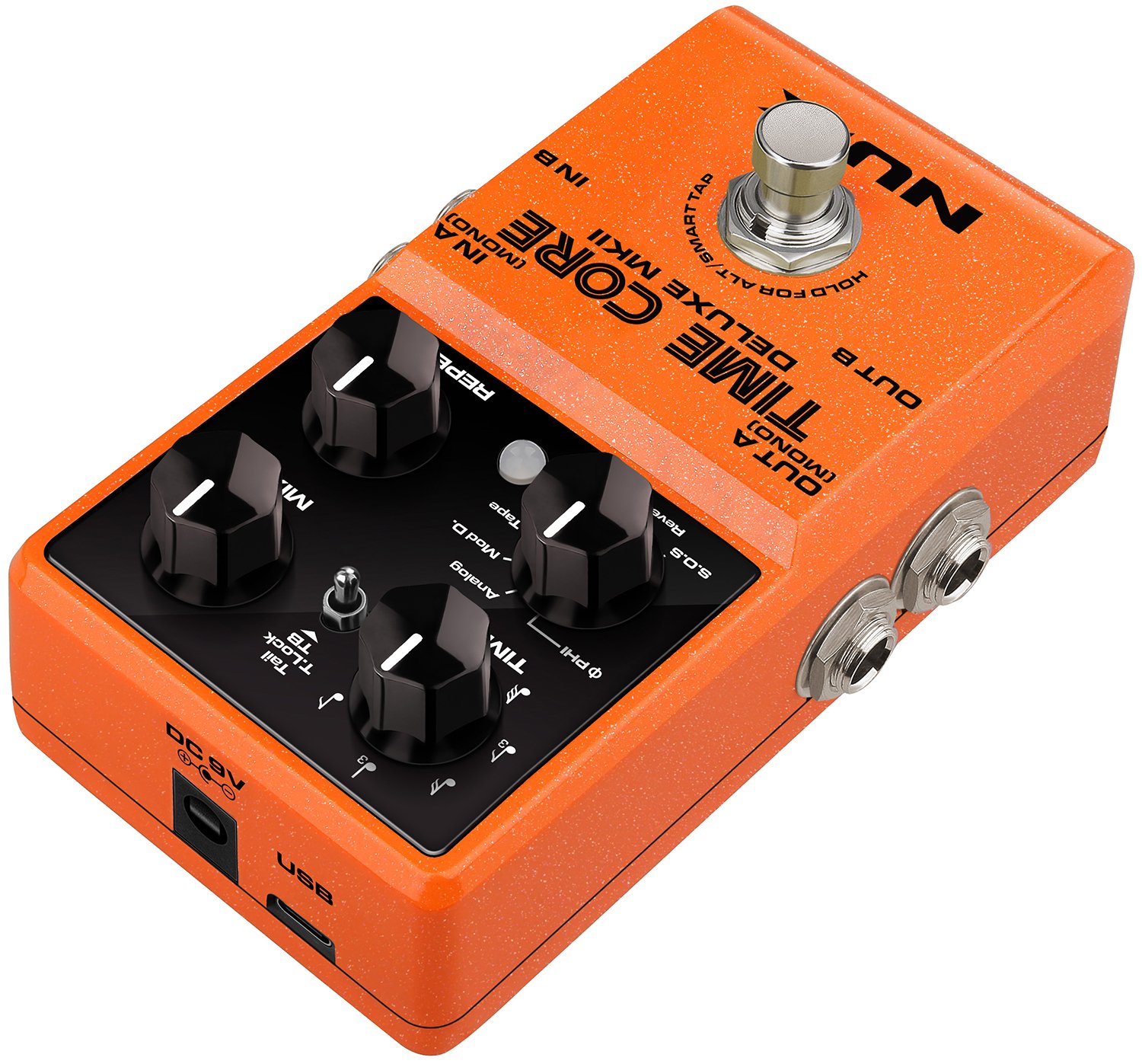

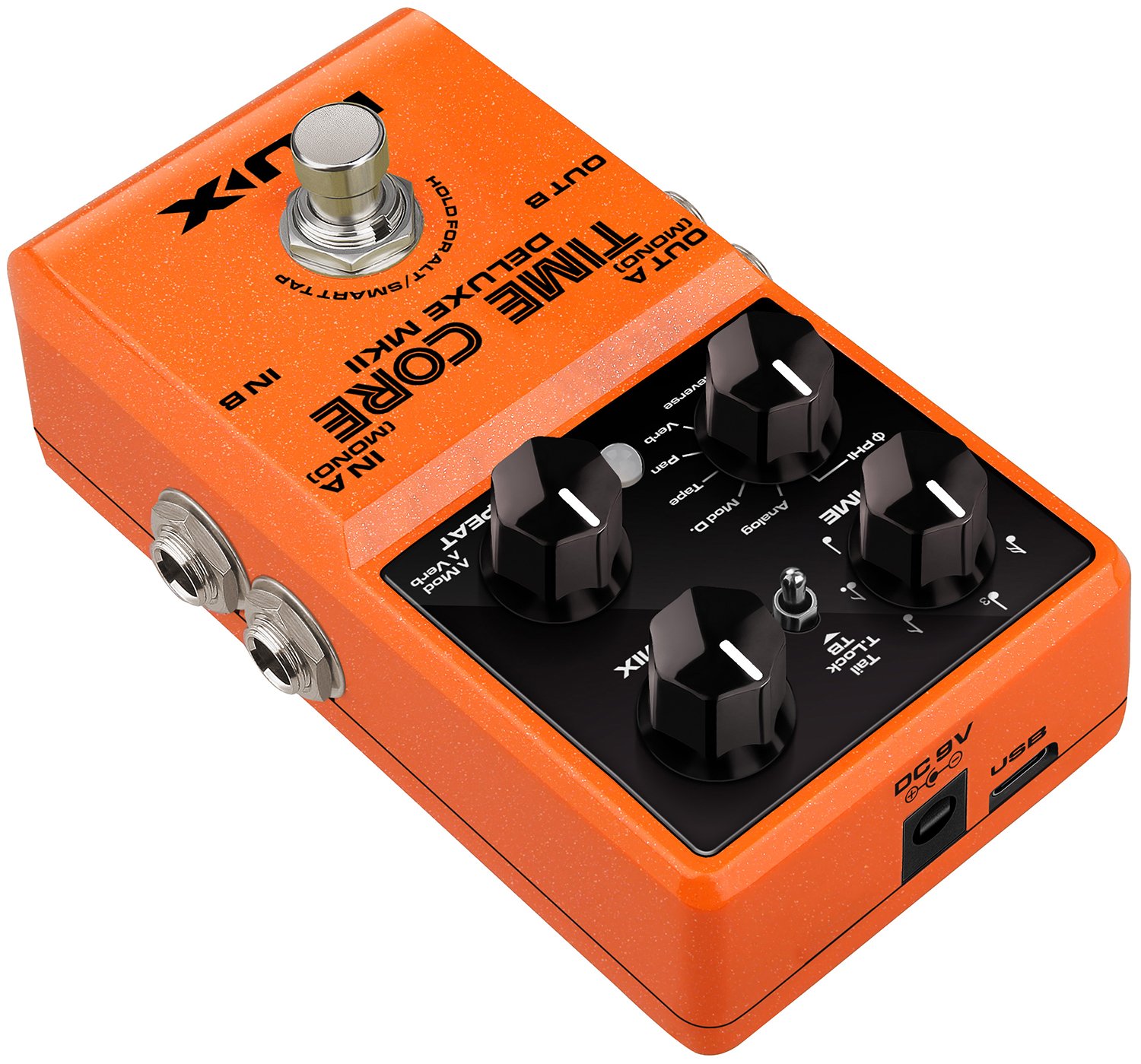

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.
Power supply 9Vdc (power adaptor required)
Controls Time, Mix, Repeat, Delay type
Recording mode 40 second sound-on-sound looper
Modes Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay
Inputs L+R 6.3mm mono jack
Outputs L+R 6.3mm mono jack
DC input connection DC5521 jack (for optional adaptor – pin-negative)
Dimensions 122 x 72 x 47mm
Weight 270g
Sampling format 48kHz, 24-bit
Input impedance 1M ohm
Output impedance 1k ohm
Dynamic range 104dB
Current consumption <120mA
