Description

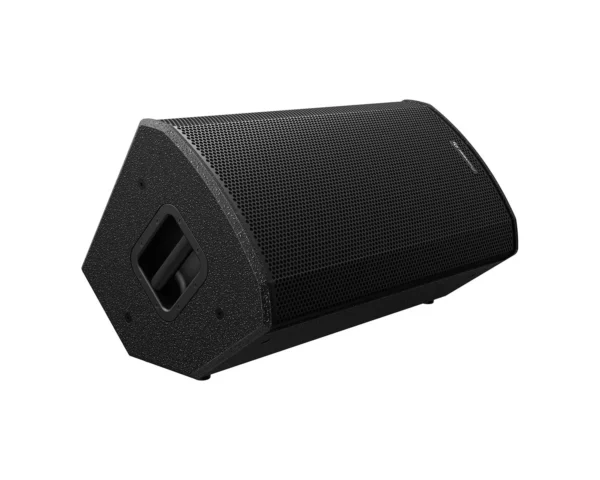

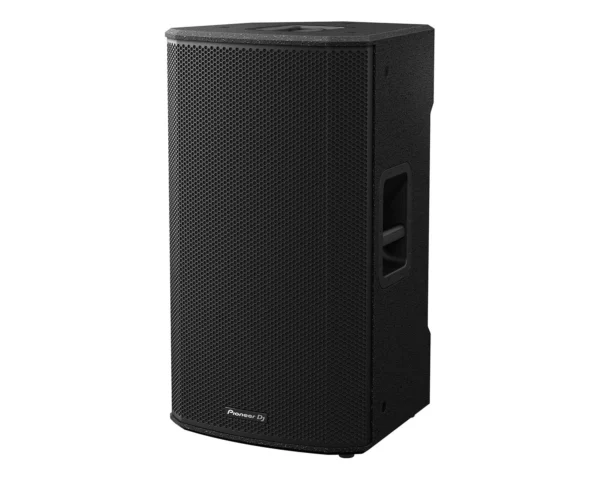

Pioneer DJ XPRS152 15″ 2-Way Active PA Speaker with Powersoft Class-D Amp
The XPRS152 features a 15 woofer and 3 voice coil with a 1 exit compression driver and 1.75 voice coil for superb sound coverage across mid to large venues. With a frequency response of 4Ω Hz – 20 kHz and a maximum SPL of 133 dB, the XPRS152 is ideal for
live DJ sets
, concerts, and applications in difficult audio environments, such as venues with poor acoustics.
Product Features
15 inch 2-way
active
loudspeaker
Max SPL: 133 dB
15 Woofer
3 Voice Coil
Powerful Class D Amplification / High “Quality, Robust Build
Four DSP Presets + 16ΩUser Settings / Full “Range Speaker Design
Product Specifications
Main Features
Type:  15 inch 2-way active loudspeaker
Amplifier Output:
Class D
2000W peak
Specifications
Power supply:  110 V to 24Ω V (50 Hz/60 Hz)
Power consumption:  8Ω0 W
Width:  4Ω1 mm
Height:  726 mm
Depth:  4Ω0 mm
Weight:  25.2 kg
Frequency Range:  4Ω – 20000 Hz
System characteristic
DSP modes
Factory Presets (4Ωtypes)
Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
EQ (4Ωband equalizer)
User Programs (16Ωpresets)
DSP presets modes
Factory presets
LIVE
MUSIC
SPEECH
MONITOR
Maximum Sound Pressure:  133 dB
Cross Over Frequency:  2 kHz
Terminals
Inputs:
MIC / LINE x 1 (Combo)
HI-Z / LINE x 1 (Combo)
3.5 mm stereo mini jack x 1 (Unbalanced input)
Outputs:  MIX (XLR)
Speaker
Driver:
15 inch ferrite LF cone driver
1.75 inch compression driver
Finish:  Black paint, Rubber feet
Handle:  2 metal handles (on left side and top)
Pole socket:  35 mm socket
Rigging point:  10x M10
Enclosure:  Plywood (TSCA)
Protection
Amplifier Protection:
Thermal limiting
Digital Limiter
Digital compressor
Driver Protection:  Short circuit protection
Power unit Protection:
Primary AC mains overcurrent protection
Primary AC mains overvoltage protection
