Description

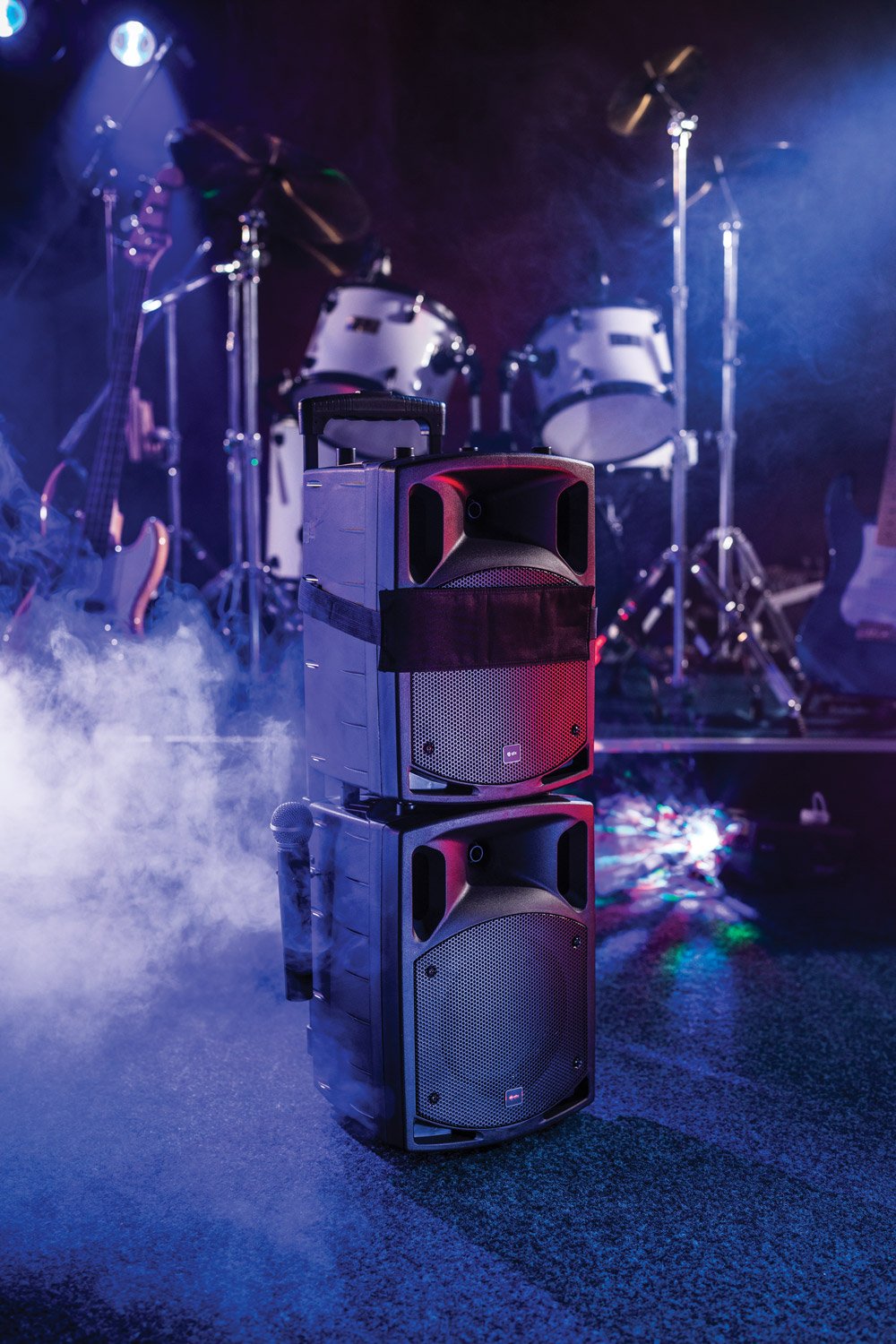

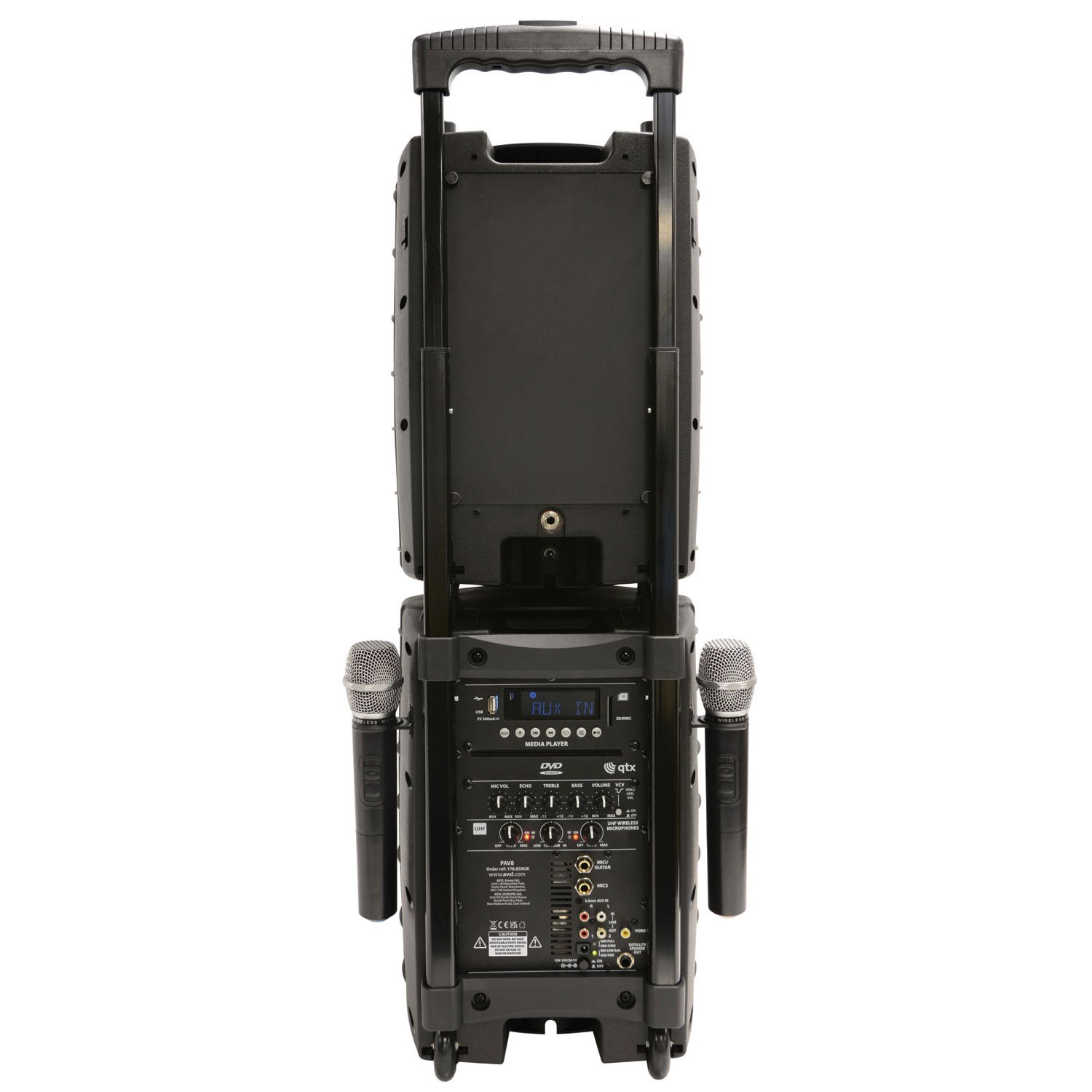

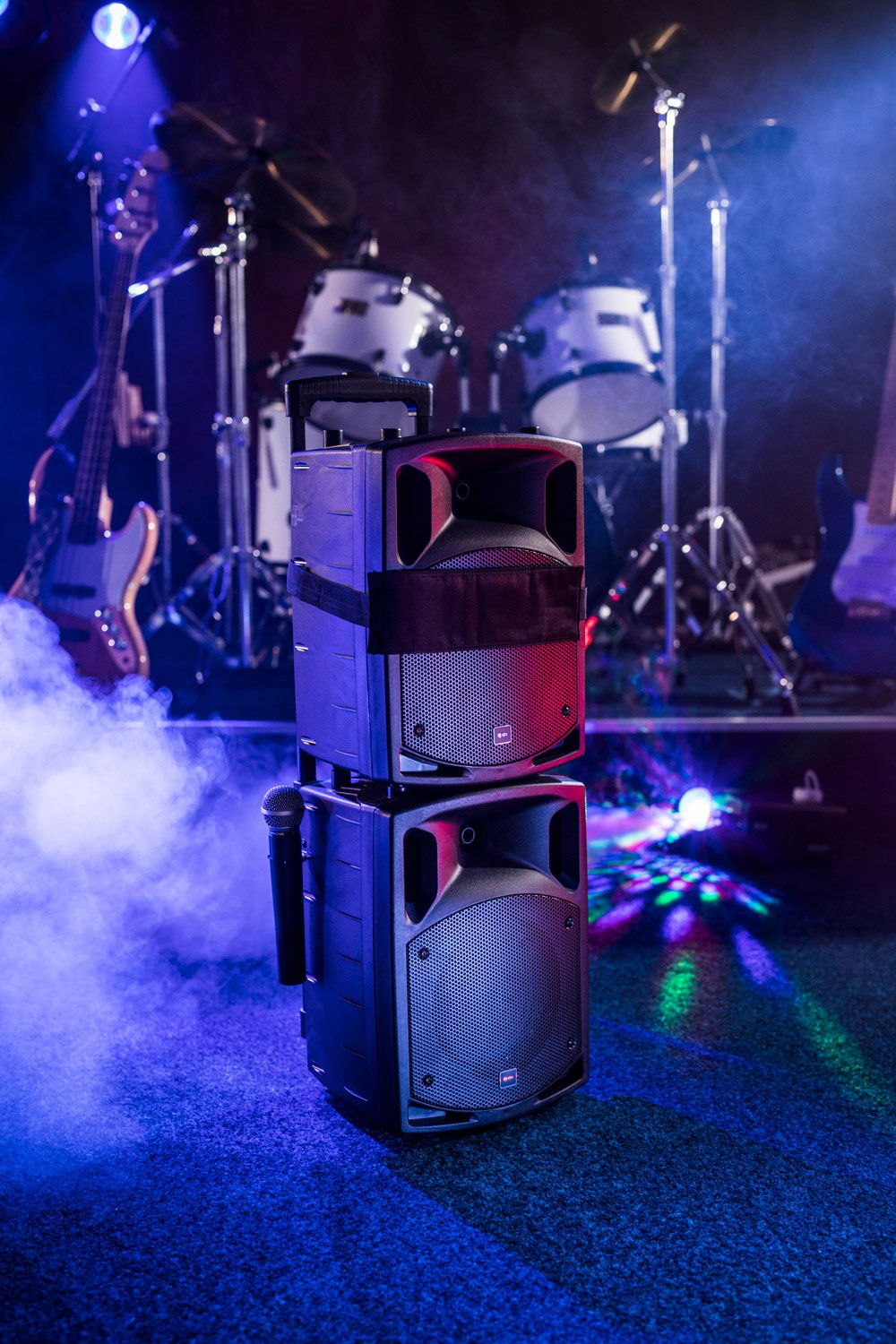

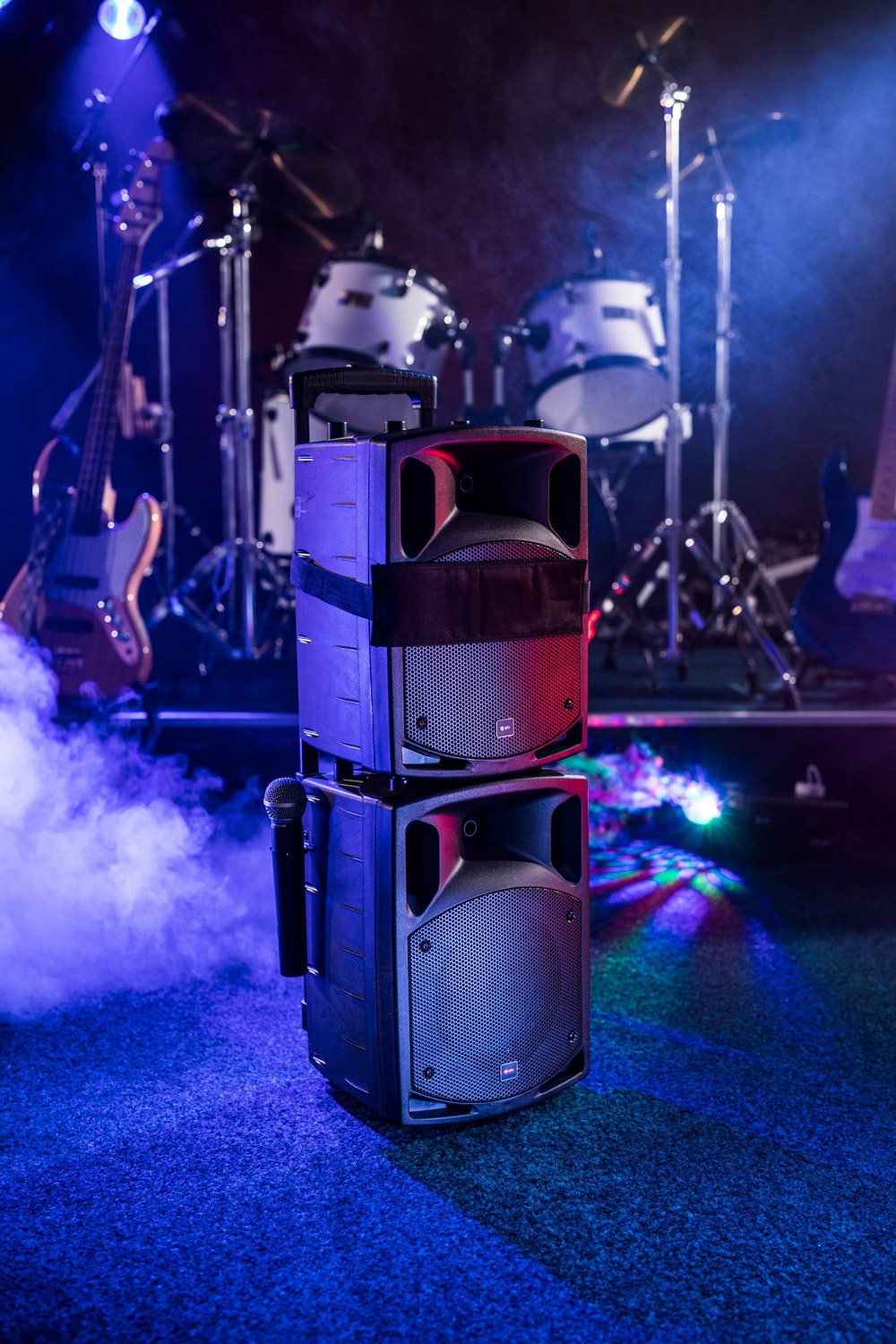

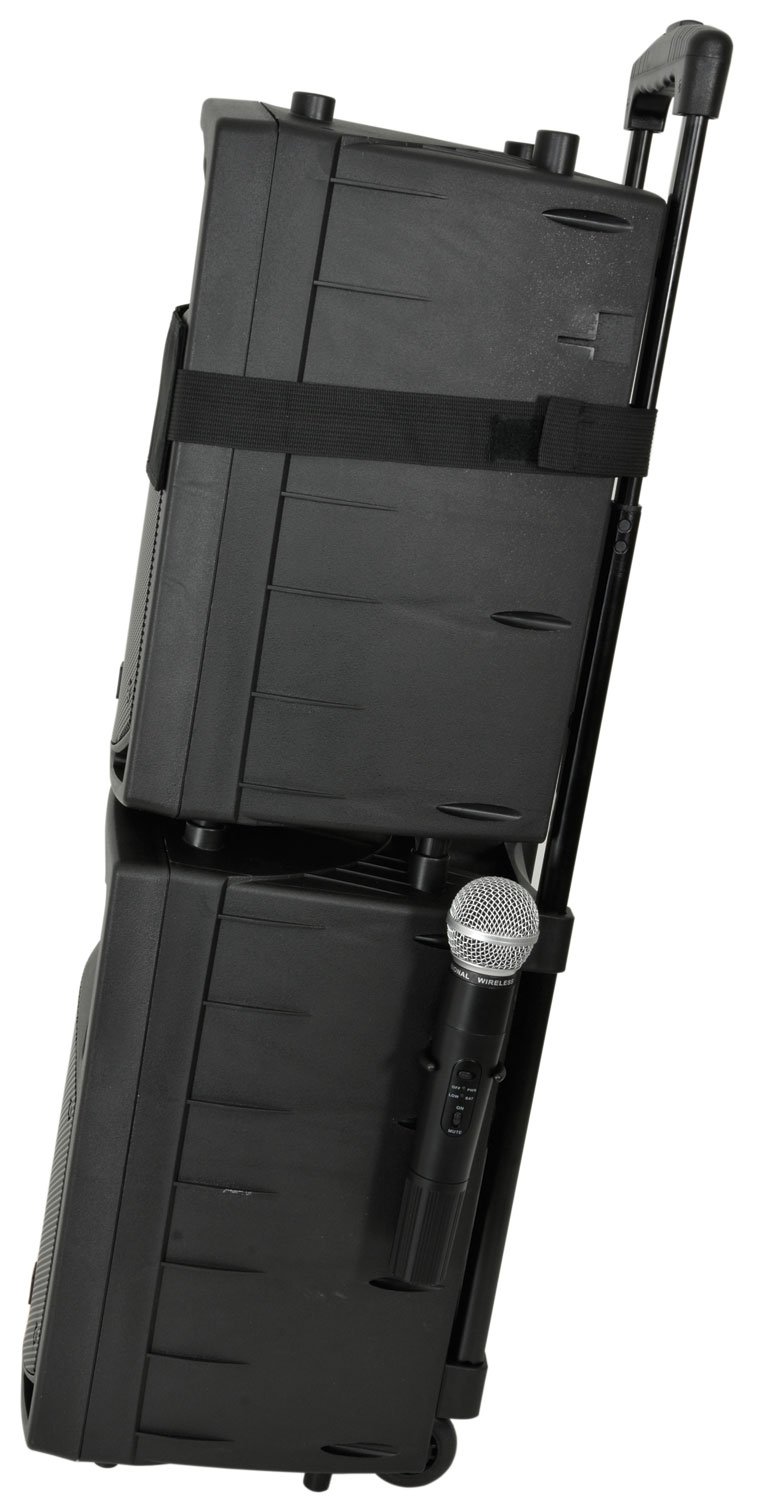

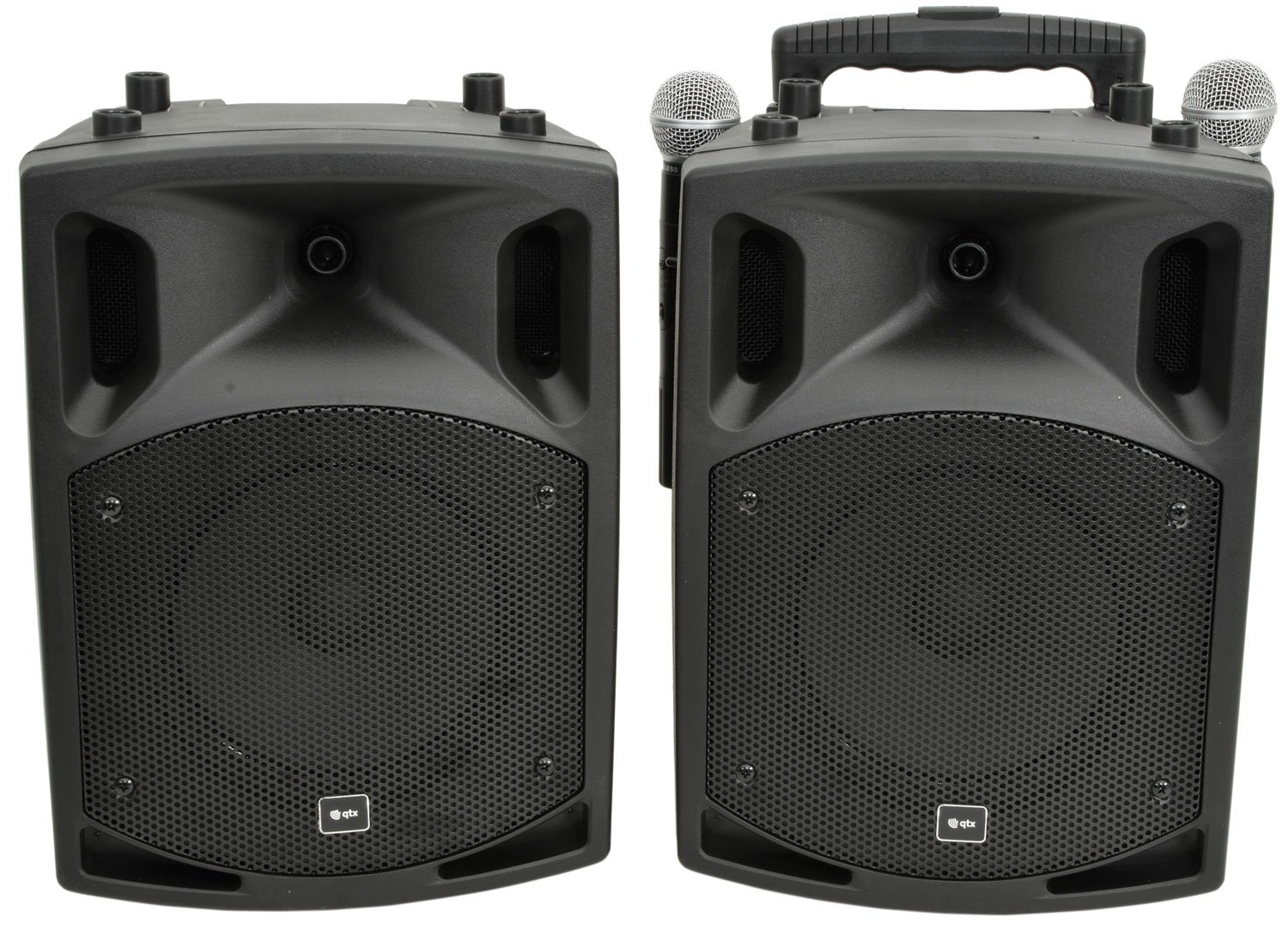

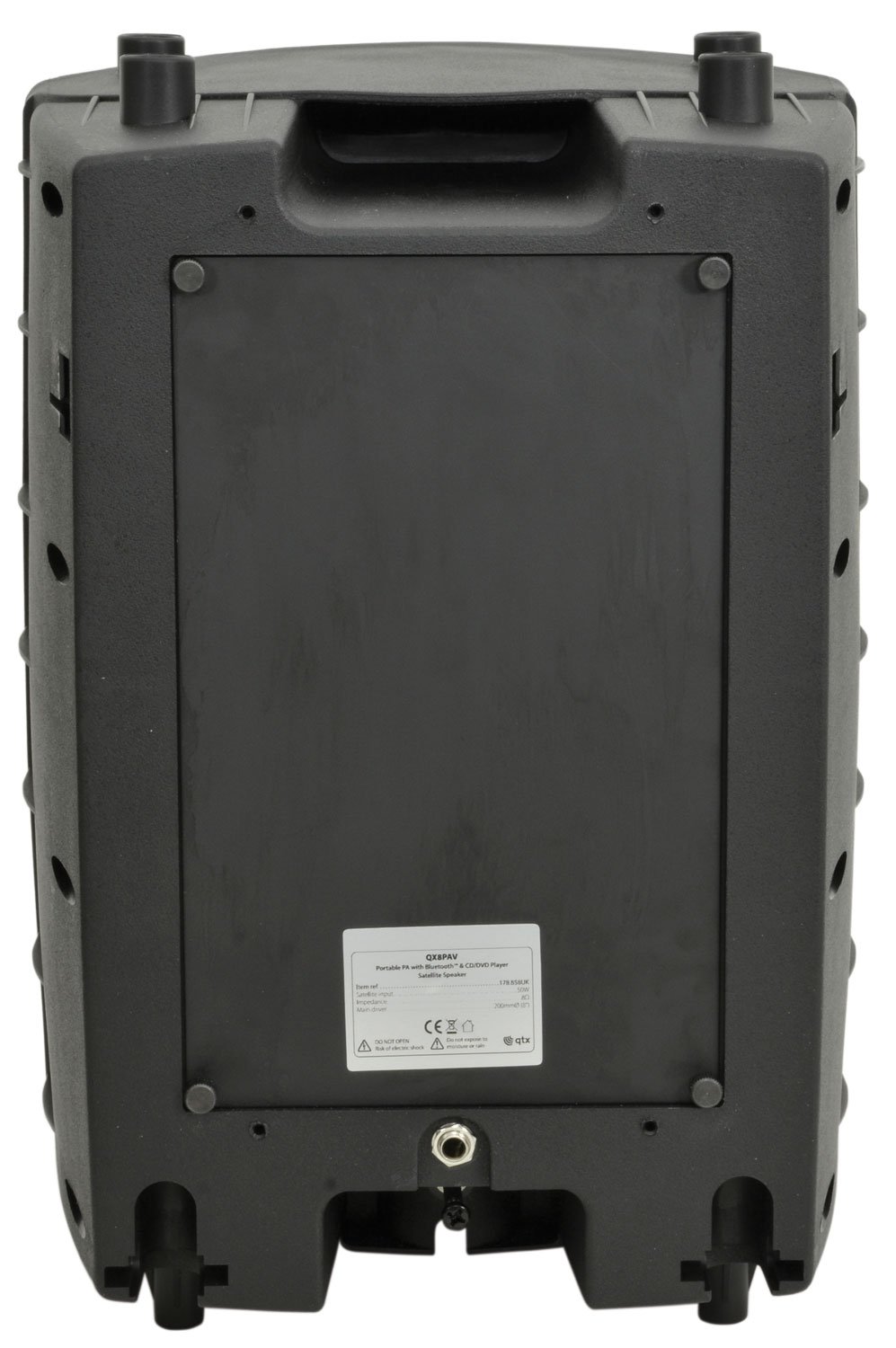

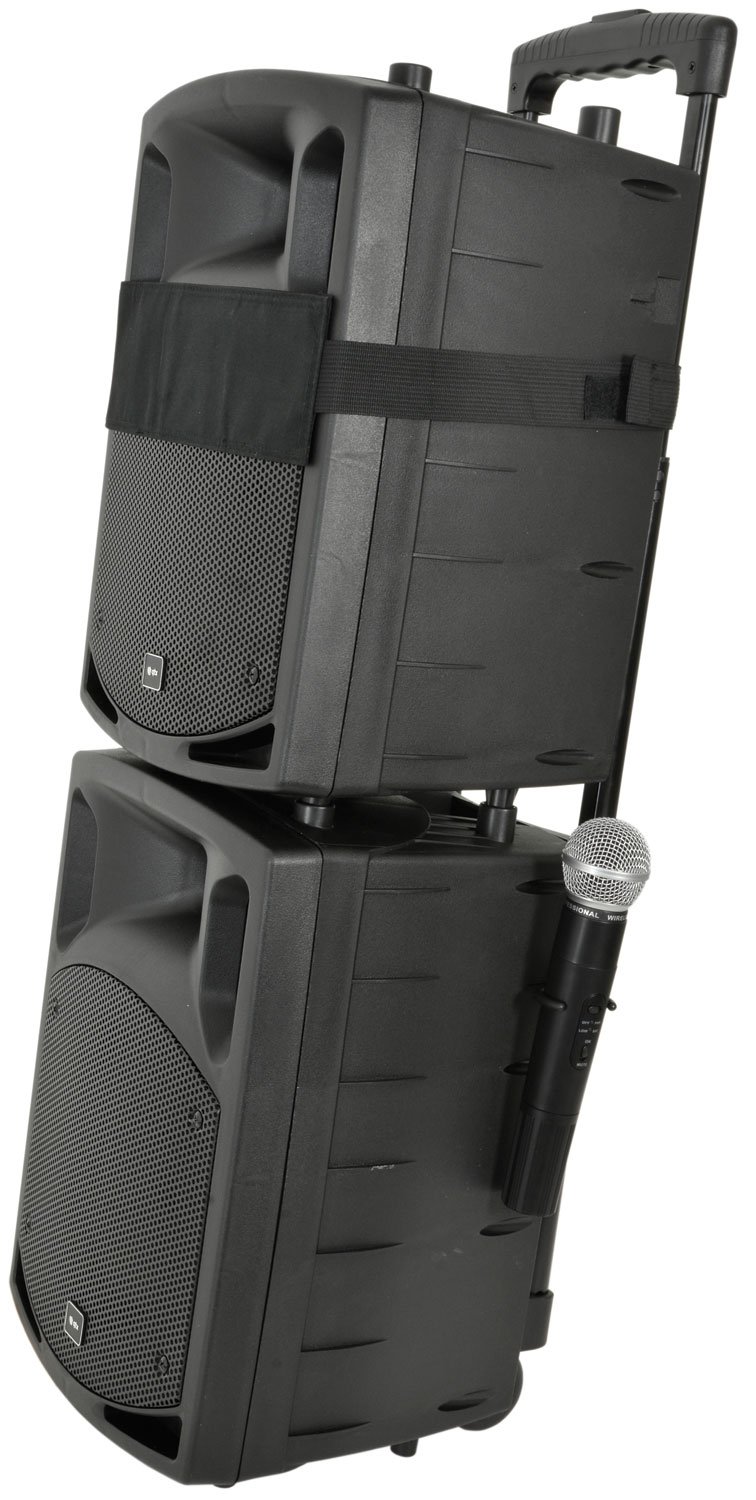

Portable PA set comprising a main active unit and passive satellite speaker. The main unit has a media player with options for playback from USB stick, SD card, Bluetooth or a slot fed disc player for CD and DVD. A pair of UHF handheld microphones are included in addition to 2 inputs for wired microphones with a built-in echo effect for vocalists and a VCV control enables mic priority over music. Operated from mains power or the internal rechargeable battery, the main unit also powers the passive satellite cabinet. Line input, output and composite video output offer easy connection to other equipment for expanded AV systems. A comprehensive multi-functional system for leisure, teaching and performances.
Impedance (each) 4 Ohms

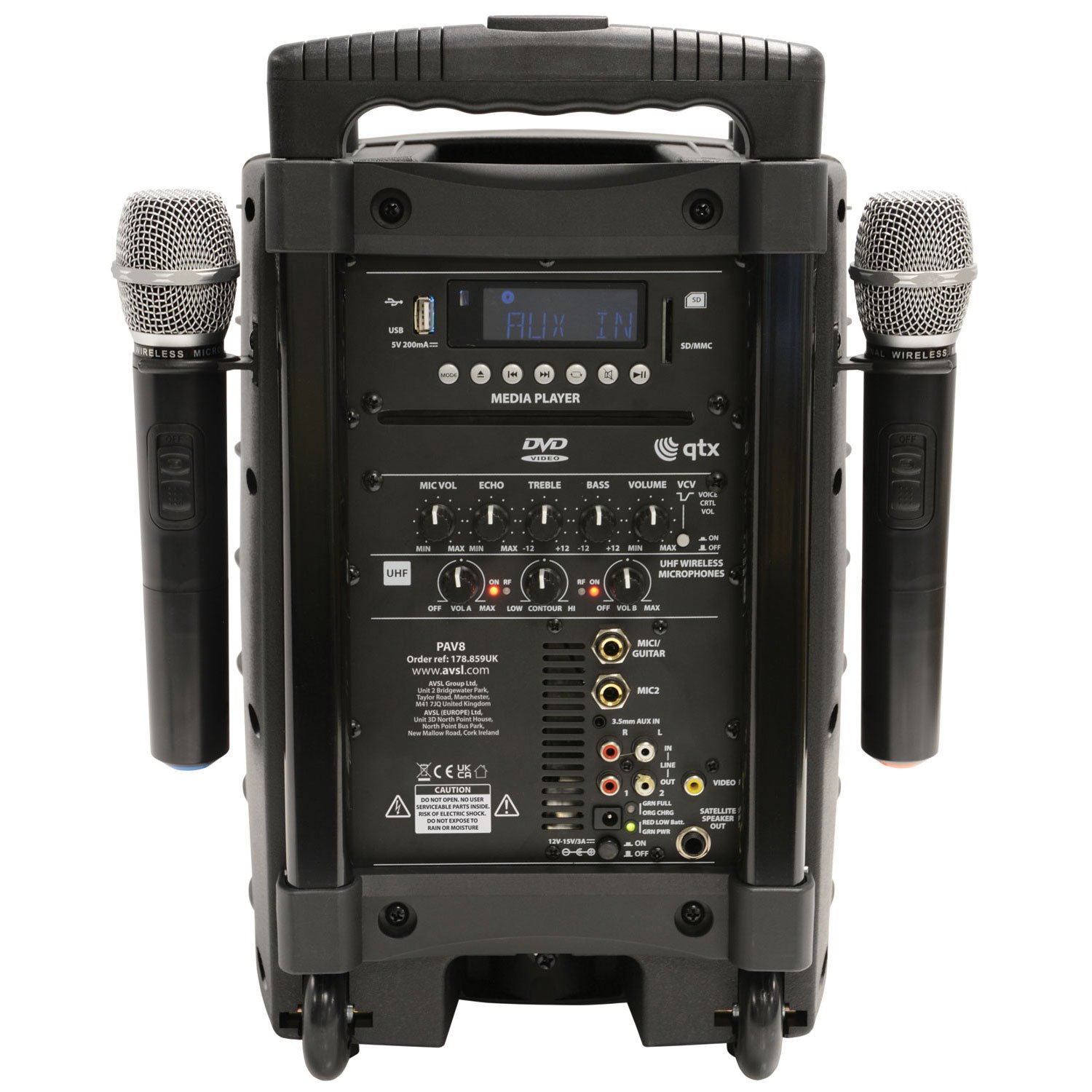

Controls Mic Vol, Echo, Treble, Bass, Volume, UHF A & B Vol, Contour, Bluetooth, VCV
Battery life Up to 8 hours
Inputs 2 wired mic (jack) and aux (3.5mm jack or 2 RCA)
Bluetooth version 2.1
Carrier frequencies 863.8MHz + 864.8MHz
Output connections Composite video, line audio, satellite speaker
Audio source Media player with CD/DVD, USB/SD and Bluetooth„¢
Video format VCD, DVD, CD+G and mp5 format
Batteries : handheld transmitters 2 x AA (each)
Weight : satellite speaker 5.5kg
Weight : main unit 8.74kg
Dimensions 440 x 290 x 275mm (each cabinet)
Main driver 200mmØ (8″) main unit and satellite
Amplifier : output 50W main unit, 50W satellite
Power supply 15Vdc, 3A mains adaptor (supplied)
Battery 12V, 4.5Ah
