Description
RCF EVOX JMIX9 Active 3-Way Column PA Speaker System with Mixer
Product Overview

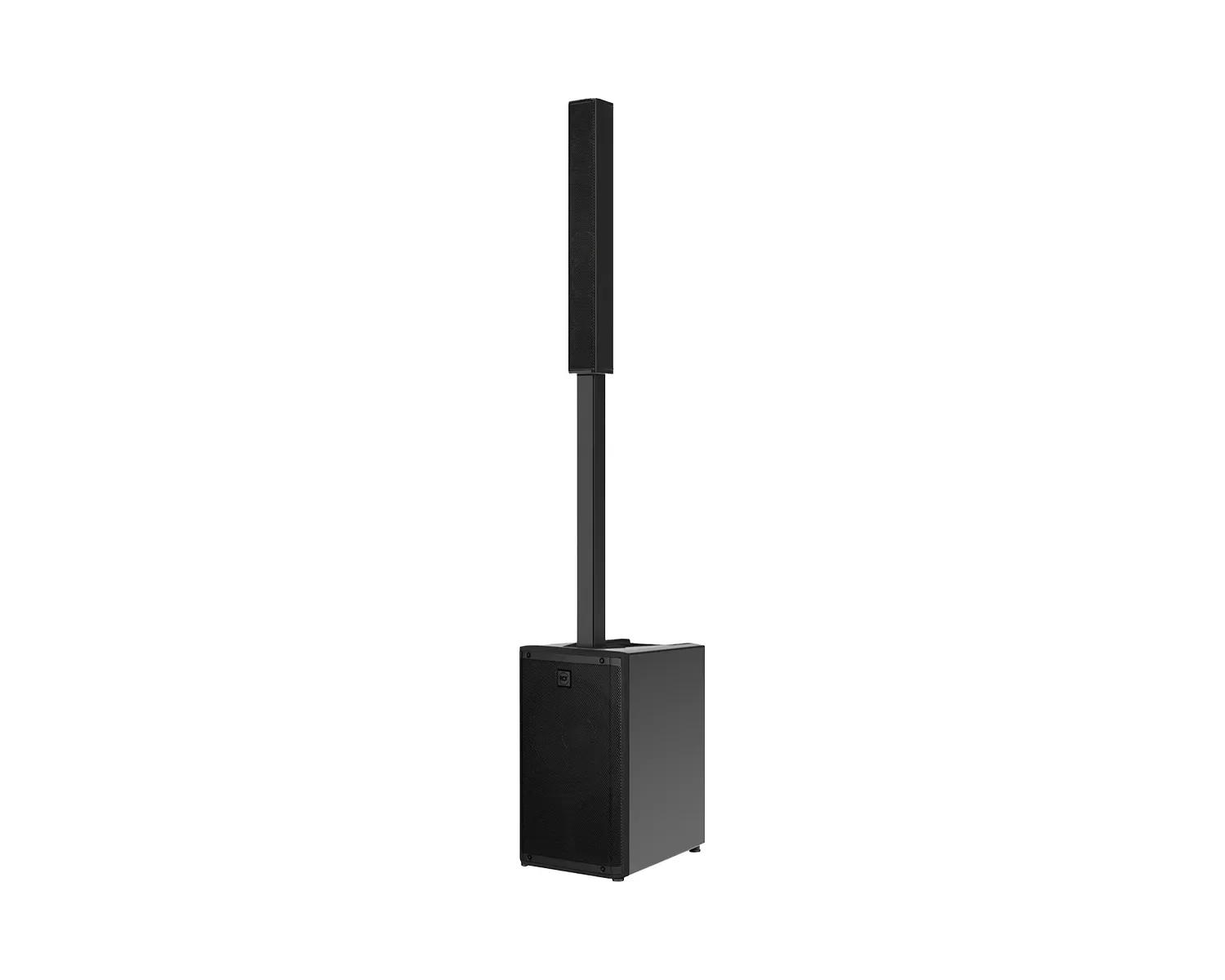

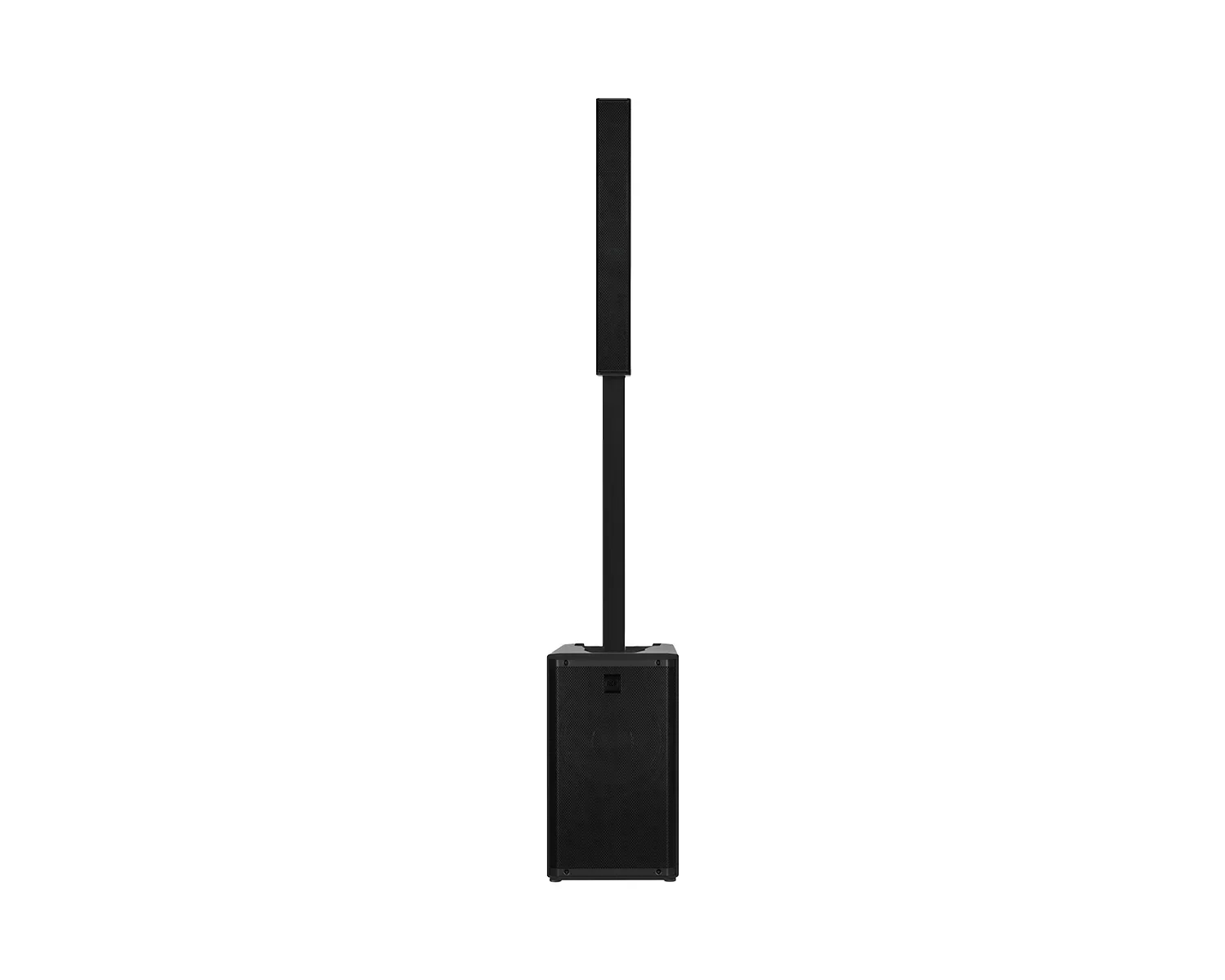

The RCF EVOX JMIX9 Active 3-Way Column PA Speaker System is a professional portable column loudspeaker with an integrated 8-channel stereo digital mixer featuring a colour touch display, encoders, Bluetooth streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, the RCF EVOX JMIX9 delivers professional performance across the entire signal chain.
A 1.75″ compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3″ transducers and a high-power 12″ bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.
Available in black, the RCF EVOX JMIX9 Active 3-Way Column PA Speaker System is the ultimate choice for bands, DJs, AV rental companies, and venues that demand professional audio with integrated digital mixing in a portable package.
Product Description
Professional 3-Way Active Column PA with Integrated Digital Mixer
The RCF EVOX JMIX9 Active 3-Way Column PA Speaker System represents the perfect fusion of professional column PA technology and advanced digital mixing. This all-in-one system eliminates the need for external mixers, effects units, and processing gear, delivering a complete sound reinforcement solution in a sleek, portable format.
Exceptional Coverage and Clarity

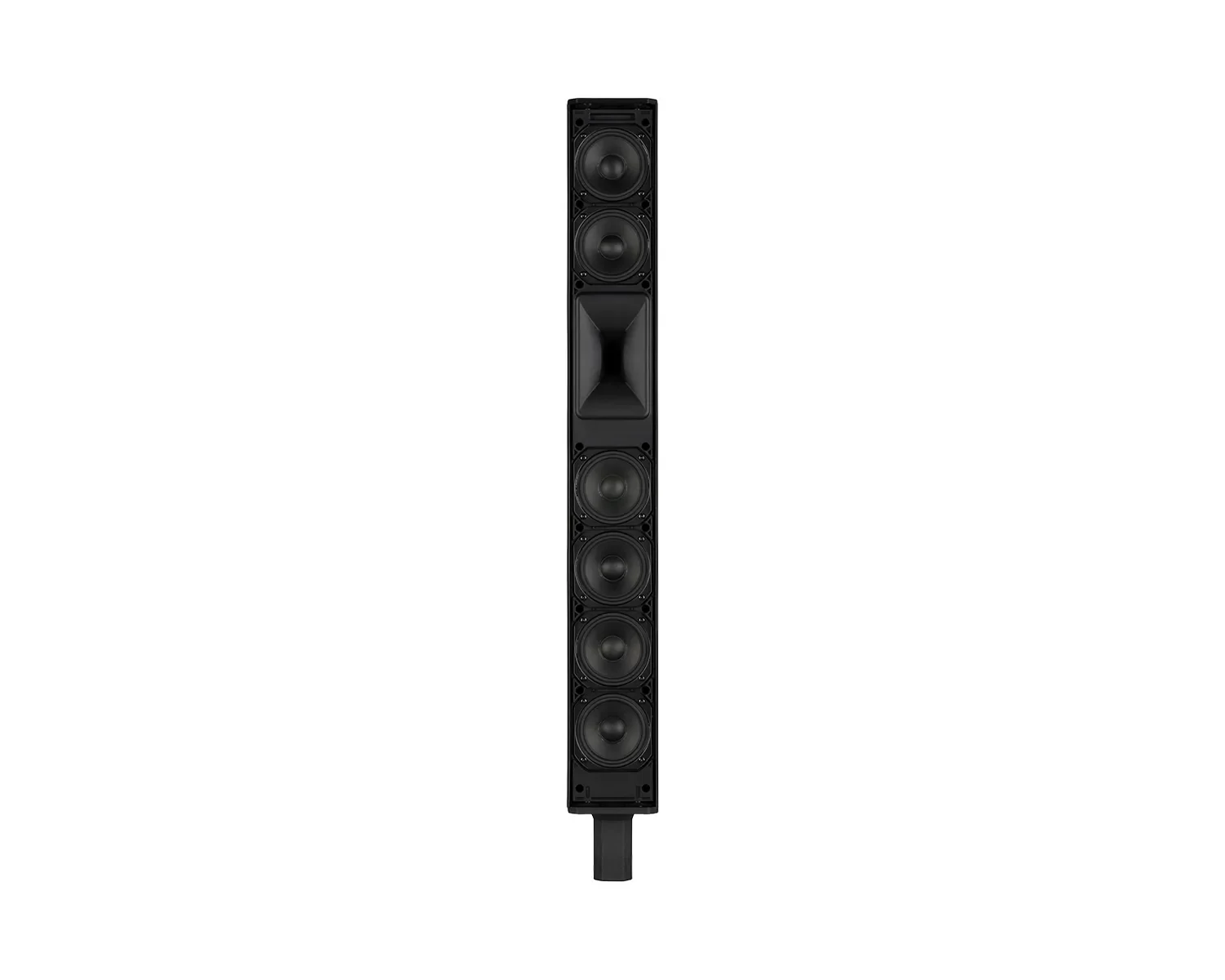

At the heart of the system’s superior performance is the 1.75″ neodymium compression driver mounted on a 120° × 40° True Resistive Waveguide. This proprietary RCF technology ensures wide, uniform coverage across the entire listening area, delivering consistent tonal balance whether audience members are seated or standing.
The six 3″ full-range neodymium transducers work in perfect harmony to deliver articulate mids and precise vocal definition, making the RCF EVOX JMIX9 Active 3-Way Column PA Speaker System ideal for both music playback and spoken word applications.
Deep, Controlled Low Frequencies

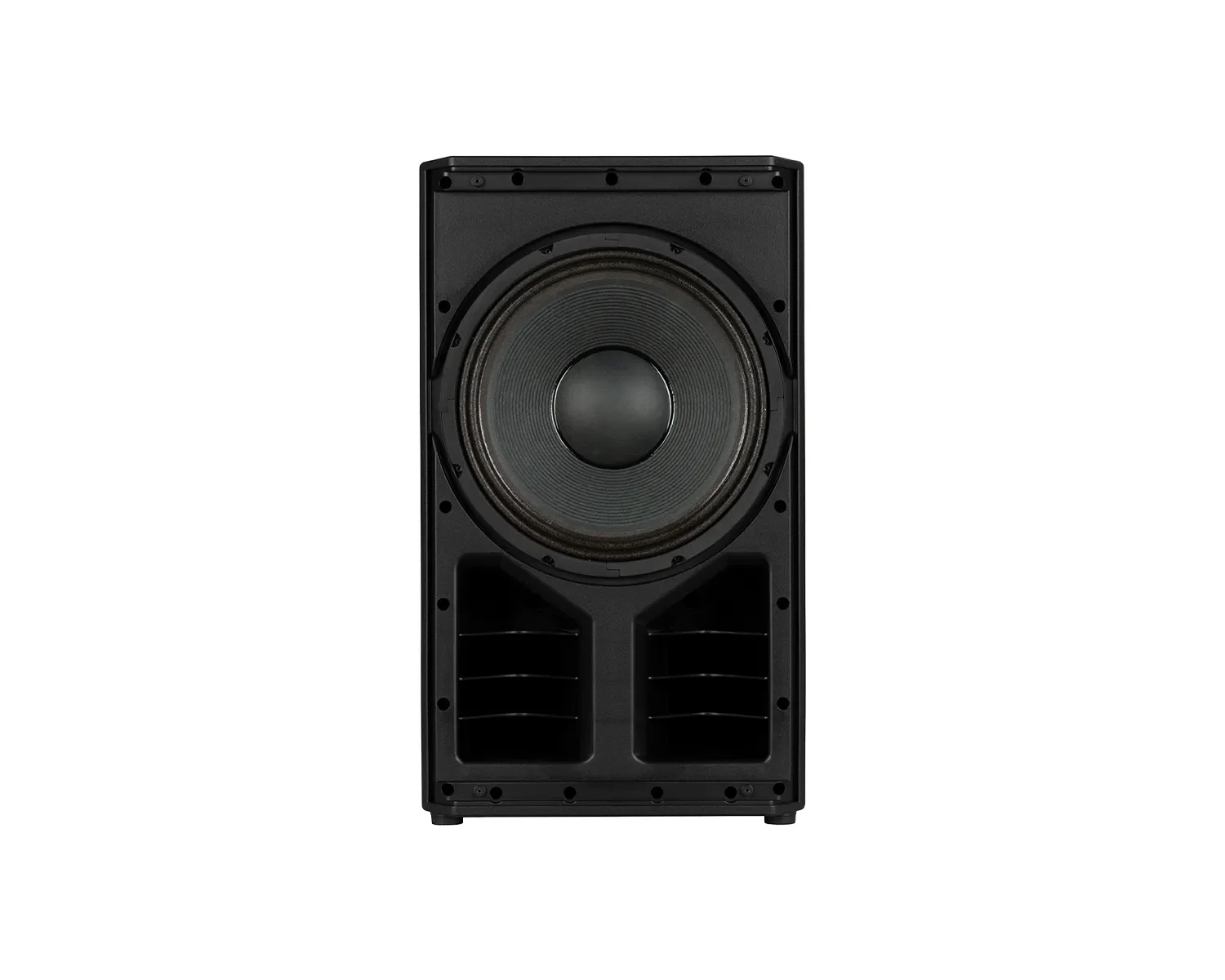

A high-power 12″ RCF Precision low-frequency woofer with a 2.5″ voice coil housed in a bass-reflex enclosure provides deep, controlled lows that extend down to 40Hz. This powerful subwoofer section ensures the RCF EVOX JMIX9 Active 3-Way Column PA Speaker System delivers full-range performance with authority and impact.

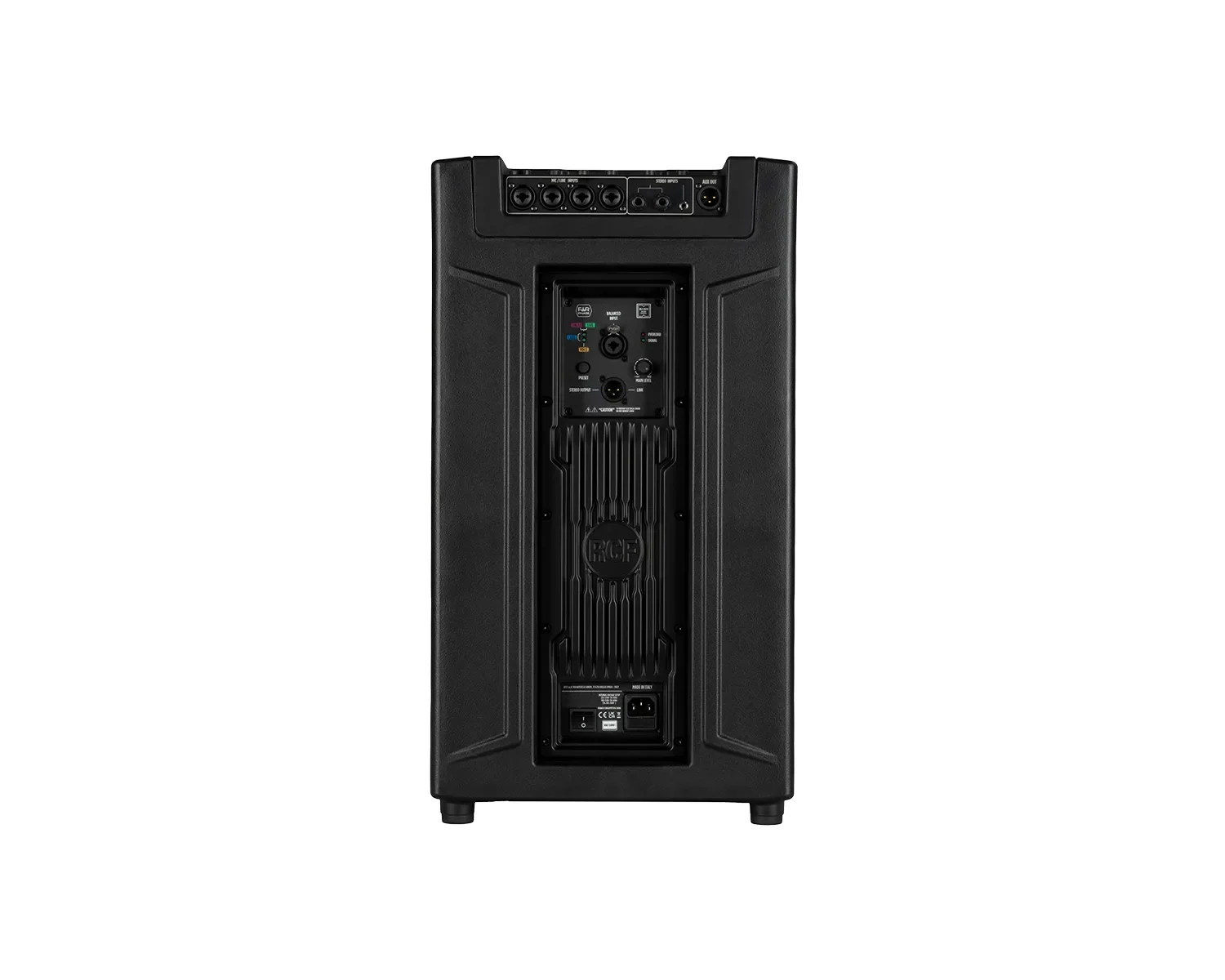

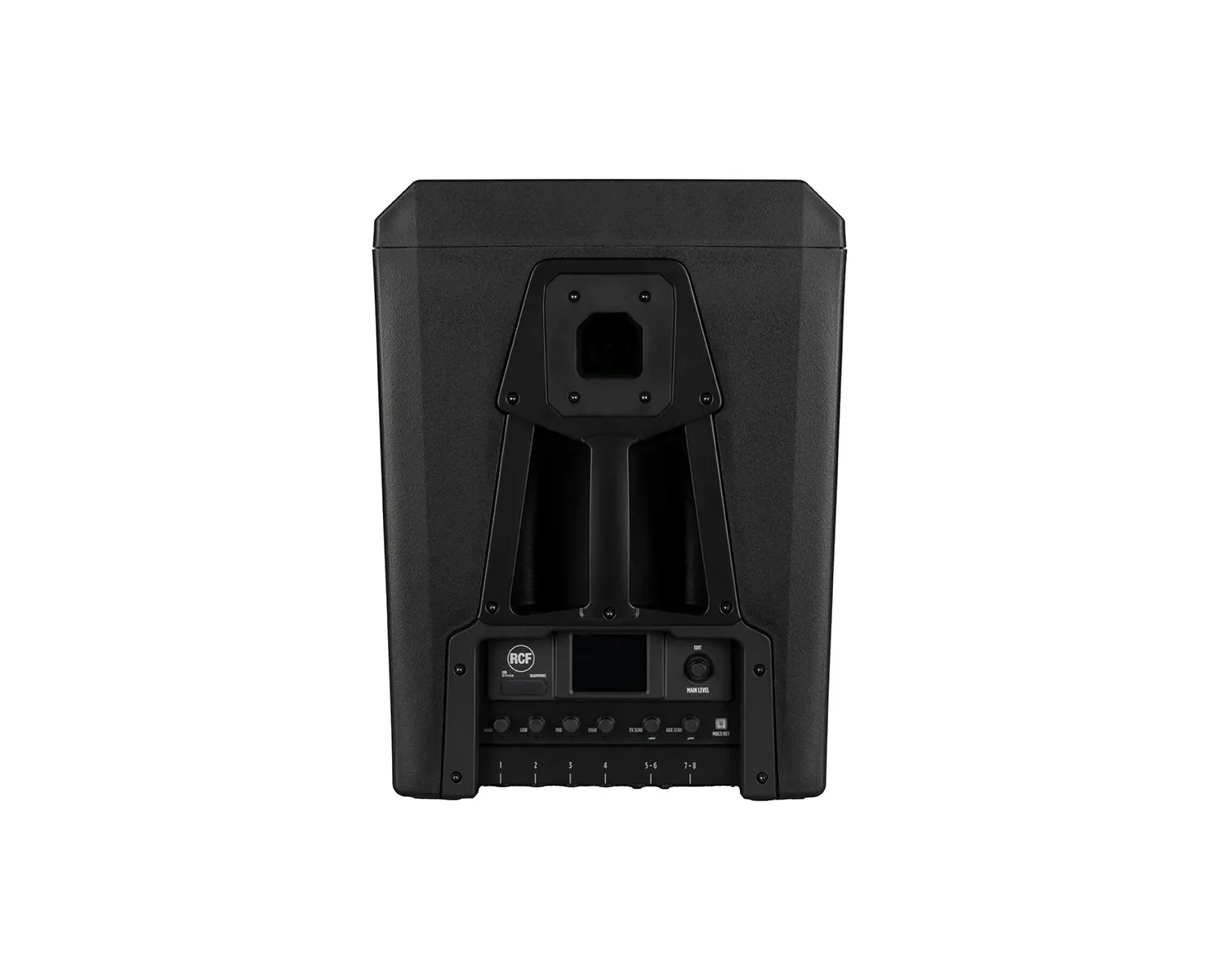

Integrated 8-Channel True-Stereo Digital Mixer
The RCF EVOX JMIX9 Active 3-Way Column PA Speaker System features a fully integrated 8-channel true-stereo digital mixer with:
Colour touch display for intuitive control
Encoders for precise parameter adjustment
4x Mic inputs with remote controlled storable gain (0-36 dB)
4x Mono line inputs with gain selection (0-36 dB)
2x Stereo line inputs
+48V phantom power on mic inputs
Low cut filter (20Hz – 400Hz)
Compressors on MIC/LINE CH1 to CH4 inputs
3-band EQ on input channels (High/Low shelving, MID peak)
8-band EQ on amplifier and MAIN output (6 full parametric, 1 high shelving, HPF 12dB/Oct)
1x AUX send (PRE/POST)
1x FX send (POST)
Internal effects with send effects
Main MIX output, FX send, AUX send, AUX output, and phones output
Advanced DSP Processing
The RCF EVOX JMIX9 Active 3-Way Column PA Speaker System features advanced DSP processing with:
Crossover frequencies: 200 Hz / 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Processing channels: 8
Signal processing: 32 Bit
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic range: 114 dB
Wireless Control with JMixRemote App
All functions of the RCF EVOX JMIX9 Active 3-Way Column PA Speaker System are accessible from the touch interface or the JMixRemote app, available for iOS and Android devices. This allows you to:
Control all mixer functions wirelessly
Adjust EQ, effects, and dynamics
Manage routing and outputs
Stream audio via Bluetooth
Save and recall presets
Premium Construction

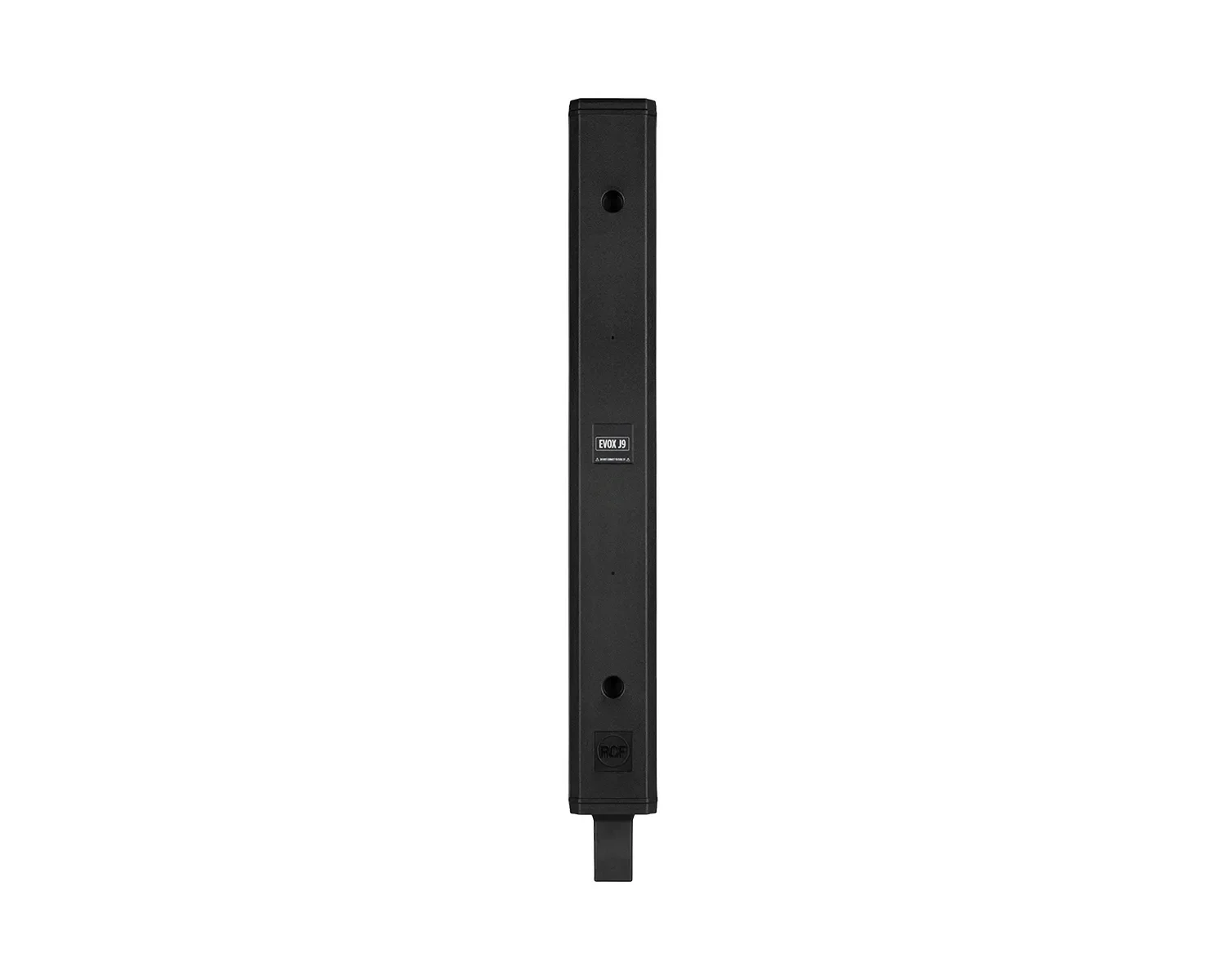

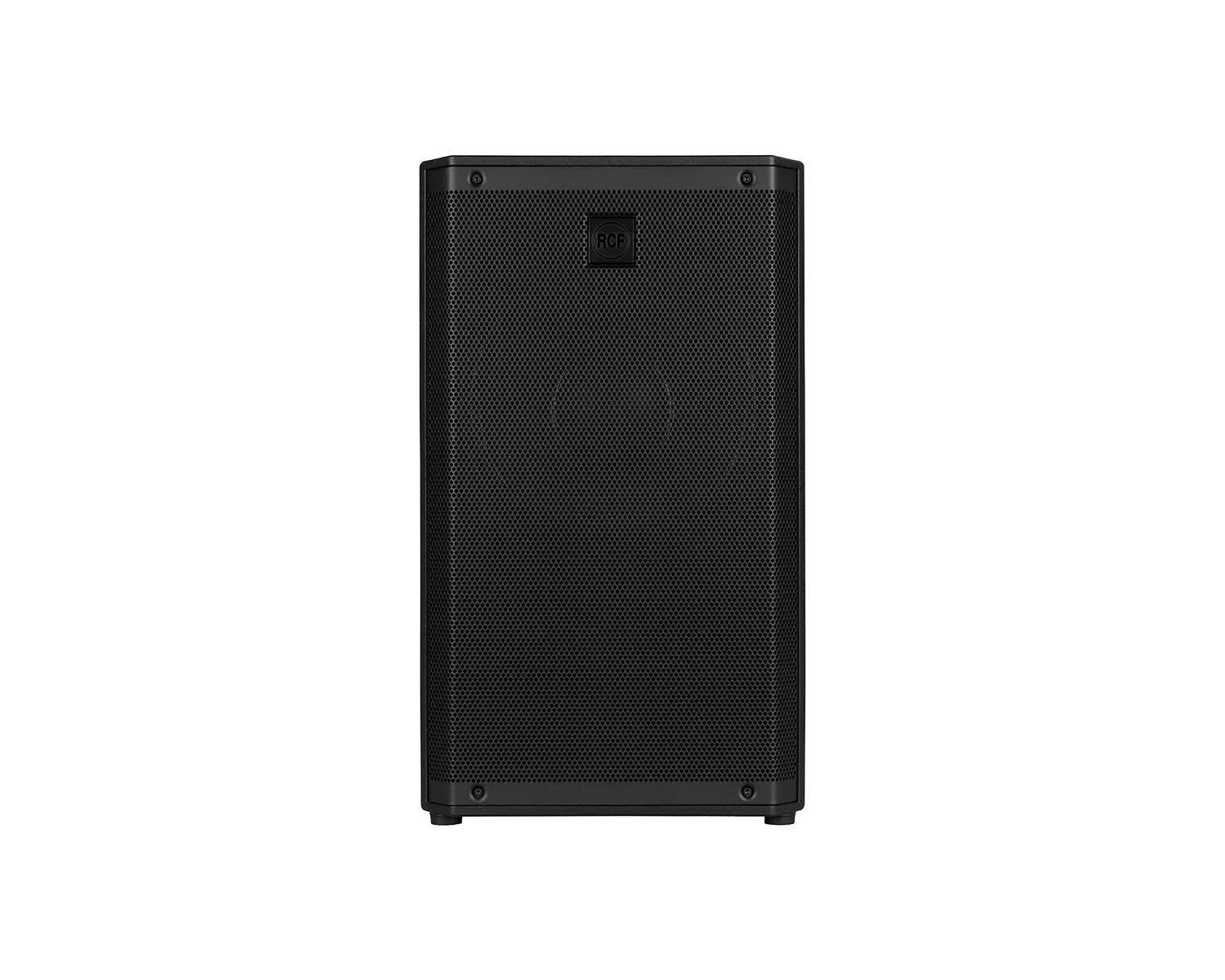

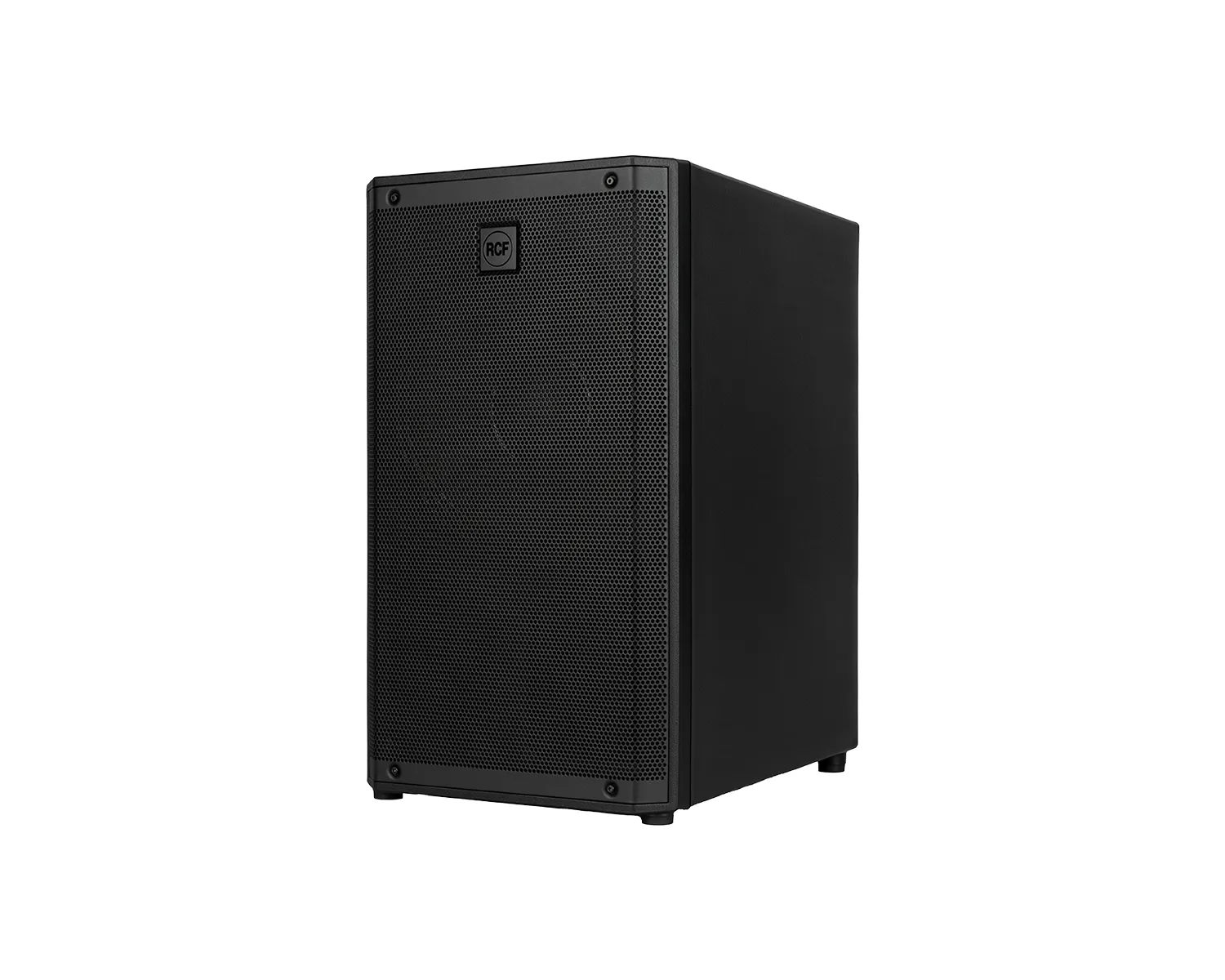

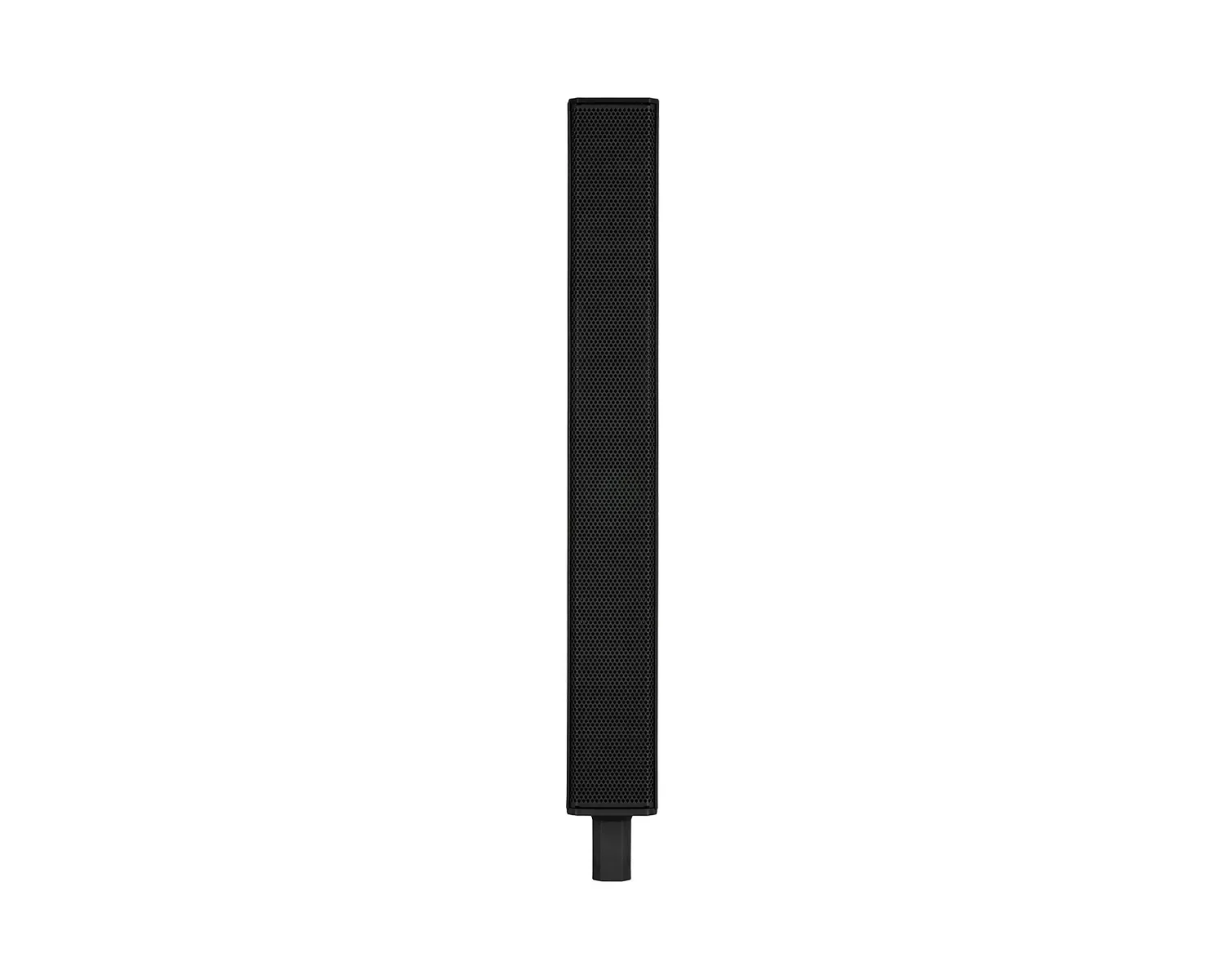

The RCF EVOX JMIX9 Active 3-Way Column PA Speaker System features a sleek composite cabinet with an aluminium stand mount for the satellite speaker. The system includes:
PP Composite cabinet for lightweight durability
Steel grille for driver protection
Quick-fit pole mount socket for rapid deployment
1 top handle for easy transport
VDE mains connector for reliable power
Convection cooling for silent operation
Padded carrying bag for the satellite speakers
Key Advantages
Professional 3-way active column PA system
2100W peak power (Class-D amplification)
130 dB maximum SPL for demanding live applications
1.75″ neodymium compression driver with 120° × 40° True Resistive Waveguide
Six 3″ full-range neodymium transducers for articulate mids
12″ RCF Precision woofer for deep, controlled bass
Integrated 8-channel true-stereo digital mixer with colour touch display
Bluetooth streaming and JMixRemote app control
Frequency response from 40Hz to 20kHz
Multiple presets and effects including EQ, reverb, and compression
Sleek composite cabinet with aluminium stand mount
Padded carrying bag included
Available in black
Key Features
Professional 3-way active column loudspeaker
2100W peak Class-D amplifier (700W HF + 1400W LF)
130 dB maximum SPL
1.75″ neodymium compression driver with 1.75″ voice coil
120° × 40° True Resistive Waveguide for wide, uniform coverage
6x 3″ full-range neodymium transducers with 1″ voice coils
12″ RCF Precision low-frequency woofer with 2.5″ voice coil
Frequency response: 40Hz – 20kHz
Crossover frequencies: 200Hz / 1800Hz
Integrated 8-channel true-stereo digital mixer
Colour touch display and encoders
4x Mic inputs with phantom power (+48V)
4x Mono line inputs, 2x Stereo line inputs
Compressors on MIC/LINE CH1 to CH4
3-band EQ on inputs, 8-band EQ on output
Internal effects with send effects
Bluetooth audio streaming
JMixRemote app for full wireless control
Soft limiter with thermal and RMS protections
Convection cooling for silent operation
PP Composite cabinet with aluminium stand mount
Quick-fit pole mount socket
Steel grille for driver protection
VDE mains connector
Padded carrying bag for satellite speakers included
CE Compliant
Available in black
Specifications
| Specification | Detail |
|---|---|
| Acoustical Specifications | |
| Frequency Response | 40Hz – 20kHz |
| Max SPL @ 1m | 130dB |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 40° |
| Transducers | |
| Compression Driver | 1x 0.75″ neo, 1.75″ v.c |
| Fullrange | 6x 3.0″ neo, 1.0″ v.c |
| Woofer | 1x 12″, 2.5″ v.c |
| Input/Output Section | |
| Input Signal | bal/unbal |
| Input Connectors | Combo XLR/Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
| Processor Section | |
| Crossover Frequencies | 200 Hz / 1800 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Digital mixer controlled by touch screen and encoders |
| Power Section | |
| Total Power | 2100W Peak |
| High Frequencies | 700W Peak |
| Low Frequencies | 1400W Peak |
| Cooling | Convection |
| Connections | VDE |
| Electronic Specifications | |
| Frequency Response | 20 Hz – 20 Hz |
| THD+N, 20dB gain, 0dBu out | 0.003% A-Weighted |
| Processing | |
| Processing Channels | 8 |
| Signal Processing | 32 Bit |
| A/D-D/A Conversion | 24 Bit @ 48.0 kHz |
| Dynamic Range | 114 dB |
| Inputs | |
| Mic | 4 |
| Remote Controlled Storable Gain | Yes |
| Gain Range | 0 dB – 36 dB |
| Input Noise Level | -114 dBu A-Weighted |
| Mic Inputs Impedance | 3 kohm |
| Low Cut | 20 Hz – 400 Hz |
| Phantom Power | +48V Yes |
| Mono Line | 4 |
| Gain Selection | 0 dB – 36 dB |
| Line Input Impedance | 10 kohm |
| A/D Dynamic Range | 120 dB |
| Stereo Line | 2 |
| Gain Selection | 0 dB – 0 dB |
| Stereo Line Input Impedance | 24 kohm |
| Outputs | |
| Main MIX | 1 |
| FX Send | 1 |
| AUX Send | 1 |
| AUX Output | 1 |
| Phones | 1 |
| Outputs Specifications | |
| Main Out Impedance | 150 ohm |
| Main Out Level | 20 dBu |
| Aux Out Impedance | 150 ohm |
| Aux Out Level | 20 dBu |
| Phones Out Impedance | 100 ohm |
| Phones Out Level | 20 dBm |
| D/A Dynamic Range | 118 dB |
| Compressors | |
| RCF Compressors | Compressors on MIC/LINE CH1 to CH4 Inputs |
| EQ | |
| Input Channels EQ | 1 Semi Parametric / 2 Shelving |
| Description 3 Band EQ | High and Low band shelving, MID band peak on INPUT |
| 8 Band EQ | 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output |
| Auxiliary Sends | |
| AUX | 1 PRE/POST |
| FX POST | 1 |
| Internal Effects | |
| Send Effects | 1 |
| Mastering Processors | |
| Main OUT Processors | 1 |
| Main OUT Type | MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT |
| Electrical Specifications | |
| Power Supply | Internal |
| Standard Compliance | |
| Safety Agency | CE Compliant |
| Physical Specifications | |
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole Mount/Cap | Quick-fit socket |
| Grille | Steel |
| Colour | Black |
| Size/Weight | |
| Height | 2080 mm / 81.89 inches |
| Width | 350 mm / 13.78 inches |
| Depth | 460 mm / 18.11 inches |
| Weight | 28.8 kg / 63.49 lbs |
| Package Contents | |
| Included | 1x Subwoofer, 1x Satellite Speaker, 1x Mounting Pole, 1x Padded Bag, 1x Power Cable |
Applications
The RCF EVOX JMIX9 Active 3-Way Column PA Speaker System is perfect for:
Live bands and musicians
Solo performers and acoustic acts
DJs and mobile entertainers
AV rental companies
Corporate presentations and conferences
Weddings and celebrations
Houses of worship
Clubs and bars
Schools and educational environments
Theatres and performance venues
Any application requiring professional audio with integrated digital mixing
Why Choose the RCF EVOX JMIX9 Active 3-Way Column PA Speaker System?
The RCF EVOX JMIX9 Active 3-Way Column PA Speaker System represents the ultimate in portable column PA technology with integrated digital mixing. With its 2100W of peak power, 130 dB maximum SPL, and professional three-way design, this system delivers the performance and flexibility that demanding live sound applications require.
The 1.75″ neodymium compression driver with True Resistive Waveguide ensures wide, uniform coverage, while the six 3″ full-range transducers deliver articulate mids and precise vocal definition. The 12″ RCF Precision woofer provides deep, controlled lows that extend to 40Hz, ensuring full-range performance with authority.
The integrated 8-channel true-stereo digital mixer with colour touch display, encoders, Bluetooth streaming, and JMixRemote app control eliminates the need for external mixers and processing gear. With phantom power, compressors, EQ, effects, and multiple outputs, the RCF EVOX JMIX9 Active 3-Way Column PA Speaker System provides everything you need for professional sound reinforcement in one portable package.
Whether you’re a solo artist, a full band, a DJ, or an AV professional, the RCF EVOX JMIX9 Active 3-Way Column PA Speaker System delivers the sound quality, flexibility, and portability you need to perform at your best.
