Description

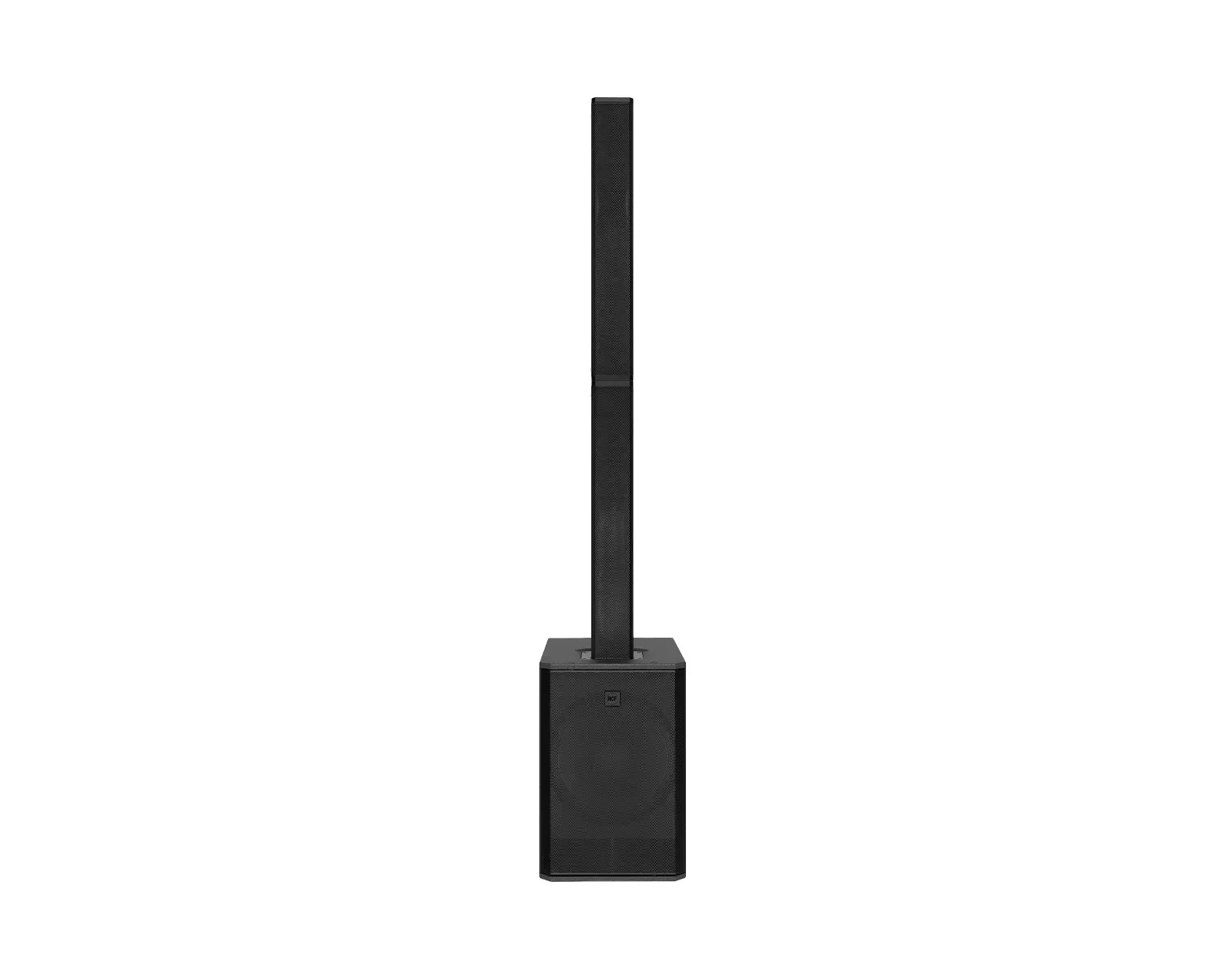

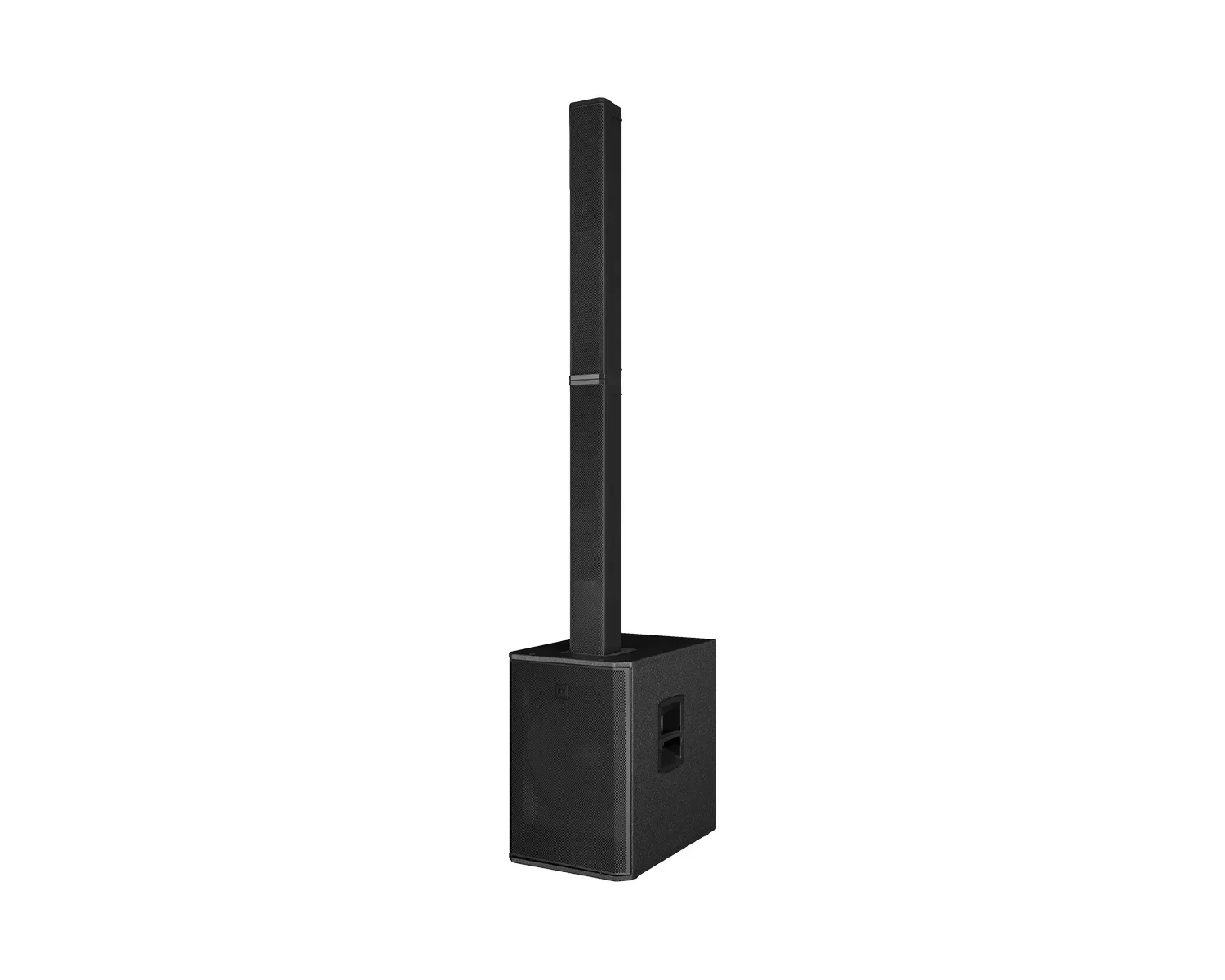

RCF EVOX V15 Active 3-Way Column PA Speaker System

Product Overview

The RCF EVOX V15 Active 3-Way Column PA Speaker System is a professional-grade portable column loudspeaker engineered to deliver exceptional clarity, high output, and unwavering reliability in the most demanding live sound applications. This flagship model in the renowned EVOX Series combines RCF’s legendary transducer technology with advanced DSP processing in a sleek, elegant format.

Delivering an impressive 3500W of peak power and achieving 133 dB maximum SPL, the RCF EVOX V15 Active 3-Way Column PA Speaker System is the definitive choice for bands, DJs, live event production companies, and AV rental professionals who refuse to compromise on audio quality.

Product Description

Professional Three-Way Active Design

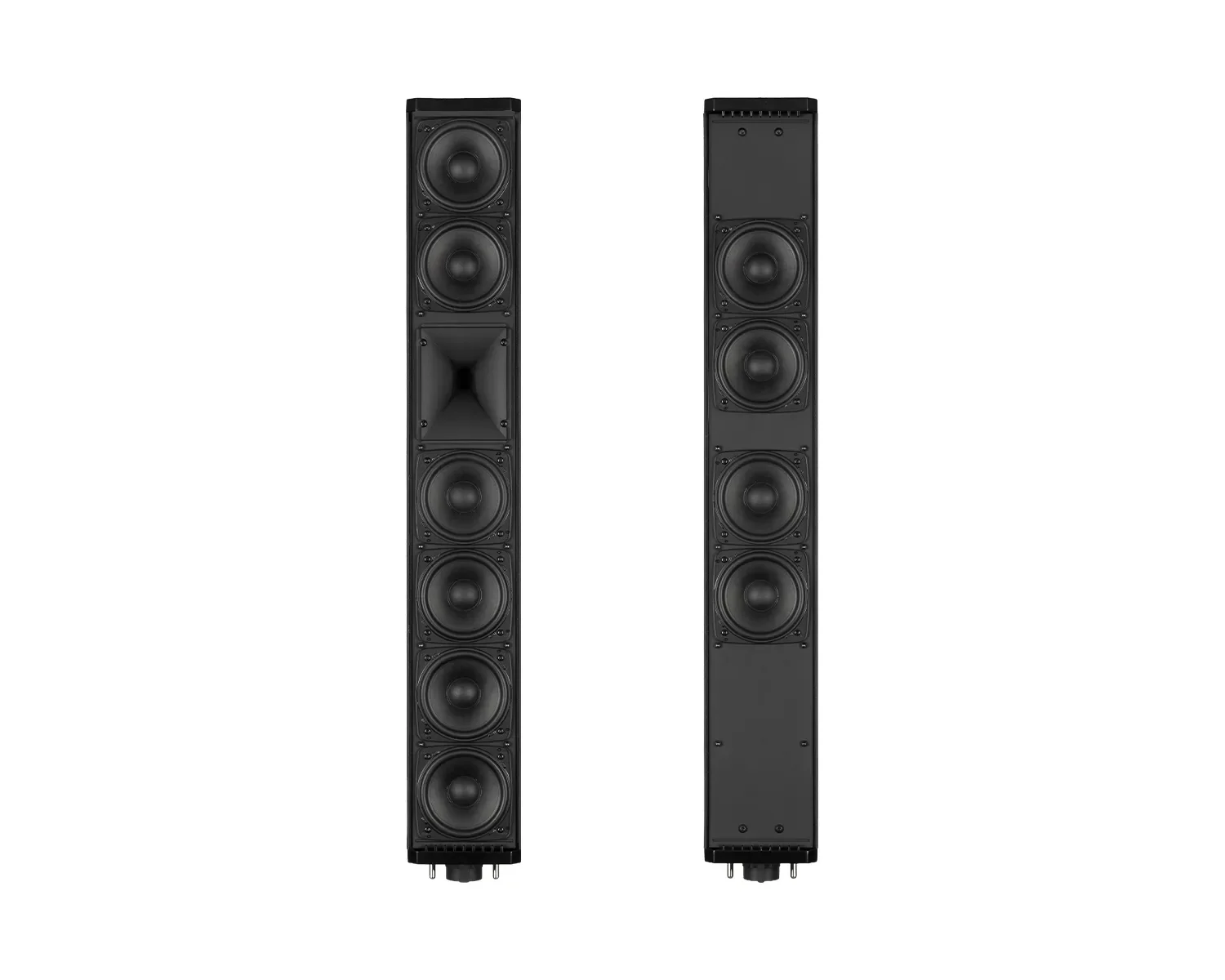

The RCF EVOX V15 Active 3-Way Column PA Speaker System represents the pinnacle of RCF’s column PA technology. This three-way active system comprises a powerful 15″ subwoofer and a sophisticated column array featuring ten 4″ midrange transducers and a 1.75″ compression driver.

Exceptional Coverage and Clarity

At the heart of the system’s superior performance is the 1.75″ neodymium compression driver mounted on a 120° × 40° True Resistive Waveguide. This proprietary RCF technology ensures wide, coherent coverage across the entire listening area, delivering consistent tonal balance whether audience members are seated or standing.

The ten 4″ midrange neodymium transducers work in perfect harmony to deliver precise vocal definition and exceptional speech intelligibility, making the RCF EVOX V15 Active 3-Way Column PA Speaker System ideal for both music playback and spoken word applications.

Deep, Controlled Low Frequencies

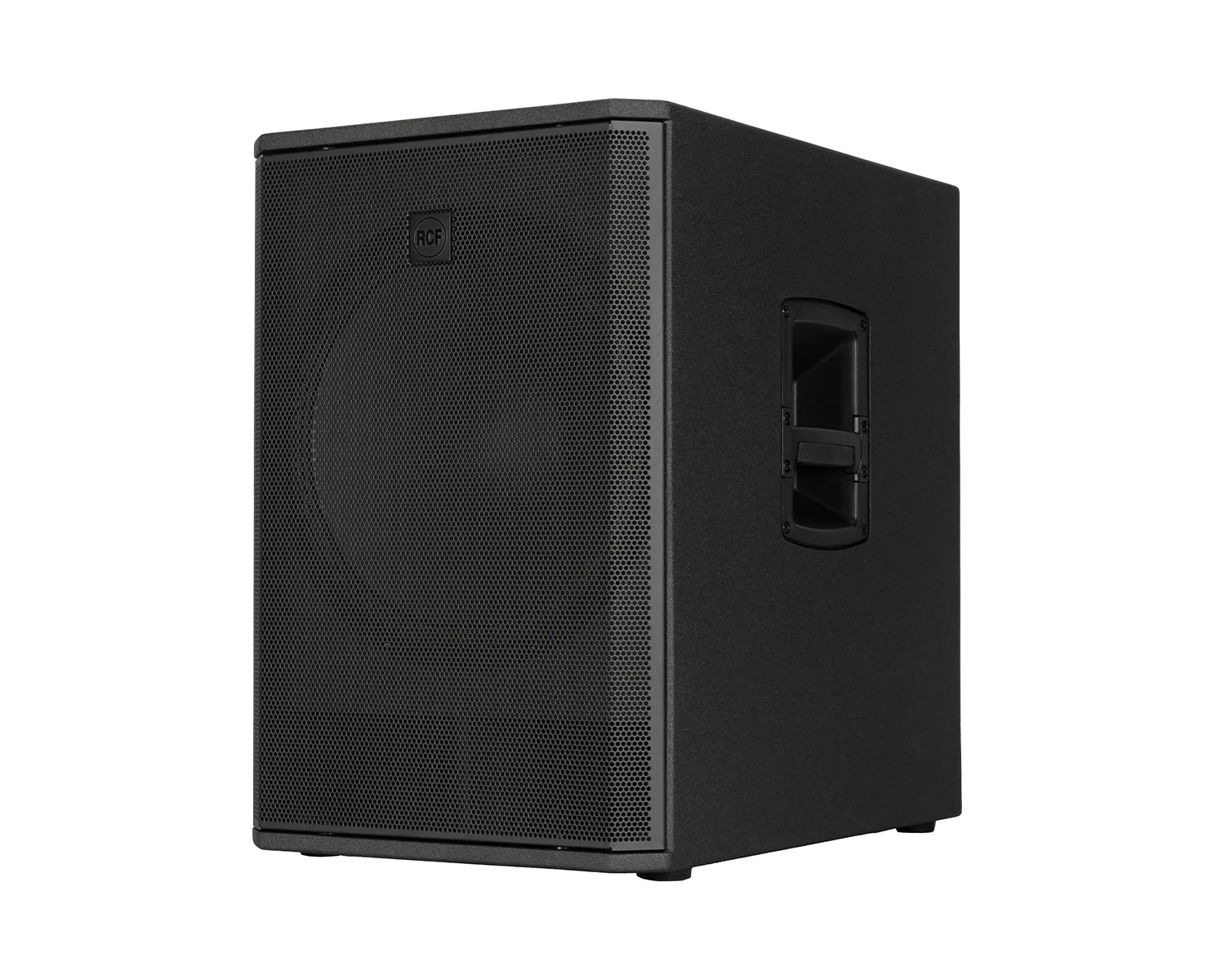

A high-power 15″ RCF Precision low-frequency woofer housed in a bass-reflex plywood enclosure provides deep, controlled lows that extend down to 35Hz. This powerful subwoofer section ensures the RCF EVOX V15 Active 3-Way Column PA Speaker System delivers full-range performance with authority and impact.

Touring-Grade Amplification and DSP

Powered by a 3500W dual-channel Class-D amplifier, the RCF EVOX V15 Active 3-Way Column PA Speaker System achieves touring-grade dynamics with exceptional headroom. The built-in DSP processor offers four carefully tailored presets:

• LINEAR – Flat, accurate response for critical listening

• LIVE – Optimised for live bands and performances

• CLUB – Enhanced low-end for DJ and dance applications

• VOICE – Maximum intelligibility for speech and presentations

Premium Construction

The RCF EVOX V15 Active 3-Way Column PA Speaker System features a composite column and plywood woofer enclosure for the perfect balance of lightweight portability and rugged durability. The system includes:

• PowerCon TRUE1 TOP mains connector for secure, reliable power

• Quick-fit pole mount socket for rapid deployment

• Steel grille for driver protection

• Top handle for easy transport

• Padded carrying bag for the satellite speakers

Key Advantages

• Professional 3-way active column PA system

• 3500W peak power with Class-D amplification

• 133 dB maximum SPL for demanding live applications

• 1.75″ neodymium compression driver with 120° × 40° True Resistive Waveguide

• Ten 4″ midrange neodymium transducers for precise vocal definition

• 15″ RCF Precision woofer for deep, controlled bass

• Built-in DSP with 4 presets (LINEAR, LIVE, CLUB, VOICE)

• Frequency response from 35Hz to 20kHz

• Composite column and plywood woofer enclosure

• PowerCon TRUE1 TOP mains connector

• Padded carrying bag included

Key Features

• Professional 3-way active column loudspeaker

• 3500W peak Class-D amplifier (1500W HF + 2000W LF)

• 133 dB maximum SPL

• 1.75″ neodymium compression driver with 1″ voice coil

• 120° × 40° True Resistive Waveguide for coherent coverage

• 10x 4″ midrange neodymium transducers with 1″ voice coils

• 15″ RCF Precision low-frequency woofer with 3″ voice coil

• Frequency response: 35Hz – 20kHz

• Crossover frequencies: 160Hz / 1600Hz

• Built-in DSP with 4 presets: LINEAR, LIVE, CLUB, VOICE

• Soft limiter with thermal and RMS protections

• Convection cooling for silent operation

• PowerCon TRUE1 TOP IN/OUT mains connectors

• Combo XLR/Jack input and XLR output

• PP Composite column and plywood woofer enclosure

• Steel grille for driver protection

• Quick-fit pole mount socket

• Top handle for easy transport

• Padded carrying bag for satellite speakers included

• CE Compliant

• Available in black

Specifications

Applications

The RCF EVOX V15 Active 3-Way Column PA Speaker System is perfect for:

• Live bands and musicians

• DJs and mobile entertainers

• AV rental companies

• Corporate presentations and conferences

• Weddings and celebrations

• Houses of worship

• Clubs and bars

• Schools and educational environments

• Theatres and performance venues

• Outdoor events and festivals

• Any application requiring professional audio in a portable package

Why Choose the RCF EVOX V15 Active 3-Way Column PA Speaker System?

The RCF EVOX V15 Active 3-Way Column PA Speaker System represents the ultimate in portable column PA technology. With its 3500W of peak power, 133 dB maximum SPL, and professional three-way design, this system delivers the performance and reliability that demanding live sound applications require.

The 1.75″ neodymium compression driver with True Resistive Waveguide ensures wide, coherent coverage, while the ten 4″ midrange transducers deliver precise vocal definition. The 15″ RCF Precision woofer provides deep, controlled lows that extend to 35Hz, ensuring full-range performance with authority.

The built-in DSP with four presets (LINEAR, LIVE, CLUB, VOICE) allows you to optimise the system for any application instantly. Whether you’re performing live, DJing at a club, or delivering a corporate presentation, the RCF EVOX V15 Active 3-Way Column PA Speaker System delivers the sound quality, flexibility, and portability you need.

With its composite column, plywood woofer enclosure, and padded carrying bag, the RCF EVOX V15 Active 3-Way Column PA Speaker System is built for the road and ready for any challenge.
