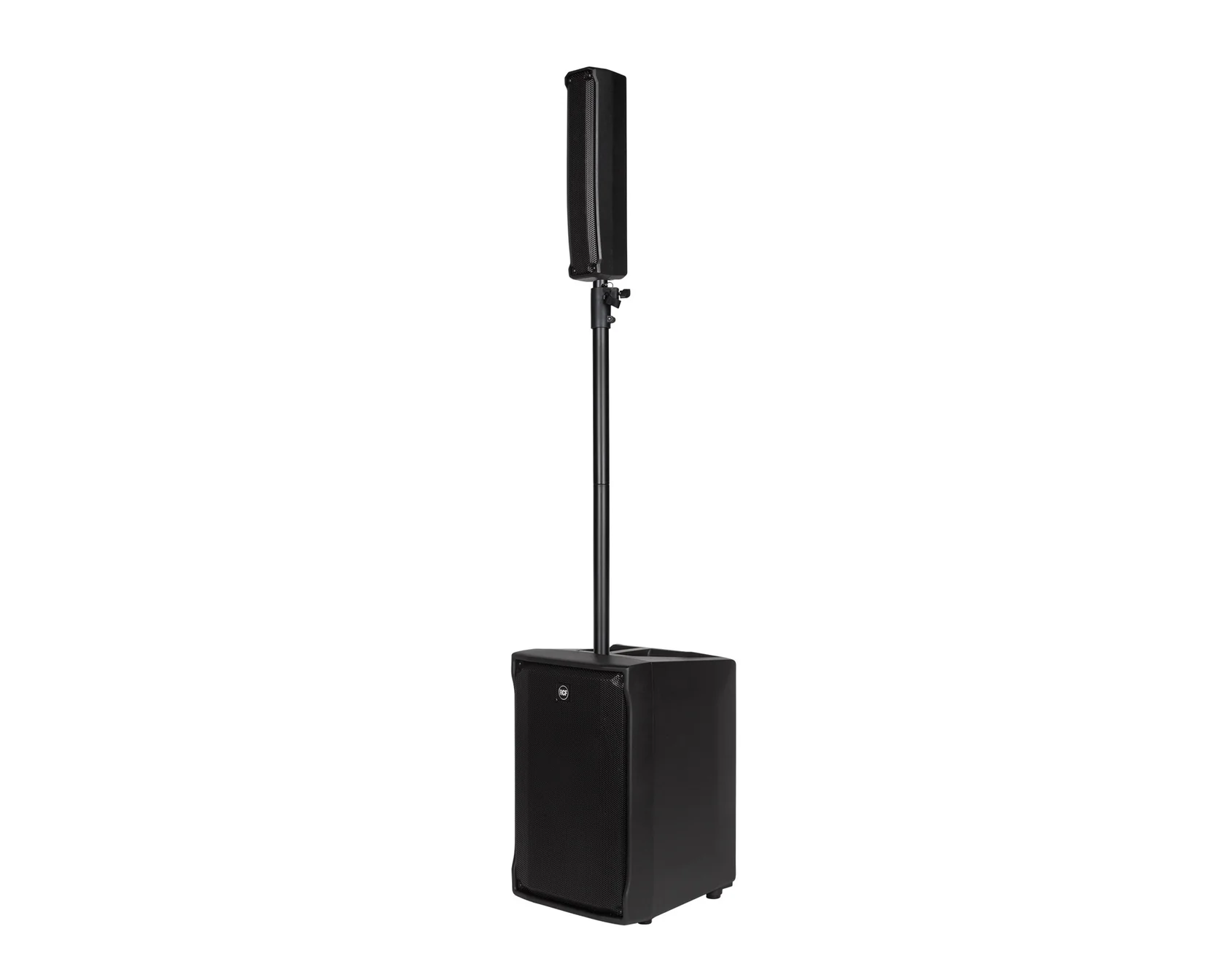

RCF EVOXJ8 Active 2-Way Column PA System

Product Overview

The RCF EVOXJ8 Active 2-Way Column PA System is a professional portable column loudspeaker that delivers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response. Featuring a line source satellite module with eight 2″ full-range drivers paired with a high-powered 12″ woofer in a bass reflex enclosure, all powered by on-board 1400W Class D amplification, this system sets the standard for portable PA performance.

The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. Achieving 128 dB maximum SPL with a frequency response of 40Hz to 20kHz, the RCF EVOXJ8 Active 2-Way Column PA System is perfect for live sound, clubs and DJs, corporate events, and AV presentations.

Product Description

Professional Portable Column PA

The RCF EVOXJ8 Active 2-Way Column PA System represents the perfect fusion of professional audio performance and portable convenience. Designed for musicians, DJs, and AV professionals who demand exceptional sound quality in a compact, easy-to-transport package, this system delivers on every level.

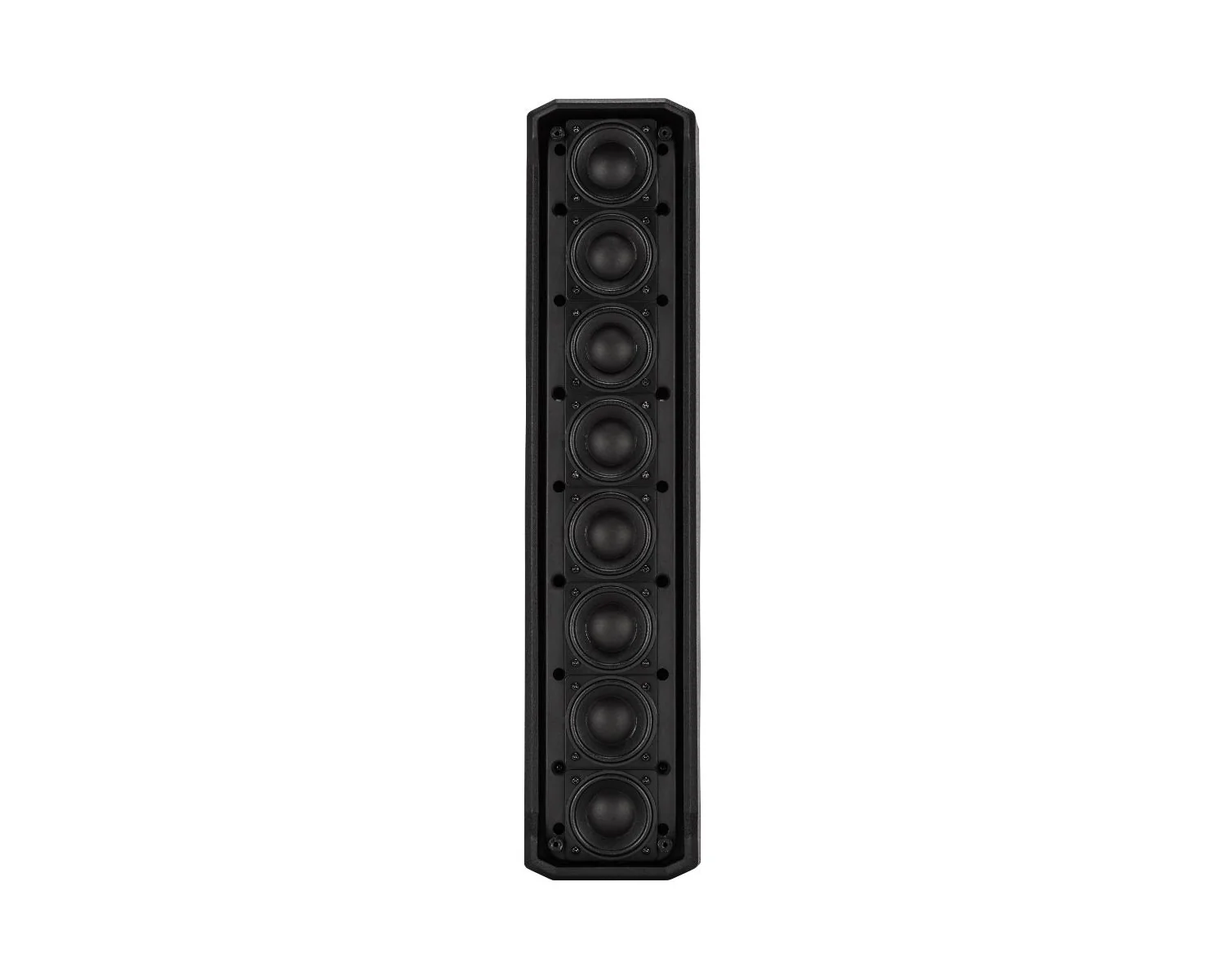

Line Source Satellite Module

The top section of the RCF EVOXJ8 Active 2-Way Column PA System features eight 2″ ultra-compact full-range drivers with 1″ voice coils. This line source design provides:

• Crystal-clear vocal reproduction with exceptional intelligibility

• Unparalleled musical response across all genres

• 120° horizontal × 30° vertical coverage for optimal audience coverage

• Consistent tonal balance throughout the listening area

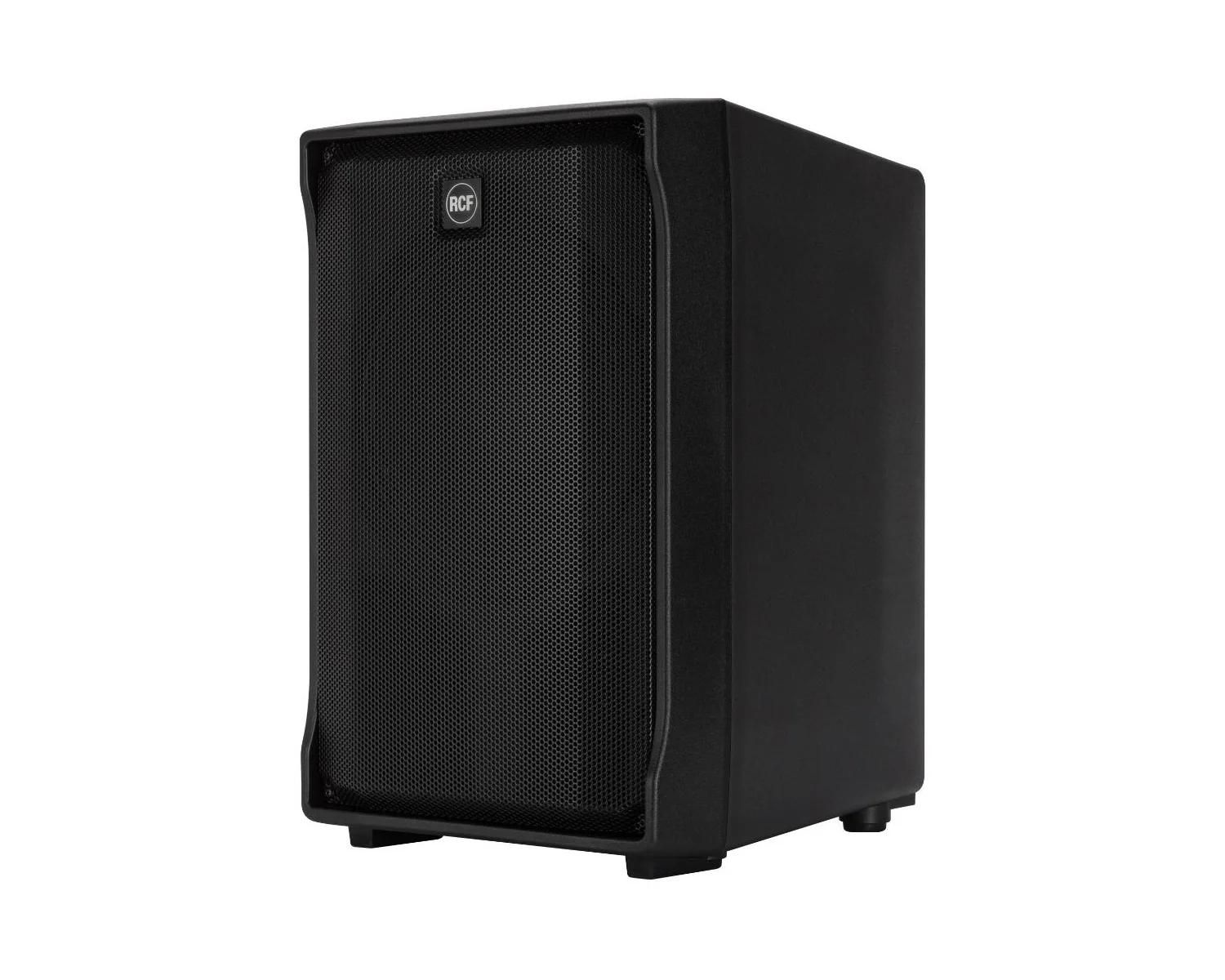

Powerful Low-Frequency Performance

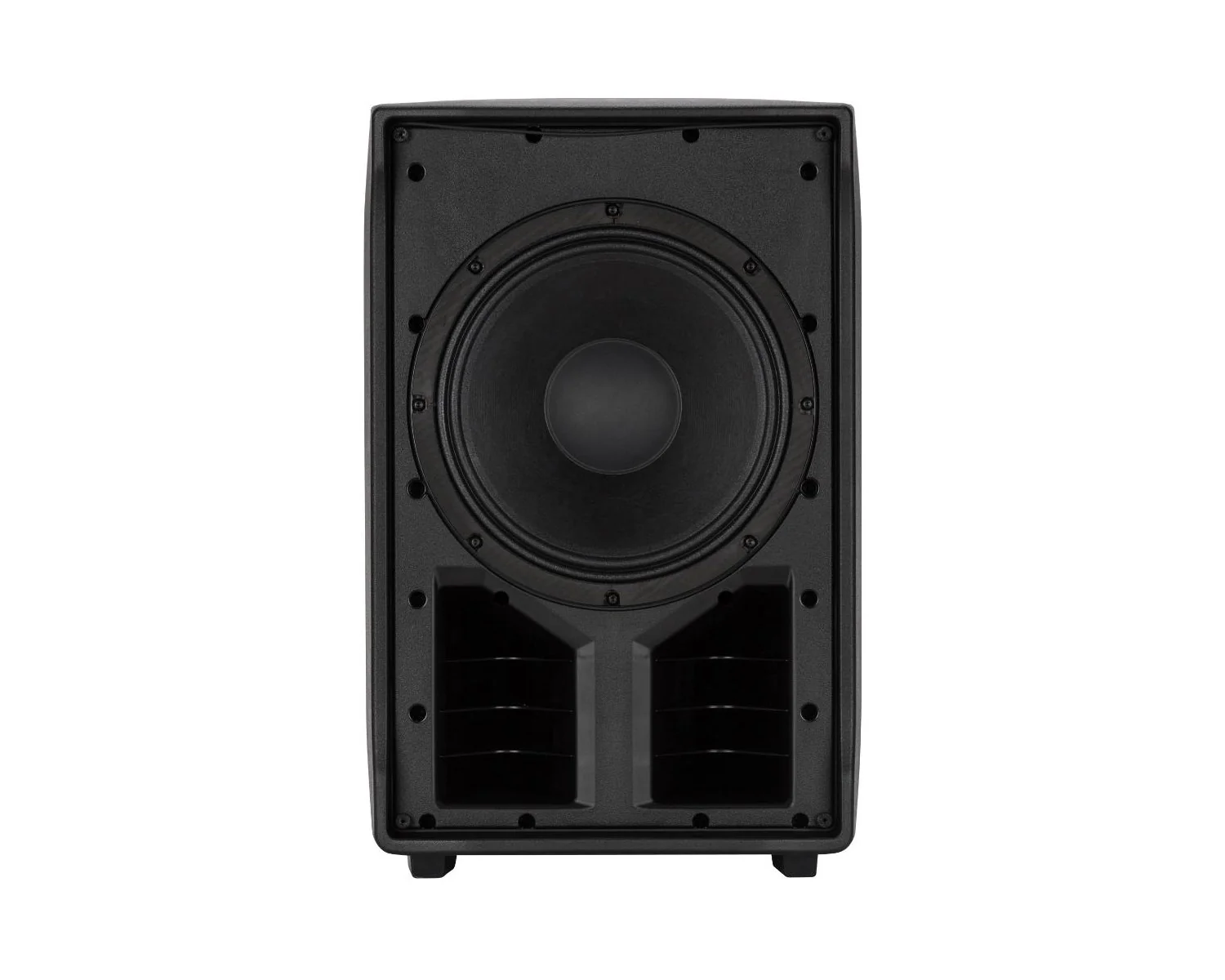

The 12″ woofer with a high-power 2.5″ voice coil housed in a bass reflex enclosure delivers powerful, deep bass that extends down to 40Hz. Whether you’re reinforcing a live band, DJ set, or corporate presentation, the RCF EVOXJ8 Active 2-Way Column PA System delivers the low-end authority you need.

Advanced DSP Processing with FiRPHASE

The RCF EVOXJ8 Active 2-Way Column PA System features advanced DSP processing with FiRPHASE technology, ensuring:

• Perfect phase alignment for coherent sound reproduction

• Crossover frequency: 220 Hz

• Protections: Thermal, RMS

• Limiter: Soft Limiter

• Controls: Volume, Boost, Mic/Line

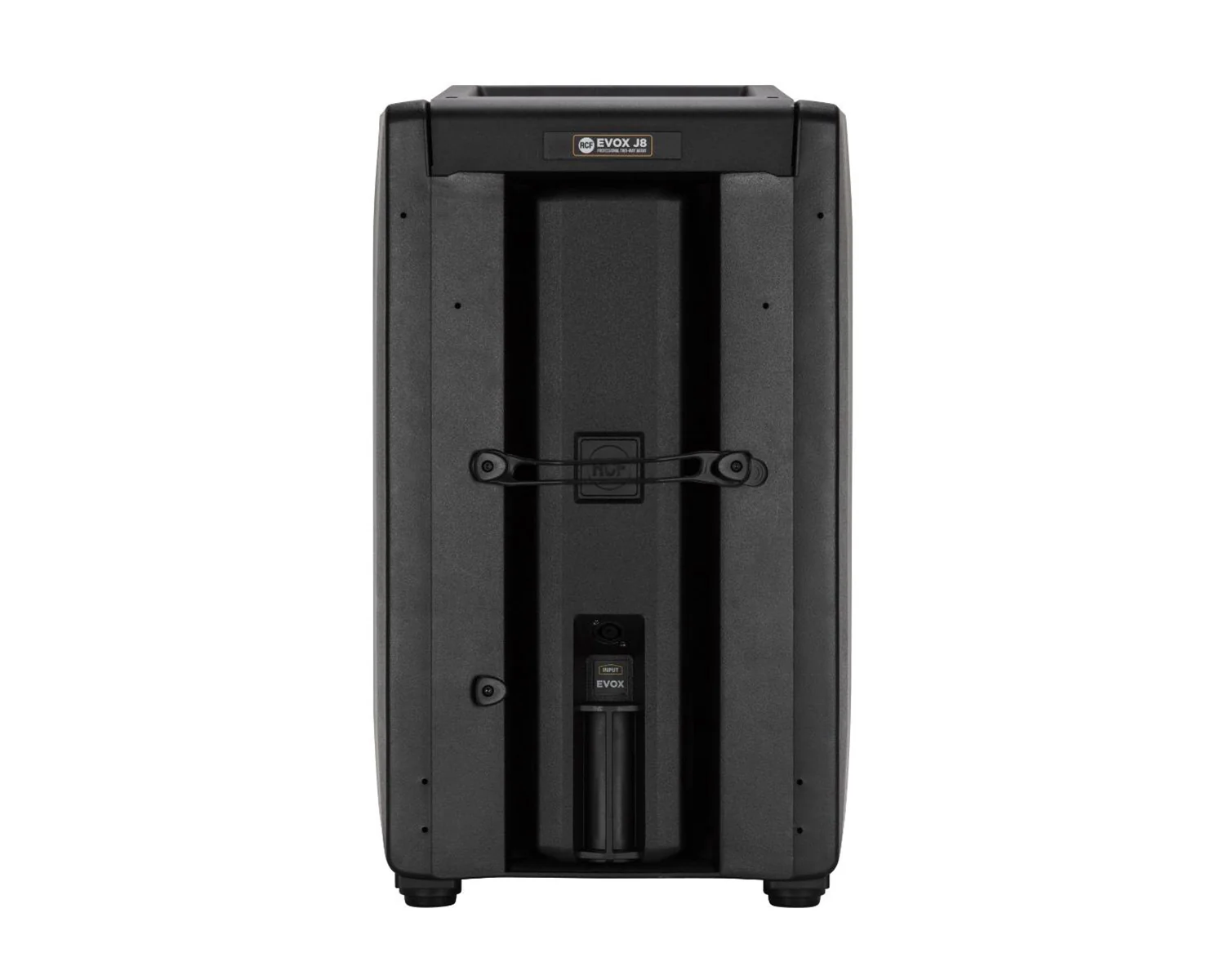

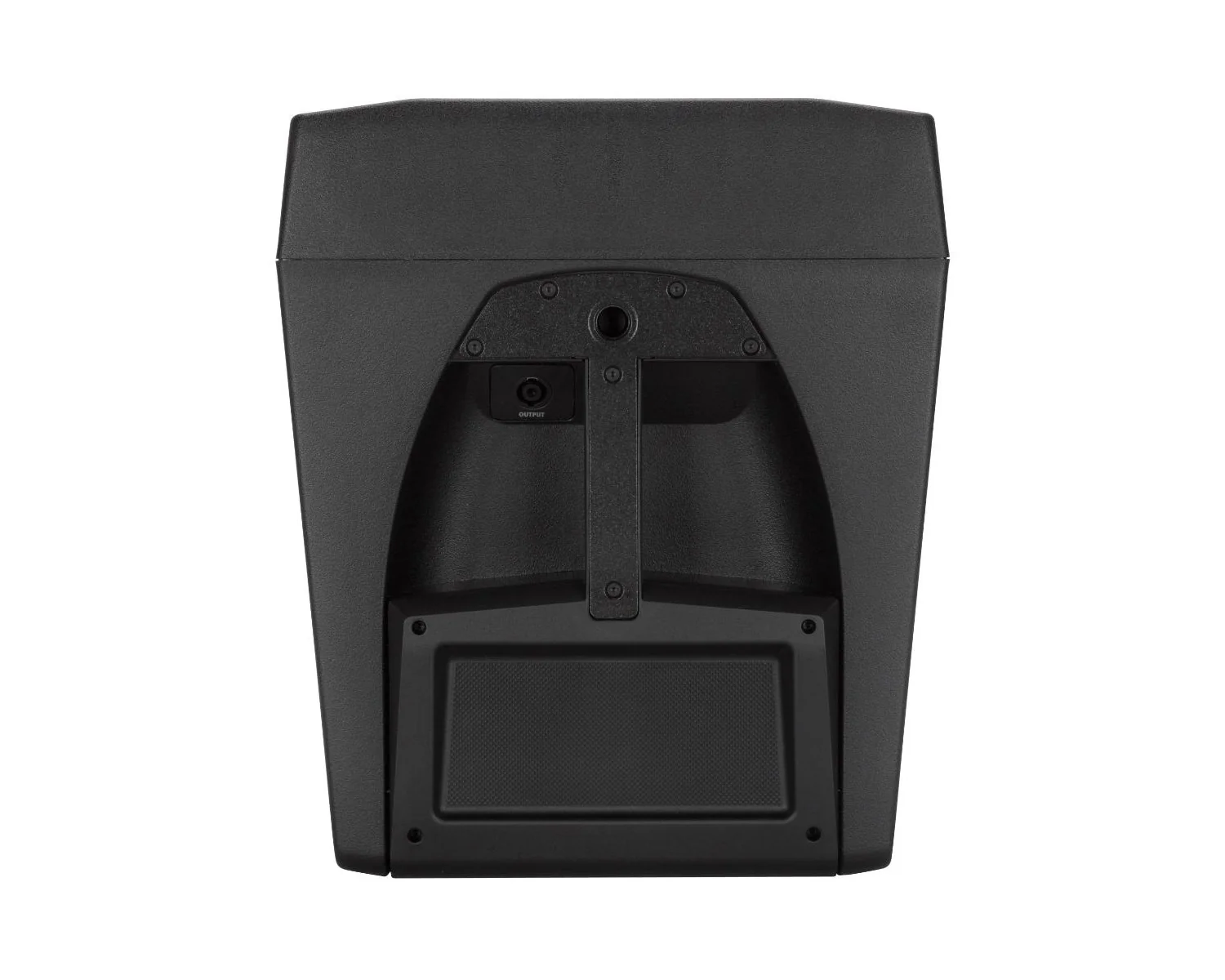

Portable Composite Enclosure

The RCF EVOXJ8 Active 2-Way Column PA System features a durable PP Composite cabinet that is both lightweight and rugged. At just 23.8kg, this system is exceptionally easy to transport and set up. The system includes:

• 1 top handle for easy lifting

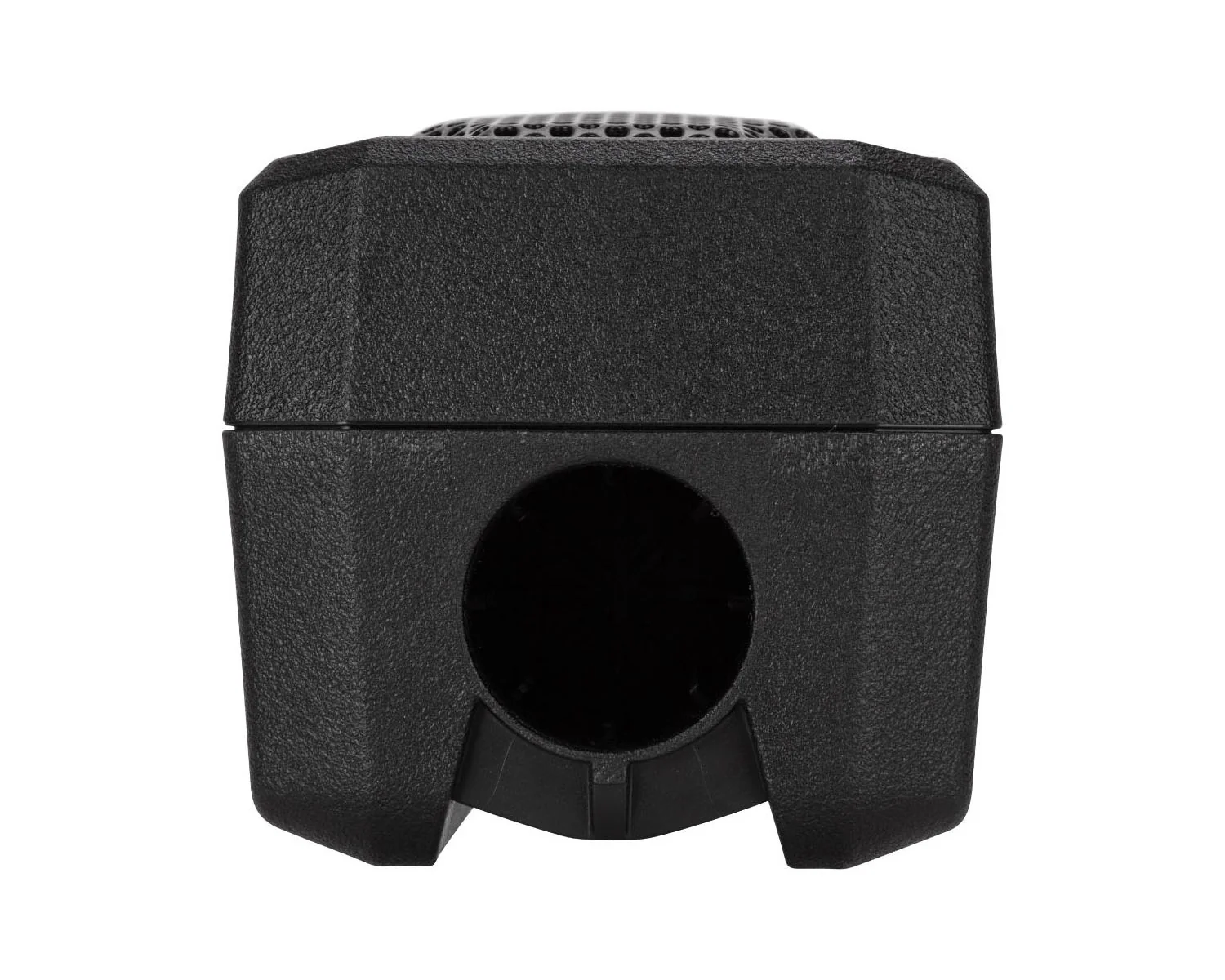

• Pole mount socket for quick deployment

• Steel grille for driver protection

• Convection cooling for silent operation

Key Advantages

• Professional 2-way active column PA system

• 1400W peak power (700W RMS) with Class-D amplification

• 128 dB maximum SPL for demanding live applications

• 8x 2″ ultra-compact full-range drivers with 1″ voice coils

• 12″ woofer with 2.5″ voice coil for deep, powerful bass

• 120° × 30° coverage for optimal audience coverage

• Frequency response from 40Hz to 20kHz

• DSP processing with FiRPHASE technology

• Multiple presets: Volume, Boost, Mic/Line

• PP Composite cabinet for lightweight durability

• Pole mountable for easy setup

• Compact and lightweight at just 23.8kg

• Available in black

Key Features

• Active 2-way column PA system

• 1400W peak power (700W RMS)

• 128 dB maximum SPL

• 8x 2″ ultra-compact full-range drivers with 1″ voice coil

• 12″ woofer with 2.5″ voice coil

• 120° horizontal × 30° vertical coverage

• Frequency response: 40Hz – 20kHz

• Crossover frequency: 220Hz

• DSP processing with FiRPHASE

• Soft limiter with thermal and RMS protections

• Volume, Boost, Mic/Line controls

• Convection cooling for silent operation

• PP Composite cabinet for lightweight durability

• 1 top handle for easy transport

• Pole mount socket for quick deployment

• Steel grille for driver protection

• Compact and lightweight at 23.8kg

• Available in black

Specifications

Applications

The RCF EVOXJ8 Active 2-Way Column PA System is perfect for:

• Live sound reinforcement

• Clubs and DJs

• Corporate events

• AV presentations

• Weddings and celebrations

• Houses of worship

• Conference rooms and meeting spaces

• Schools and educational environments

• Small to medium venues

• Mobile entertainers

• Any application requiring professional audio in a portable package

Why Choose the RCF EVOXJ8 Active 2-Way Column PA System?

The RCF EVOXJ8 Active 2-Way Column PA System represents the perfect balance of professional performance and portable convenience. With its 1400W of peak power, 128 dB maximum SPL, and 40Hz – 20kHz frequency response, this system delivers exceptional sound quality for any application.

The eight 2″ ultra-compact full-range drivers with 1″ voice coils provide crystal-clear vocal reproduction and unparalleled musical response, while the 12″ woofer with 2.5″ voice coil delivers powerful bass that reinforces any performance. The 120° × 30° coverage pattern ensures optimal audience coverage in any venue.

The DSP processing with FiRPHASE technology ensures perfect phase alignment for coherent sound reproduction, while the PP Composite cabinet provides lightweight durability for easy transport. At just 23.8kg, the RCF EVOXJ8 Active 2-Way Column PA System is exceptionally portable and easy to set up.

Whether you’re a live performer, a DJ, or an AV professional, the RCF EVOXJ8 Active 2-Way Column PA System delivers the sound quality, flexibility, and portability you need to perform at your best.
