Description

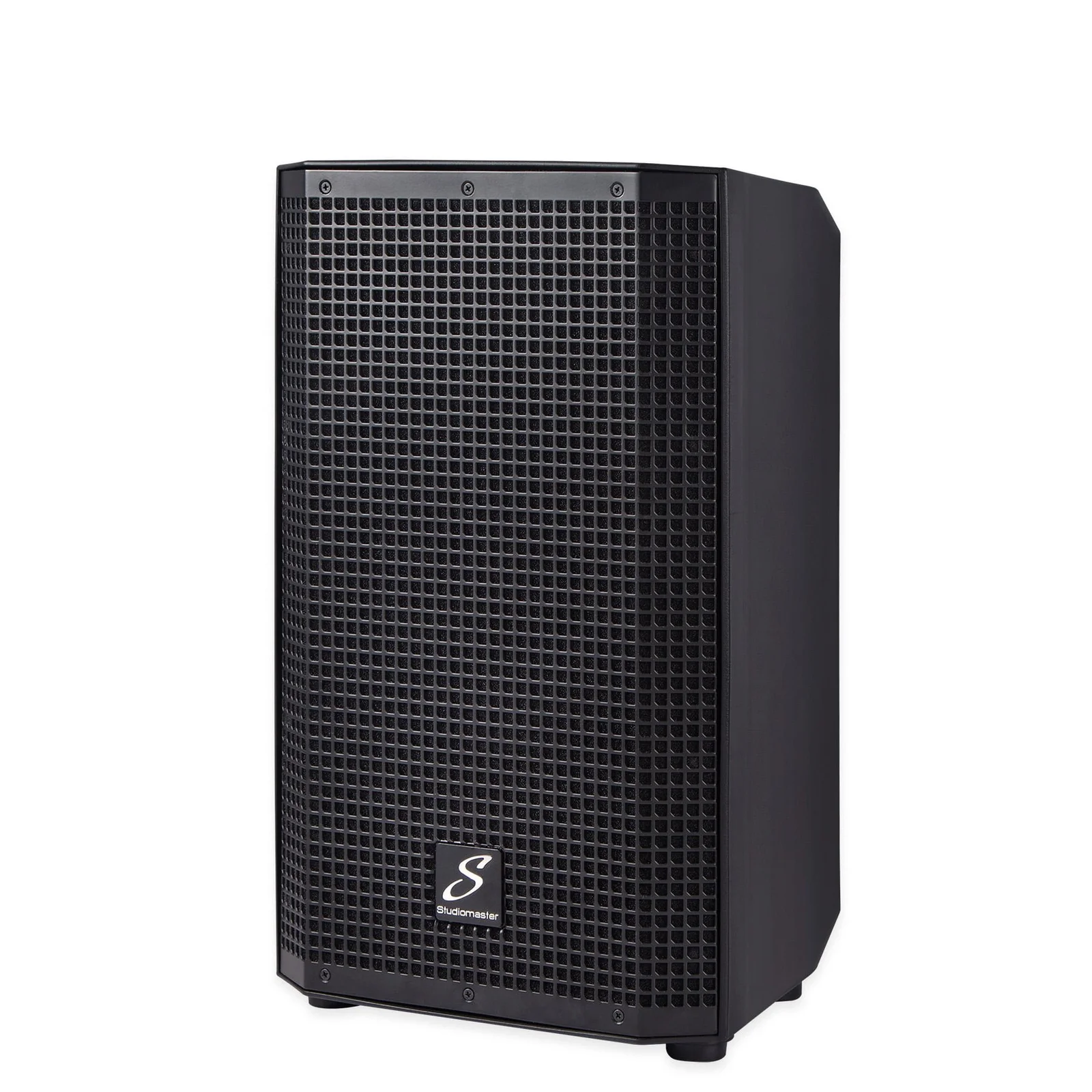

Studiomaster Vortex 10A coaxial Full range active speaker
Discover the Studiomaster Vortex 10A, a versatile coaxial full-range
active speaker
engineered for premium audio clarity. Ideal for both live performances and permanent installations, the Vortex 10A offers balanced sound with impressive power and precision. Its compact design and advanced amplification technology ensure consistent, high-quality audio, making it the perfect choice for professionals who demand reliability and superior performance.
ROBUST
Full face front grille –
Moulded cabinet –
LIGHTWEIGHT
12A – 15.5kg –
10A – 12.5kg –
PORTABLE
Multiple handle positions –
12A – top and both sides –
10A – top and side –
POWERFUL
14Ω0W 2-way amplification –
124Ω125dB SPL –
VERSATILE
Multiple M10 flying points –
Dual top hat sockets:
Straight (0 degree) –
Angled (10 degree) –
Floor monitor suitable –
BLUETOOTH PLAYBACK
with TWS facility
24ΩBIT DSP
3 Band EQ
Multiple operation modes
Limiter
Time delay

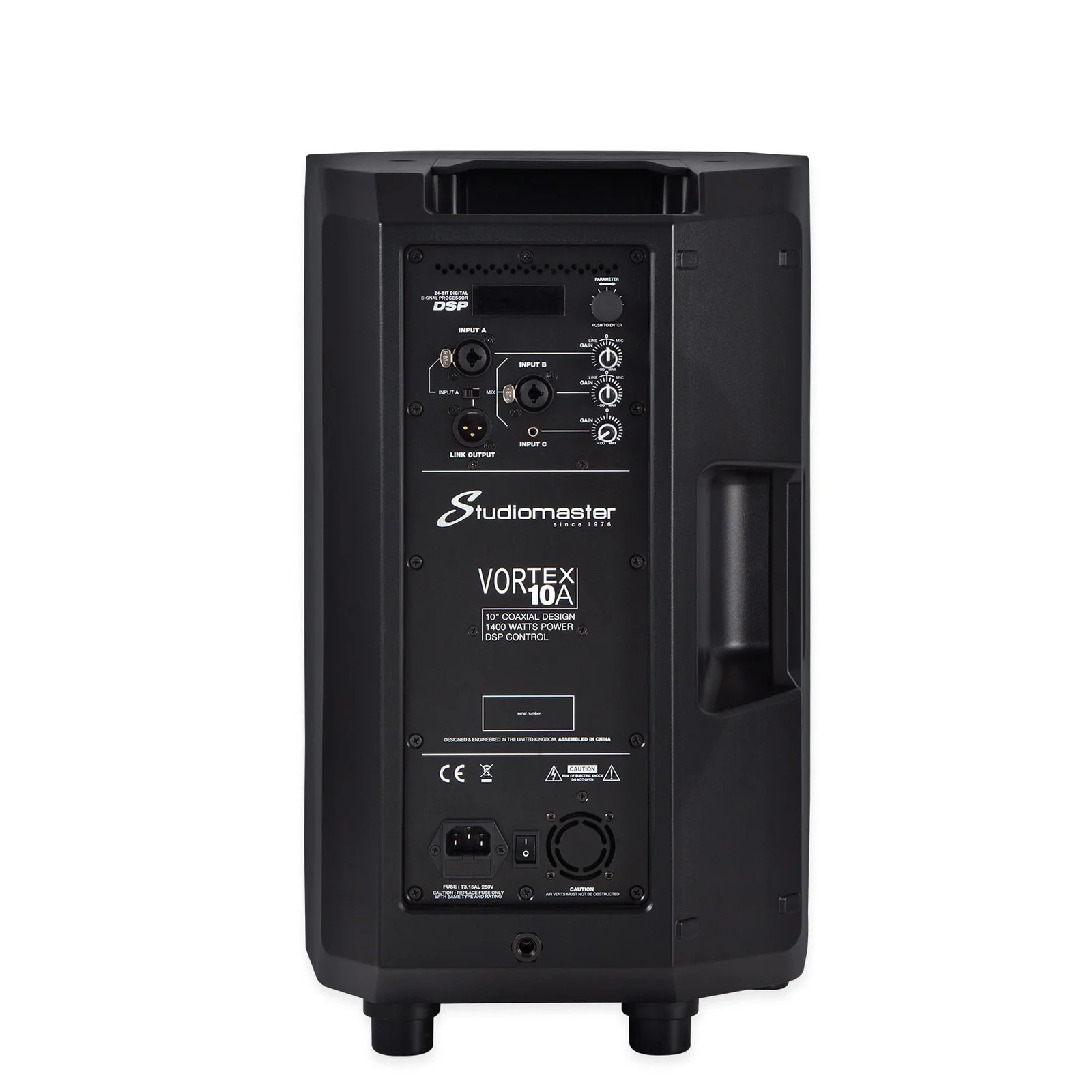

MULTIPLE INPUTS
2x mic / line
1x 3.5mm line
Bluetooth
LINK OUTPUT
Selectable between input A and full mix
VORTEX 10A
CABINET TYPE –
10″ 2-way coaxial active
MAX SPL –
124ΩB
AMP PEAK –
14Ω0w
MAX PGM –
700w
AMP RMS –
350w (300+50)
WEIGHT (NET) –
12.5kg
FREQ RESPONSE –
55Hz-20kHz
INPUT SENSITIVITY –
0dBu
COVERAGE(h x v) –
8Ω x 8Ω degree
LF DRIVER –
10″ / 50mm VC
HF DRIVER –
34Ωm VC / 1″ throat
CROSSOVER FREQUENCY –
2.2kHz
24Ωit DSP –
Mode select, 3 band EQ, delay, volume
DSP MODES –
Music, live, dj, speech, monitor
CONNECTION –
2x XLR/JACK input, 1x 3.5mm, XLR output
CONNECTIVITY –
BLUETOOTH playback
MOUNTING –
Dual top-hat, 5x M10 flying points
DIMENSIONS (W/H/D) –
310 / 515 / 28Ωmm
VORTEX 12A
CABINET TYPE –
12″ 2-way coaxial active
MAX SPL –
125dB
AMP PEAK –
14Ω0w
MAX PGM –
700w
AMP RMS –
350w (300+50)
WEIGHT (NET) –
15.5kg
FREQ RESPONSE –
50Hz-20kHz
INPUT SENSITIVITY –
0dBu
COVERAGE(h x v) –
8Ω x 8Ω degree
LF DRIVER –
12″ / 65mm VC
HF DRIVER –
34Ωm VC / 1″ throat
CROSSOVER FREQUENCY –
2.2kHz
24Ωit DSP –
Mode select, 3 band EQ, delay, volume
DSP MODES –
Music, live, dj, speech, monitor
CONNECTION –
2x XLR/JACK input, 1x 3.5mm, XLR output
CONNECTIVITY –
BLUETOOTH playback
MOUNTING –
Dual top-hat, 5x M10 flying points
DIMENSIONS (W/H/D) –
360 / 58Ω / 310mm
