£19.99 Excluding VAT

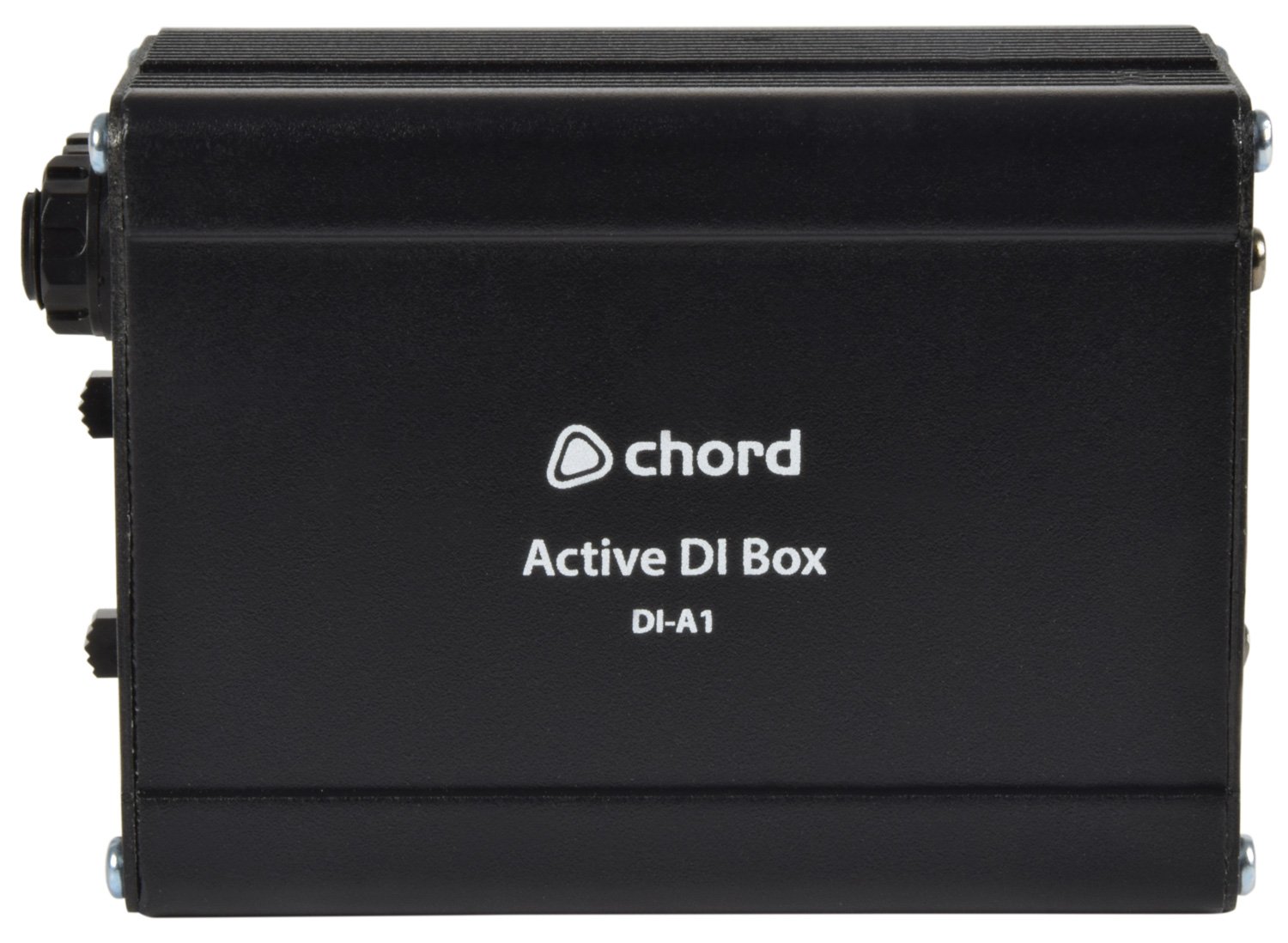

Active Direct Injection Box
Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
Ground float option for ground lift with RF/mains filter
Ground lift option isolates signal ground without filter
3 pad settings for level matching
Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.
Dimensions 103 x 70 x 45mm
Weight 243g
Input 6.3mm jack (unbalanced)
Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
Input impedance >100k Ohms
Output impedance 600 Ohms
Controls 0/-20/-40dBu pad & Ground-Float-Lift switch
Power supply 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
| Weight | 0.32 kg |
|---|
