Description

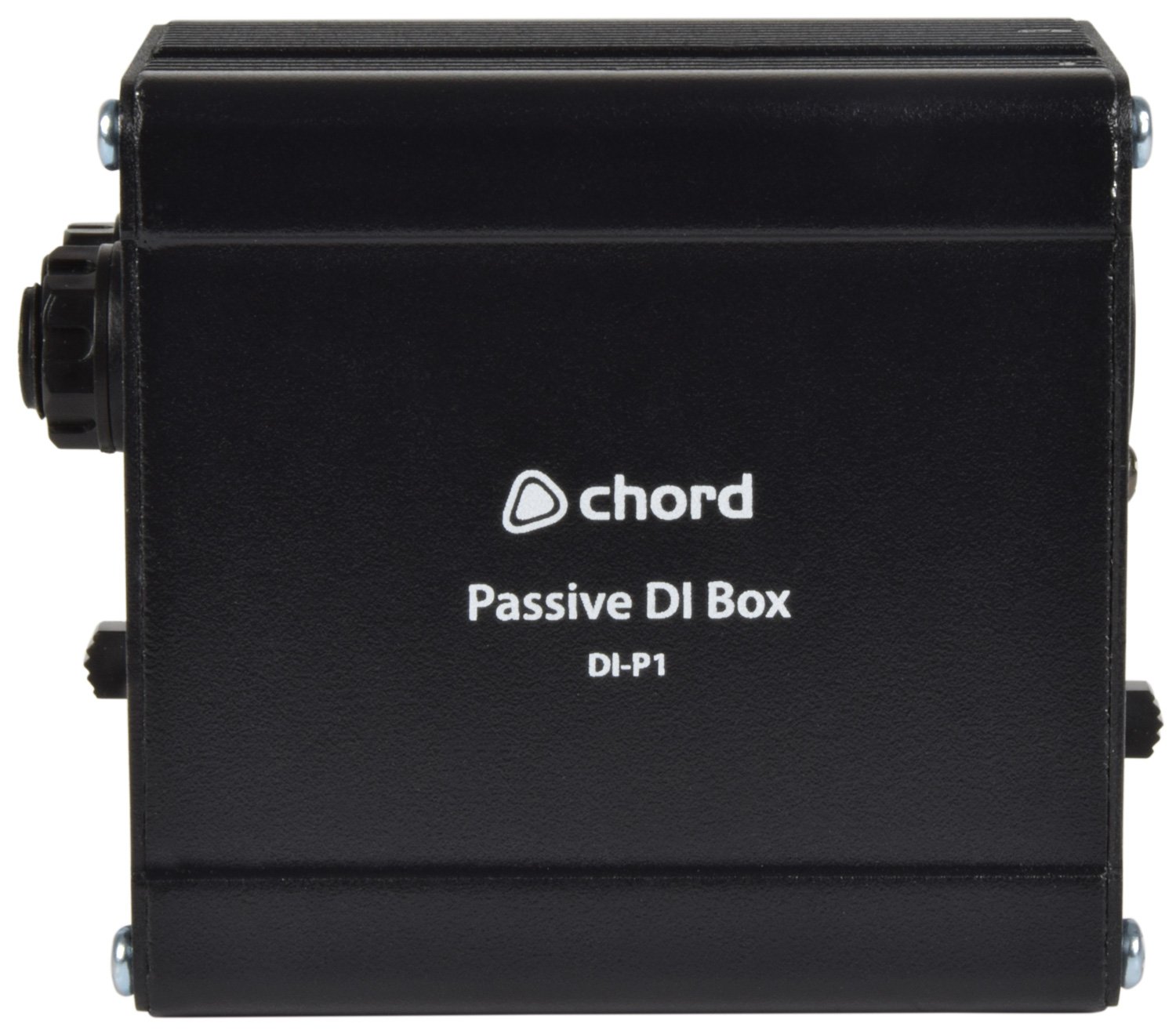

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

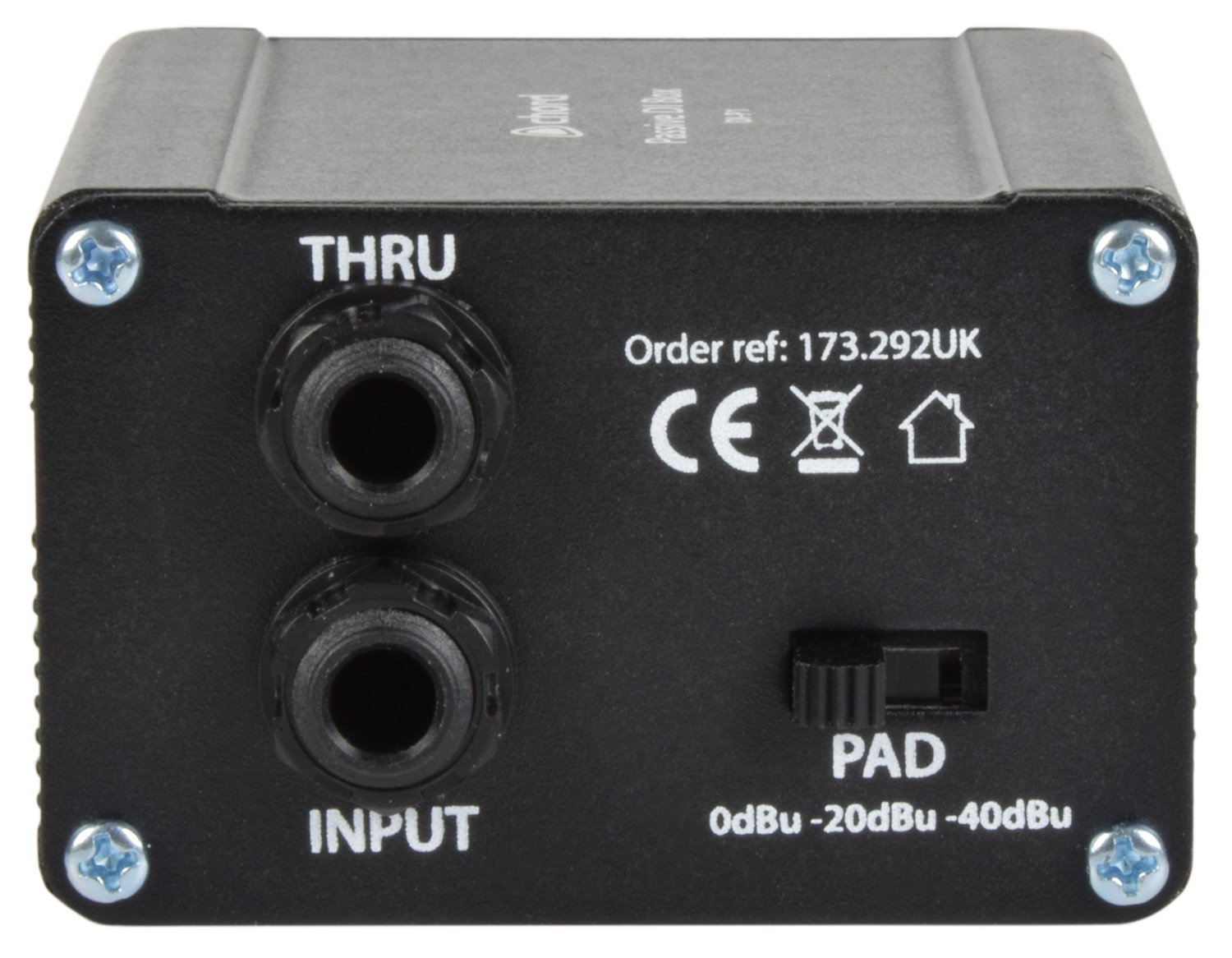

Input 6.3mm jack (unbalanced)

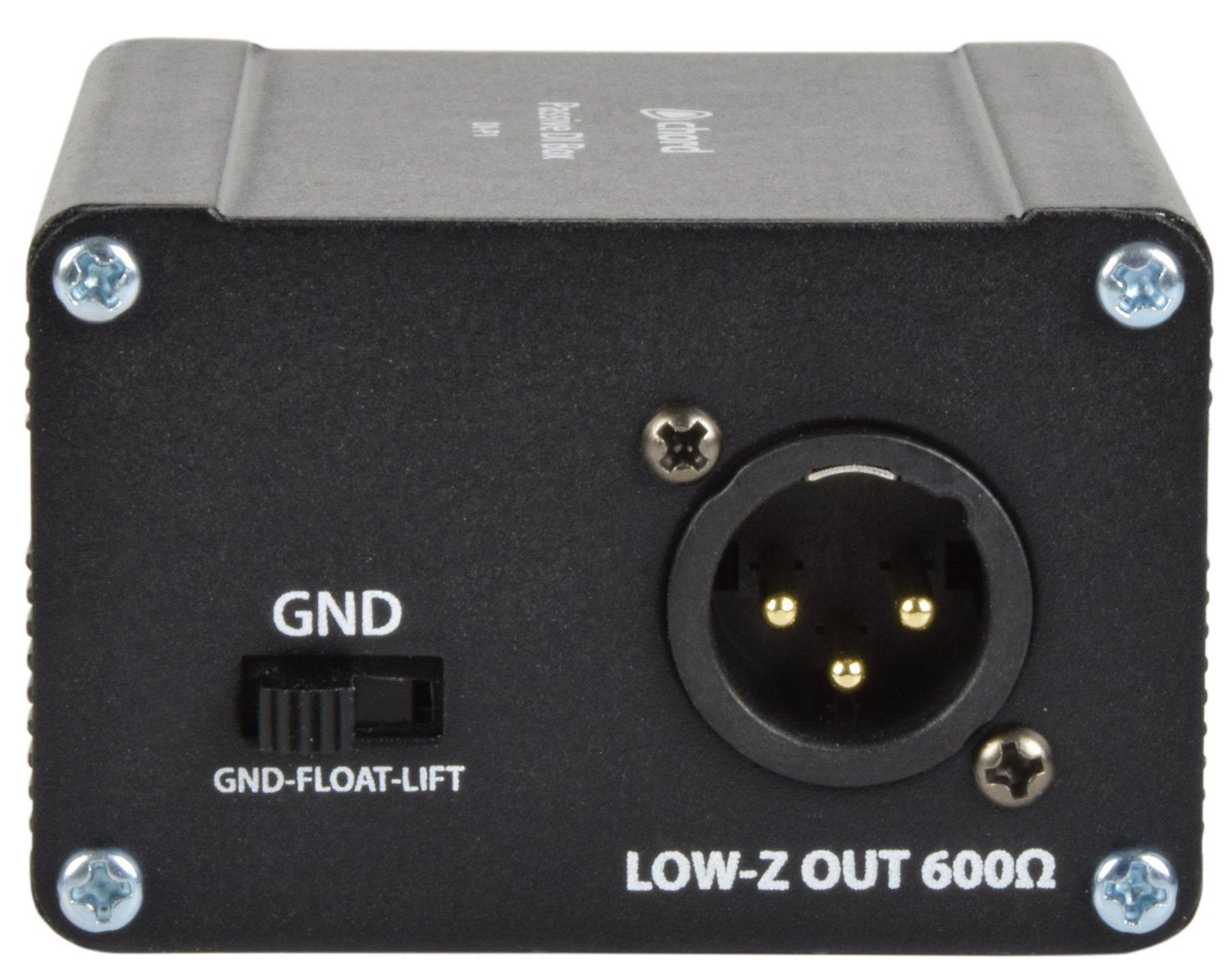

Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
Output impedance 600 Ohms
Input impedance >100k Ohms
Controls 0/-20/-40dBu pad & Ground-Float-Lift switch
Dimensions 86 x 70 x 45mm
Weight 234g
