Description

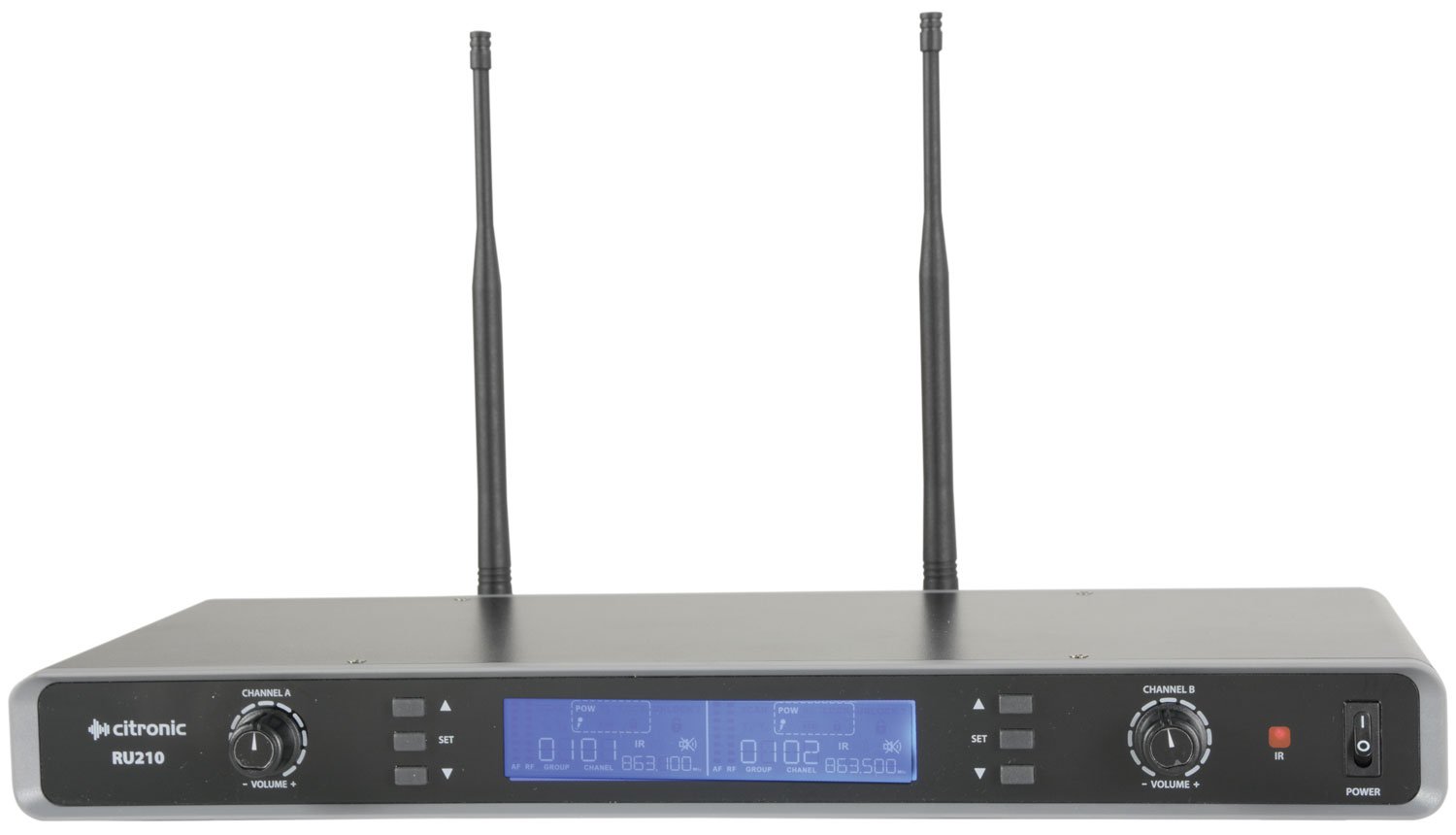

Dual channel PLL tuneable UHF wireless system with 2 beltpack transmitters and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronised to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.
Power supply 12-18Vdc, 500mA (mains adaptor included)
Batteries 4 x AA (2 per transmitter – included)
Carrier frequencies 863 – 865MHz (81 selectable frequencies)
Range 60m
Signal to noise ratio >105dB
THD <0.5% @ 1KHz Frequency response 50Hz-18KHz ±1 dB Image rejection >85dB
Output impedance 2.2k Ohms
Output level 400mV (balanced), 200mV (unbalanced)
Dimensions : receiver 44 x 409 x 190mm
Weight : receiver 1.37kg
Dimensions : transmitter 110 x 67 x 24mm (ex antenna)
Weight : transmitter 75g (no battery)
