Description

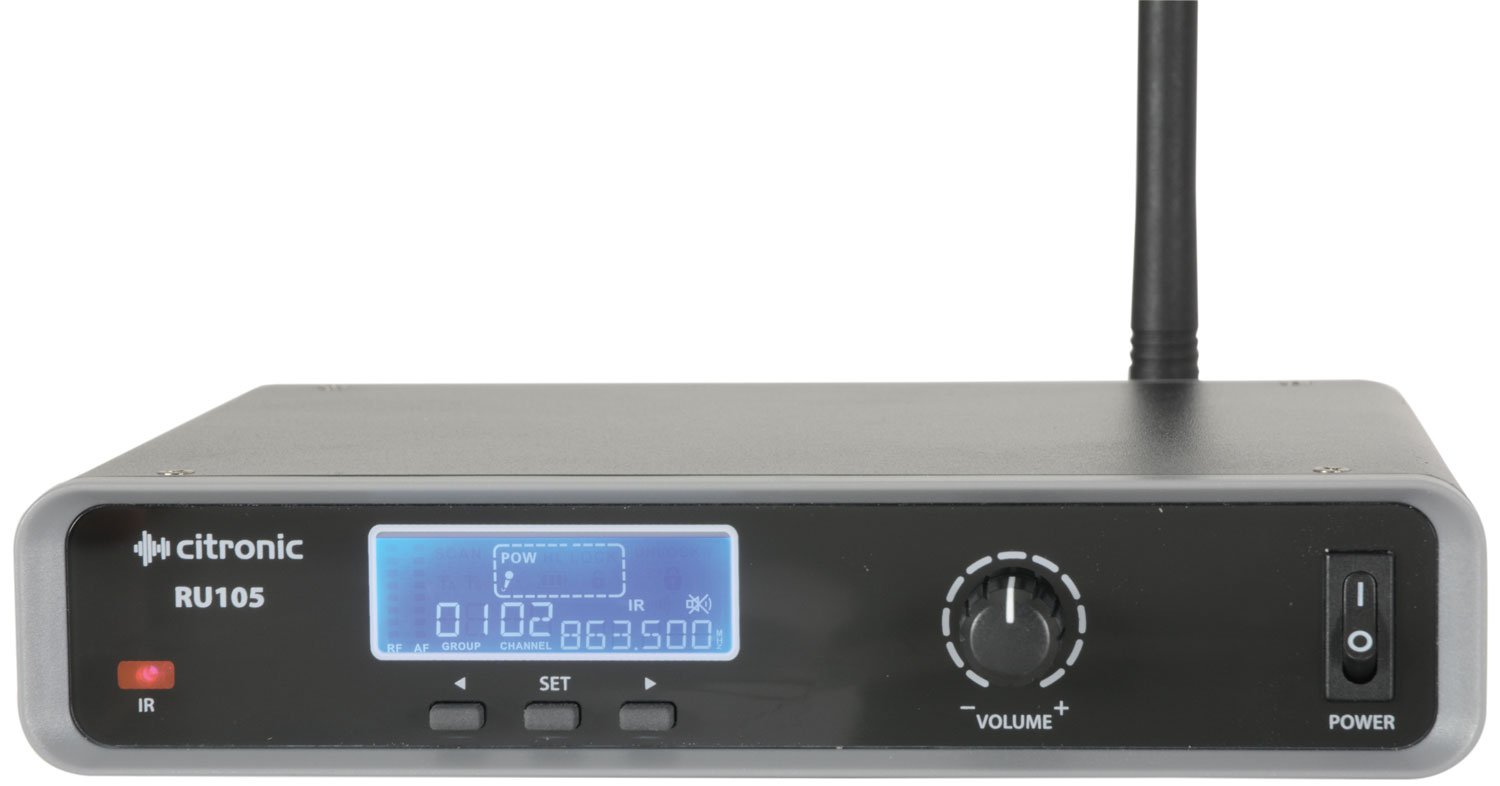

Single channel PLL tuneable UHF wireless system with a handheld transmitter. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.
Power supply 12-18Vdc, 350mA (mains adaptor included)
Batteries 2 x AA (for transmitter – included)
Carrier frequency 863 – 865MHz (81 selectable frequencies)
Range 60m
Signal to noise ratio >105dB
THD <0.5% @ 1KHz Frequency response 50Hz-18KHz ±1 dB Image rejection >85dB
Output impedance 2.2k Ohms
Output level 400mV (balanced), 200mV (unbalanced)
Dimensions : receiver 44 x 198 x 190mm
Weight : receiver 710g
Dimensions : transmitter 265 x 49mmØ
Weight : transmitter 330g (no battery)
