Description

X-PAD brings digital sound recording and studio quality effects within reach of podcasters, mobile social media, and on-line gamers in the form of a rechargeable, pocket-sized audio tool. USB-C connection to a smart phone or laptop computer lets you record with professional features such as EQ tone controls, reverb & echo effects, pitch change and auto-tune for singers. Multiple input/output options also mean that this amazing gadget can lend itself to almost any scenario.
Power source 3000mAh Li-ion battery or USB 5Vdc 2A

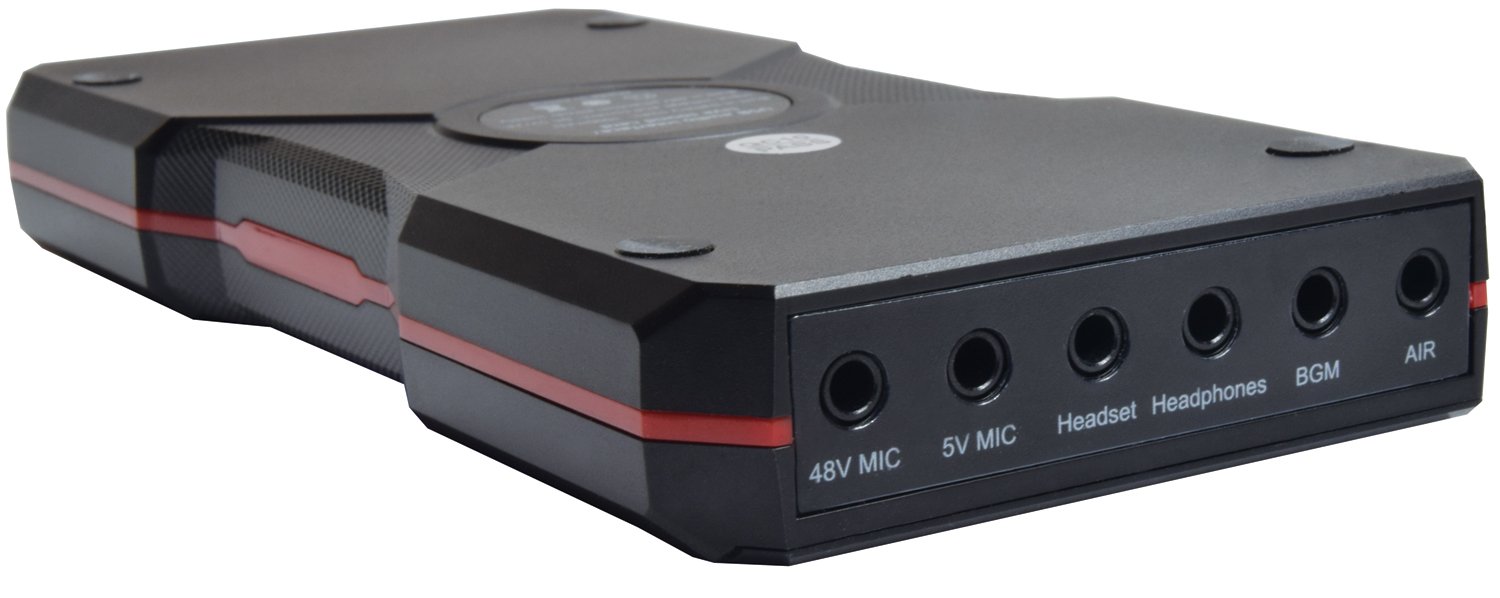

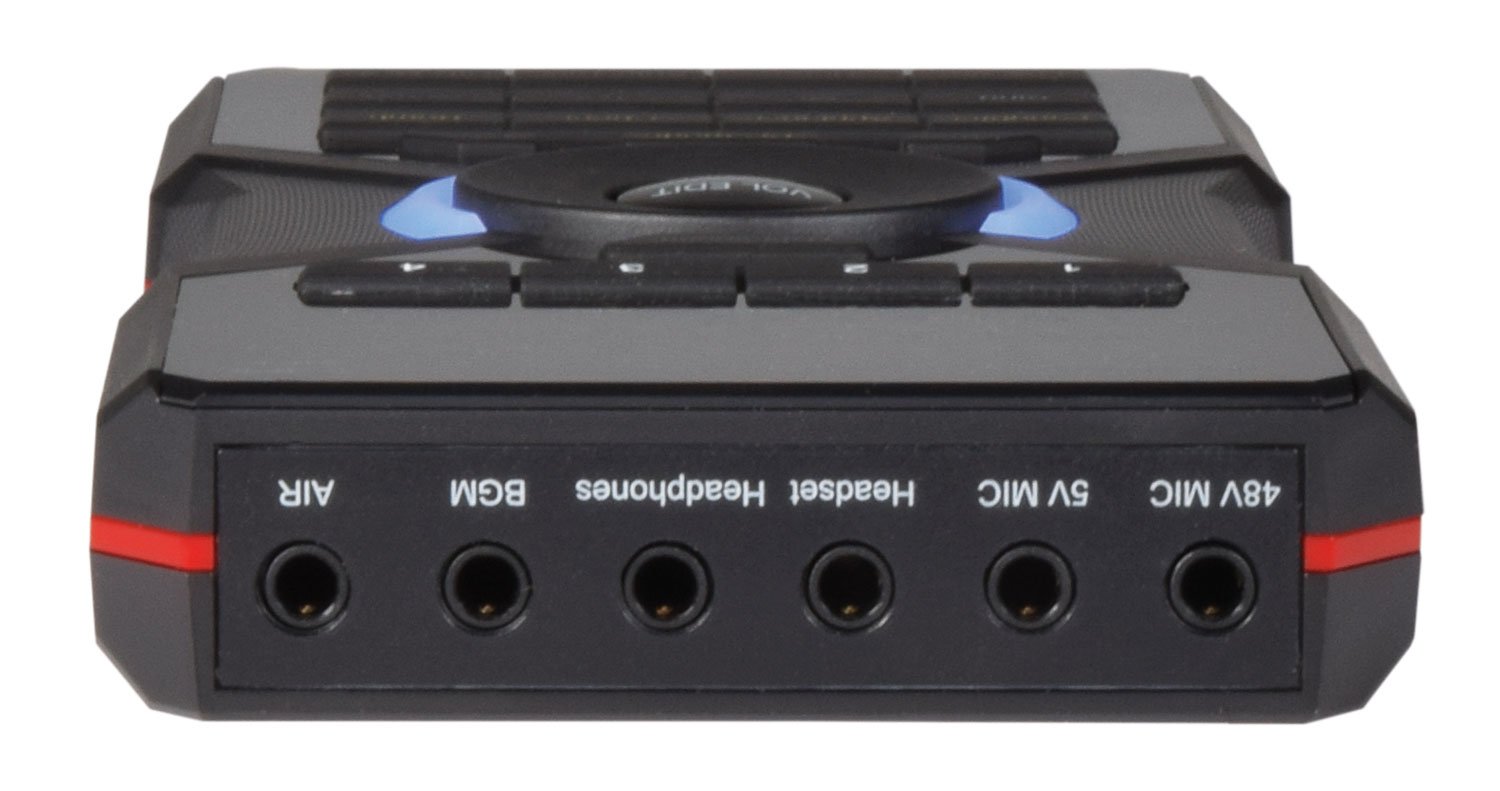

Microphone : inputs 3 x 3.5mm jack (Mic.1, Mic.2, headset)
Input impedance : mic 2.2k Ohms (Mic.1), 10k Ohms (Mic.2 & headset mic)
Sensitivity : mic -36dB (Mic.1), -26dB (Mic.2 & headset mic)
Phantom power +48V (Mic.1), +5Vdc (Mic.2 & headset mic)
Frequency response 100Hz-16kHz (mic), 20Hz-20kHz (line in) ±1dB
S/N ratio ‰¥90dB (mic), ‰¥96dB (line in)
Dynamic range ‰¥92dB (mic), ‰¥98dB (line in)
THD ‰¤0.05% (mic), ‰¤0.02% (line in) @1kHz
Line input 3.5mm stereo BGM input
Smart phone audio connection 3.5mm TRRS jack (or via USB-C)
Headphone : connector 3.5mm stereo jack
Headphone : impedance 16-300 Ohms
Sensitivity : line -2dB
Headphone : power 100mW @16 Ohms (1kHz, ‰¤0.1% THD)
DSP sample rate 48kHz, 16-bit (S/N 98dB)

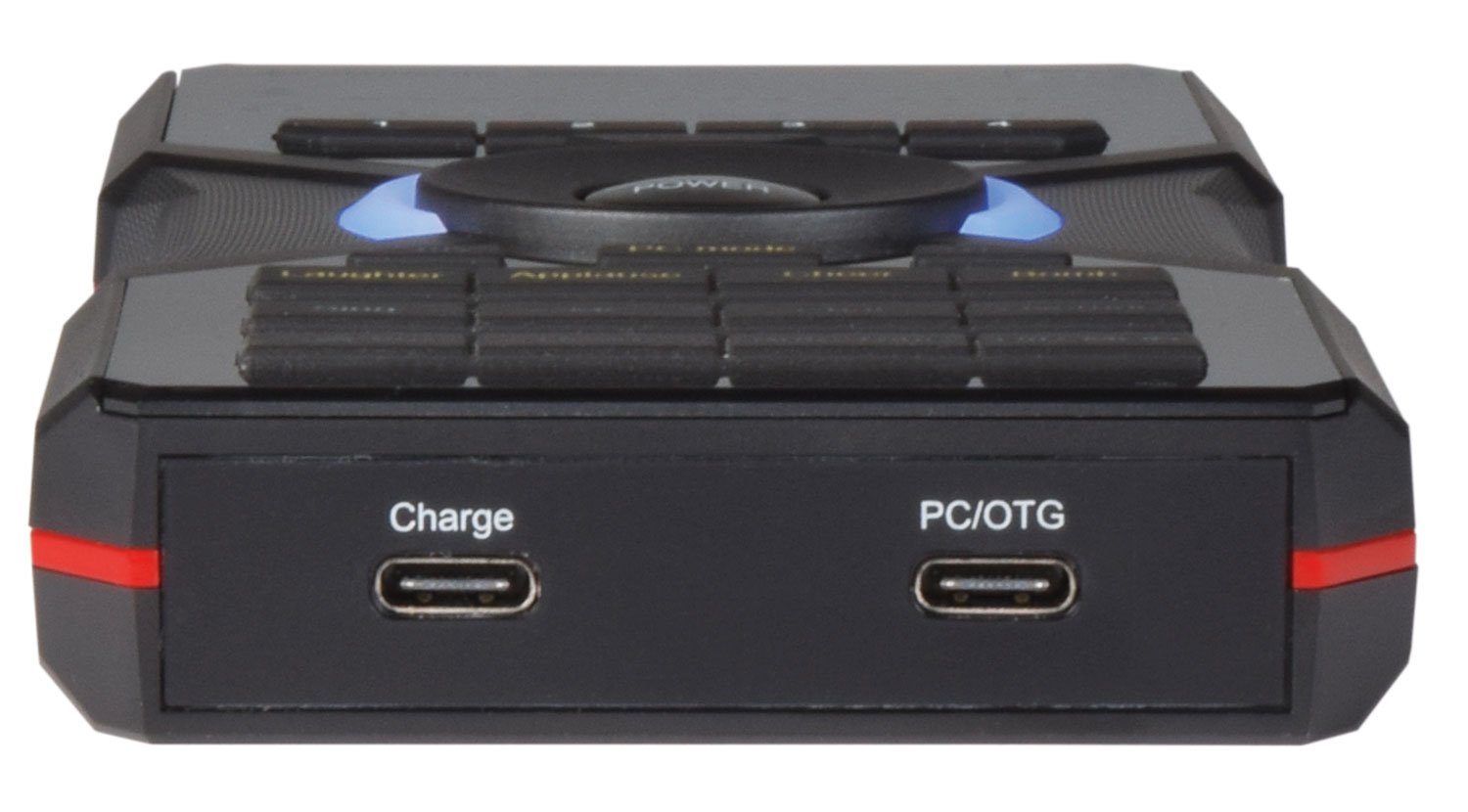

USB USB-C (PC/OTG – audio v.1.1) + USB-C (charge)
Gain Line in 12dB max.
Dimensions 162 x 78 x 21mm
Weigh
