Description
Electro-Voice ETX-12P 12″ Powered Loudspeaker
The Electro-Voice ETX-12P is a 12″ powered loudspeaker delivering top-tier sound performance with 2000 W of Class-D
power amplification
. Featuring advanced DSP with FIR-Drive for optimized audio quality and Smart System Integration, it provides detailed control over performance parameters. The rugged enclosure, durable construction, and ergonomic handles make it ideal for both portable and permanent installations. With a maximum SPL of 135 dB, the ETX-12P is perfect for a variety of professional audio applications, ensuring clarity and power in any setting.
ETX-12P
12″ powered loudspeaker
12-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL
SPECIFICATIONS
Frequency Response (-3 dB)
55 Hz – 20 kHz
Frequency Range (-10 dB)
43 Hz – 20 kHz
Maximum SPL
135 dB peak
SPECIFICATIONS
Coverage (H x V)
90 x 60
Power Rating
2000 W
LF Transducer
SMX2120 300 mm (12 in)
HF Transducer
DH3-B 1.25-in titanium compression driver
Crossover Frequency
1600 Hz
Connectors
(2) XLR/TRS combo jack and (1) XLR link output
Enclosure
18mm Plywood with EVCoat
Grille
16AWG steel with powdercoat
Suspension

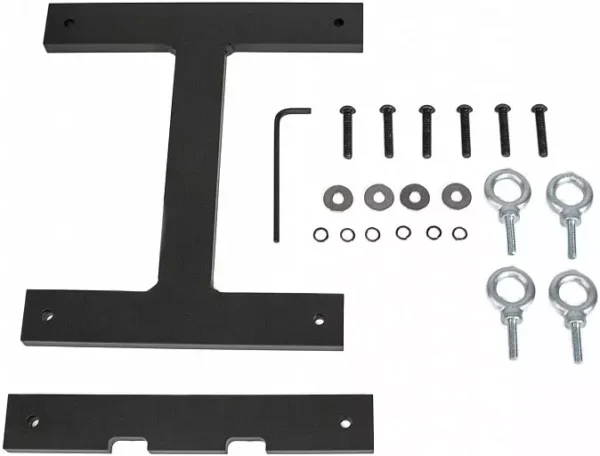

(8) M10 suspension points
Dimensions (H x W x D)
613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in)
Net Weight
23.6 kg (52.0 lb)
Shipping Weight
26.8 kg (59.1 lb)
Power Consumption
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
Full space measurement using the music DSP preset.
Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Current rating is 1/8 power.
