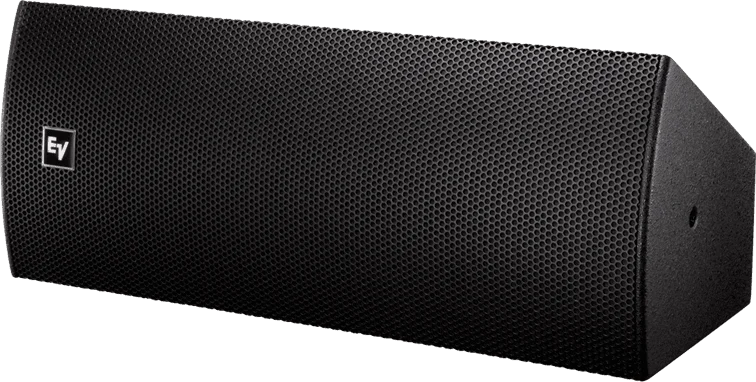

Electro-Voice EVU-2082/95 Ultracompact 2 “Way w/dual 8″ Woofers
The Electro-Voice EVU-2082/95 is an ultracompact
2-way loudspeaker
designed for powerful and clear audio performance in compact environments. Featuring dual 8” woofers and a high-frequency compression driver, it delivers robust and articulate sound across a wide frequency range. This makes it well-suited for applications where space is limited but high-quality sound is crucial, such as small venues, conference rooms, and retail settings. With its durable construction and reliable performance, the EVU-2082/95 ensures exceptional audio clarity and coverage, making it an ideal choice for professional audio installations.
Discover our more products like
Electro-Voice EVU-2062/95 Ultracompact 2 “Way W/Dual 6.5” Woofers
EVU-2082/95
Ultracompact 2 “way w/dual 8″ woofers
Sonically matched to all EV-Innovation lines
Sophisticated 18-dB-octave passive crossover/EQ networks
Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
Optional Neutrik Speakon(R) connector panel
One 1.3-inch (33 mm) diaphragm compression driver
U-bracket included
Optional 70 V and 100 V operation
OmniMount(R)-compatible rear mounting points
Available in black or white (interior use)
Ultracompact 10 x 24 inch enclosure
90 x 50 rotatable waveguide
Ultra-high power handling for size: 350 W continuous
126 dB Max SPL
Asymmetrical trapezoidal enclosure design
Compatible with OmniMount
SPECIFICATIONS
Frequency Range (-10 dB)
60 – 20000kHz (Half-space)
Suspension
Six M8 threaded points
Weatherized
No
SPECIFICATIONS
Minimum Impedance
6ohm
HF Transducer
One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
Speaker Type
Full-Range, Two-Way
Frequency Response (-3 dB)
100 – 16000Hz (Half-space)
Max. SPL/1m (calc)
126dB
Coverage (Nominal -6 dB) H
90
Coverage (Nominal -6 dB) V
50
LF Transducer
Two 8-inch (203 mm) ICT-8-8 woofers
Power Rating
1400W
System Power Handling (Continuous/Program/Peak)
350//1400Watts (EIA RS-426A (eight hours))
Connector Type
4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Enclosure Material
9-ply hardwood plywood
Grille
18-gauge steel with cloth behind
Available Color
Black or white
Sensitivity 1 W/1 m
95dB
Height
247mm (9.72″)
Recommended High-Pass Frequency
90Hz
Width
615mm (24.21″)
Depth
237mm (9.33”)
Weight Net
12.8kg (28.22 lbs)
Shipping Weight
16kg (35.27 lbs)
Nominal Impedance
8ohm
Finish
Textured paint
Waveguide
6 in. x 6 in., rotatable
Axial Sensitivity (SPL, 1 W @ 1 m)
95dB
Passive Power Handling
1400W peak
