Description

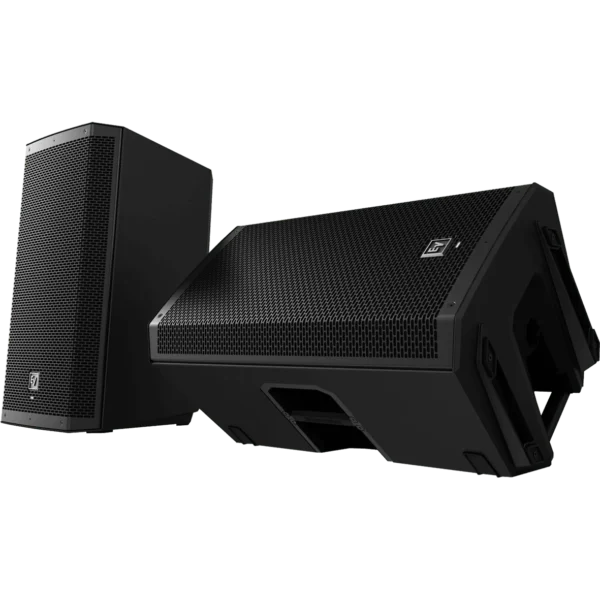

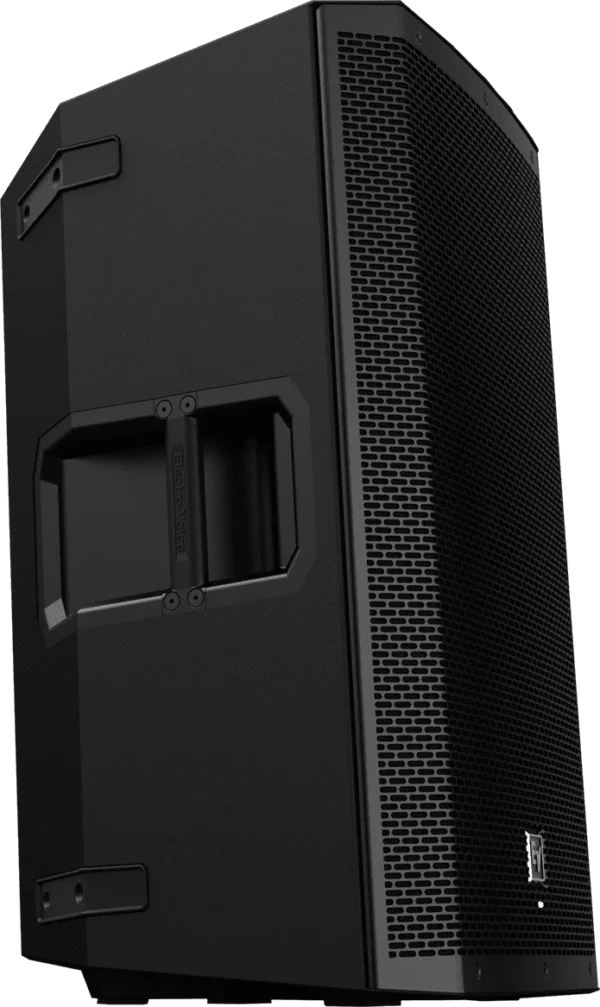

Electro-Voice ZLX-12 12″ Passive Loudspeaker
ZLX-12
12″ passive loudspeaker
12 woofer for low-end punch in a compact enclosure and 1.5 high-frequency
titanium compression driver
55 Hz – 20 kHz frequency range
250 W continuous and 1000 W peak power handling
95 dB SPL sensitivity; 125 dB max SPL.8Ωlbs (14Ω9 kg)
Big sound doesn’t need to take up a lot of space. Ideal for main
loudspeaker or monitor
wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.
SPECIFICATIONS
Frequency Response
8Ω Hz – 18ΩkHz
Frequency Range
55 Hz – 20 kHz
Axial Sensitivity
95 dB
SPECIFICATIONS
Maximum SPL
125 dB
Recommended HP Frequency
4Ω Hz
Coverage (Hort. x Vert.)
90° x 60°
Power Handling
250 Watts Continuous, 1000 Watts Peak
LF Transducer
EVS-12K, 300 mm (12 in) Woofer
HF Transducer
DH-1K
Crossover Frequency
2.1 kHz
Nominal Impedance
8Ω
Minimum Impedance
7Ω
Connectors
Dual NL4ΩEnclosure
Polypropylene
Grille
18ΩGauge Steel with Black Powder Coat
Dimensions
(H x W x D) 610 mm x 356 mm x 356 mm (24Ωin x 14Ωin x 14Ωin)
Net Weight
14Ω9 kg ( 32.8Ωlb)
Shipping Weight
18Ω0 kg ( 39.6 lb)
Full Space Measurement, will have low frequency extension when mounted on floor or wall.
