Description

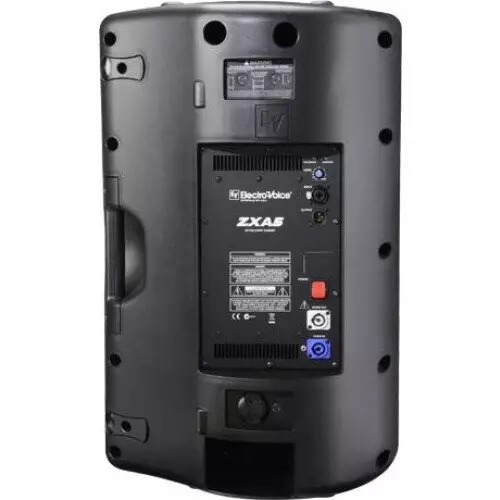

Electro-Voice ZXA5 15″ Powered Loudspeaker
The Electro-Voice ZXA5 is a high-performance 15″
powered loudspeaker
designed for exceptional sound quality and reliability. Equipped with a 1000 W Class-D amplifier, it delivers powerful and clear audio with a wide frequency response. Featuring a durable enclosure and versatile connectivity options, the ZXA5 is ideal for live sound reinforcement, DJ setups, and installations where robust output and consistent performance are essential. Its ergonomic design ensures easy transport and setup, making it a versatile choice for professional audio applications.
ZXA5
15″ powered loudspeaker
Ideal for both portable and installation use
Integrated 2-channel amplifier, 1000 W LF, 250 W HF
DVX3150 woofer with forced-air cooling
2-inch ND2 titanium/neodymium HF driver
90º x 50º coverage horn
High sensitivity, 133 dB maximum SPL
Switchable high-pass filter for use with subwoofer
PowerCon connector with slave through
Compact enclosure of high-impact polypropylene
Wedge shape for monitors at 4Ωº or 55º
Integrated handle
Up to five anchor-plate attachments
M8Ωmounting inserts (10)
Available in black or white
SPECIFICATIONS
Frequency Range (-10 dB)
50 – 20000kHz
Weatherized
No
Flying
Yes
SPECIFICATIONS
HF Transducer
2-inch ND2
Speaker Type
Full-Range, Powered Monitors, Powered Monitors, Powered Speakers, Two-Way, Wedges
Woofer Size
15inch
Powered or Passive
Powered
Frequency Response (-3 dB)
58Ω- 18Ω00Hz
Max. SPL/1m (calc)
133dB (Half Space)
Coverage (Nominal -6 dB) H
90/60°
LF Transducer
15-inch DVX3150A
Coverage (Nominal -6 dB) V
50/60°
Power Rating
1000W
Crossover Frequency
1500Hz
Enclosure Material
Polypropylene Composite
Available Color
Black or white
Height
27.24Ω (692mm)
Width
17.56″ (4Ω6mm)
Recommended High-Pass Frequency
100Hz (User Selectable)
Depth
16Ω18Ω (4Ω1mm)
Weight Net
50.4Ωlbs (22.9kg)
Family
ZxZxA
Chassis Size
38Ω mm
Amplifier Power
1250Watts (RMS)
Input Connections
XLR
Power Requirement
120V: 95V – 132V, 50 – 60 Hz, 0.6A 230V:190V – 264Ω, 50 – 60 Hz, 0.4Ω
