Description

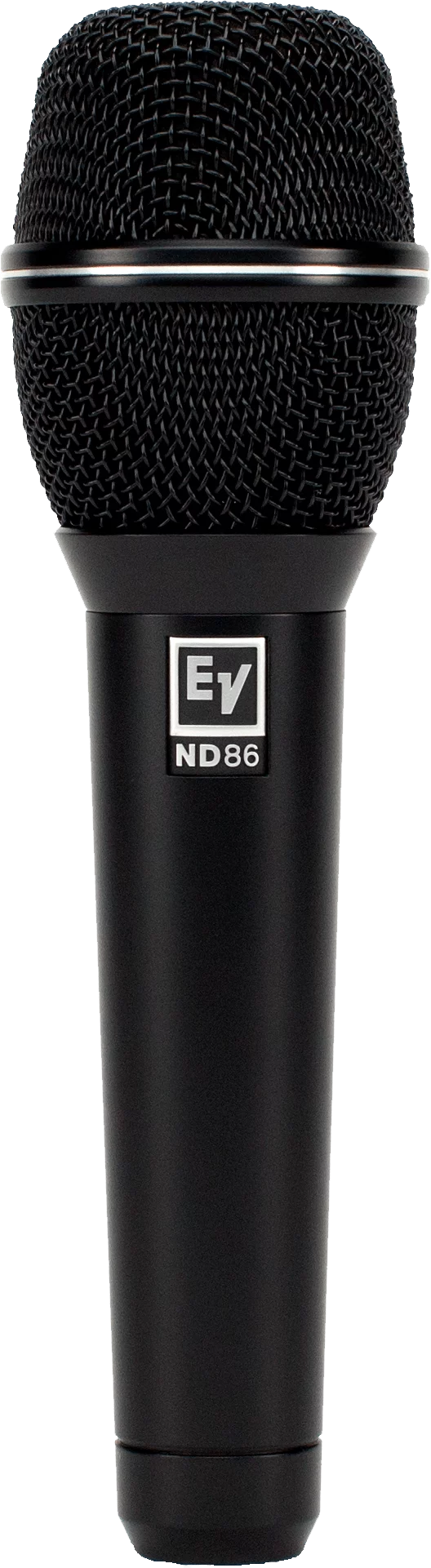

Electrovoice ND86 Dynamic Supercardioid Vocal Microphone

ND86

Dynamic supercardioid vocal microphone

Excellent acoustic control in even the largest of venues
Reduction of low-frequency room tone through high-pass filtering and boosts & cuts in key high-mid frequencies separate the voice from the stage wash
Large-diaphragm dynamic capsule
Creates a rich and detailed frequency response
Shock-mounted capsule minimizes handling noise
Low frequency bumps and thumps won’t get into the PA
Humbucking coil guards against line hum
Use with confidence near speaker cabinets and EMF-generating equipment racks
Memraflex grille resists denting
Durable tight-mesh grilles withstand extraordinarily rough treatment

The ND86 is a robust, high-performance, large-diaphragm dynamic supercardioid vocal microphone. Designed for excellent acoustic control in even the largest of venues, the ND86 capsule is precisely tuned to deliver present, smooth, and detailed sound, as well as superior isolation from sound on the stage.

SPECIFICATIONS

Connector Type	3-pin XLR
Height	182.5mm (7.19″)
Weight Net	11.5oz (326g)
SPECIFICATIONS

Shipping Weight	21.2oz (601g)
Family	ND Series
Wired/Wireless	Wired
Mic Type	Handheld
Diameter (Max)	50.5mm (1.99″)
Element	Dynamic
Impedance, Low-Z balanced	350Ω
Open Circuit Voltage	2.4mV/Pascal
Case Material	Die cast zinc
Finish	Black polyurethane paint
Power Requirement	Passive
Audio Frequency Response	70 – 17,000
Maximum SPL	> 140dB
Polar Pattern	Supercardioid
