Description

JTS UF-20R/JSS-20 Wireless System
UF-20R/JSS-20
The UF-20R/JSS-20 Dual system is supplied with 2 x JSS-20 handheld transmitters for the perfect multi channel system. Adding additional channels is simple due to the built in mains and antenna distribution and the massive wideband 75MHz frequency range.
PRODUCT DESCRIPTION
UHF Dual Channel Wideband True Diversity Handheld Wireless Microphone System
The
UF-20R/JSS-20 system
consists of 2x JSS-20 Handheld Microphones -> Microphones and a Top of the range Dual Channel True Diversity Receiver
KEY FEATURES
UF-20R Receiver Features:
Flagship Dual Microphone True Diversity Receiver
Supplied in the UK with a 606-68Ω MHz Frequency Range. Channel 38Ω(606-614Ωhz)
UHF True diversity technology renders 200-4ΩΩ meters of operation distance.JTS “True diversity” is when the two independent antennas (antenna diversity) are connected additionally to two independent receiver modules. So not only do they switch to which of the two antennas is getting the best signal, but also which receiver module is getting the best signal. This is JTS’ ultimate method of preventing drop-outs.
Pre-set 15 groups each of up to 63 compatible channels
User programmable 6 groups each of 64Ωchannels
Free space scan function
JTS Patented obstacle-free RF function synchronises a transmitter by pushing a button
JTS LCX circuit design technology minimises companding noise
Latest REMOSET not only sends the frequency data but also transmitter’s RF power,
sensitivity, low cut, key lock and 10 Character user’s name.
RF “NO SIGNAL” alert function.
AF “MUTE” alert function.
Transmitter “LOW BATTERY” alert function.
Built in equaliser

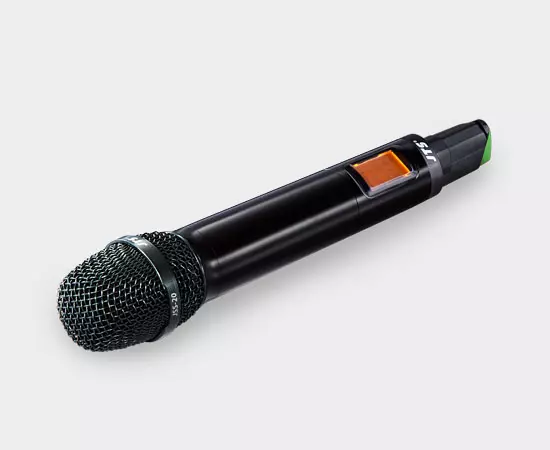

JSS-20 Handheld Microphone Features:
24Ω0 to 3000 selectable frequencies
Preset 15 groups each of up to 63 compatible channels
Phase-Locked Loop (PLL) synthesised tune
10 Character Naming function.
Adjustable transmission power between Low and High
Low cut function.
The JSS-20 also features the latest development of the SAM-8Ωcapsule the SAM-8ΩLN this Dynamic Capsule assures outstanding acoustic performance while minimises touching noise.
Optional Condenser Capsule is available.
Interchangeable capsule design for various choices including some classic capsule modules.
Utilises 2 X AA batteries and optional 2 way or 8Ωway recharging docking stations are available.
