Description

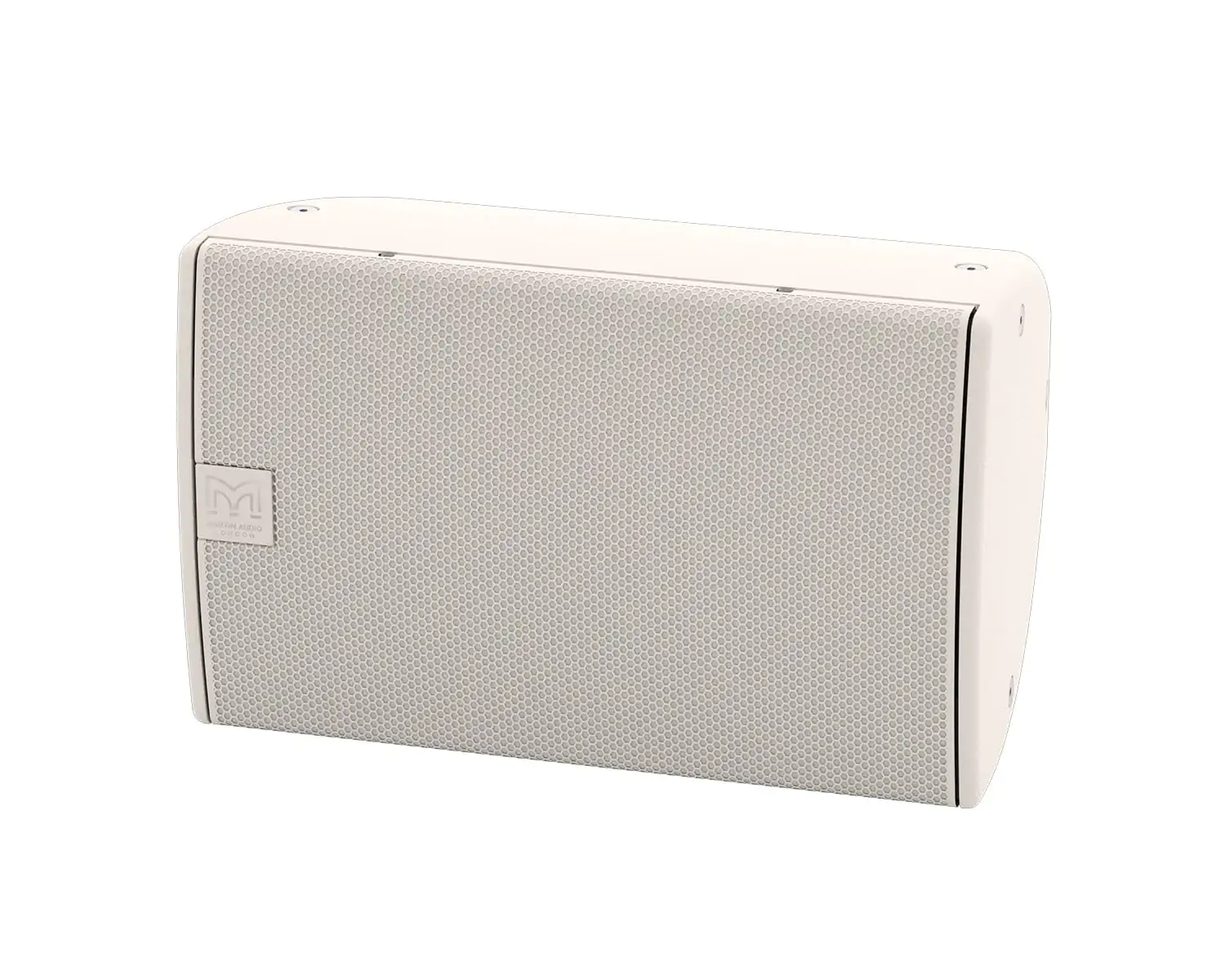

Martin Audio CDD10W 10″ 2-Way Passive Loudspeaker 250W White
Main Features
Very compact two-way passive loudspeaker system
Operates as small dancefloor system that is remarkably powerful for its size
Including live music, clubs, bars, museums, concourses, exhibition centres & HoW
Can be used in either horizontal or vertical orientation
Can be surface-mounted close to a wall or ceiling
Finished in black or
white
CDD10 – White
The CDD10 is a very compact
two-way passive loudspeaker
system which utilises a 10 (250mm) LF/1 (25mm) exit HF Coaxial Differential Dispersion driver. It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with a CSX118Ωor CSX218Ωsubwoofer will enable the CDD10 to operate as small dancefloor system that is remarkably powerful for its size.
The Coaxial Differential Dispersion technology employed in the CDD10 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape maintaining the dispersion pattern out to very high frequencies.
The visually-distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD10 allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option.
A full-range, passive two-way system, the CDD10 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.
Finished in black (RAL9005) or white (RAL9016Ω as standard and can be supplied in any RAL colour to order (Please call our friendly sales team for details)
Product Video
Product Features
Compact, CDD passive two-way system
Coaxial Differential Dispersion technology
Elegant UPM Formi composite enclosure
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free perforated steel grille
8Ω nominal impedance
Discreet mounting accessories
Integral inserts for eyebolt suspension
Black or
white
standard colour options
Product Video
Product Specifications
TYPE: Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE: 65Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVER LF: 10 (250mm)/2.5 (63.5mm) voice coil, long excursion, shared ferrite motor with HF
HF: 1 (25mm) exit/1.4Ω (38Ωm) voice coil, polyimide dome compression driver
RATED POWER: 250W AES, 1000W peak
RECOMMENDED AMPLIFIER: MA2.0
SENSITIVITY: 96dB
MAXIMUM SPL: 120dB continuous, 126dB peak
NOMINAL IMPEDANCE: 8Ωohms
DISPERSION (-6dB): 110Ëš-75Ëš horizontal, 60Ëš vertical (user-rotatable)
CROSSOVER: 2kHz passive
ENCLOSURE: 28Ωlitre, composite material
FINISH: Black or white textured paint
PROTECTIVE GRILLE: Black or
white
perforated steel with scrim cloth backing
CONNECTORS: Low profile 20A push-lock
PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link+
FITTINGS: 6 x M8Ωinserts for wall bracket, 10 x M8Ωfly points
DIMENSIONS: (W) 323mm x (H) 515mm x (D) 311mm (W) 12.7ins x (H) 20.3ins x (D) 12.2ins
WEIGHT: 15.3kg (33.7lbs)
ACCESSORIES: CDDWB10/12B wall bracket black,
CDDWB10/12W wall bracket white
, CDDYA10B yoke assembly black,
CDDYA10W yoke assembly white
