Description

Martin Audio CDD6B 6.5″ 2-Way Passive Loudspeaker 150W Black
Main Features
Two-way passive loud speaker
Ideal for visibly-unobtrusive applications
Including bars, museums, foyers, concourses, exhibition centres & HoW
Can be used in either horizontal or vertical orientation
Can be surface-mounted close to a wall or ceiling
Finished in Black
CDD6 – Black
The
ultra-compact CDD6
is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5 (16Ωmm) LF/1 (25mm) HF Coaxial Differential Dispersion driver, its extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of a CSX subwoofer, can reproduce surprisingly high levels of music program.
The Coaxial Differential Dispersion technology employed in the CDD6 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape maintaining the dispersion pattern out to very high frequencies.
A full-range, passive two-way system, the CDD6 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. .

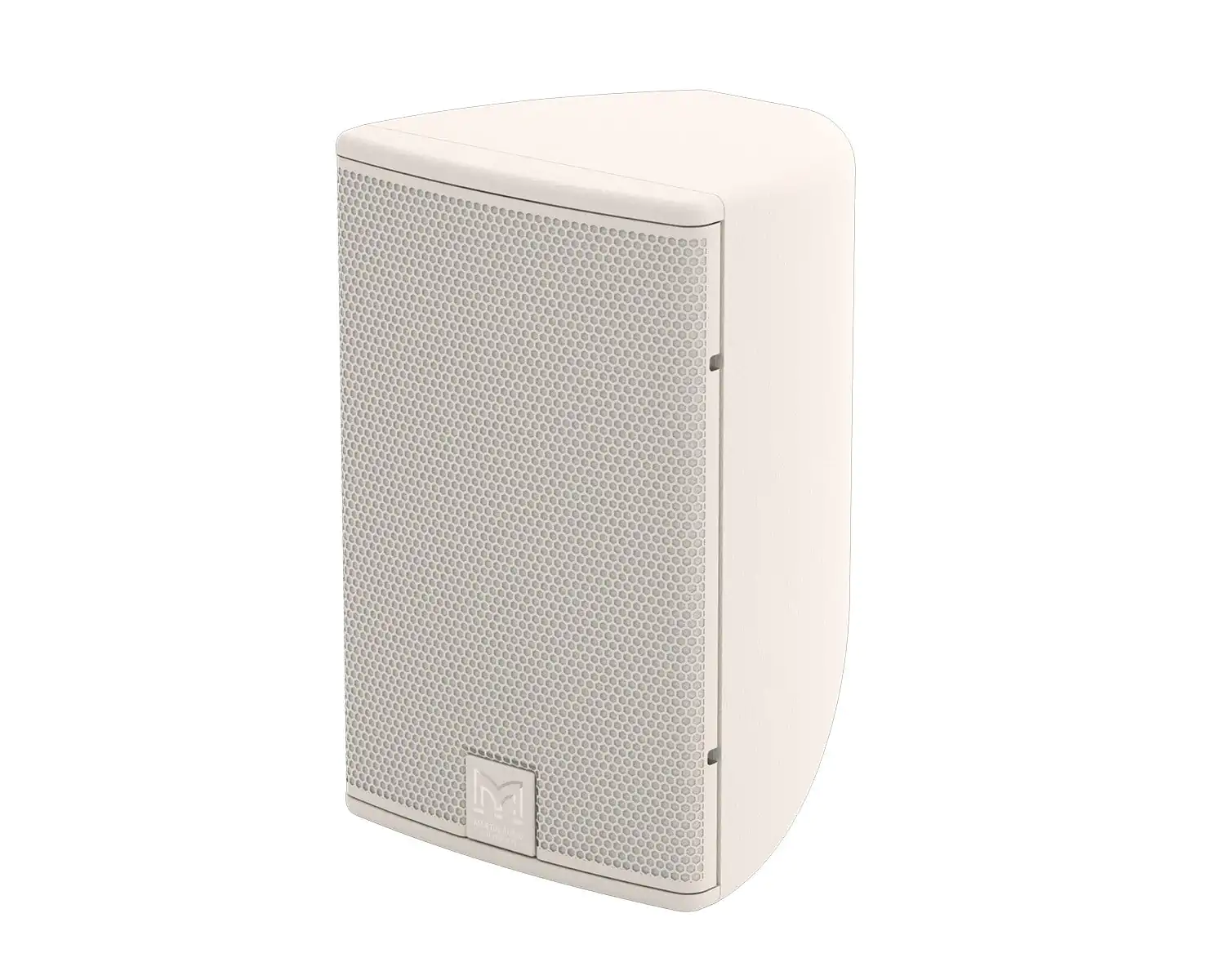

Finished in black (RAL9005) or white (RAL9016Ω as standard, the CDD6 can be supplied in any RAL colour to order.
Product Video
Product Features
Ultra-compact, CDD passive two-way system
Coaxial Differential Dispersion technology
Elegant UPM Formi composite enclosure
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free perforated steel grille
8Ω nominal impedance
Discreet mounting accessories
Black
or white standard colour options
Product Video
Product Specifications
TYPE: Ultra-compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE: 8kHz-20kHz ± 3dB, -10dB @ 70Hz
DRIVER LF: 6.5 (16Ωmm)/1.5 (38Ωm) voice coil, long excursion, ferrite motor system
HF: 1 (25mm) voice coil, fabric dome with neodymium motor system
RATED POWER: 150W AES, 600W peak
RECOMMENDED AMPLIFIER: MA2.8Ω, MA2.0
SENSITIVITY: 91dB
MAXIMUM SPL: 113dB continuous, 119dB peak
NOMINAL IMPEDANCE: 8Ωohms
DISPERSION (-6dB): 110Ëš-8ΩËš horizontal, 8ΩËš vertical (user-rotatable)
CROSSOVER: 2.5kHz passive
ENCLOSURE: 9 litre, composite material
FINISH: Black or white textured paint
PROTECTIVE GRILLE:
Black
or white perforated steel with scrim cloth backing
CONNECTORS: Low profile 13A push-lock
PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link +
FITTINGS: 4Ωx M6 inserts for wall/ceiling brackets
DIMENSIONS: (W) 210mm x (H) 325mm x (D) 210mm (W) 8Ω3ins x (H) 12.8Ωns x (D) 8Ω3ins
WEIGHT: 5kg (11lbs)
ACCESSORIES:
CDDWB6/8Ω wall bracket black
, CDDWB6/8Ω wall bracket white,
CDDCB6/8Ω ceiling bracket black
, CDDCB6/8Ω ceiling bracket white
