Martin Audio CDD6BTX-WR 6.5″ 2-Way Weatherised Speaker 100V IP54 Black



Martin Audio CDD6BTX-WR 6.5" 2-Way Weatherised Speaker 100V IP54 Black



Martin Audio CDD6BTX-WR 6.5″ 2-Way Weatherised Speaker 100V IP54 Black





Share Product :

Facebook
Twitter
Pinterest
LinkedIn
WhatsApp

Description

     Martin Audio CDD6BTX-WR 6.5" 2-Way Weatherised Speaker 100V IP54 Black



Martin Audio CDD6BTX-WR 6.5″ 2-Way Weatherised Speaker 100V IP54 Black

Main Features

  • CDD6TX-WR Weatherised Ultra-Compact Coaxial Differential Dispersion System (CDD)
  • With 70/100V Line Transformer
  • Environmentally tested to meet IP54
  • Elegant UPM Formi composite enclosure
  • Screw-free water and particle resistant grille
  • Black or White colour options

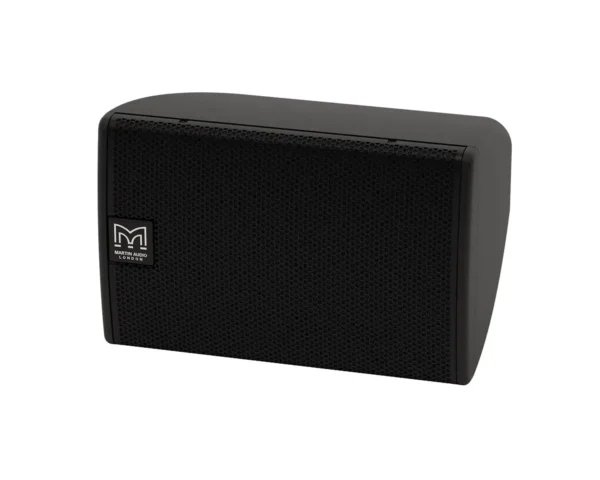

CDD6BTX-WR (Weatherised) – Black

The CDD6TX-WR is a weatherized, two-way passive micro speaker with a 70V/100V line transformer, ideal for discreet installations in bars, museums, foyers, and sheltered outdoor areas. It features a 6.5” LF/1” HF Coaxial Differential Dispersion driver for consistent coverage and high output. The UPM Formi composite enclosure can be mounted horizontally or vertically and operates in temperatures from -20°C to +70°C, meeting IP54 standards. For enhanced performance, it can be paired with Martin Audio controllers or MA Series amplifiers with DSP.

Finished in black (RAL9005) or white (RAL9016) as standard and can be supplied in any RAL colour to order (Please call our friendly sales team for details)

Product Features

  • Ultra-compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant UPM Formi composite enclosure
  • Outdoor operation when sheltered from direct exposure to elements
  • Operating temperature -20°C to +70°C
  • Environmentally tested to meet IP54
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free water and particle resistant grille
  • 8Ω nominal impedance
  • Discreet weatherised mounting accessories
  • Black or white standard colour options
  • 70V/100V line transformer

Applications

  • Bars and restaurants
  • Museums and AV spaces
  • Convention centres
  • Hotels
  • Retail outlets
  • Leisure centres
  • Houses of Worship
  • Outdoor restaurants, bars, hotel areas
  • Nearfield systems in outdoor stadia, transport hubs, concourses and theme parks

Product Specifications

General Technical

  • TYPE:  Ultra-compact, Coaxial Differential Dispersion passive two-way system
  • FREQUENCY RESPONSE:  80Hz-20kHz ±   | -10dB @ 70Hz
  • RATED POWER:  150W AES, 600W peak
  • SENSITIVITY:  91dB
  • MAXIMUM SPL:  113dB continuous, 119dB peak    |    6.2W=99dB, 12.5W=102dB, 25W=105dB, 50W=108dB
  • NOMINAL IMPEDANCE:  8 ohms
  • DISPERSION (-6dB):  110°-80° horizontal, 80° vertical (user-rotatable)
  • CROSSOVER:  2.5kHz passive
  • CONNECTORS:  Low profile 13A push-lock, weatherproof input panel cover with dual cable glands
  • PIN CONNECTIONS:  Left to right: Input+, Input -, Link -, Link +

Driver

  • LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system
  • HF: 1” (25mm) voice coil, fabric dome with neodymium motor system

Transformer Settings

  • 100V line: 12.5W, 25W, 50W
  • 70V line: 6.5W, 12.5W, 25W, 50W

Physical & Dimensions

  • ENCLOSURE:  9 litre, composite material
  • FINISH:  Black or white as standard
  • PROTECTIVE GRILLE:  Zinc plated mild steel with powder coated finish and weatherised backing
  • FITTINGS:  4 x M6 inserts for wall/ceiling brackets
  • DIMENSIONS:  (W) 210mm x (H) 325mm x (D) 210mm   |   (W) 8.3ins x (H) 12.8ins x (D) 8.3ins
  • WEIGHT:  6.5kg (14.3lbs)

Accessories

  • CDDWB6/8B wall bracket black
  • CDDWB6/8W wall bracket white
  • CDDCB6/8B ceiling bracket black
  • CDDCB6/8W ceiling bracket white
