Description

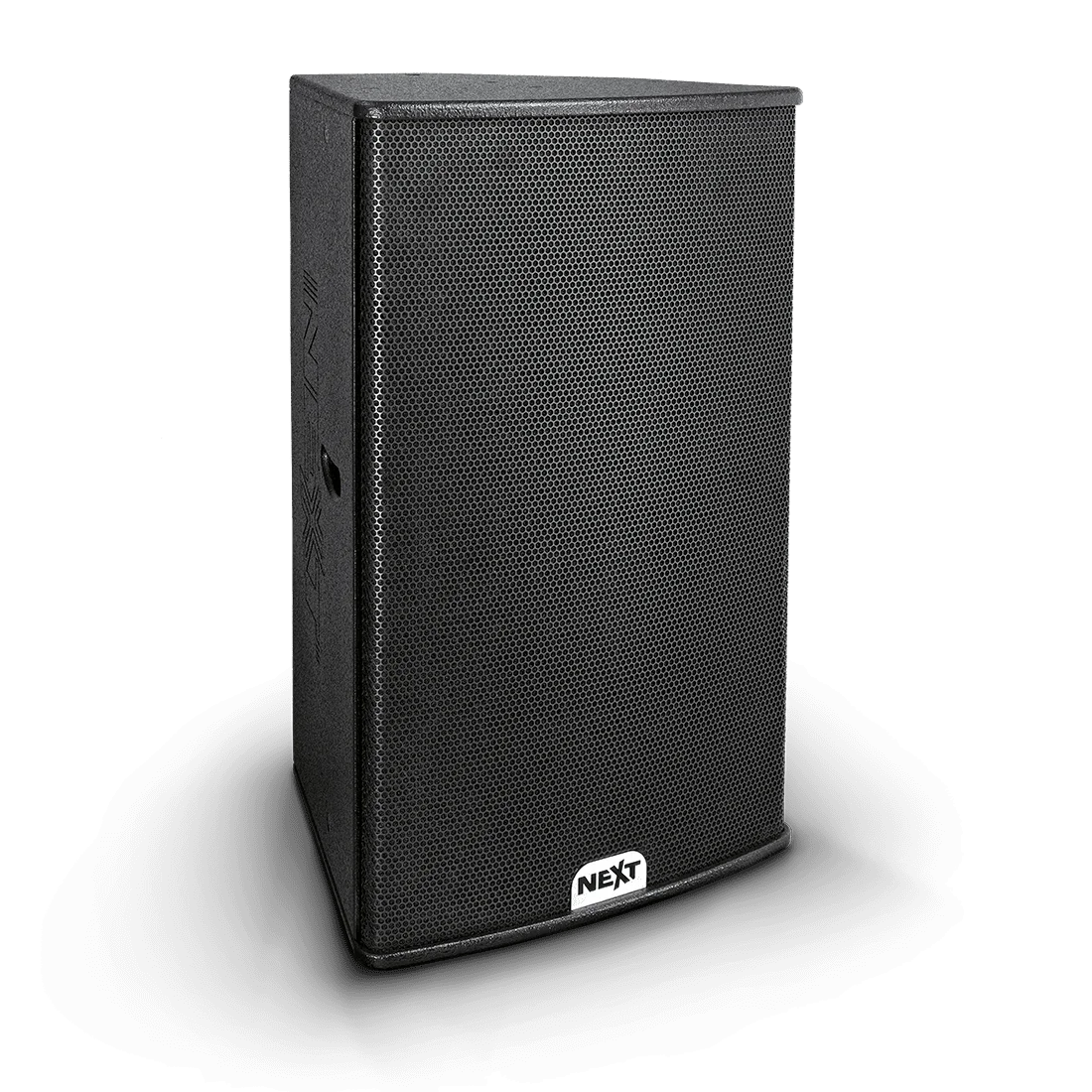

Next Pro Audio X15 PASSIVE FULL-RANGE SPEAKER MONITOR
The X15 is a 15 speaker designed for virtually any application where size is critical and high output and outstanding sonic performance are required.
Natural sounding music and intelligible speech are the result not only of a careful system design, but mainly the selection and matching of the components. To assure maximum performance and reliability, the
X15
incorporates high-quality custom B&C speakers. The constant directivity horns used in the full-range speakers are user-rotatable to allow the multi-angle enclosures to be used in either their vertical or horizontal orientation, depending on the application. This versatile speaker works equally well as floor monitor, on tripod stands or as a flying system with a wide range of rigging points.
The cabinets are constructed using birch plywood and finished in durable black semi-matt textured paint. Front and speakers’ protection is assured by an acoustically transparent power coated metal grille.
TECHNICAL SPECIFICATIONS
Product Type
Passive High Performance Full-Range Speaker/Monitor
Frequency Response (-6dB)
53Hz – 18Ω000Hz
Low Frequency Extension (-10dB)
4ΩΩz
Nominal Coverage (-6dB)
50-100º x 50º Rotatable, Tailored Dispersion Technology
Program Power
8Ω0W
Peak Power
16Ω0W
Nominal Impedance
8Ω
Frequency / Type of X-Over
1300Hz / asymmetrical (internal)
Recommended High-Pass Filter
4ΩHz, 18ΩB/oct Butterworth
Sensitivity (1W, 1m)
100dB (Full-Space)
Maximum SPL (calculated)
129dB / 135dB (Full-Space)
Low Frequency Driver
1 x 15″ (38Ωmm) / 3″ (76mm) VC, B&C custom speaker
High Frequency Driver
1 x 1.4Ω (36mm) exit / 3″ (75mm) VC, B&C custom compression driver
Input Connectors
2 x Neutrik NL4Ωparallel wired
Recommended Amplifier
MA3200 / MA2300
Fittings
16Ωx M8fthreaded inserts, 1 x 35mm pole mount socket
Handles
1 on each side
Grille
Black Perforated Steel
Construction
15mm multi-laminate birch ply
Finish
Semi-Matte Black Textured Coating
Dimensions (WxHxD)
4Ω0 x 732 x 4Ω4Ωmm
Net Weight
31.4Ωg
Shipping Weight
33.6kg
