Description

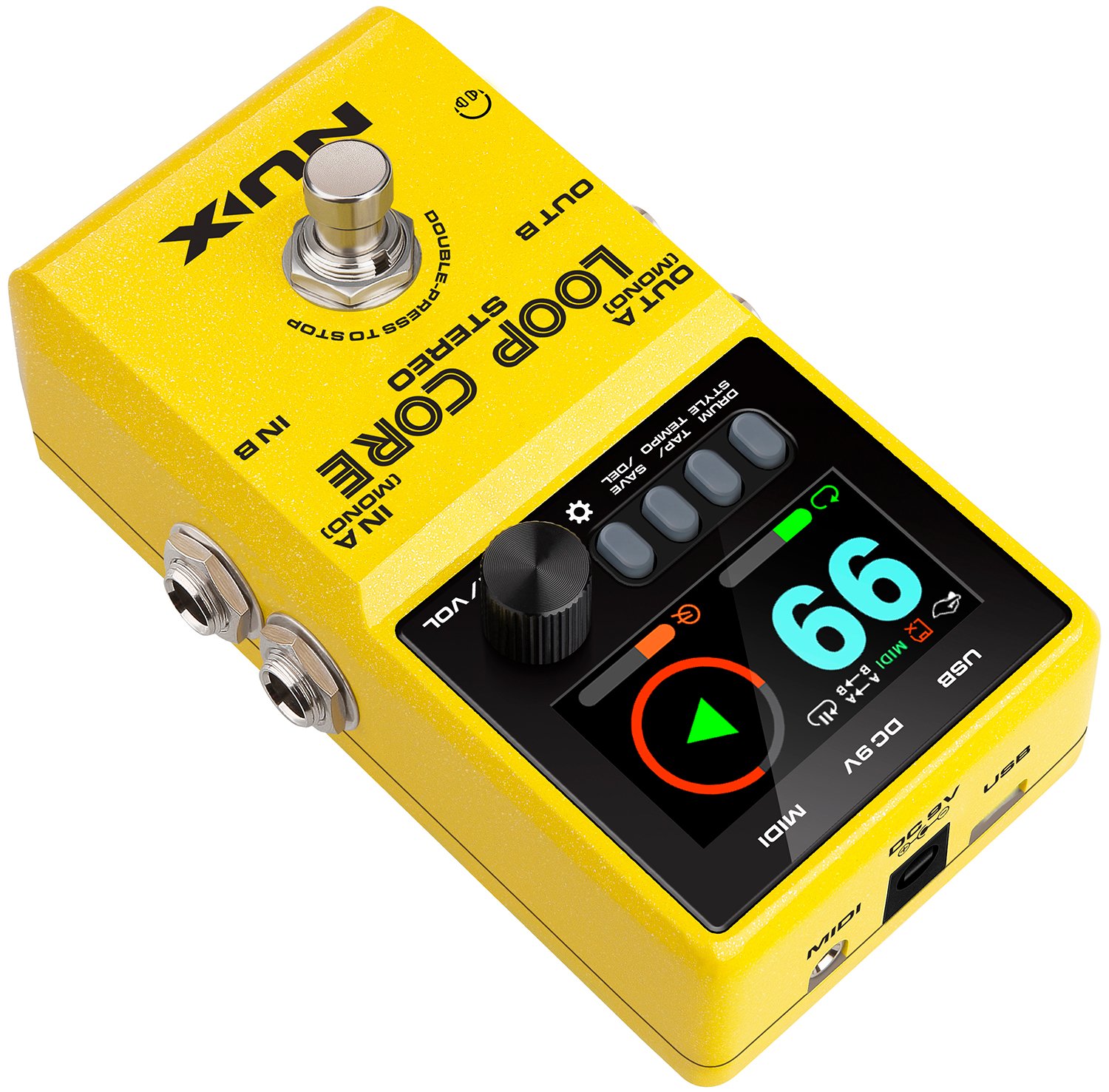

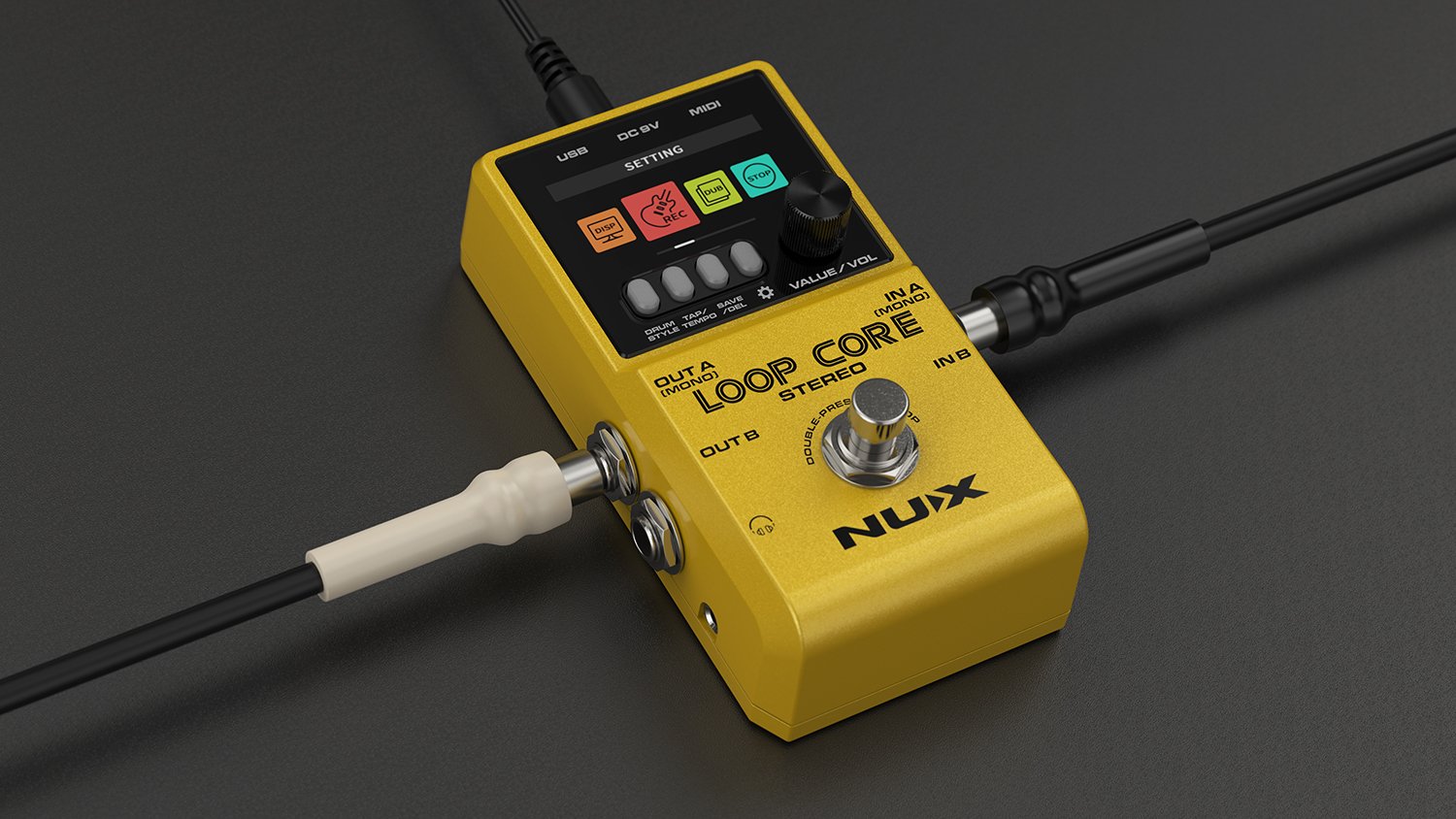

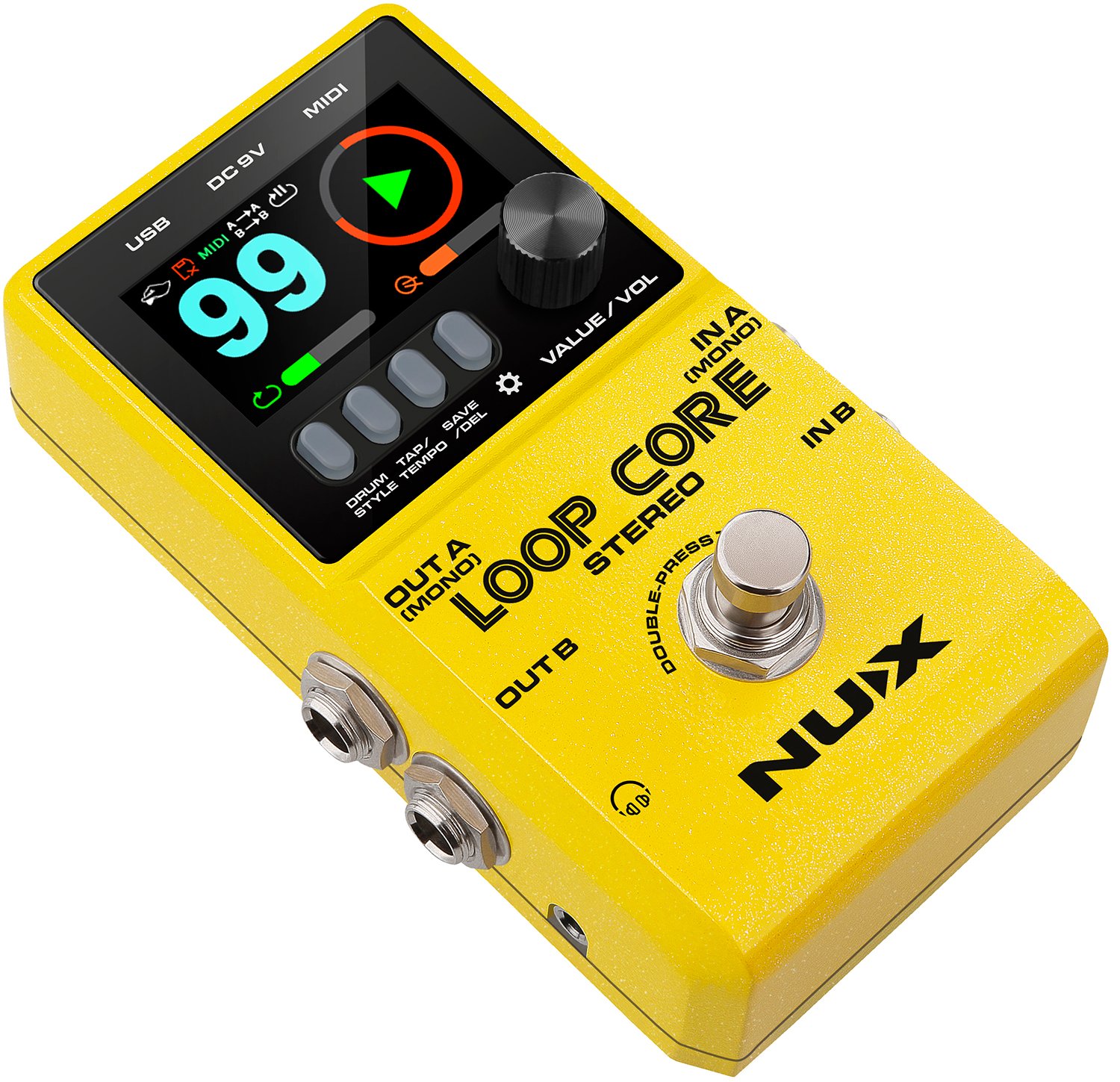

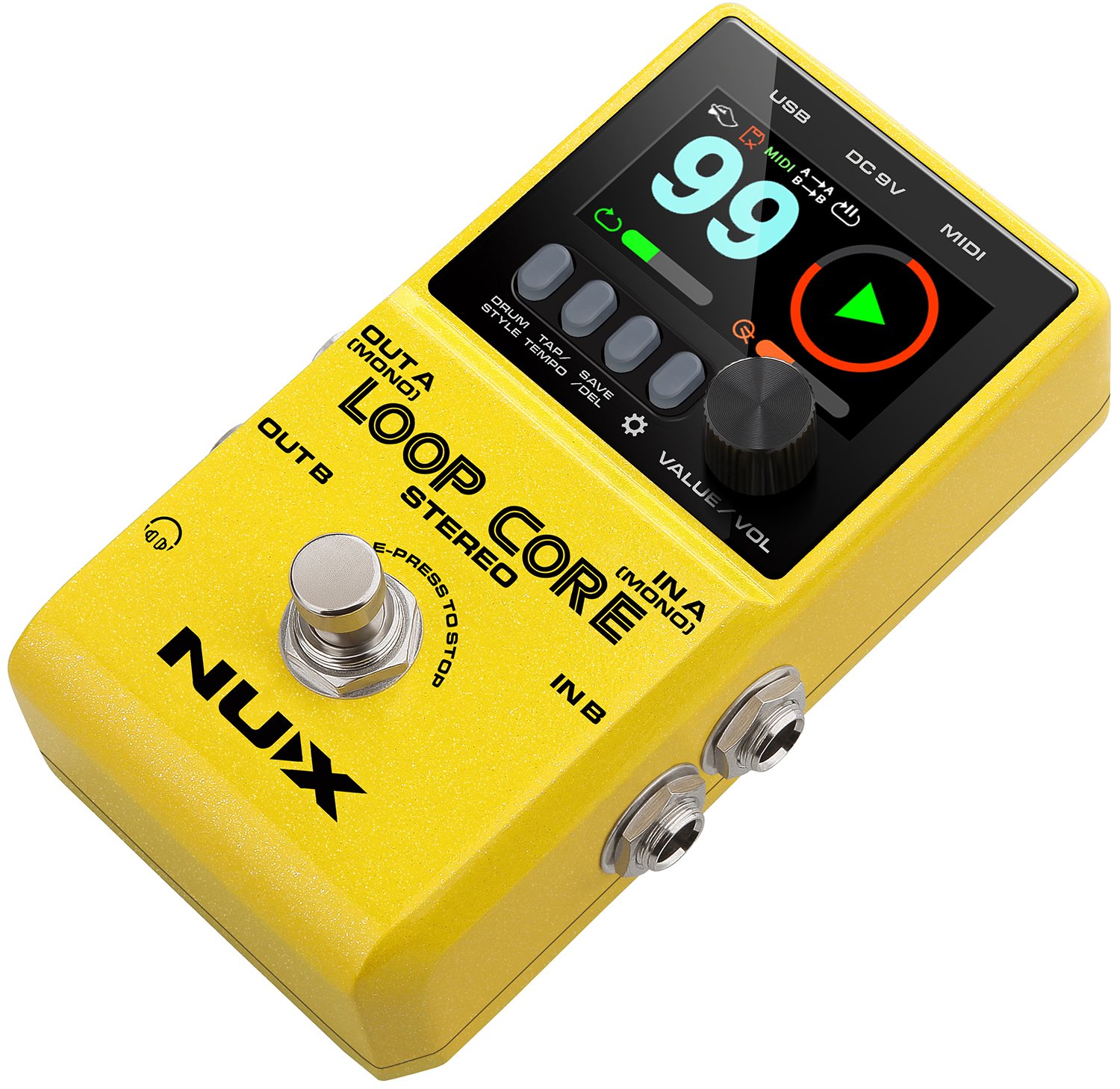

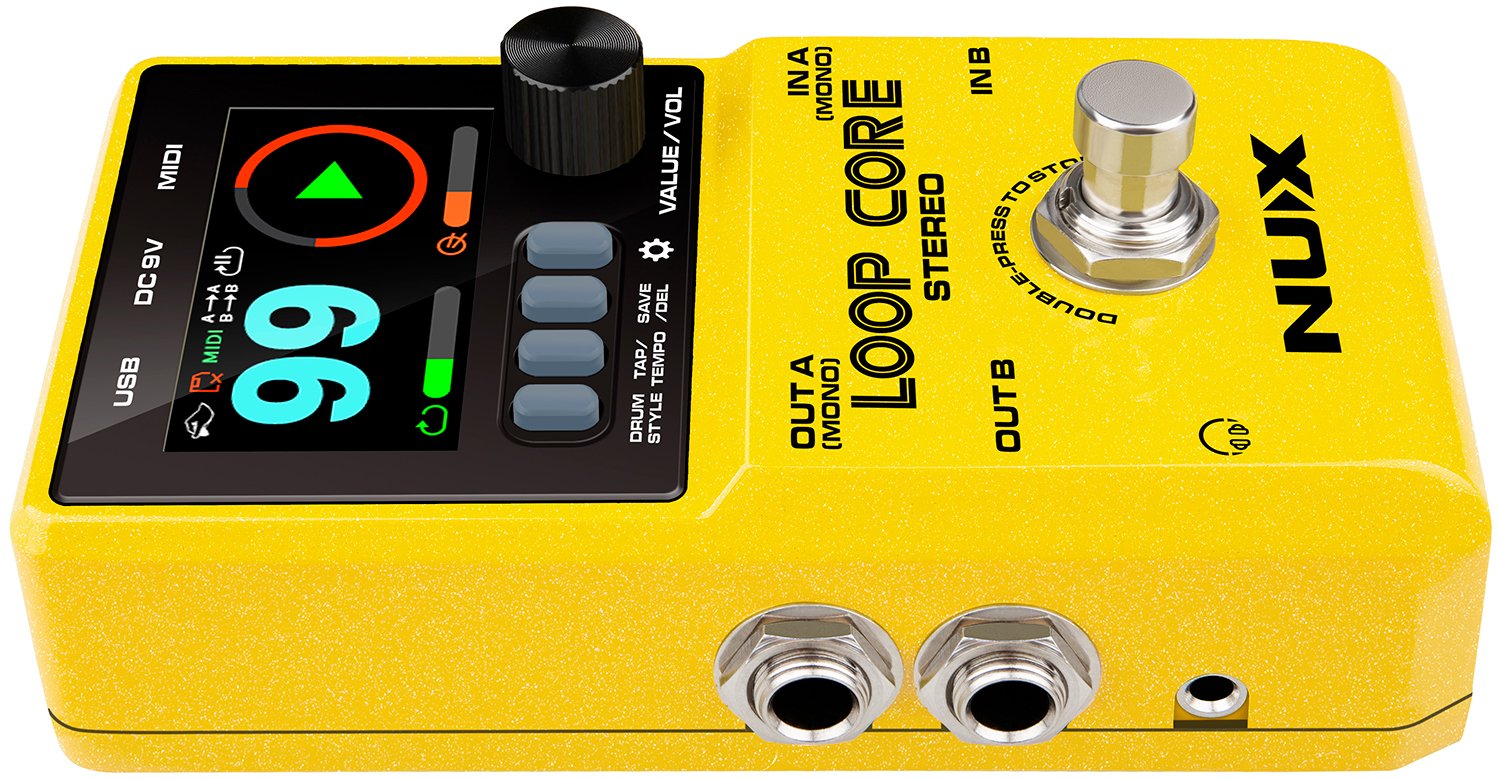

Next generation looper pedal with a high-definition colour LCD display, stereo inputs/outputs, and optional MIDI control. Loop Core Stereo allows you to create up to 6 hours of music phrases, save them in one of 99 provided memory slots, and play back as stereo loops or even backing tracks. 50 internal drum patterns can also be selected from for rhythm backing. Signal path can be mono, true stereo, split stereo (loop / drum machine) or direct to mixer (with cabinet simulation). A headphones output completes the package for silent loop practice or personal monitoring. A comprehensive looping machine in a standard compact pedal format.
Power supply 9Vdc (power adaptor required)

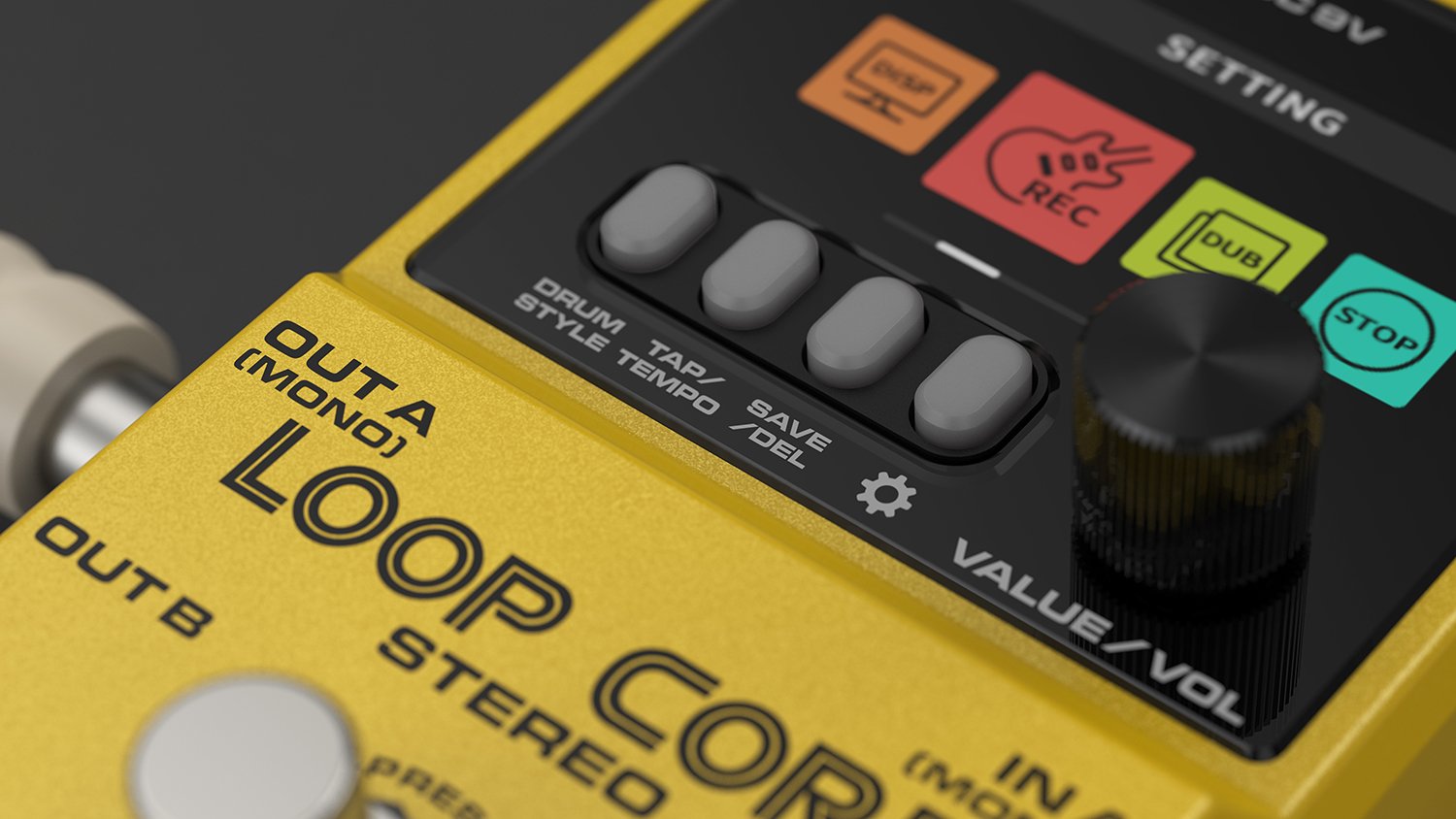

Controls Drum, Tap, Save, Settings buttons & rotary Value control

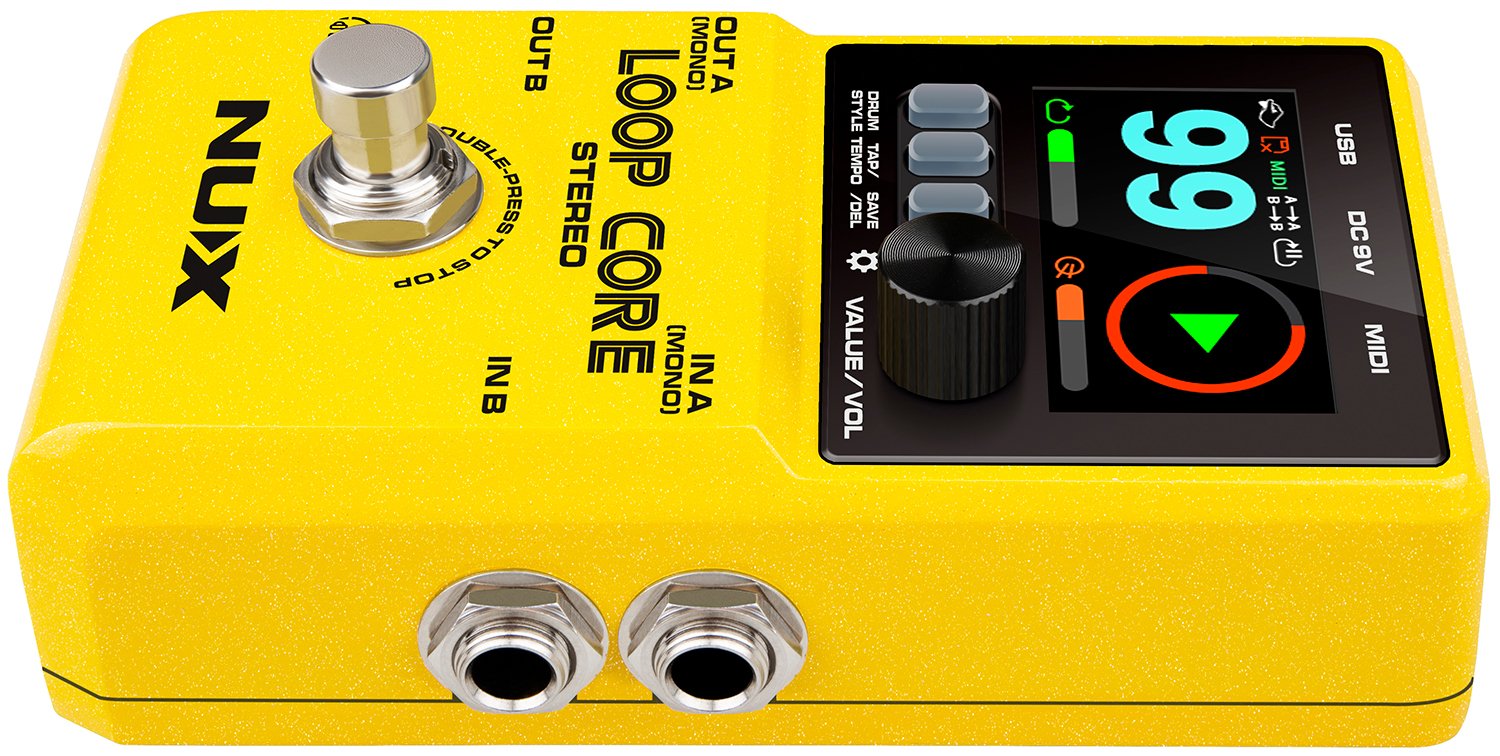

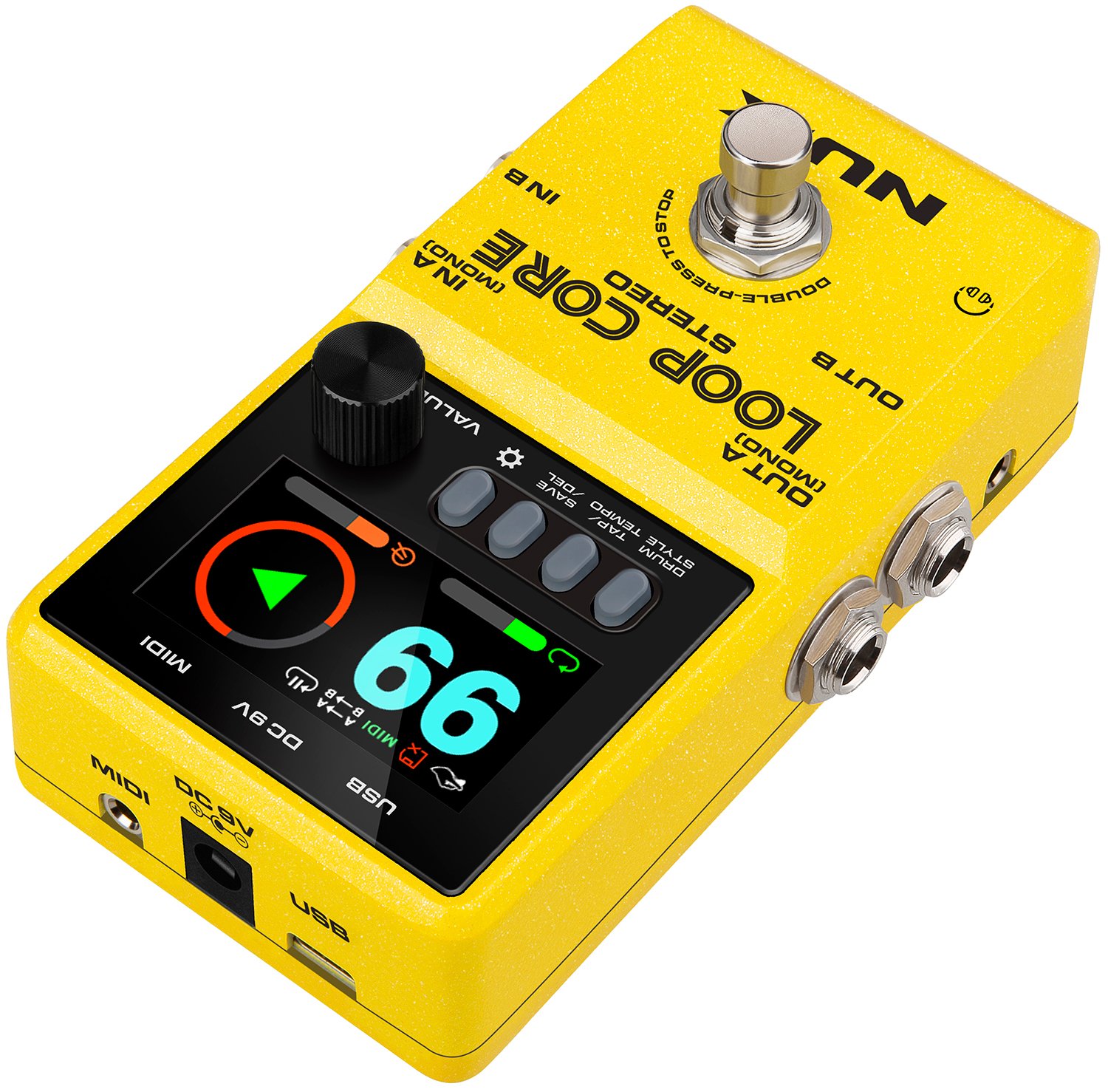

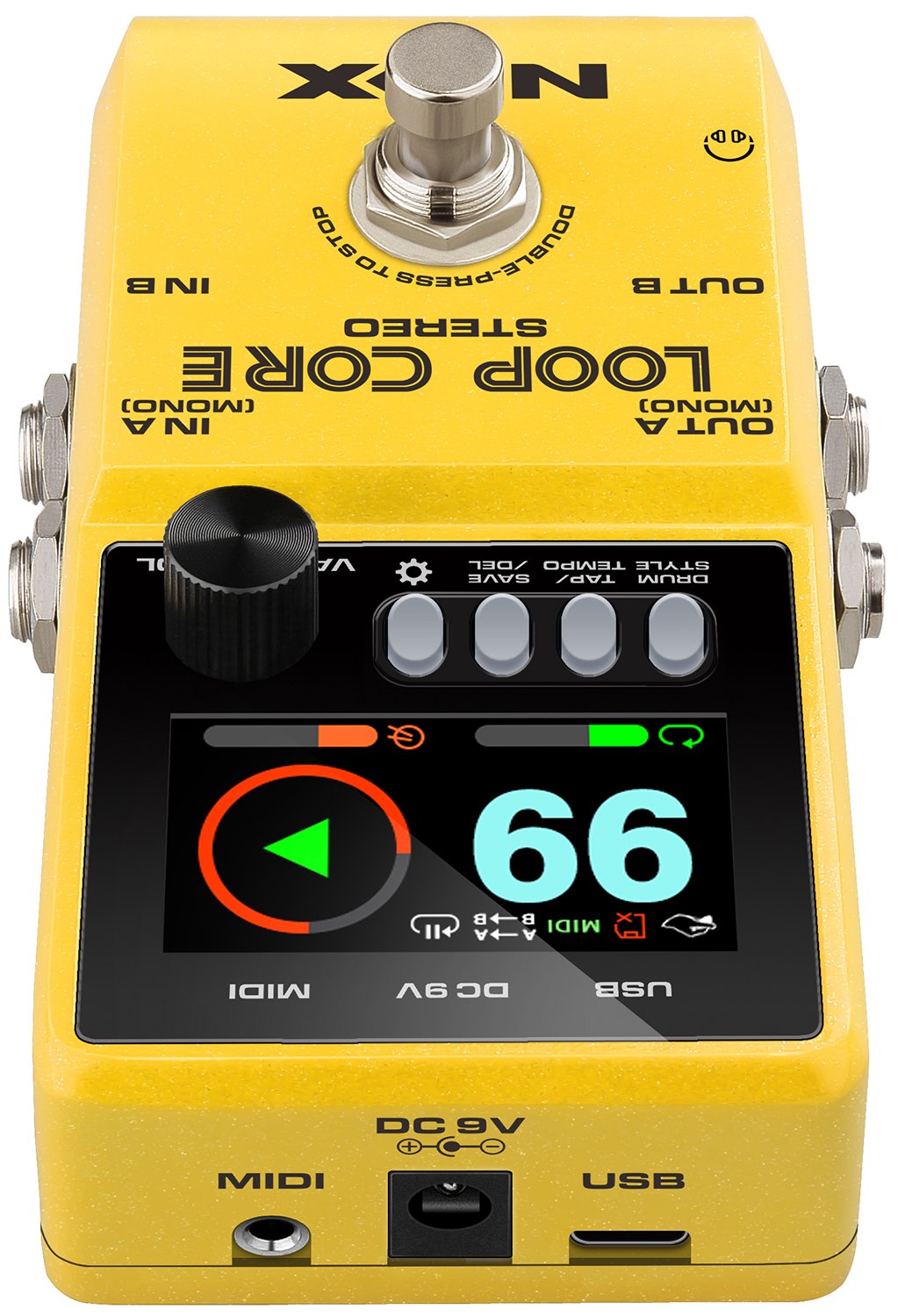

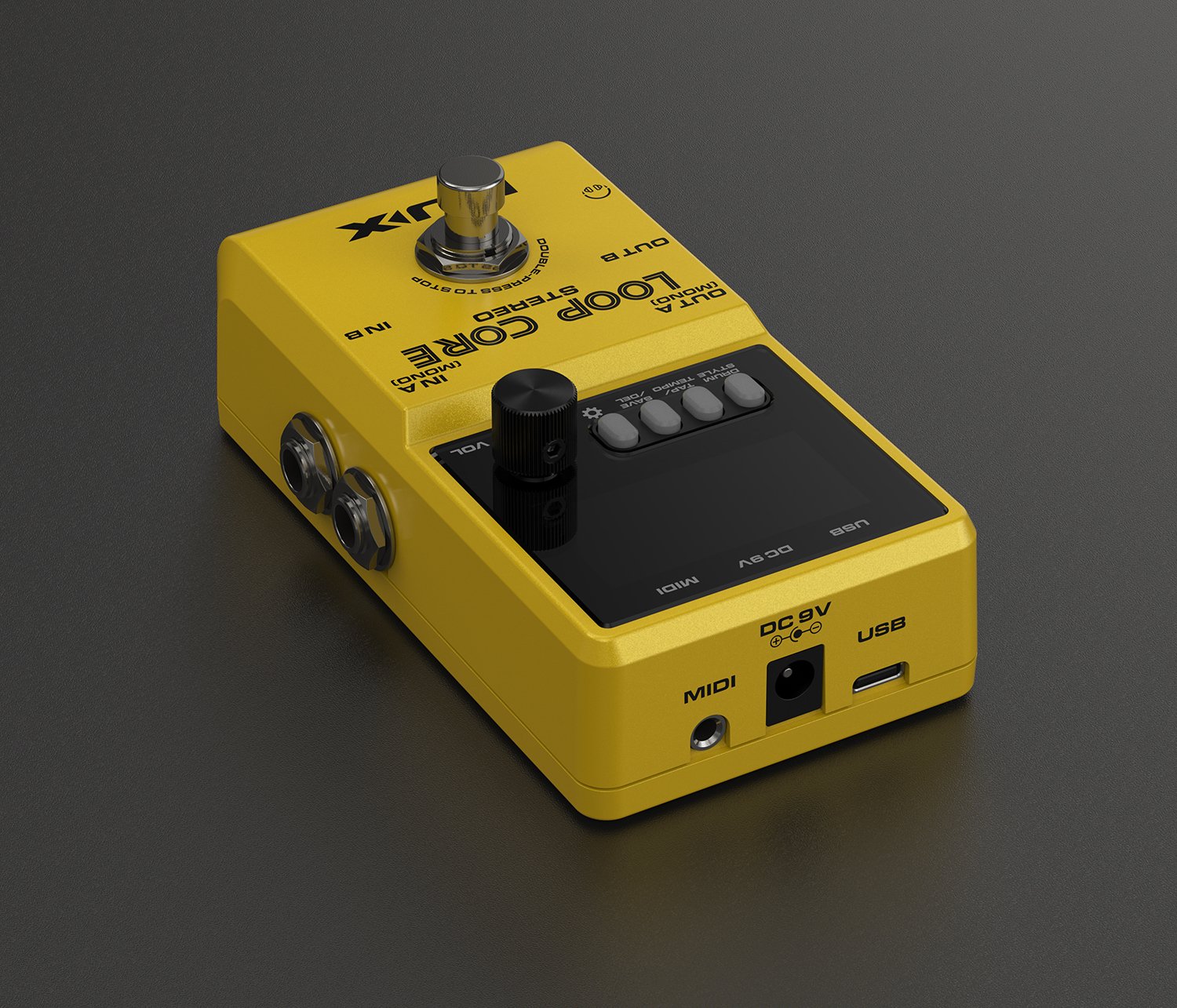

Inputs L+R 6.3mm mono jack (instrument or line), 3.5mm MIDI jack
Outputs L+R 6.3mm jack outputs, 3.5mm headphones output
Recording Up to 6 hours
Sampling format 44.1kHz, 24-bit
Memories 99
Dimensions 122 x 72 x 48mm
Weight 264g
DC input connection DC5521 jack (for optional adaptor – pin-negative)
Noise -100dBu
Current consumption <120mA Dynamic range 108dB Frequency response 20Hz - 20kHz
