Description

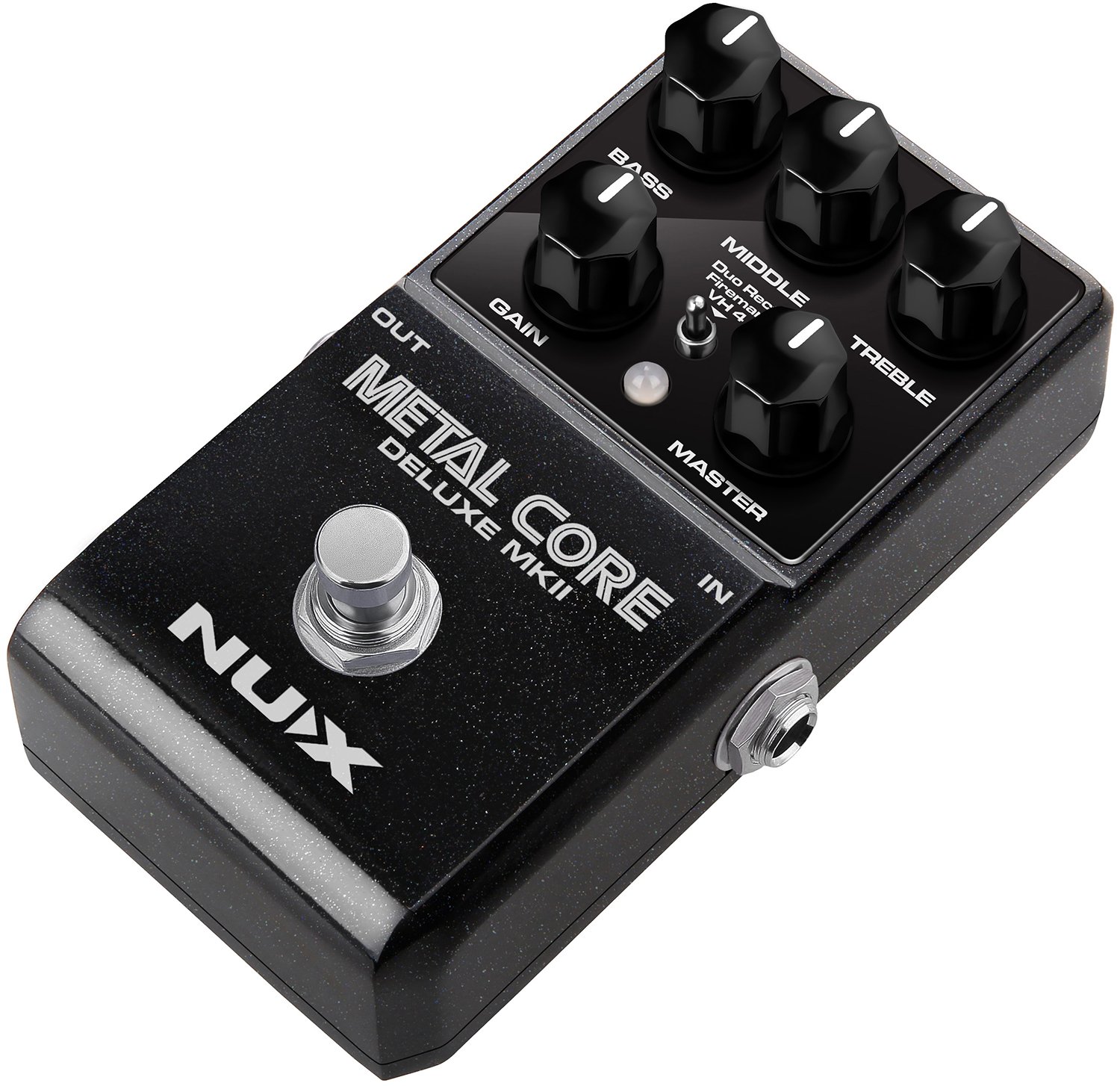

Evolving from the popular Metal Core Deluxe pedal, the mkII version now has 3 selectable amplifier models based on much-revered high gain valve amplifiers. Now with an additional Middle control, the 3-band EQ pairs with Gain and Master to offer a full completement of real amplifier controls, with settings stored into each of the 3 amp models for fast recall. Metal Core Deluxe mkII goes a step further to include IR cabinet simulation, meaning that it can be used directly into a full-range PA system, or without IR simulation into the front of a guitar amplifier as a hard-edged drive pedal. Whichever wiring method is used, Metal Core Deluxe mkII delivers the full breadth of metal tones for hard rock to thrash.
Power supply 9Vdc (power adaptor required)
DC input connection DC5521 jack (for optional adaptor – pin-negative)
Current consumption <120mA Controls Gain, Master, Bass, Middle, Treble, Model switch Modes Duo Rect, Fireman, VH4 Input 6.3mm jack Output 6.3mm jack Input impedance 1M ohm Output impedance 1k ohm Dynamic range 104dB Dimensions 122 x 72 x 47mm Weight 270g
